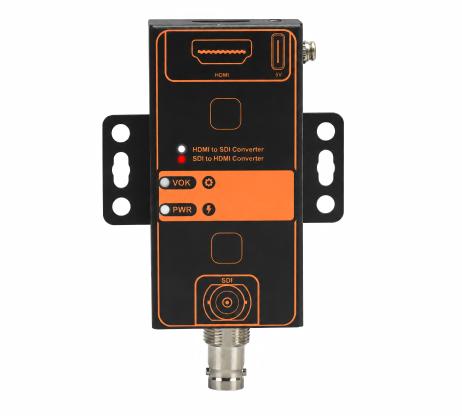

Lipstick Type 1-Channel 3G HD-SDI to HDMI Converter FC-056202

Lipstick Type 1-Channel 3G HD-SDI to HDMI Converter FC-056202

View : 349

Inquire Now

Model FC-056202

Description :

Overview

Model Number: FC-056202

This product is a 3G/HD/SD-SDI to HDMI signal converter designed specifically for broadcast and professional video production applications. Utilizing a highly integrated digital conversion chip in conjunction with a broadcast-grade serial processing chip, it enables the lossless conversion of a single SDI signal into an HDMI signal.

Features

● Low Jitter: Employs proprietary serialization technology to ensure output signal jitter is significantly lower than that of consumer-grade chips, enabling reliable SDI cable transmission over longer distances.
● Integrated 3G-SDI Deserializer and HDMI Transmitter: Supports Deep Color processing to ensure accurate color reproduction following video conversion.
● Signal Conditioning: Leverages Semtech’s GS2972 technology to perform clock recovery and drive enhancement on incoming SDI signals, thereby extending transmission distances for subsequent cascaded stages.
● Audio De-embedding: Automatically extracts embedded audio from the SDI stream and encodes it for HDMI output; supports multi-channel LPCM audio.
● Input Specifications: Automatically detects and identifies 3G/HD/SD-SDI signals.
● Output Specifications: 1x HDMI 1.4 output (for connection to monitors or televisions).
● Re-clocking: Features a built-in high-performance clock recovery circuit to effectively minimize signal jitter.
● Audio Synchronization: Performs real-time, simultaneous conversion of audio and video signals with zero latency.
● Resolution Support: Supports resolutions up to 1080p @ 60Hz (3Gbps).
● Industrial-Grade Protection:
Equipped with electrostatic discharge (ESD) protection and surge suppression capabilities, making it suitable for operation in demanding environments such as broadcast trucks and equipment rooms. Status Indicators: Features LED indicators for Power and Signal Lock status.
● Lightning Protection: The video interface provides Level 3 lightning protection, capable of passing ITU-T K.20 (10/700 µs) testing—specifically Common Mode: 6kV with a source impedance of 40 Ω.
● Power Supply: Supports 5V power input via a Type-C port.
● Fanless Design: Features highly efficient passive cooling to minimize downtime and maintenance requirements.
● Mounting Options: Supports both 35mm DIN rail mounting and wall mounting.

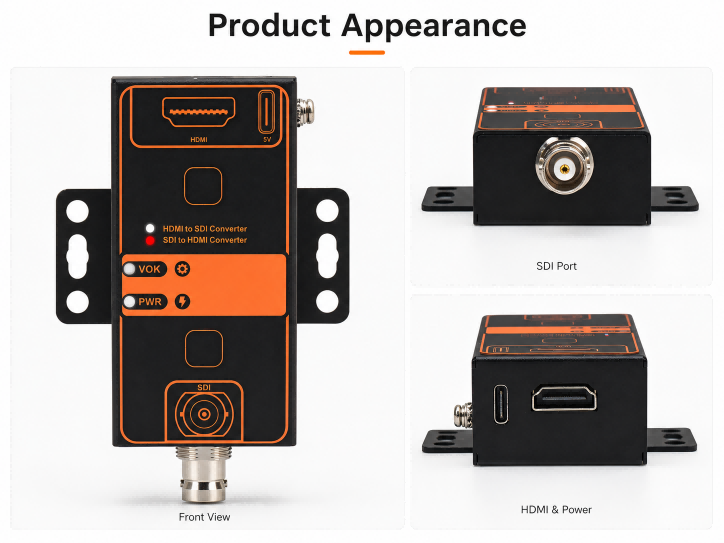

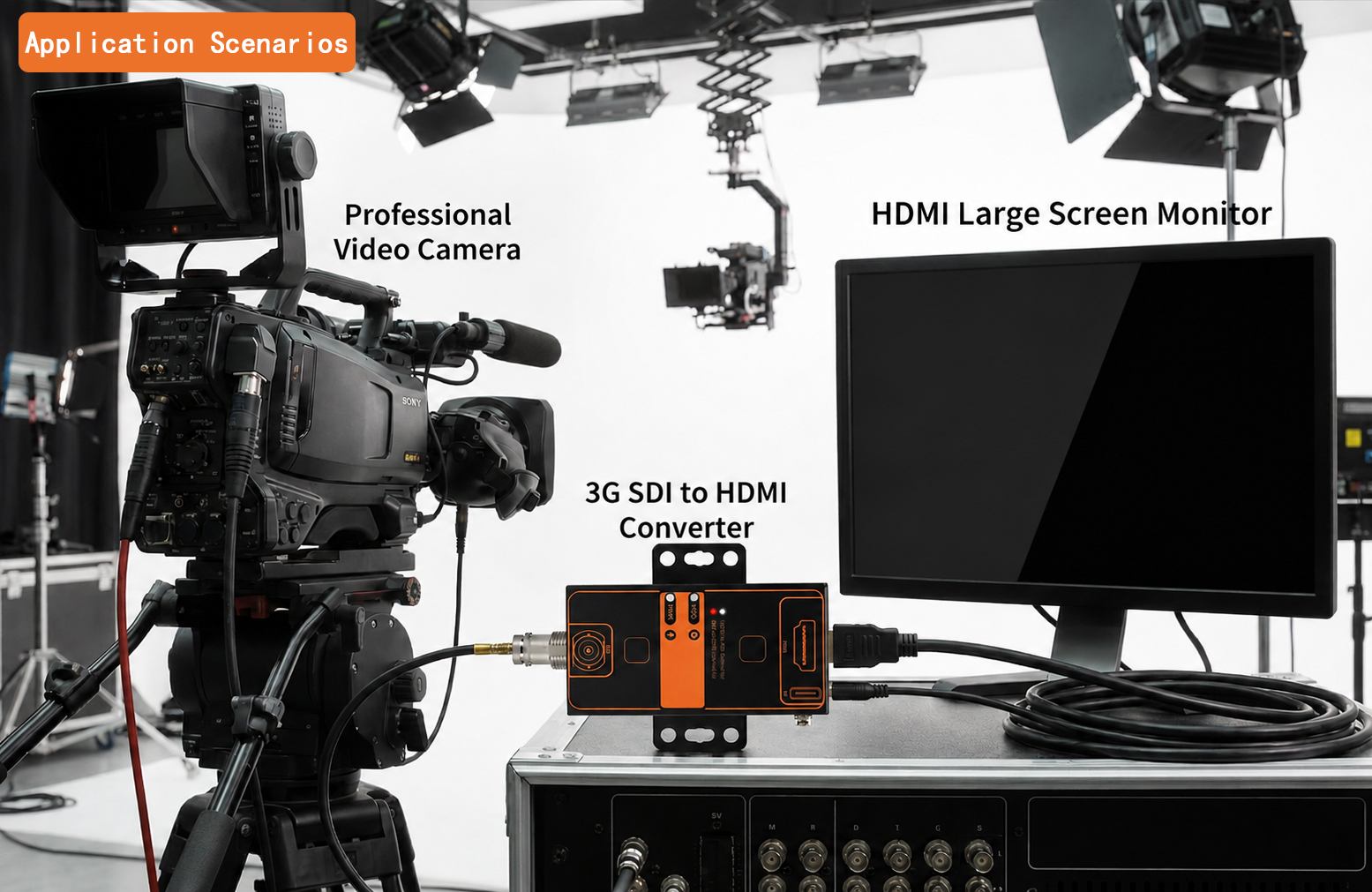

● Application Scenarios:
– Studio/Set Monitoring: Converts professional video camera SDI signals for monitoring on affordable, large-format HDMI displays.
– Broadcast & Media: Used for signal distribution and conversion within live broadcast studios.
– Security & Surveillance: Connects high-definition SDI surveillance cameras to HDMI-compatible recorders or monitors.

Parameters

Item	Parameter Details
Model Number	FC-056202
Input Interface	1 x BNC (SD/HD/3G-SDI)
Output Interface	1 x HDMI Type-A,
SDI Standard	SMPTE 424M(2.97Gbps/s), SMPTE 292M (1.485Gbps/s), SMPTE 344M (540Mb/s), SMPTE 259M(360Mb/s) and DVB-ASI(270Mb/s)
SDI Rate	2.970 Gbit/s, 1.485 Gbit/s, 270 Mbit/s
HDMI Versions	HDMI 1.4 / HDCP 1.2 Compatible
Support Resolution (SDI)	525i, 625i, 720p@24/25/30/50/60, 1080i@50/60, 1080p@24/25/30/50/60
Color Space	Input: YCbCr 4:2:2 / Output: RGB 4:4:4, YCbCr 4:4:4 / 4:2:2
Audio Output	Embedded HDMI 2.0/5.1/7.1-channel LPCM audio
Loop Output Quality	Equipped with re-clocking capabilities, the signal quality closely approximates that of the source signal.
Transmission Distance (Input)	3G: 100m, HD: 200m, SD: 300m (based on Belden 1694A cable)
Power Supply Solution	DC 5V/1A (Type-C Power Supply); Current < 500mA
Operating Temperature	-10°C ~ 60°C
Housing Material / Mounting	Metal Shielding Enclosure / Wall-Mount or DIN Rail Mount

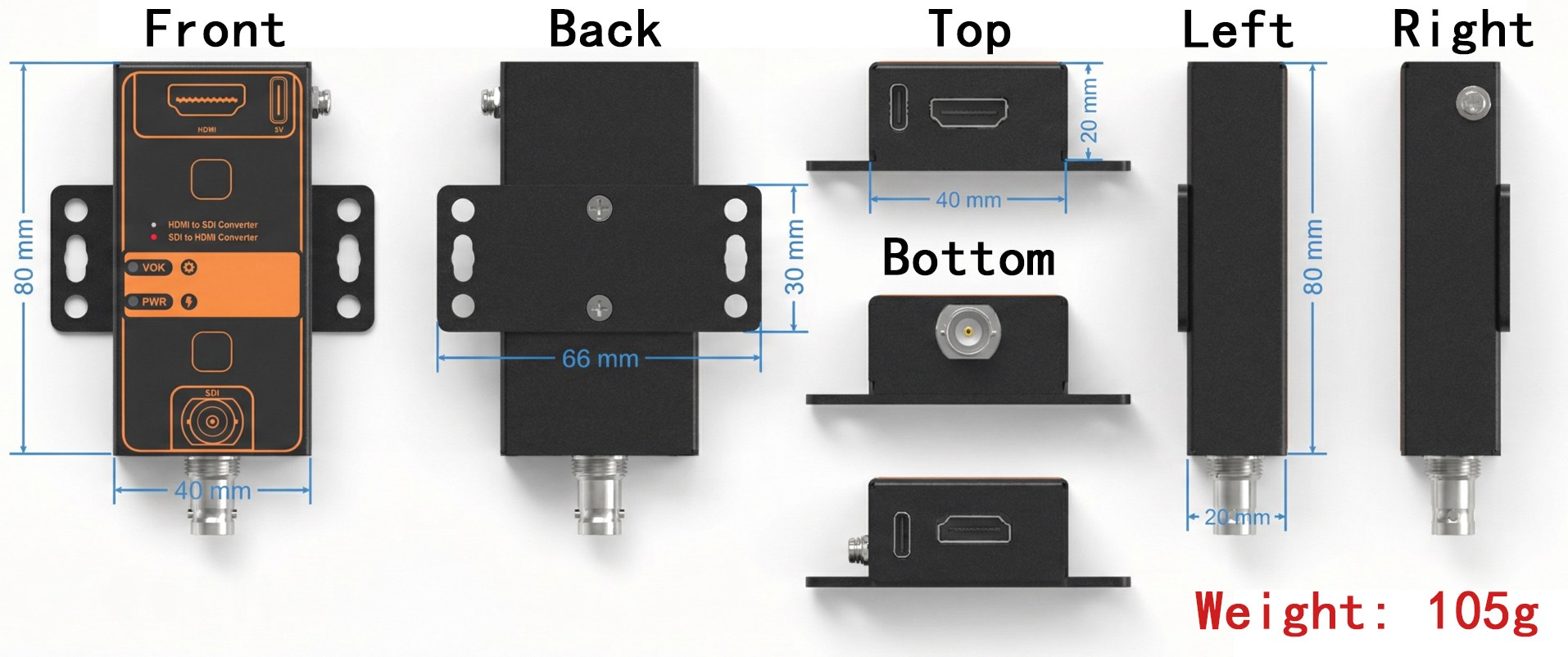

Product Dimensions	Dimensions: 80 mm (L) x 40 mm (W) x 20 mm (H)
Weight	0.011Kg/pcs
