Unmanaged Din-Rail 5-Port Fast Ethernet Switch

View : 547
Type : Unmanaged Din Rail Industrial Switch
Description :

This product is an industrial-grade 5-port 10/100Base-T switch with complete alarm function, stable and reliable operation, low power consumption, high integration, small size.

Overview

This product is an industrial-grade 5-port 10/100Base-T switch with complete alarm function, stable and reliable operation, low power consumption, high integration, small size, and can be mounted on 35mm rail or wall.

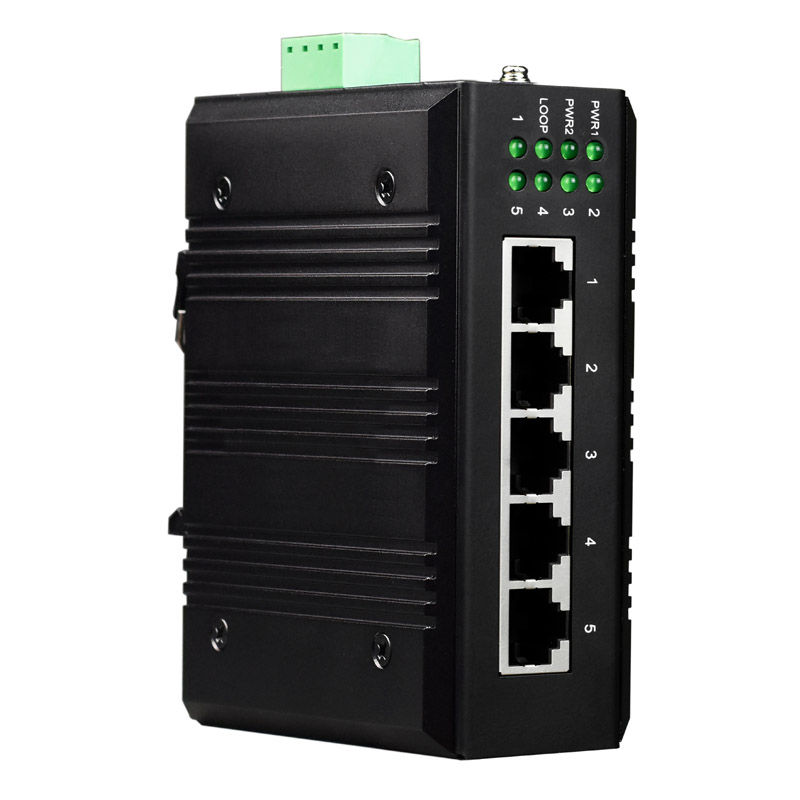

Industrial Rail 5 Port FE Network Switch

Features

The switch has an IP40 protection level for the enclosure, which is capable of withstanding harsh environments.

It provides 5 100 Mbps Ethernet ports that support the transmission of VLAN jumbo frames. It can be used in conjunction with switch products that support the IEEE802.1Q protocol.

The Ethernet interface (RJ45) supports 10/100M adaptive, full/half duplex mode, MDI/MDI-X automatic detection.

It features automatic loop detection for all ports and the ability to isolate the corresponding loopback port. Additionally, there are optional loop indicators available.

It has the functions of broadcast storm protection, balancing traffic, isolating conflicts, detecting errors, and self-resetting after crashing, and is suitable for large-traffic data applications such as video transmission.

The power supply of the device offers strong protection against lightning strikes, high voltage induction, surges, etc. It also has efficient fanless cooling, reducing repair time.

● When dual DC power supply (5.08 terminal):

  It can be powered by DC9-55V or AC7-50V wide-range power supply. The power supply has the function of polarity automatic detection, and there is no need to distinguish between positive and negative poles during installation;

  ● It supports internal isolation and redundant dual power inputs, with protection against reverse connection.

● When AC power supply (3-pin AC socket):

  It supports AC~85-265V AC, or DC110-300V DC wide-range input.

DIN 35mm rail mounting or wall-mounted.

Wide temperature type: working temperature -40℃~ +85℃.

Warranty period: 5 years.

Parameters

● 10/100/1000M Ethernet Interface

Protocol: Compliant with IEEE 802.3ab, IEEE 802.3z

Rate: 10/100 adaptive, full/half duplex adaptive

MAC address table: 4096 MAC addresses can be learned

Physical interface: RJ45 supports Auto-MDIX



● Environmental Index

Working temperature: -40℃—+85℃

Storage temperature: -40℃—+85℃

Working humidity: 0%—95% (non-condensing)

MTBF: >100,000 hours

Specifications

Product Model

FCM-F5

Function Description

5-port 100M Ethernet Switch

Port Description

5-port 100M Ethernet

Power Supply

DC power supply:

Redundant dual power input DC9-70V or AC7-50V, power consumption <5W

Overload protection: support; reverse polarity protection: support; redundant protection: support

Access terminal: 4-core 5.08mm pitch plug-in terminal

AC built-in power supply:

AC~85-265V AC, or DC110-300V DC wide range input, power consumption <5W

Overload protection: support;

Access interface: 3-pin AC socket

Product Size

(L×W×H) 110mm* 86mm*40mm

Installation method: DIN rail mounting, Wall-mounted

Weight

0.395KG/PCS
