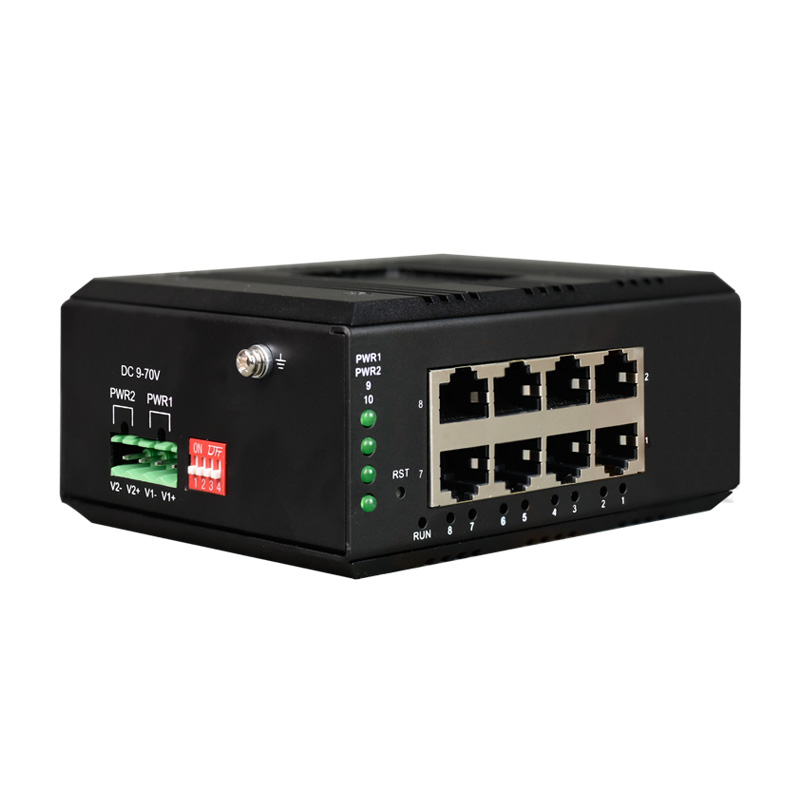

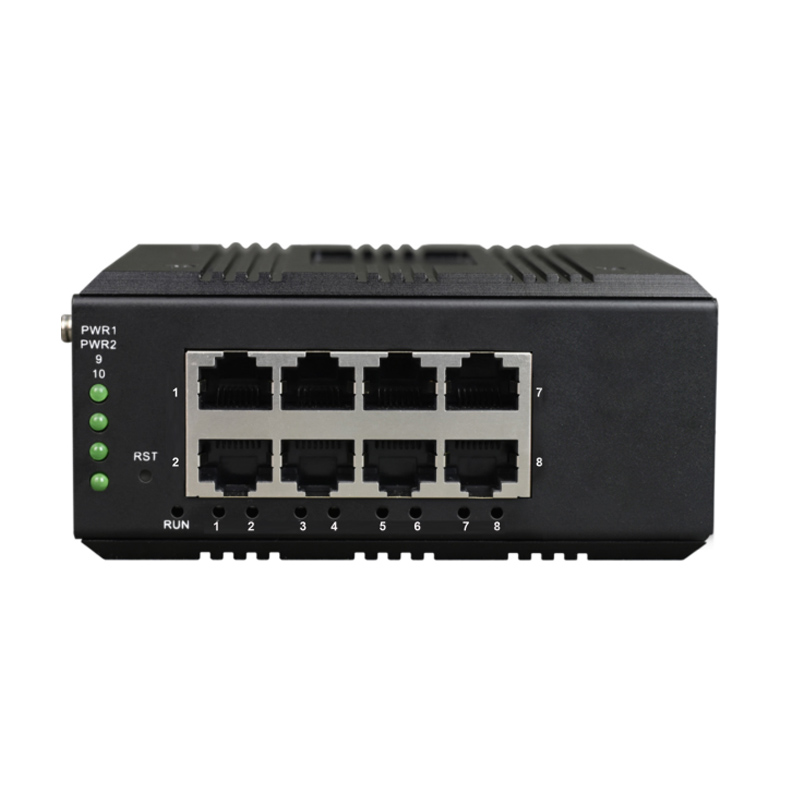

Managed Din-Rail 8-Port Gigabit Ethernet Industrial Switch

View : 1,195
Type : Managed Din Rail Industrial Switch
Description :

The industrial-grade 8*10/100/1000base-T ethernet switch is a smart industrial network-managed switch designed specifically for the security and surveillance field.

Overview

The industrial-grade 8*10/100/1000base-T ethernet switch is a smart industrial network-managed switch designed specifically for the security and surveillance field. It supports the IEEE 802.3D/W/S STP/RSTP protocols and has rich network management functions, providing stable and reliable ethernet transmission with high-quality design and reliability. It enables efficient bandwidth, reliable fiber-optic network solutions for Ethernet data exchange and aggregation.



It can withstand low and high temperatures, strong electromagnetic interference, salt spray, and shock resistance, and is equipped with redundant dual DC power supplies (9-70V), providing a redundant mechanism for critical devices that require a continuous connection. It supports DIN rail or wall-mounted installation, has an IP40 protection level, and is the perfect choice for harsh environments.

Features

The switch has an IP40 protection rating and an anodized aluminum alloy shell that can withstand harsh environments.

It provides 8 gigabit ethernet ports that support the IEEE802.1Q VLAN protocol and transmission of extra-long data packets up to 16K bytes. The switch supports high backplane bandwidth and large switching cache to ensure line-speed forwarding for all ports.

The ethernet port (RJ45) supports 10/100/1000M auto-adaptation, full/half duplex mode, and MDI/MDI-X auto-detection.

The switch has a built-in WEB network management system and supports IEEE 802.3D/W/S STP/RSTP ring network protocol.

It supports IEEE802.3/802.3u/802.3ab/802.3z/802.3x store-and-forward mode.

It supports IGMP Snooping V1/V2/V3, GMRP, IEEE 802.1Q 4K VLAN, and DSCP 8 queues.

The power supply has strong lightning protection capabilities, including protection against lightning strikes, high-voltage induction, and surge, and the device has efficient fanless heat dissipation to reduce repair time.

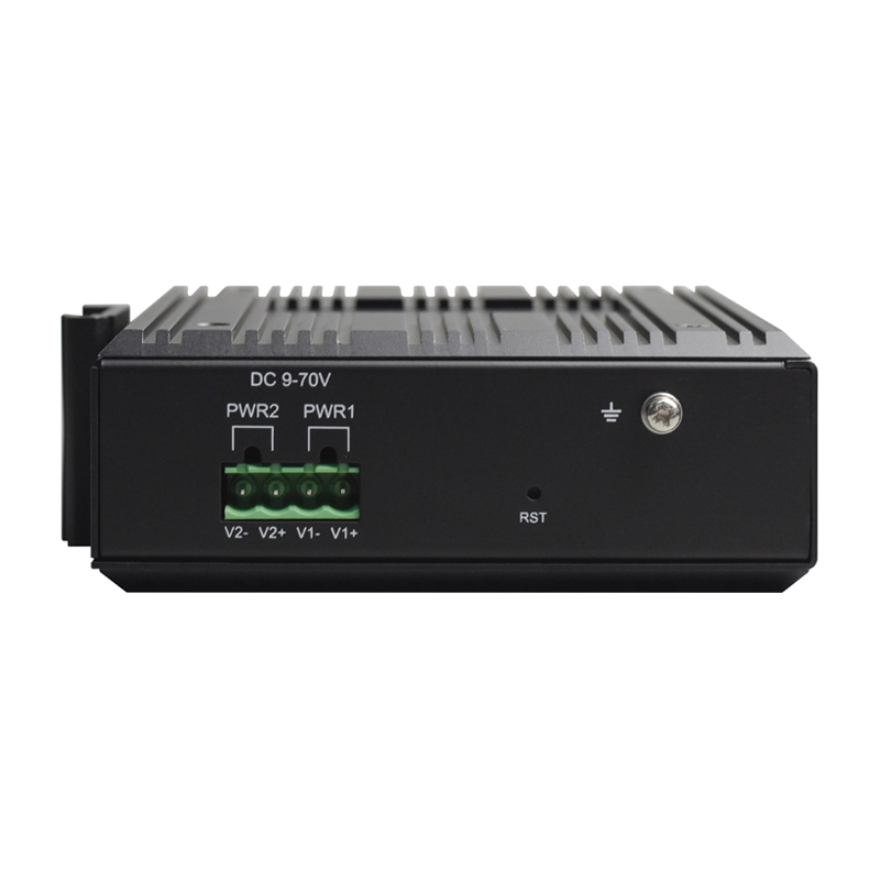

● When dual DC power supply (5.08mm terminal block)

  ♦ The device can be powered by a wide range of DC 9-70V or AC 7-50V, with automatic polarity detection that eliminates the need to distinguish between positive and negative poles during installation.

  ♦ It supports internal isolation, redundant dual power supply inputs, and reverse connection protection.

● When the AC power supply (three-pronged AC socket) :

  ♦ It supports a wide range of AC85-265V or DC110-300V that complies with industrial level-4 electromagnetic compatibility requirements.

The device has strong lightning protection capabilities, including protection against lightning strikes, high-voltage induction, and surge.

DIN 35mm rail mounting, or wall-mounted mounting.

Wide temperature range: working temperature -40 ℃ ~ + 85 ℃.

Warranty period: 5 years.

Parameters

● 10/100M Ethernet Interface

Protocol: comply with IEEE 802.3a, IEEE 802.3z

Rate: 10/100M adaptive, full duplex/half duplex adaptive

MAC Address Capacity: 4096

Physical Interface: RJ45, support Auto-MDIX



● Environmental Indicators

Operating temperature: -40 ℃ – +85 ℃

Storage temperature: -40 ℃ – +85 ℃

Humidity: 0% -95% (non-condensing)

MTBF:> 100,000 hours

Specifications

Product Model

FCT-G8M

Function Description

Management type 8 10/100/1000M Ethernet switch, industrial DIN-rail type

Port Description

8 ports 1000Mbit/s Ethernet

Power Supply

DC power supply:

Redundant dual power input DC9-70V or AC7-50V, power consumption <10W

Overload protection: supported; Backconnect protection: support; Redundancy protection: Supported

Access terminal: 4-core 5.08mm pitch insert terminal

AC built-in power supply:

AC85-265V, or DC110-300V DC wide input, power consumption <5W

Overload protection: supported;

Access interface: three-pronged AC socket

Product Size

Shell: IP40 protection grade, aluminum alloy material

Size: 110mm(length) x 86mm(width)x 50.5mm(height)

Mounting method: DIN railed mounting, wall-mounted

Weight

0.55Kg/PCS
