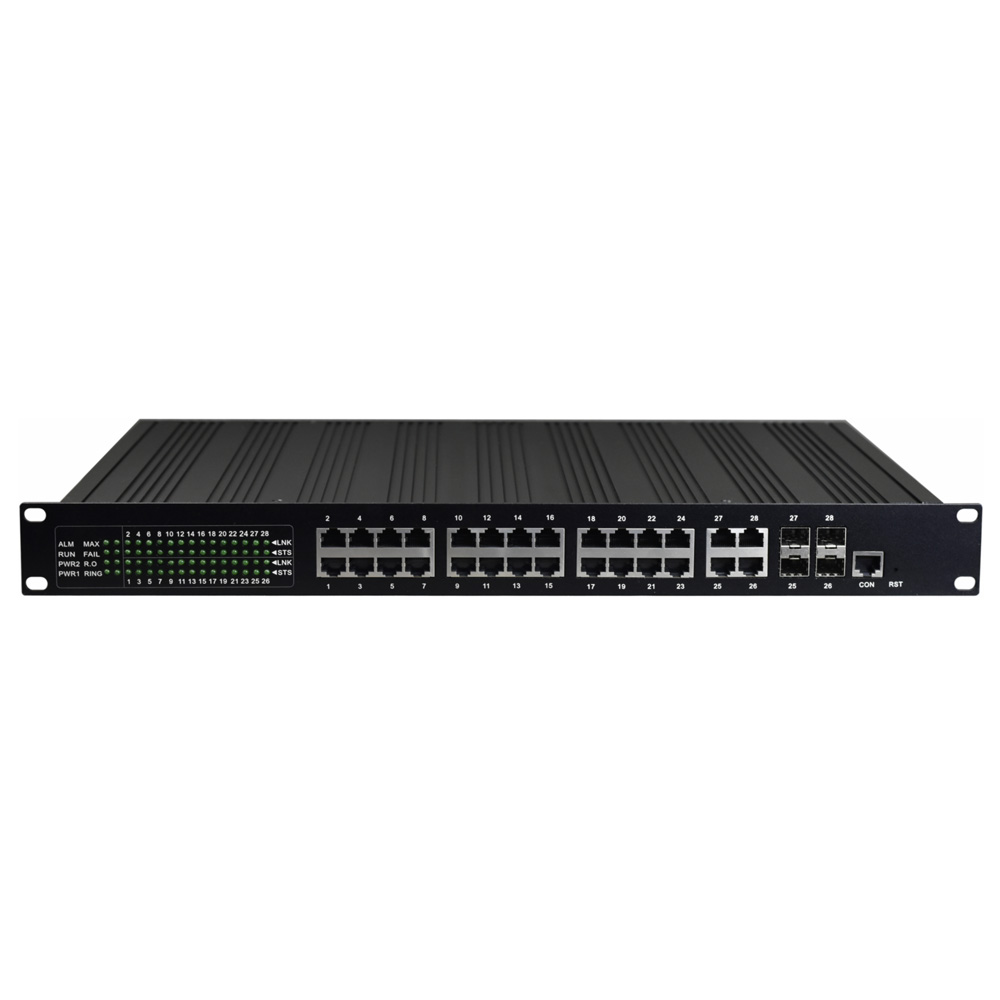

Managed 24-Port Gigabit Ethernet + 4-Port Gigabit SFP/Ethernet Industrial Switch

View : 421
Type : Managed Rackmount Industrial Switch
Description :

The industrial-grade 24+4 switch is a new generation of multi-service access ethernet switch with high integration, rich functions, and simplicity.

Overview

The industrial-grade 24+4 switch is a new generation of multi-service access ethernet switch with high integration, rich functions, and simplicity. It contains 24 gigabit ethernet ports and 4 gigabit optical-ethernet multiplexing ports, making it particularly suitable for applications with large data streams, such as video transmission. It supports a variety of layer 2 management protocols required for industrial switching applications and ITU G.8032 redundant ring network protocol, with a self-healing time of less than 20ms, ensuring the real-time and stable operation of the network.



The switch adopts mature technology and open network standards, and is designed to meet the rigorous working environment requirements of industrial sites, including low and high temperatures, strong electromagnetic interference, salt spray resistance, and shock resistance. It provides an efficient, reliable, and fast solution for the industrial Internet of Things.

Features

The switch comes with a 19-inch full aluminum alloy case with heat dissipation strips, good heat dissipation performance, gold oxide process, IP40 protection level, and it is designed for harsh industrial environments.

It supports 24 gigabit ethernet ports and 4 gigabit optical/ethernet COMBO ports.

Each ethernet or optical port supports standard ERPS ring network protocol, with a self-healing time of less than 20ms.

It supports port-based bandwidth limitation, port-based traffic control, and broadcast storm control.

It supports Web, CLI, and Telnet management.

It provides power failure alarm, loop alarm, and Console debugging.

It supports POE (POE+) devices.

Management functions:

  Support CLI, WEB, SNMP management methods.

  Support port-based ingress/egress rate limiting, half-duplex backpressure flow control, and 802.3X full-duplex flow control.

  Support broadcast, multicast, and unknown unicast storm control.

  Support IEEE 802.1Q 4K VLAN and QINQ.

  Support port mirroring, Syslog, Ping command, etc.

  Support COS, DSCP, 8 queues, and WRR, SP, WFQ scheduling modes, and policy QoS.

  Support port traffic statistics and online upgrades.

  Support STP/RSTP, MSTP, EAPS, and ERPS.

  Support IGMP Snooping V1/V2/V3 and GMRP.

  Support manual aggregation, and static/dynamic LACP protocols.

  Support relay alarm, RMON management, and TRAP alarm.

  Support DHCP Snooping, Option 82, and 802.1X.

  Support user-level management and ACL access control lists.

  Support DDOS, and port-based MAC filtering/binding.

The Ethernet interface comes with three-level lightning protection, which can withstand short-circuit current waves of 10/700μs and open circuit peak output voltages of 6KV according to GB/T17626.5(IEC61000-4-5) standards.

Multiple power supply options, including AC220V, DC-48V/DC+24V/ DC+12V, etc. It also supports dual power backup, such as AC+DC, AC+AC, DC+DC, etc.

Parameters

Supported Protocols

IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z, IEEE802.1d, IEEE802.1s, IEEE802.1w, IEEE802.1ax, IEEE802.1ak

Maximum Frame Length

10K

Ports

24*10/100/1000M RJ45 port, 4*10/100/1000M Ethernet + SFP combo port

Network Medium









1000Base-LX: Using long wavelength laser (1310nm) to cross multi-mode and single-mode fiber, the maximum transmission distance of multi-mode fiber is 550m and single-mode fiber is 10-24km.

1000Base-SX: The maximum transmission distance of 62.5μm multi-mode fiber is 275 m, and 50μm multi-mode fiber is 550m.

10Base-T: Cat3 UTP or higher UTP; (Max transmission distance 200m)

100Base-TX: Cat5 UTP; (Max transmission distance 100m)

1000Base-T: CAT-5E UTP or Cat6 UTP; (Max transmission distance 100m)

VLAN Address Capacity

4K

MAC Address Capacity

8K

Cache

4Mbits

Backplane Bandwidth

56Gbit

Filtering and Forwarding Rate





10Mbps: 14880pps

100Mbps: 148800pps

1000Mbps: 1488000pps

Working Environment



Storage temperature: -20℃~70℃; Storage humidity: 5%~90% Non condensing

working temperature: -40℃~85℃; Working humidity: 10%~90% Non condensing

Power Supply

Input: 90-264VAC, 50-60HZ

Consumption

≤30W

Specifications

Model

FCM-G24FG4

Function

Managed 24*Gigabit Ethernet + 4* Gigabit Ethernet/*Gigabit SFP Combo Network Switch, built-in power supply

Ports

24*gigabit ethernet ports, 4*gigabit optical ports/4*gigabit ethernet ports, 1 Console port

Power

AC220V or DC-48V (optional), Support redundant power backup

Dimension

(L×W×H) 485*300*45mm rack mount type

Weight

3.6Kg/piece
