This industrial grade 8-port din rail mounted ethernet switch has a perfect alarm function, and it features stable and reliable operation, low power consumption, high integration, and small size.
- Product Search Guide: space = AND, | = OR, ! = NOT

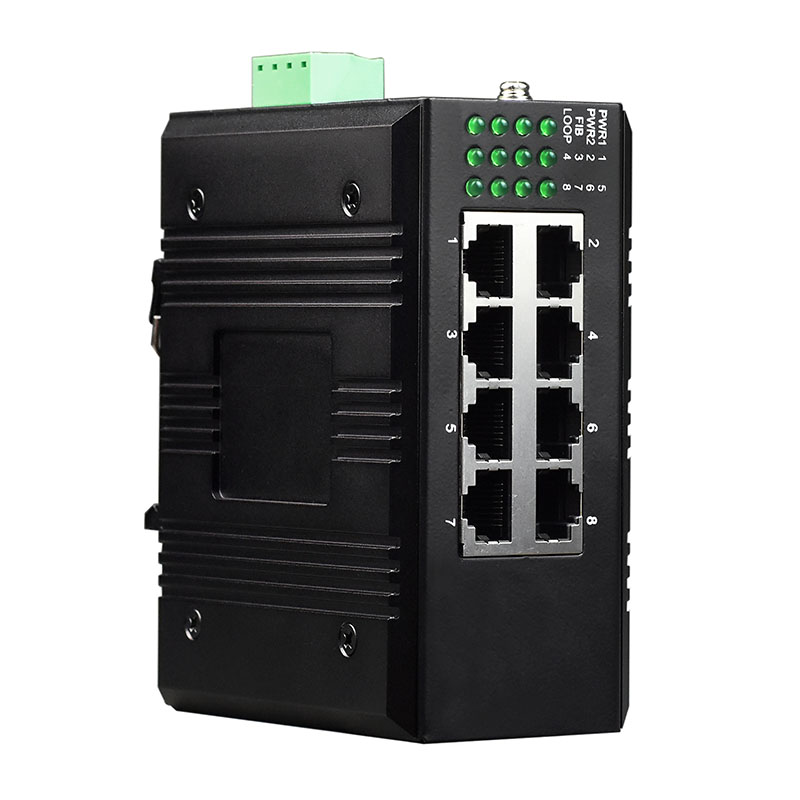

8-Port Unmanaged Din Rail Mounted Ethernet Switch
Model
FCM-F8
Description :
This industrial grade 8 ports 10/100Base-T network switch has a perfect alarm function, stable and reliable operation, low power consumption, high integration, and small size.
Overview
Features
● The device features an IP40 protection rating, making it capable of withstanding harsh environments.

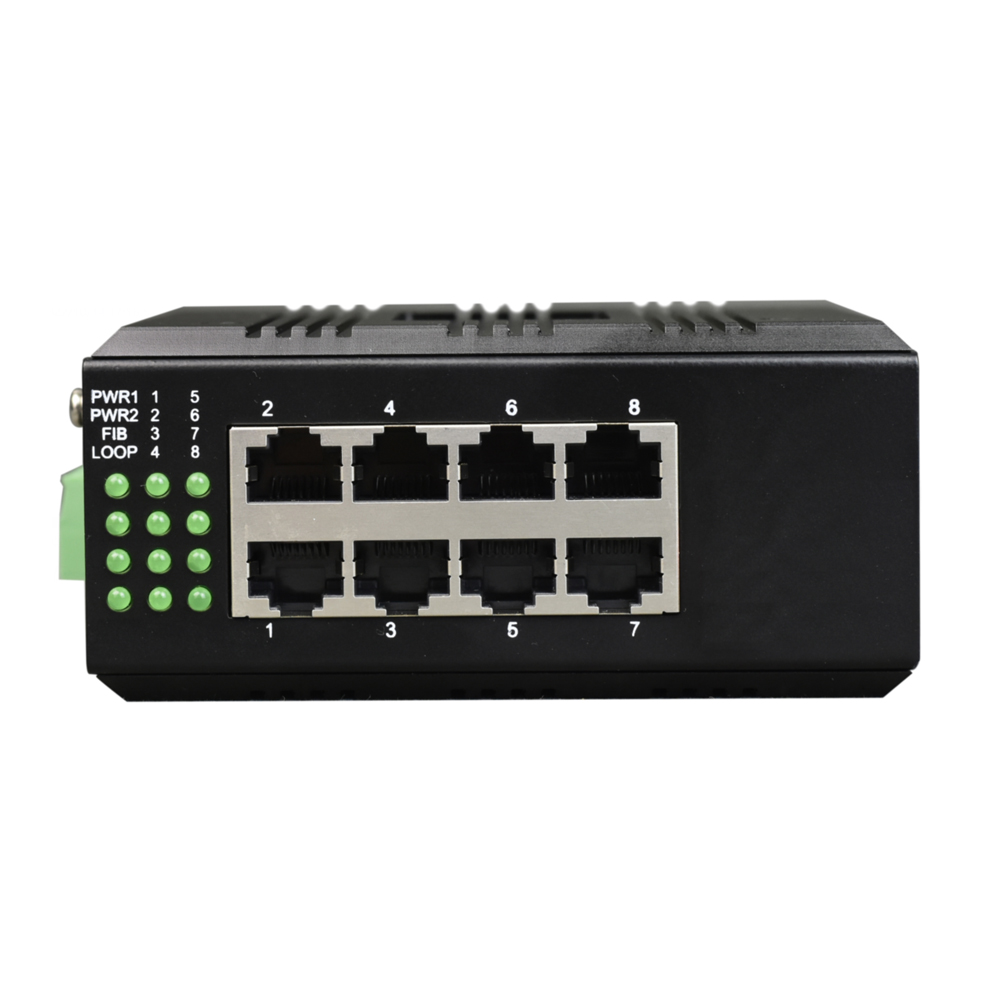

● It provides 8 fast ethernet ports and supports the transmission of VLAN extended frames, making it compatible with switch products that support the IEEE802.1Q protocol.
● The ethernet port (RJ45) supports 10/100Mbps auto-negotiation, full/half duplex mode, and MDI/MDI-X auto-detection.
● It features functions such as broadcast storm protection, load balancing, conflict isolation, error detection, and automatic recovery from system crashes, making it suitable for large data applications such as video transmission.
● The power supply supports strong lightning protection functions, including lightning strike protection, induction high voltage resistance, and surge protection. The device also employs a fanless design for efficient heat dissipation, reducing repair time.
● When powered by dual DC inputs (5.08mm terminal block)
♦ This din rail mounted ethernet switch can accept a wide range of power supply voltage from DC 9-55V or AC 7-50V, with automatic polarity detection and no need to distinguish between positive and negative poles during installation.
♦ This din rail mounted ethernet switch supports internal isolation and redundant dual power inputs, as well as reverse connection protection.

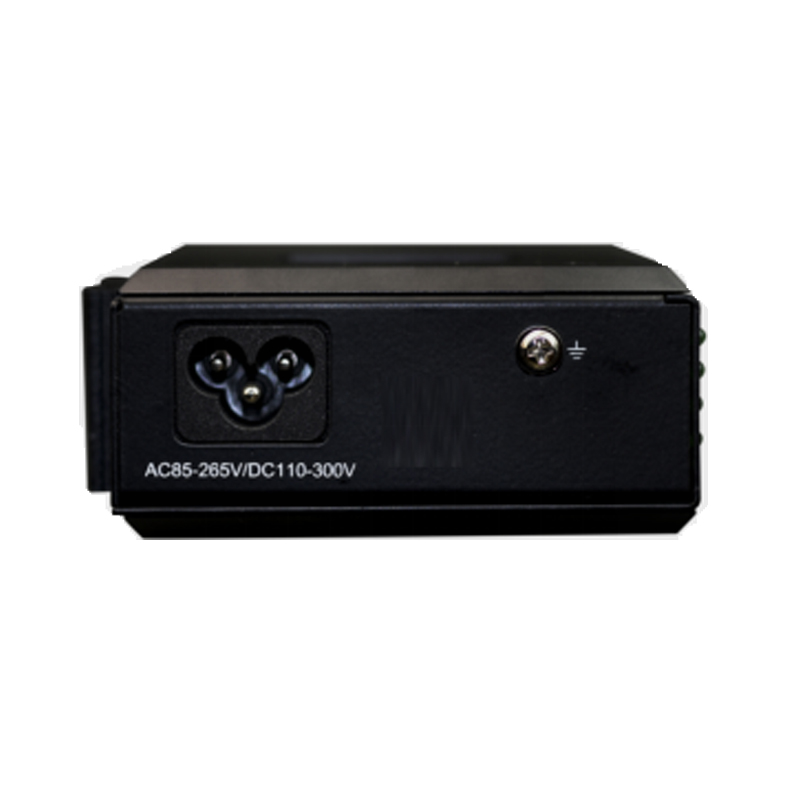

● When powered by AC input (three-pronged AC socket):
♦ It supports AC 85-265V or DC 110-300V, with a wide range of industrial-grade electromagnetic compatibility requirements.

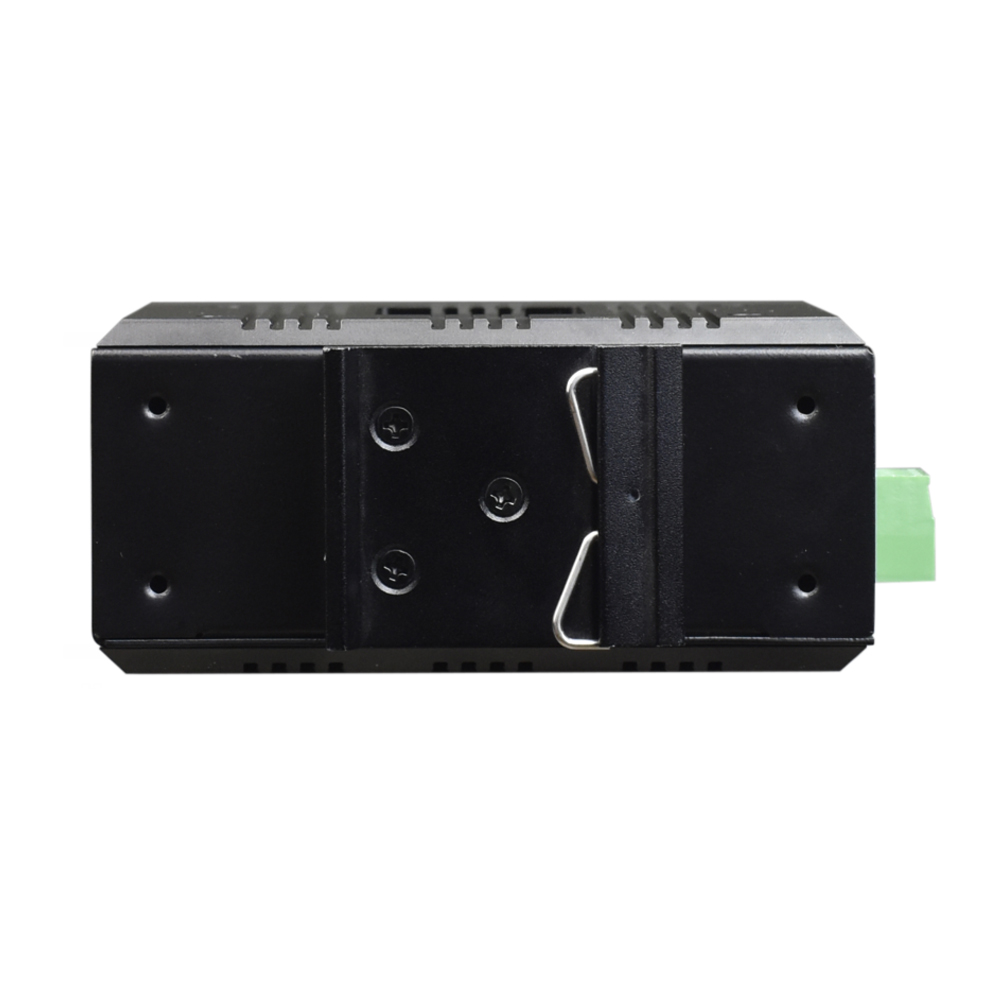

● DIN 35mm rail mounting and wall mounting.
● Working temperature: 40 ℃ ~ + 85 ℃.
● Warranty period: 5 years.
Parameters
● 10/100M Ethernet Port
Protocol: comply with IEEE 802.3a, IEEE 802.3z
Rate: 10/100M adaptive, full duplex/half duplex adaptive
MAC Address Capacity: 4096 MAC addresses
Physical Interface: RJ45, support Auto-MDIX
● Environmental Indicators
Operating temperature: -40 ℃ – +85 ℃
Storage temperature: -40 ℃ – +85 ℃
Humidity: 0% -95% (non-condensing)
MTBF: > 100,000 hours
Specifications
|
Product Model |
FCM-F8 |
|
Port Description |
8 port 100 Mbit/s Ethernet |
|
Power Supply |
DC power supply: Redundant dual power input DC9-70V or AC7-50V, power consumption <5W Overload protection: supported; Backconnect protection: support; Redundancy protection: Supported Access terminal: 4-core 5.08mm pitch insert terminal AC built-in power supply: AC~85-265V AC, or DC110-300V DC wide input, power consumption <5W Overload protection: supported; Access interface: three-pronged AC socket |
|
Product Size |
Size: 110mm(length) * 86mm(width)* 50mm(height) Mounting method: DIN railed mounting, wall-mounted |
|
Weight |
0.495Kg/PCS |
Related Products
Documentation and project verification — FCM-F8
Before ordering or wiring, confirm the exact model and configuration, interface pinout, optical or network compatibility, power input and installation conditions. Optional configurations are not interchangeable.
Browse FCTEL technical documents · Request the current model-specific datasheet and wiring diagram
