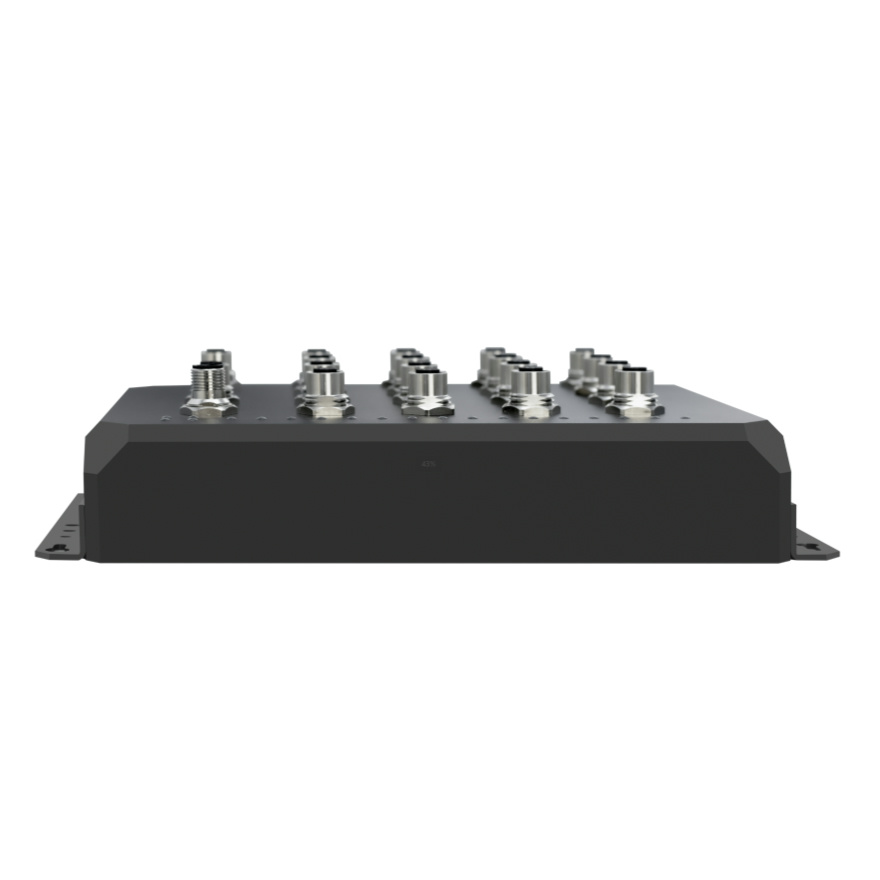

M12 IP68 Protection Managed 16*Gigabit Ethernet Switch

M12 IP68 Protection Managed 16*Gigabit Ethernet Switch

1,902 +6

Inquire Now

Model FCM-078850

Description :

Overview

This series of products adopts industrial rail design. The 16K electrical port switch is a new generation of multi-service access network management Gigabit redundant Ethernet switch with high integration, rich functions, simple and convenient features, representing the highest level in the industry. It contains 16 Gigabit electrical ports, which is particularly suitable for occasions with large data flows such as video transmission. It supports the Layer 2 management protocol required for a variety of industrial switch applications.

The electrical port supports the ITU G.8032 redundant ring network protocol, forming cascade mode, single ring, tangent ring network and other topological structures. The self-healing time is <20ms, which ensures the real-time and stability of the network. It is widely used in vehicle-mounted PIS, vehicle-mounted CCTV, vehicle-intercepted surveillance video, rail transit and other fields;

Features

● All-aluminum alloy CNC machined housing, good heat dissipation characteristics, gold oxide oxidation process, IP68 protection level;

● 16-way Gigabit electrical port interface, using M12 aviation connector to ensure a firm connection, and can work reliably under environmental interference such as vibration and impact. Support port bandwidth limitation, port flow control, broadcast storm suppression;

● Can support POE (POE+) devices, each PoE port can provide 15.4/30W power output;

● Management function:

CLI (Console), WEB, SNMP, Telnet management methods

Port speed limit based on ingress/egress, support half-duplex back pressure flow control and 802.3X full-duplex flow control

Storm suppression based on broadcast, multicast, unknown unicast

IEEE 802.1Q 4K VLAN, support QINQ

Port mirroring, support Syslog, support Ping command, etc.

COS, DSCP, 8 queues, support WRR, SP, WFQ scheduling mode, policy QOS

Port flow statistics, online upgrade

Each electrical port supports standard ERPS ring network protocol, self-healing time is less than 20ms; support STP/RSTP, MSTP

IGMP Snooping V1/V2/V3, support GMRP

Manual aggregation, support static/dynamic LACP protocol

One-way relay alarm, support power-off alarm, support RMON management, TRAP alarm

DHCP Snooping, Option 82, support 802.1X

User hierarchical management, support ACL access control list

DDOS, support port-based MAC Filtering/binding

● The Ethernet interface has lightning protection, which meets the GB/T17626.5 (IEC61000-4-5) short-circuit current wave 10/700μs, open-circuit peak output voltage 6KV standard;

● Wide range AC and DC input (9V-48V), internal isolation, redundant dual power input, power supply supports overload protection and anti-reverse connection protection;

● Meets the requirements of industrial level 4 electromagnetic compatibility;

● Super lightning protection function: lightning protection, anti-inductive high voltage, anti-surge, etc., fanless and efficient heat dissipation, reducing repair time;

● IP68 shell protection level, can withstand the test of harsh environment, wall-mounted installation;

● Wide temperature type: working temperature -40℃~ +85℃;

Specifications

Model	FCM-078850
Supported protocols	IEEE802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE802.1q、IEEE802.1p、IEEE802.1z、IEEE802.1d、IEEE802.1s、IEEE802.1w、IEEE802.1ax、IEEE802.1ak
Max frame length	10K
ports	16 10/100/1000M M12 electrical ports, 8-core A-Code M12 interface
Network media	10Base-T: UTP of Category 3 or above; (support the maximum transmission distance of 200m)
	100base TX: type 5 UTP; (supporting maximum transmission distance of 100m)
	1000BASE-T: Cat-5e UTP or category 6 UTP (supporting maximum transmission distance of 100m)
VLAN address table	4K
MACaddress	8K
cache	4Mbits
backplane bandwidth	56Gbit
Filtering and forwarding rate	10Mbps：14880pps
	100Mbps：148800pps
	1000Mbps：1488000pps
Usage environment	Storage temperature: – 40 ℃ – 85 ℃; storage humidity 0% ～ 90%, no condensation
	Working temperature: – 40 ℃～ 85 ℃; working humidity 0% ～ 90%
MTBF	＞100,000 hours
power	Redundant dual power input dc9-48v Overload protection: support; reverse protection: support; redundancy protection: support Access terminal: 4-core A-Code M12 interface
Power consumption	Power consumption: Maximum 12W (without POE)
Console port	1 M12 Console port, 4-pin A-Code, 1-4pin: RST, GND, TXD, RXD, When RST is short-circuited to ground and the power is turned on again, the system will be restored to factory settings
Alarm output port	1 M12 4-pin A-Code, 1-4pin: NC, NC, R1_1, R1_2
Electrical and mechanical characteristics	Aluminum alloy CNC appearance structure: 230mm (length) x 170mm (width) x 44.0mm (height), IP68 protection 6 (completely prevent foreign objects and dust from entering), 8 (the appliance can be submerged indefinitely under the specified water pressure to ensure that it will not be damaged by water immersion)
Weight	1.2Kg/piece
