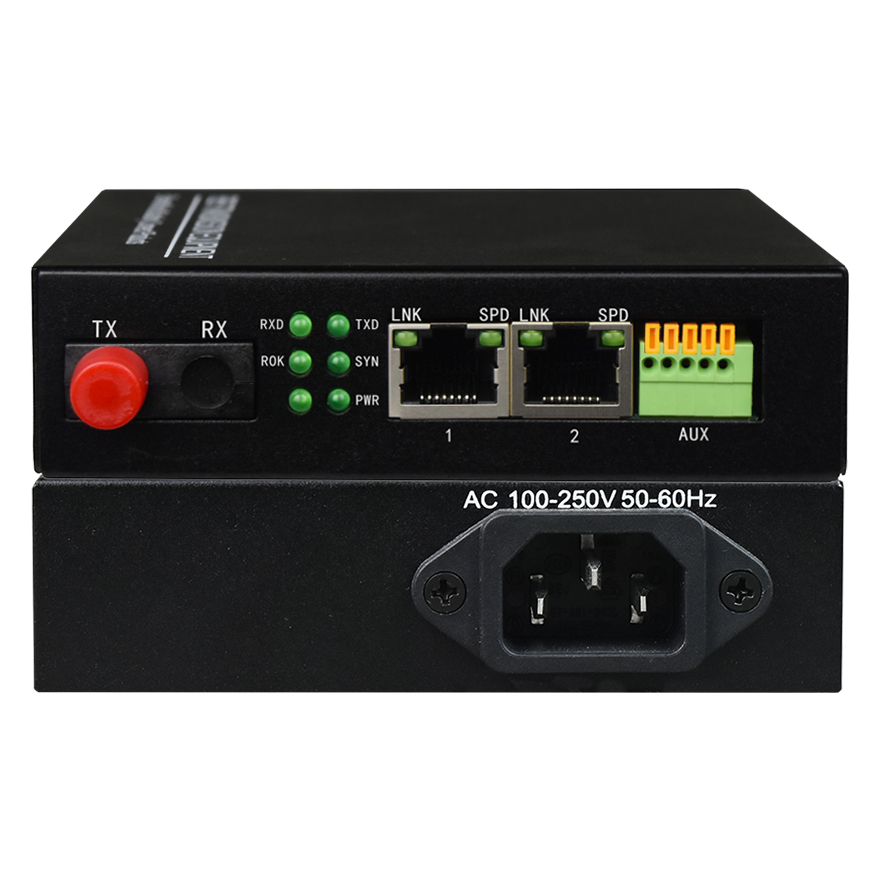

1-2*FE POE Fiber Transceiver

View : 173
Type : POE media converter
Description :

This series of products is Ethernet IEEE802.3 media converter, can achieve the conversion or extension of network transmission between 1-2*10/100Base-T twisted pair and 100Base-FX optical fiber media, mainly used in optical network long distance 20/40/60/80/120 km) transmission.

Overview

This series of products is Ethernet IEEE802.3 media converter, can achieve the conversion or extension of network transmission between 1-2*10/100Base-T twisted pair and 100Base-FX optical fiber media, mainly used in optical network long distance 20/40/60/80/120 km) transmission. The Ethernet port provides IEEE802.3af / at powering capability to power other devices such as wireless access points (APs) over Category 5 Ethernet lines or IP phones.


Features

Automatically adapt to 10/100Mbps environment, easy to upgrade with different networks;

Transceiver with crash monitoring and self-reset and other functions, long-term work in the large flow of video transmission environment does not crash, greatly reducing the workload on equipment maintenance;

Transceiver built-in high-capacity high-speed cache, the backplane switching bandwidth of 1.4G, to avoid IP cameras in the rainy night road car lighting reflections and other monitoring images rapidly changing circumstances caused by the frame burst transmission Caton phenomenon;

Support for the transmission of long data packets in VLAN and support Ethernet packets up to 1552 bytes or more for some Jumbo Frame network image transmission protocols;

Support full duplex and half duplex network communication, with auto-negotiation capability, electric interface MDI / MDI-X adaptive No manual adjustment to facilitate on-site line;

Support IEEE 802.3az energy-saving protocol, low power consumption, low heat, can work stably for a long time;

Supports Power over Category 5 Ethernet APs and surveillance cameras;

1-2 Ethernet supports standard IEEE802.3af / at power supply; Each port can be sufficient power output 15.4W (IEEE802.3af), at 25.5W (IEEE802.3at);

Ethernet interface with three lightning protection, lightning protection to GB / T17626.5 (IEC61000-4-5) short-circuit current wave 10 / 700μs, open peak output voltage 6KV standard;

Parameters

● Ethernet optical interface

Working wavelength: 1310nm, 1490nm, 1550nm

Rate: 100M, full duplex or half-duplex mode

Protocol: Supports IEEE 802.3, IEEE 802.1Q (VLAN)

MAC Address Table: You can learn 4096 MAC addresses

Physical Interface: FC / SC / ST / LC

The distance over which the fiber is transported is limited by the loss of the optical path and the additional loss due to the connection terminals, connectors, patch panels. The transmission distance may also be limited by the bandwidth of the optical fiber.

● 10/100M Ethernet interface

Protocol: Complies with IEEE 802.3, IEEE802.1Q (VLAN)

Rate: 10 / 100M adaptive, full / half duplex fully adaptive MAC

Address Table: You can learn 8K MAC address

Physical interface: RJ45 seat, support Auto-MDIX (cross / straight line adaptive)

● Ethernet POE features

PoE standard: IEEE 802.3af / at

PoE Type: End Crossing Method (optional

intermediatebridging method)

PoE Port Features: Port output power 15.4W /

25.5W

PoE transmission core: 1/2 +, 3/6-pair (optional 4/5

+, 7/8-pair)

● Environmental indicators

Operating temperature: -10 ℃ – +60 ℃

Storage temperature: -40 ℃ – +85 ℃

Humidity: 0% -95% (non-condensing)

MTBF:> 100,000 hours

Specifications

Product number

FCM-F1-AF/AT  FCM-F2-AF/AT

Product Function Description

1-2*FE POE fiber optic transceivers that support IEEE802.3af or IEEE802.3at full power supply

Business port description

2 Fast Ethernet electrical interface; 1 Fast Ethernet Fiber interface

power supply

AC220V or DC-48V (optional power supply), support for redundant power backup

Product Size

(L × W × H) 140 * 110 * 30mm Desktop

weight

0.5Kg / PCS

Application
