Industrial 1 Channel TTL to Ethernet Converter | Serial to Ethernet Module

View : 30
Type : Serial to Ethernet Converter
Description :

This serial server module can enable serial devices to have networking capability and manage scattered serial devices and hosts through the network.

Overview

This industrial serial server module can enable serial devices to have networking capability immediately, and can centrally manage scattered serial devices and hosts through the network. This product supports 1 channel of TTL to 1 channel of 100M Ethernet, can be connected with RS232/422/485 interface, and the interface type can be set on the WEB interface.



The serial port server supports a variety of network protocols, such as TCP, UDP, ARP, ICMP, HTTP, DNS, DHCP, and SNMP protocols; it has complete management functions, supports access control, quick configuration, online upgrade, etc.; each serial port supports 4 channels of TCP Or UDP session connection, support Modbus TCP, TCP Server, TCP Client, UDP Server, UDP Client, and other working modes; support WEB access mode. In addition, the management and configuration tool based on the Windows platform provided can guide users to manage and configure the device step by step, and realize the immediate networking of serial devices through simple settings. The interface design of the network management system is friendly, and the operation is simple and convenient, which can bring you a good user experience.



The hardware has passed strict tests in line with industry standards, and can adapt to the industrial field environment with strict requirements on EMC, and can be used in many embedded network control application products;

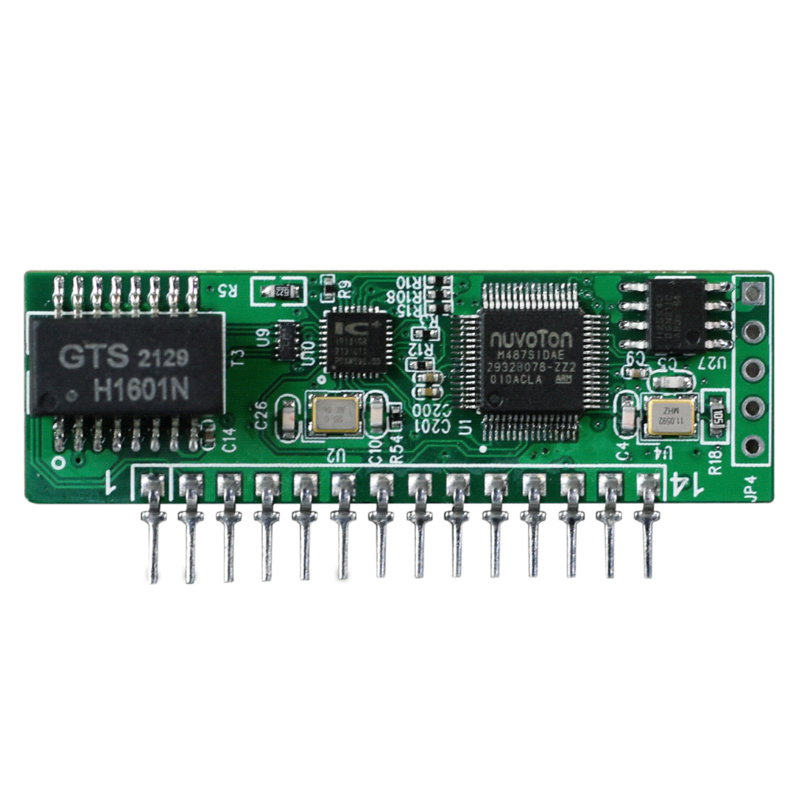

ttl/serial to ethernet converter module

                                                                                                                                                           Height: 10.2mm

Features

MCU adopts ARM Cortex-M4, main frequency 192MHz processor;

The module adopts 14-pin single-row 2.54mm pins, which is convenient for installation;

Support 1-channel 100M Ethernet; Ethernet supports 10/100Base-T(X) adaptive Ethernet interface; supports Auto-Nego Full&half duplex, supports automatic cross-line detection (MDI/MDIX);

At the same time, it provides 1 channel of TTL, the interface supports RS232/422/485 serial port, supports 300bps-921600bps line speed non-blocking communication, supports automatic scanning and matching of baud rate, and supports customer-defined baud rate;

Support Modbus TCP, TCP Server, TCP Client, UDP Server, UDP Client, and other working modes;

Complete the transparent conversion from Modbus-RTU to Modbus-TCP, and realize the reading of serial device data through the network;

Support serial port status and serial port parameter monitoring, the communication status is clear at a glance;

Support gateway and cross-routing communication; support virtual serial port drive access mode and automatic recovery connection function after network interruption;

Flexible serial port data frame setting to meet various subpackage needs of users;

Support standard TCP/IP SOCKET application program access, TCP supports multiple connections, satisfying the simultaneous monitoring or management of serial devices by less than 4 users;

Support single-machine or multi-machine communication in UDP mode, satisfying multiple users to monitor or manage serial devices at the same time;

Support various configuration forms such as Windows configuration tools, Telnet, and WEB, and support SNMP network management;

Support local and remote system firmware upgrades;

Module +3.3V power supply, total current <400mA, etc.;

The Ethernet interface provides a 3-level lightning protection function, and can pass the test of ITU-T K.21 (10/700μS), common mode: 4KV, impedance (40Ω);

Wide temperature type: working temperature -40℃~ +85℃;

All models have passed the 100% oven test;

Parameters

● 10/100M Ethernet Interface

Protocol: Compliant with IEEE 802.3ab, IEEE 802.3z

Rate: 10/100M adaptive, full/half duplex adaptive

MAC address table: 4096 MAC addresses can be learned

Physical interface: RJ45 supports Auto-MDIX



● TTL Interface

TTL Signal: RXD, TXD, GND, nCTS, nRTS



● Environmental Index

Working temperature: -40℃—+85℃

Storage temperature: -40℃—+85℃

Working humidity: 0%—95% (non-condensing)

MTBF: >100,000 hours

Specifications

Pin Definition:

Pin

Name

Description

1

LAN_1

Connect to 1 pin of RJ45

2

LAN_2

Connect to 2 pin of RJ45

3

LAN_3

Connect to 3 pin of RJ45

4

LAN_6

Connect to 6 pin of RJ45

5

LED_ACT

Ethernet Link/Act signal light, Link is on, data is flashing

6

LED_SPD

The SPD signal light of Ethernet, light on is the  100M network, the light off is the 10M network

7

LED_LOK

Indicator light, the light on means that the TCP or UDP serial port protocol is connected

8

LOD_DEF

It is low level when powered on, and the internal parameters of the module are restored to factory settings

9

nCTS

TTL handshake signal for RS232 and RS485 flow control

10

nRTS

TTL handshake signal for RS232 flow control

11

RXD

TTL data reception, input

12

TXD

TTL data transmission, output

13

+3.3V

+3.3V power supply, needs more than 400MA

14

GND

Power and signal ground
