USB 3.0/2.0/1.1 over Fiber Optic Extender & Hub

View : 1,578
Type : USB over Fiber Extender
Description :

The usb 3.0/2.0/1.1 over fiber extender consists of a transmitter and a receiver, which extend the USB 3.0 interface of the host computer to a remote location and expand it to 4 USB ports.

Overview

This device consists of a transmitter and a receiver, which extend the USB 3.0 interface of the host computer to a remote location and expand it to 4 USB ports by using single-mode or multi-mode fiber optic. The maximum transmission distance is 200m (single-mode fiber). It supports USB 3.0 high-speed devices such as cameras, hard drives, printers, scanners, audio devices, touchscreens, and game controllers, and is backward compatible with USB 2.0/USB 1.1. The device can be applied in various fields such as video conferencing, multimedia information dissemination, government departments, medical systems, commercial displays, multimedia function halls, security monitoring, and public utilities.

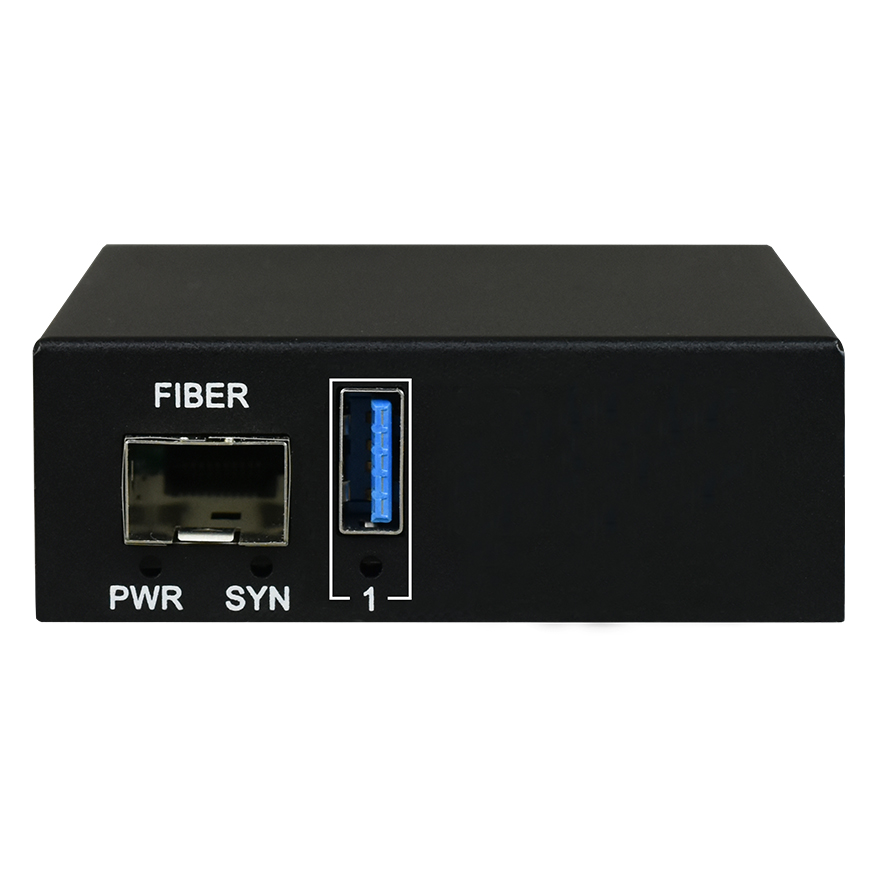

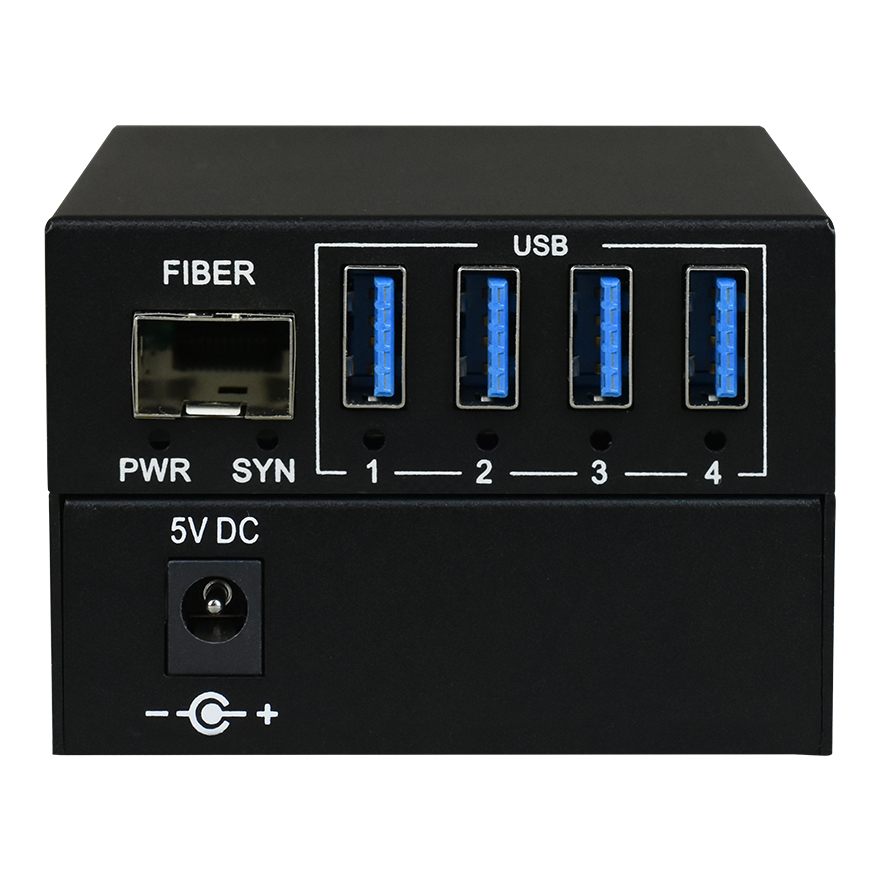

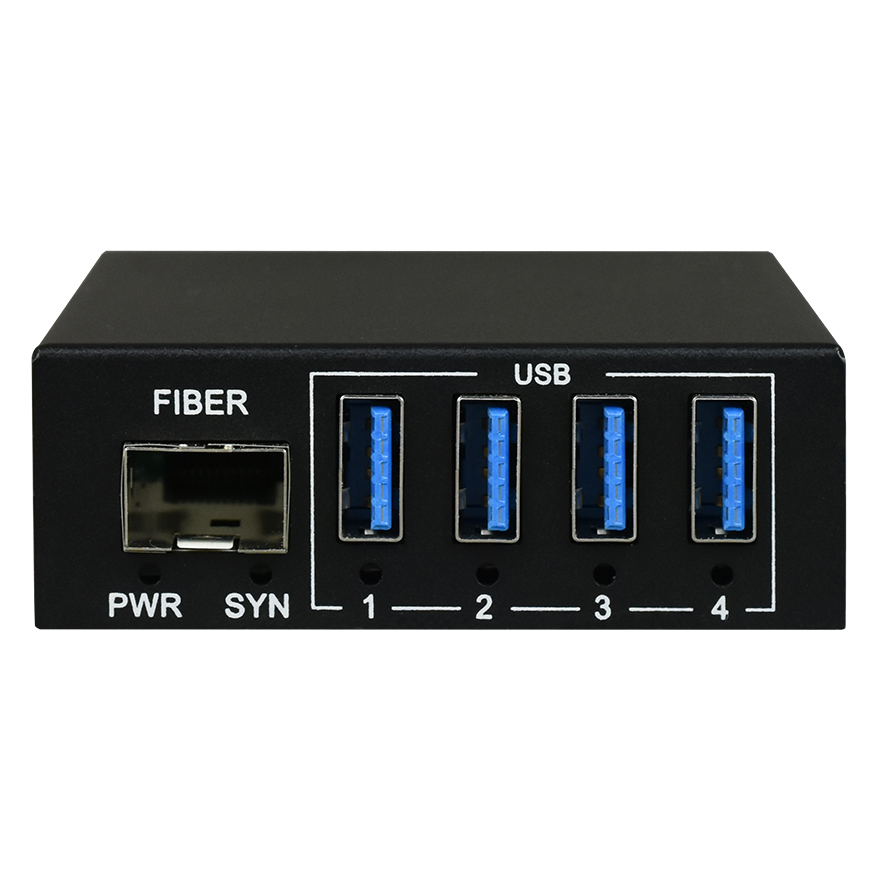

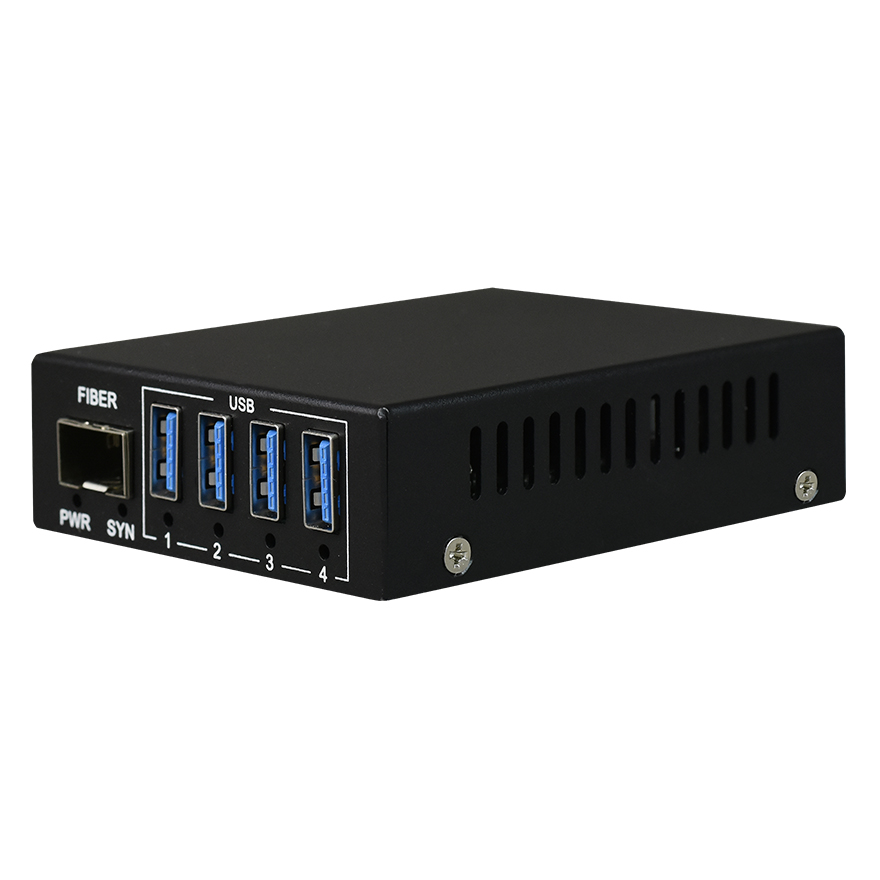

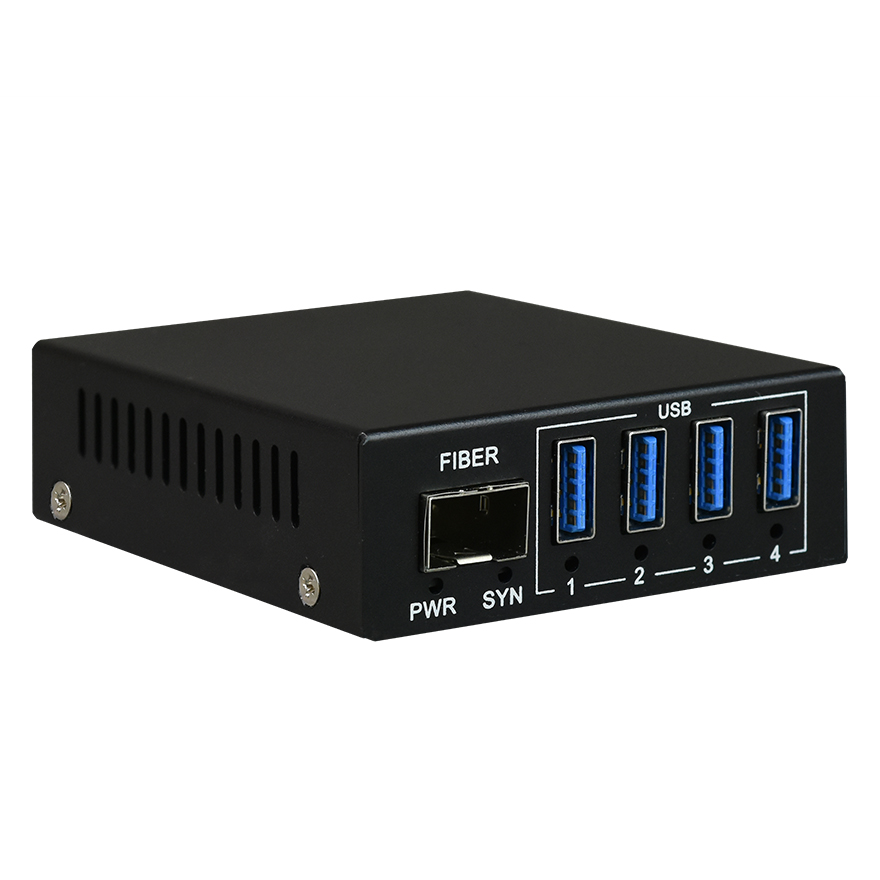

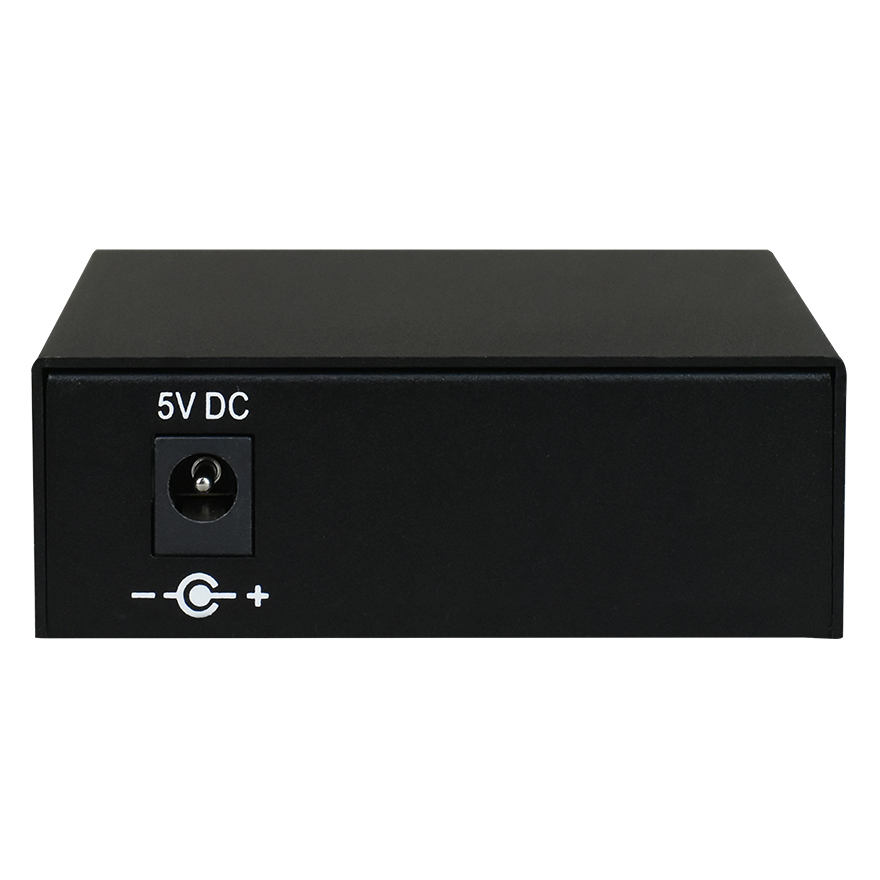

USB over Fiber Extender USB over Fiber Extender

Features

The device is compatible with USB 3.0/USB 2.0 protocols and supports devices such as USB cameras, printers, USB flash drives, scanners, and touch screens.

Special technology ensures that the device functions correctly when the fiber optic is reconnected or the power is restarted.

With a speed of 5Gbps and no delay, it is backward compatible with USB2.0/USB 1.1 – automatically recognizing high-speed (25Mbps~480Mbps), full-speed (500Kbps~12Mbps), and low-speed (10Kbps~1.5Mbps) USB devices.

Transmission distance: 0-200m.

The fiber optic is extended to 4 USB ports at the remote end, with a total current of up to 2000mA.

Transmission characteristics: USB3.0/USB2.0 real-time transmission.

The remote end has 4 USB 3.0 ports that can connect to a USB HUB for expansion.

It has low radio frequency interference/electromagnetic interference, making it suitable for sensitive electromagnetic environments.

With fiber optic transmission, no drivers are required, and it is compatible with any system, plug and play.

Multiple power supply options, such as AC220V, DC-48V/DC24V, are available.

Parameters

● Fiber

Fiber port: 1

Optic Fiber: Single/Dual fiber

Connector: LC (SFP)

Wavelength: 850nm/1310 for multi-mode; 1310nm/1550nm for single-mode

Transmission distance: 0~200m

Typical transmission power:

Single-mode 1310/1550nm: ≥-9dBm

Multi-mode 850nm: -18dBm

Multi-mode 1310nm: -25dBm

Receive Sensitivity Range: -28dBm~- 40dBm



● USB Port

Standard: USB3.0/USB2.0/USB1.1

Rate: 5Gbps/s

USB3.0 input: 1*USB3.0 A-type receptacle

USB3.0 output: 4*USB3.0 A-type receptacle

Total Current: Max 2000mA



● Working Environment

Operating temperature: -10℃—+60℃

Storage temperature: -40℃—+85℃

Storage humidity: 0%—95%(non-condensing)

MTBF: >100,000 hours

Specifications

Model

FCP-U3U2T/FCP-U3U2R

Function

Transmit 1 * USB 3.0/2.0/1.1 over fiber, and expand it to 4 USB ports at the remote end

Port

1*LC/SFP; 1/4*USB3.0/USB2.0

Power

AC220V / DC-48V / DC+24V (optional power)

Size

(L×W×H)  93*70*26mm desktop type

Weight

0.75Kg/piece

Application

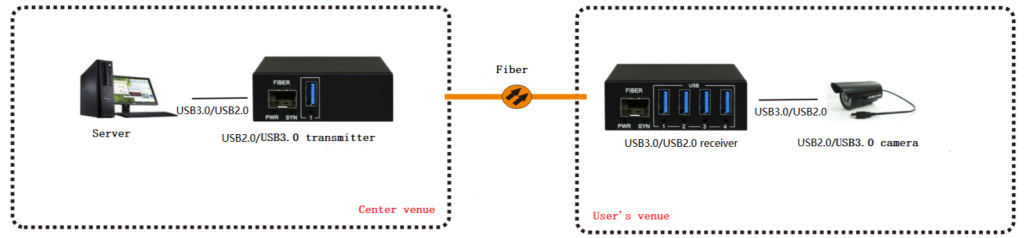

application of USB over Fiber Extender
