USB 2.0 to Fiber Optic Extender

View : 597
Type : USB Fiber Extender
Description :

This USB 2.0 to fiber optic extender consists of a transmitter and a receiver. Its maximum transmission distance is 80 km (single-mode fiber).

Overview

This USB 2.0 fiber optic extender consists of a transmitter and a receiver. The USB interface (USB2.0) of the host computer is extended to a remote terminal and expanded to 4 USB ports through a single-mode or multi-mode optical fiber. Its maximum transmission distance is 10 km (single-mode fiber) and it supports USB1.1 and USB2.0 type high-speed cameras, hard disk drives, printers, scanners, audio devices, touch screens, game controllers, and other devices. This product can be applied in video conferences, multimedia information publishing, government departments, medical systems, commercial displays, multimedia function rooms, security monitoring, utilities, and other fields.

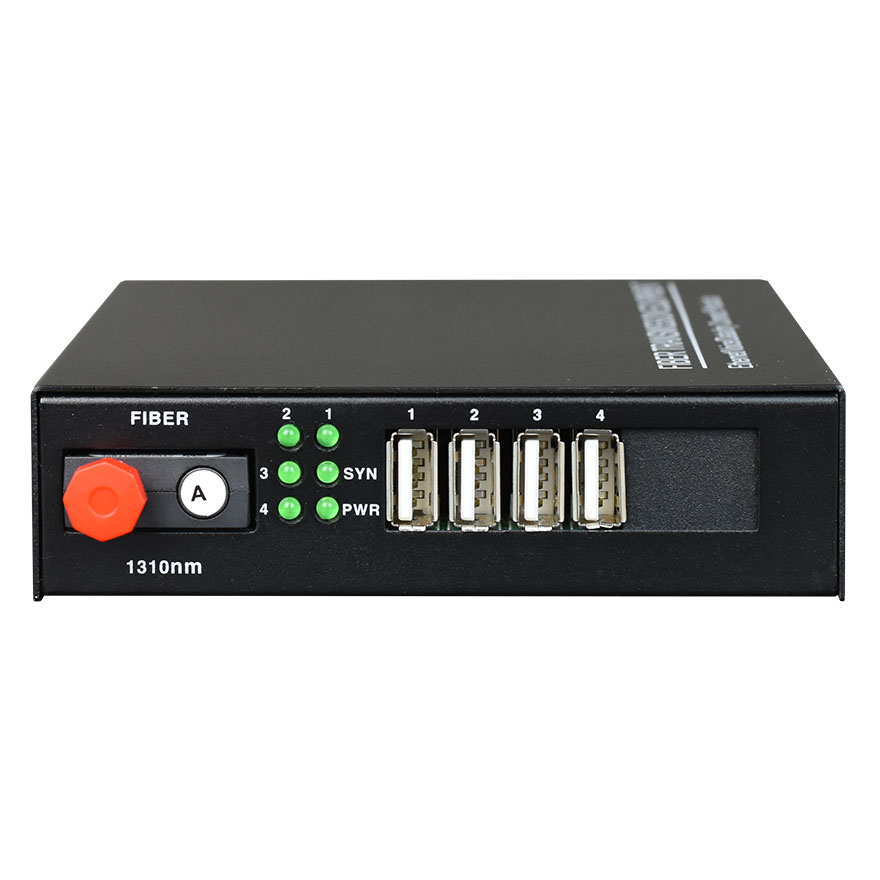

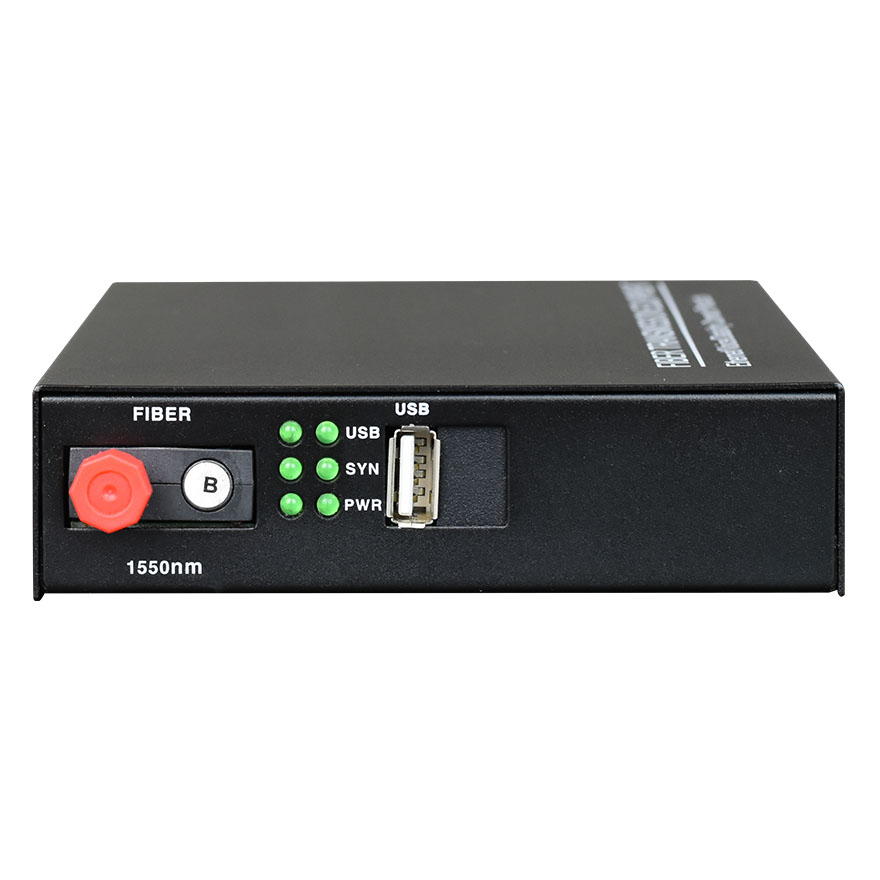

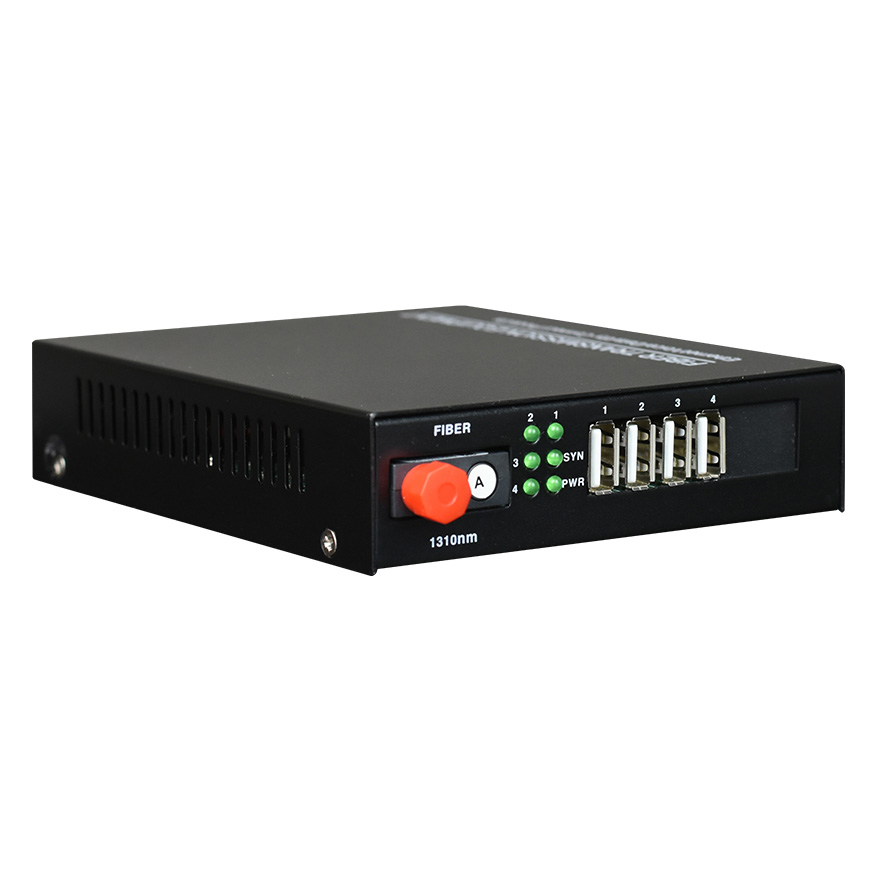

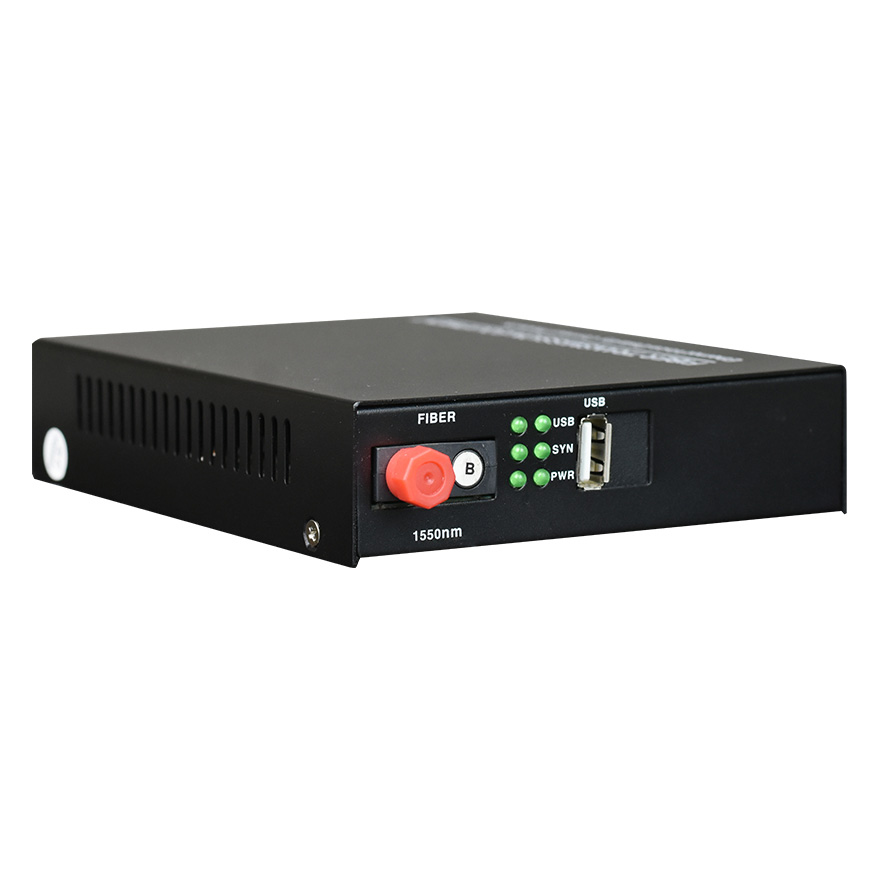

usb fiber extender usb fiber extender

Features

The device is compatible with USB2.0 and USB1.1 protocols, it supports USB cameras, printers, USB flash drives, scanners, touch screens, and other devices.

It could automatically recognize high-speed (25Mbps~480Mbps), full-speed (500Kbps to 12Mbps), and low-speed (10Kbps to 1.5Mbps) USB devices.

The optical fiber transmission distance is 10KM( single-mode fiber).

The optical fiber extends to the remote end and expands to 4 USB ports, with a total current of up to 2000mA.

No driver, compatible with any system, plug-and-play.

 A variety of power supply options: AC220V, DC-48V/DC24V, etc.

Parameters

● Fiber

Fiber Ports: 1

Fiber core: Single fiber/dual fiber

Connector: FC/SC/ST/LC (SFP)

Wavelength: 850nm/1310nm multi-mode; 1310nm/1550nm single-mode

Transmission distance: 0~10Km

Typical transmit power:

Single-mode 1310/1550nm: >-9dBm

Multi-mode 850nm:-18dBm

Multi-mode 1310nm:-25dBm

Receiver Sensitivity: -28dBm~- 40dBm



● USB2.0 Port

Standard: USB2.0

High-speed (25Mbps~480Mbps)

Full-speed (500Kbps~12Mbps)

Low-speed (10Kbps~1.5Mbps)

Total current: max up to 2000mA



● Environmental Indicators

Operating temperature: -10 ℃ – +60 ℃

Storage temperature: -40 ℃ – +85 ℃

Humidity: 0% -95% (non-condensing)

MTBF:> 100,000 hours

Specifications

Product Model

FCP-UT/FCP-UR

Function Description

Transmit 1 * USB2.0, and expand to 4 USB ports at the remote end

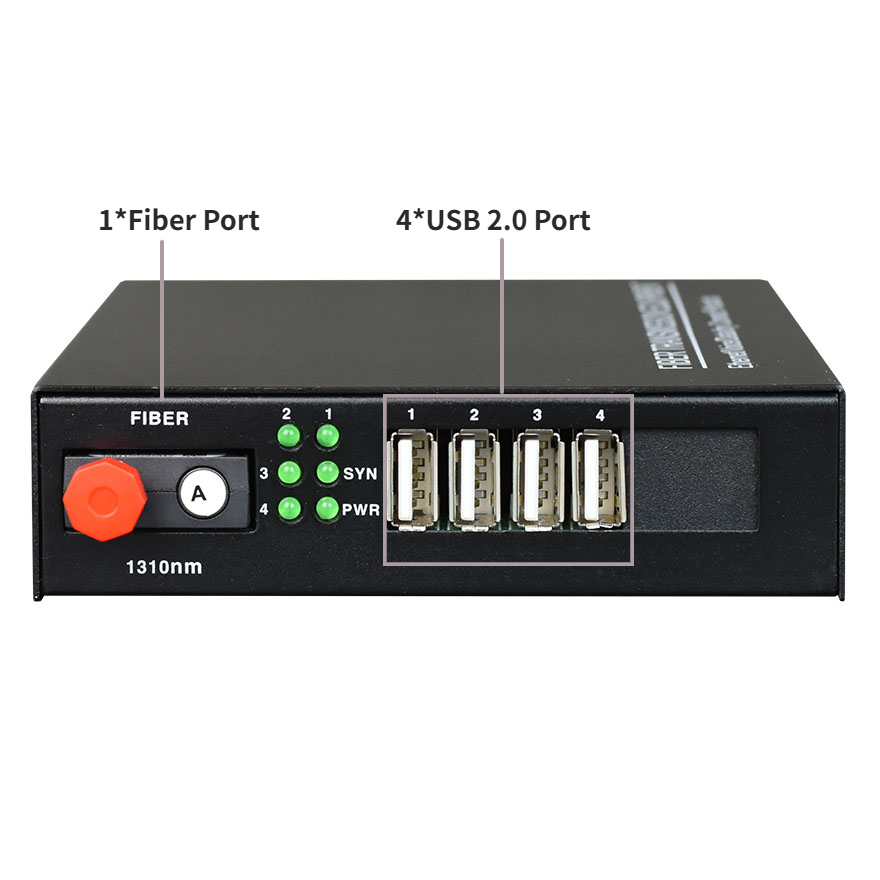

Port description

1 fiber port; 4 USB2.0 port

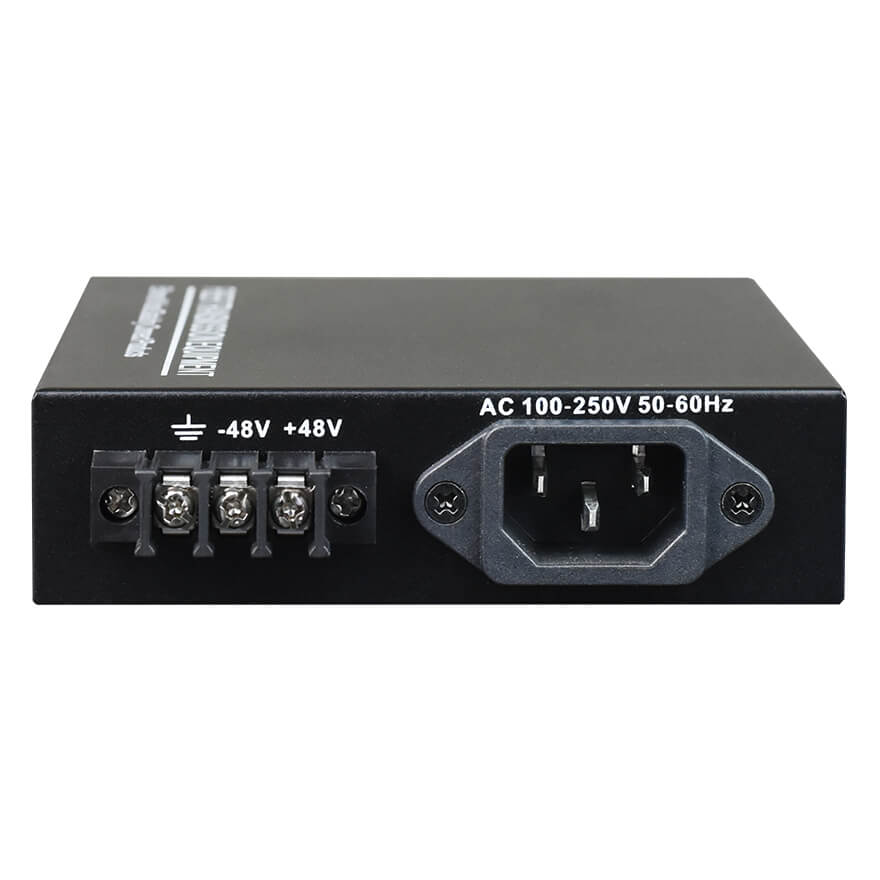

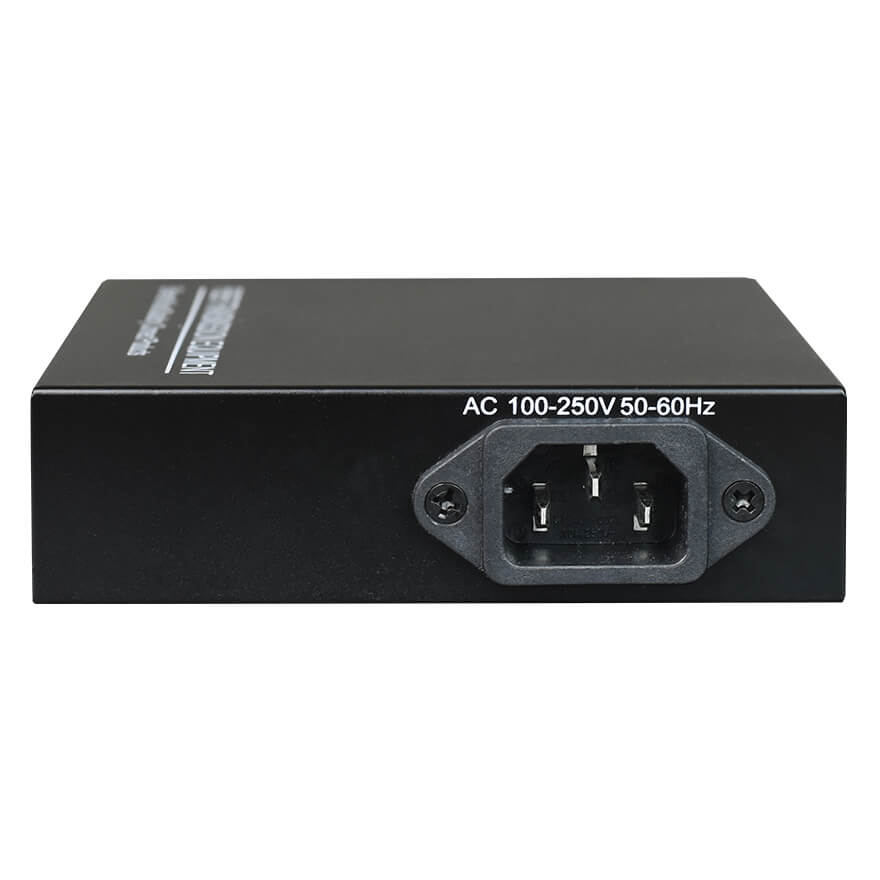

Power Supply

AC220V or DC-48V (optional power supply), support for redundant power backup

Product Size

(L × W × H) 140 * 110* 31 mm Desktop

Weight

0.75Kg/PCS

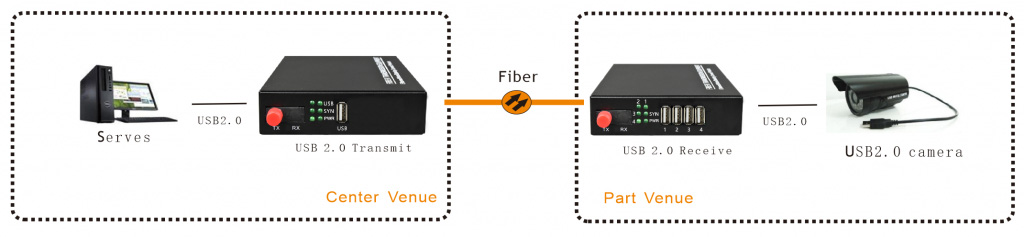

Application

application of usb over fiber
