19 Inch 16E1 TDM over Ethernet (IP) Converter

View : 576
Type : E1 over IP
Description :

TDMoIP-16E1 is mainly used to transmit voice signal on the IP network. It has 16 ports E1, 2 UTP Ethernet ports, and a fiber Ethernet port.

Overview

TDMoIP-16E1 is mainly used to transmit E1 signal on the IP network. It has 16 ports E1, 2 UTP Ethernet ports, and a fiber Ethernet port. It can connect the TDM device and the user’s low-cost wireless or lineate Ethernet/IP configuration, without affecting the voice quantity. Assures connecting to the physical E1 interface of any device seamlessly, such as PBX, mobile base station, SS7 signaling device, and voice mail system. It can be used in a communication system based on E1, such as LAN, WAN, MAN, and wireless network.



Providing emulation E1 channel through Ethernet, the difficulty is rebuilding timing information of the E1 code stream effectively at the exit of the network. The special disadvantages of Ethernet itself, such as random packet delay, without effective timing, transmit mechanism, transmission error, or collision that brings on packet loss, must be conquered. Our company resolves the difficulties above faultlessly by availing ourselves of technical advantages and adapting advanced clock disposal technology. TDMoIP-16E1 encapsulates the date of the E1 code stream to the packet and transmits it to the remote device through Ethernet.

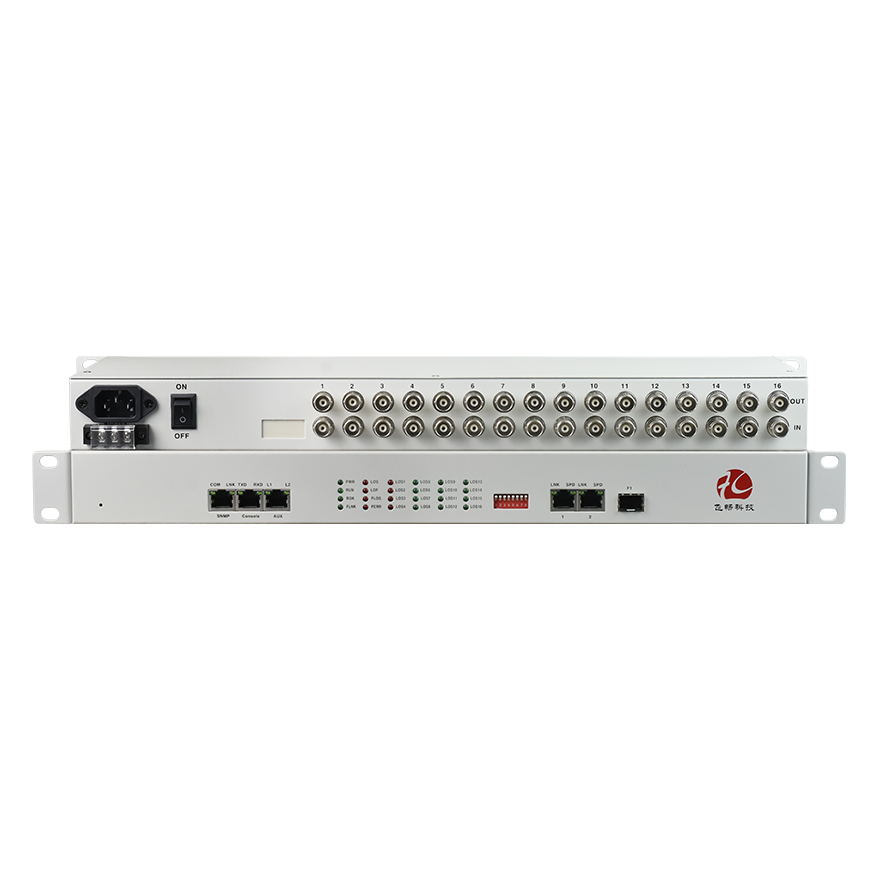

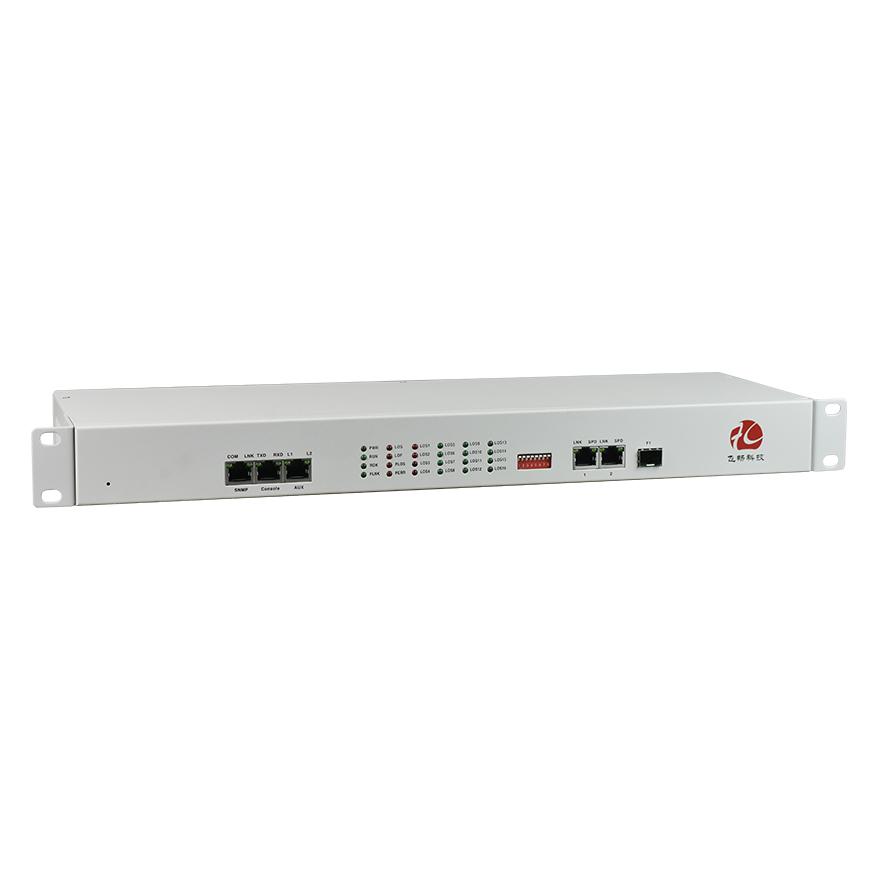

16 channels TDM E1 over IP Converter 16 channels TDM E1 over IP Converter

Features

arm cortex – M4 processor with main frequency of 192mhz is adopted;
anodized aluminum alloy shell, IP40 protection grade, can withstand the test of harsh environments;
provide console (CLI) and web management interface to facilitate installation and opening;
provide 16 E1 circuit, two 10 / 100 / 1000m Ethernet ports, and one 100M / Gigabit adaptive Ethernet SFP optical port;
E1 interface supports both 75 Ω and 120 Ω interfaces without setting;
transparent transmission of non-framing / framing E1 (n * 64K) signals through the IP network, in accordance with relevant provisions of G.703
clock recovery adopts unique clock algorithm technology, with stable frequency recovery and small jitter and drift. At the same time, the jitter and drift of the recovered clock meet the specifications of g.823/g.824 and g.8261;
high transmission efficiency and low transmission delay; Ethernet packet length can be set to support long packets; Support VLAN setting;
support E1 link packet loss indication function;
support the remote E1 loopback function and local E1 enable setting;
high transmission efficiency, up to 90% bandwidth utilization efficiency;
support the online upgrade of local and remote equipment software and hardware by web network management;
multiple power supply modes are available: AC220V, dc-48v / DC24V, etc;

Parameters

● 10/100/1000M Ethernet Interface

Protocol: IEEE 802.3az, IEEE 802.1Q (VLAN)
Rate: 10/100/1000M adaptive, full/half duplex fully adaptive
MAC address table: 4096 MAC addresses can be learned
Physical interface: RJ45 seat supports auto mdix



● E1 Interface

Equipment interface: the equipment interface shall comply with the recommendation of G.703
Speed: 2048kb/s ± 50ppm
Code type: HDB3
Impedance: unbalanced 75 Ω / balanced 120 Ω (unbalanced coaxial interface adapter can be adapted to 75-2 / 3 coaxial cable)
Jitter characteristics: meet the recommendations of g.742 and g.823
Allowable attenuation of input port: 0 ~ 6dbm;



● Environmental Indicators

Operating temperature: – 10 ℃ – + 60 ℃
Storage temperature: – 40 ℃ – + 85 ℃
Working humidity: 0% – 95% (no condensation)
MTBF: > 100000 hours

Specifications

Model

FCT-E16

Function Description

16 E1 interface is transmitted on the IP network to support console network management and web network management

Port Description

16 * E1 interface, 2 10/100/1000M Ethernet ports, 1 100/1000M adaptive Ethernet SFP optical port, web network management interface, console interface

Power Supply

Power supply: ac180v ~ 260V; DC –48V; DC +24V
Power consumption: ≤ 10W

Product Size

485X135X44.5mm(WXDXH)

Weight

2.6Kg / pc
