V.35 to Ethernet Converter | V.35 over IP Converter

This v.35 to ethernet converter is mainly used to transmit V.35 interface over the IP network. It has a V.35 port, 2 UTP Ethernet ports, and a fiber Ethernet port.

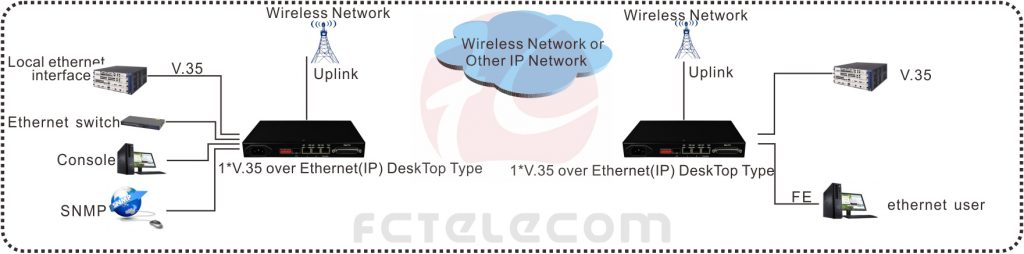

The v.35 to ethernet converter can connect the TDM device and the user’s low-cost wireless or lineate Ethernet/IP configuration, without affecting the quantity. It assures connecting to the physical V.35 interface of any device seamlessly, and it can be used in a communication system based on V.35, such as LAN, WAN, MAN, and wireless networks.

Providing emulation V.35 channel through Ethernet, the difficulty is rebuilding timing information of V.35 code stream effectively at the network’s exit. The unique disadvantages of Ethernet itself, such as random packet delay, without effective timing, transmit mechanism, transmission error, or collision that brings on packet loss must be conquered.

We resolve the difficulties above faultlessly by availing ourselves of technical advantages and adapting advanced clock disposal technology. V.35 to ethernet converter encapsulates the date of V.35 code stream to the packet and transmits it to the remote device through Ethernet.

● High transmit efficiency, low transmit delay;

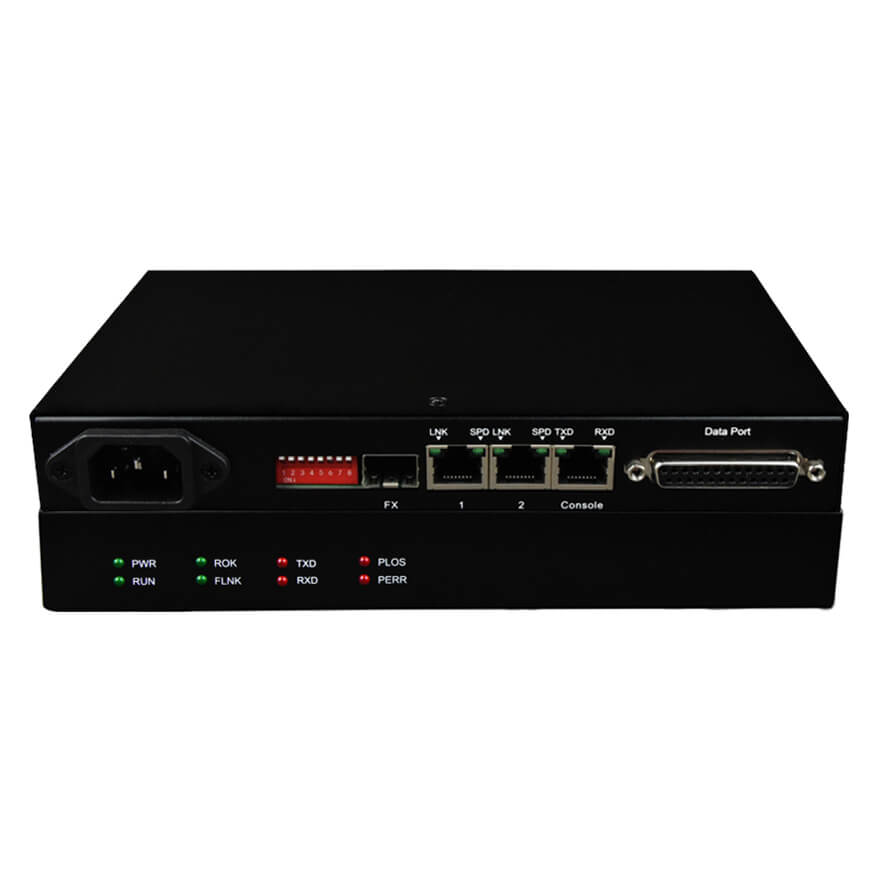

● It provides 1*V.35, 2*10/100Base-TX and 1*100Base-FX interface;
● The length of the Ethernet packet can be set, supporting huge packets;
● User can select IP protocol encapsulation or simplicity Ethernet type;
● Support VLAN setting;
● Support Ethernet ping function;
● Support package loss indicator function for V.35 transmission line;
● Have 3 Loop Back Mode: Ethernet interface Loop Back (ANA), V.35 interface Loop Back(DIG), Command the  remote V.35 interface Loop Back(REM);
● Have pseudo-random code test function, easily line opened, and can be used as a 2M BER Tester;
● V.35 interface supports hot-plug, supports DTE or DCE device interconnection ;
● Provide 3 clock types: Internal clock, External clock, and slave clock;
● Point-to-point or point to multi-point connections, satisfying different applications;
● High-efficiency transmission, up to 90% bandwidth utilization ratio;
● 10/100M Ethernet, full/half duplex auto-adapt, support auto-MDIX;
● When selecting a network adaptation clock, it can resume the original clock accurately through the TDM clock resumption mechanism, stable clock, little jitter, and small excursion, conforming to ITU-T clock jitter and excursion standard;
● Support the WEB management platform, and online software upgrades, the host side can manage the work of each state machine equipment.

● 10/100M Ethernet Interface

Protocol: IEEE 802.3az, IEEE 802.1Q (VLAN)
Rate: 10/100M adaptive, full/half duplex fully adaptive
MAC address table: 4096 MAC addresses can be learned
Physical interface: RJ45 seat supports auto mdix

● V.35 Interface

Interface rate: 2048Kbps
Interface Standard: Compatible with V.35 Standard
Connector: DB25
Connect Mode: DCE
Clock Type: G.703 restored clock, Internal clock

● Environmental Indicators

Operating temperature: – 10 ℃ – + 60 ℃
Storage temperature: – 40 ℃ – + 85 ℃
Working humidity: 0% – 95% (no condensation)
MTBF: ＞ 100000 hours
