This device is an IEEE802.3 ethernet media converter, which can realize conversion between 2*10/100Base-T twisted pair and 100Base-FX or extend the network transmission distance, it is mainly used for long-distance transmission of optical fiber network (20/40/60/80/120 km), and it supports the 10/100M transmission rate.
- Product Search Guide: space = AND, | = OR, ! = NOT

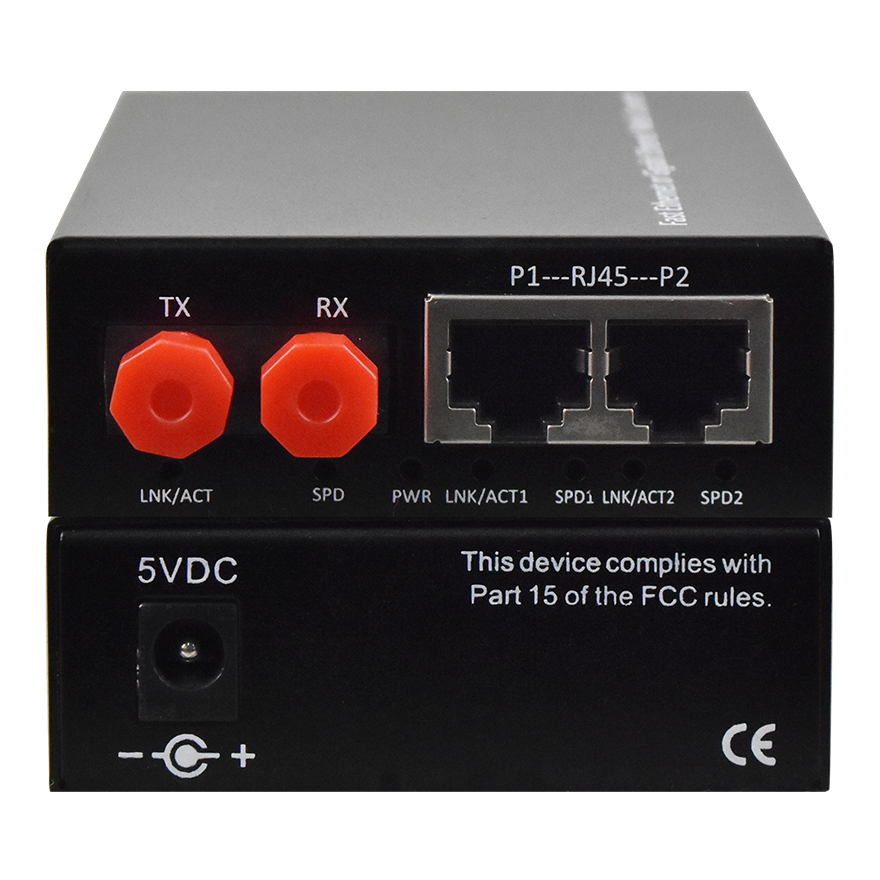

2-Port 10/100Base-TX to 100Base-FX Media Converter
Model
FCM-F2S-B
Description :
This device is an IEEE802.3 ethernet media converter, which can realize conversion between 2*10/100Base-T twisted pair and 100Base-FX or extend the network transmission distance.
Overview
Features
● The device automatically adapts to 10/100Mbps, making it easy for network upgrades.
● It supports the energy efficiency of EEE802.3az (Energy Efficient Ethernet) ethernet.
● It features a 1Mbit SSRAM cache and a monitor with an anti-crash auto-reset function, making it suitable for high-definition network cameras and other heavy-duty applications.
● It supports full/half duplex network communication, with auto-negotiation capability.
● VLAN supports the transmission of long packets and can be used with IEEE 802.1Q protocol products, including switches that can handle Ethernet packets of up to 1552 bytes in size.
● It supports FX half/full duplex and provides a switch selection for link failure alarm.
● It supports UTP crossover Direct Connect adaptive, making system commissioning and installation easier.
● The device has low power consumption, generates low heat, and ensures stable operation over extended periods.

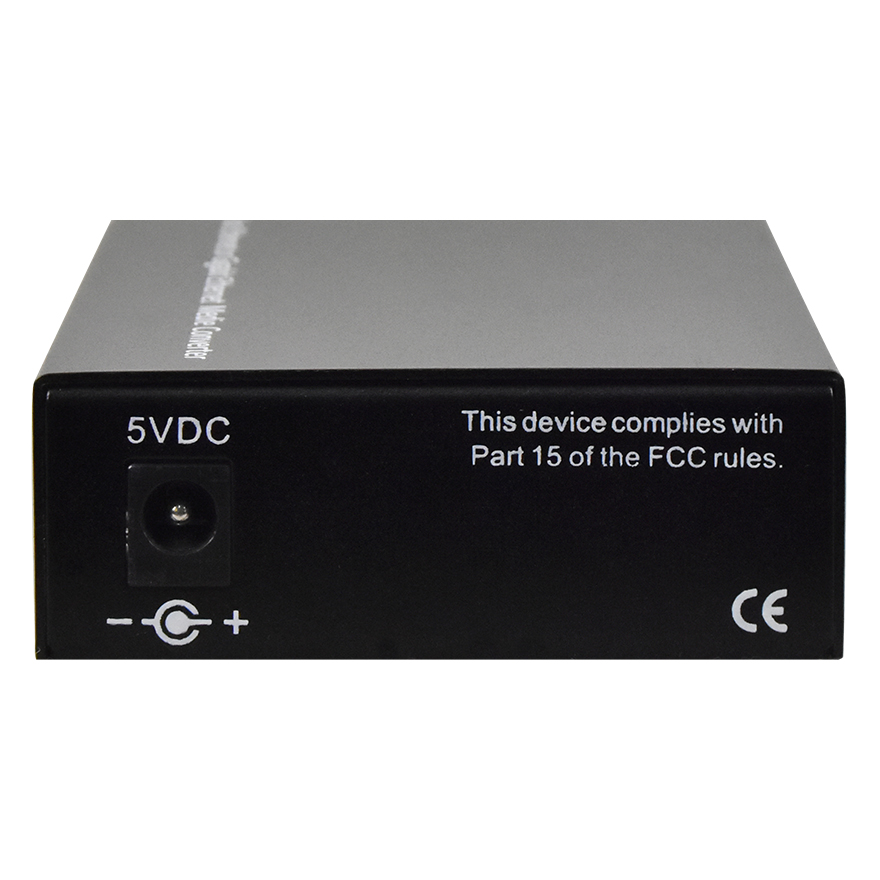

● It can be powered by an external AC220/5V power adapter, or alternatively, an external DC-48V/5V power adapter can be used.
Parameters
● Ethernet UTP Port
Rate: 10/100/1000M, half/full duplex auto-negotiation
Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
● Optical Interface
Wave Length: 1310nm, 1550nm
Rate: 1000 M, half/full duplex
Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: FC/SC
● Working Environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)
Specification
| Model |
FCM-F2S-B |
| Function Description | 2*FE+1*100Base-FX Ethernet (mini), External AC220/5V or DC48V/5V power adapter |

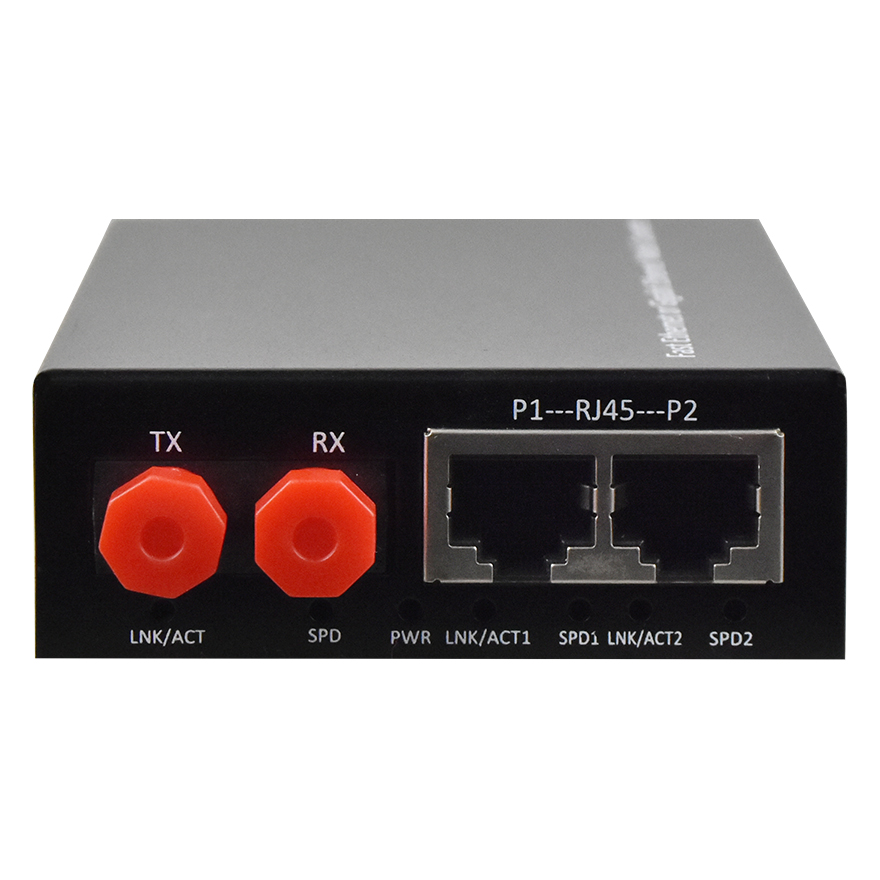

| Port Description |
1 optical port, 2 Fast Ethernet port |
|
Power Supply |
Power supply: AC180V ~ 260V; DC –48V; DC +24V |
|
Dimension |
Dimensions: 93X 70 X25mm(WXDXH) |
|
Weight |
0.5kg/set |
Application
Related Products
Documentation and project verification — FCM-F2S-B
Before ordering or wiring, confirm the exact model and configuration, interface pinout, optical or network compatibility, power input and installation conditions. Optional configurations are not interchangeable.
Browse FCTEL technical documents · Request the current model-specific datasheet and wiring diagram
