100M Fiber Media Converter

View : 482
Type : Unmanaged Fiber Media Converter
Description :

The device is an IEEE802.3 media converter that can perform media conversion between 10/100Base-T twisted pair and optical fiber signals.

Overview

The device is an IEEE802.3 media converter that can perform media conversion between 10/100Base-T twisted pair and optical fiber signals. It can extend the network transmission distance and is suitable for long-distance (20/40/60/80/120 km) transmission in optical fiber networks, supporting a transmission rate of 10/100 Mbps. Additionally, the device has a comprehensive alarm function that can promptly detect and report equipment failures. It has stable and reliable performance, low power consumption, high integration, and small size.

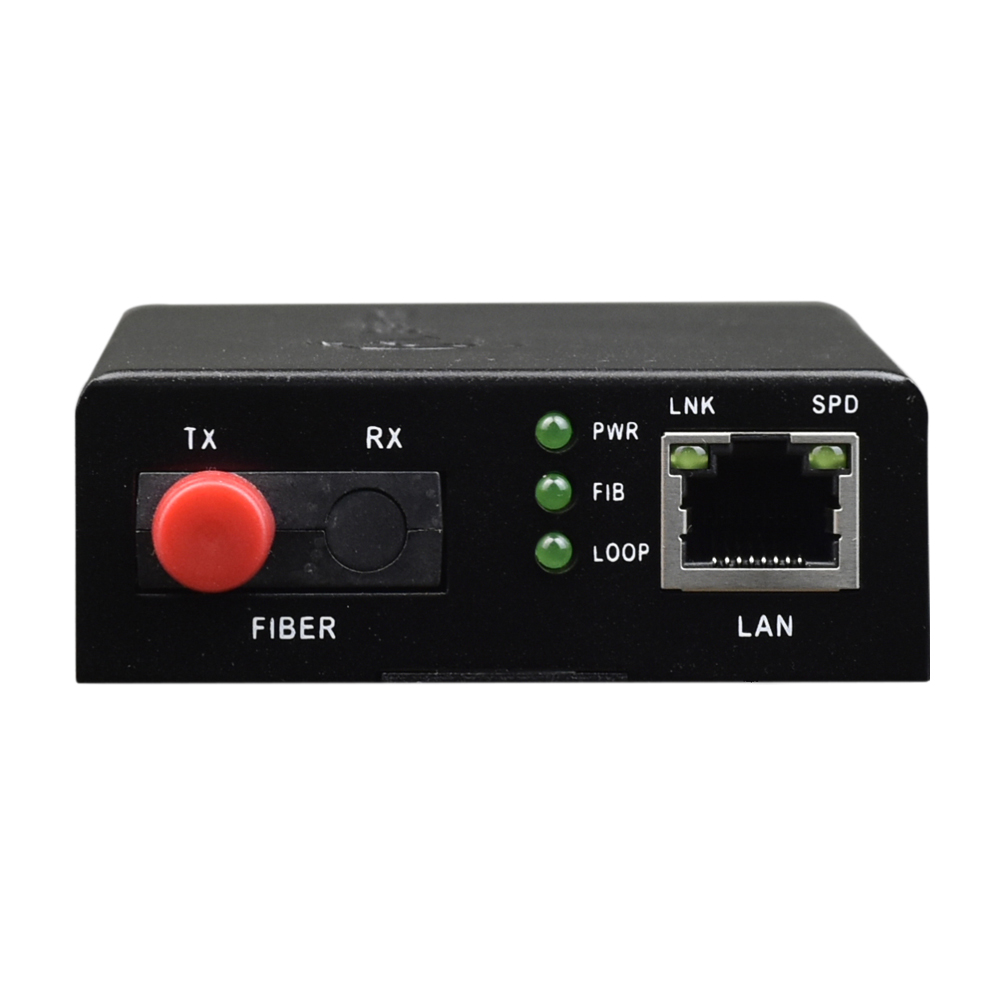

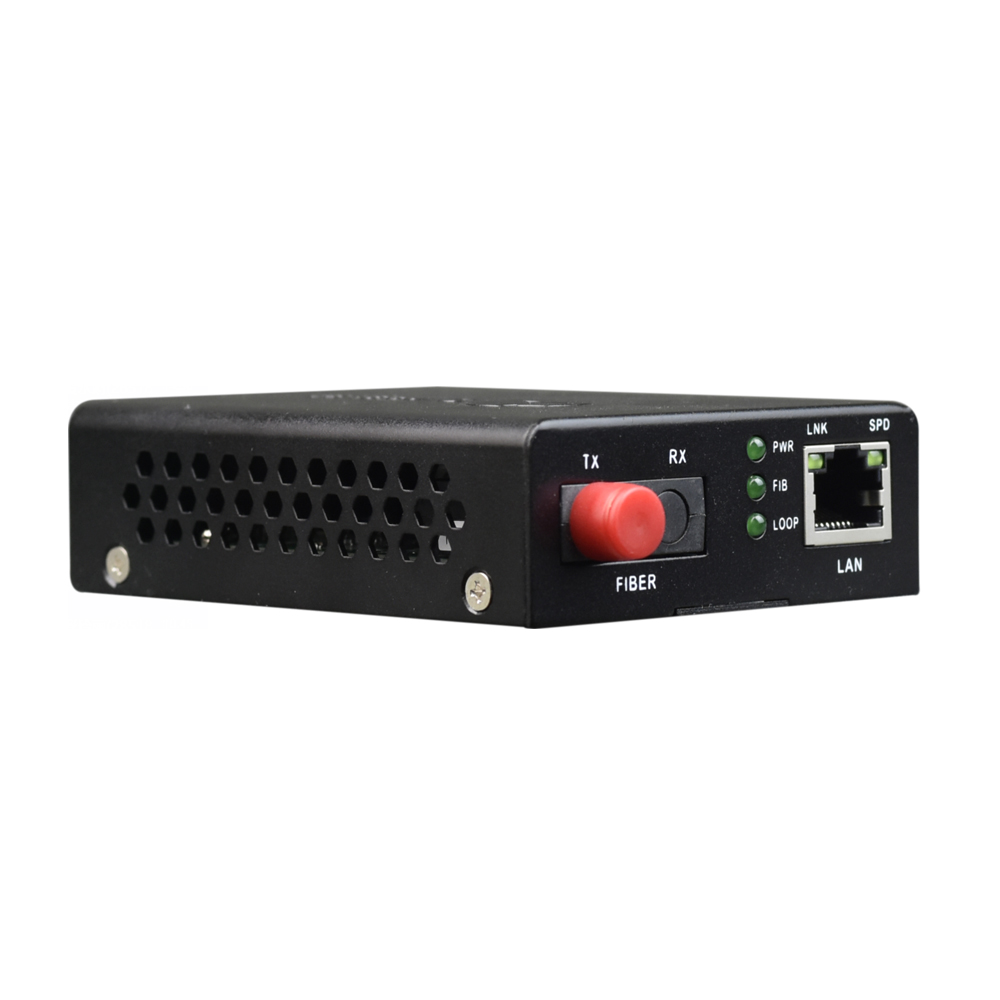

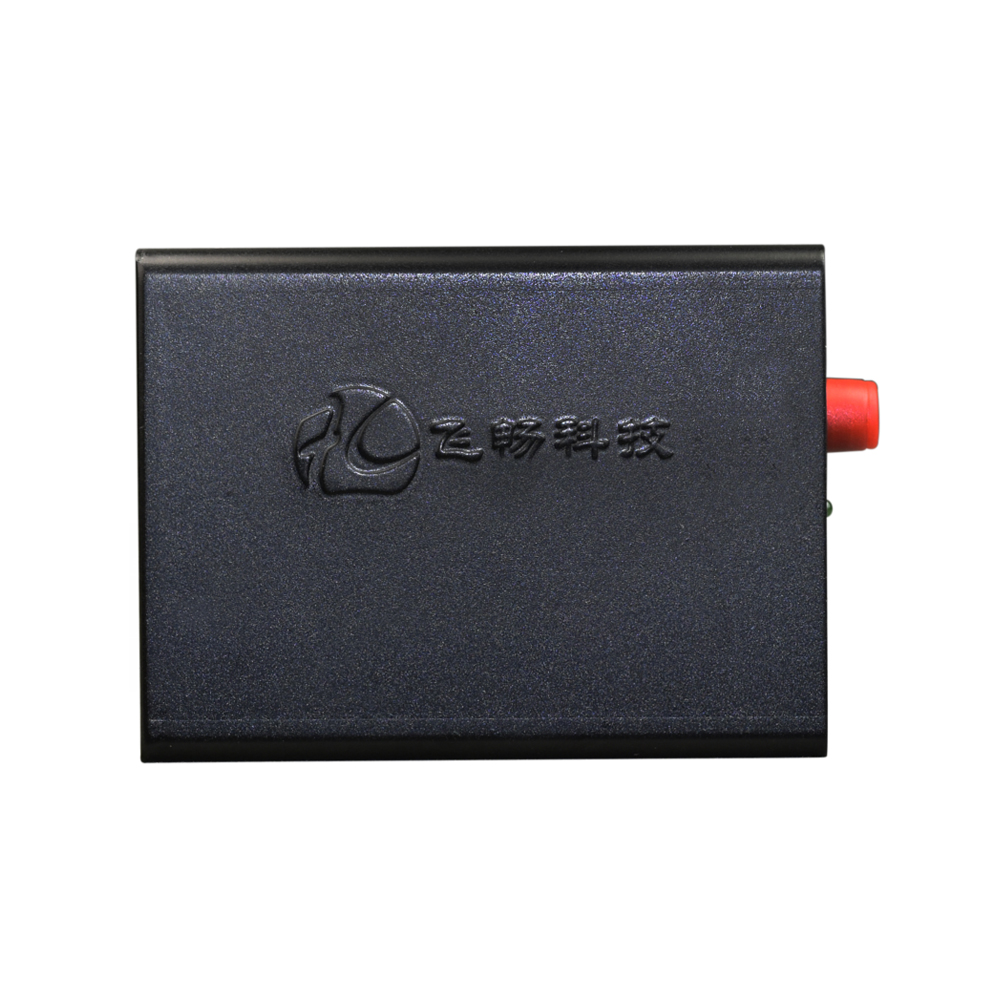

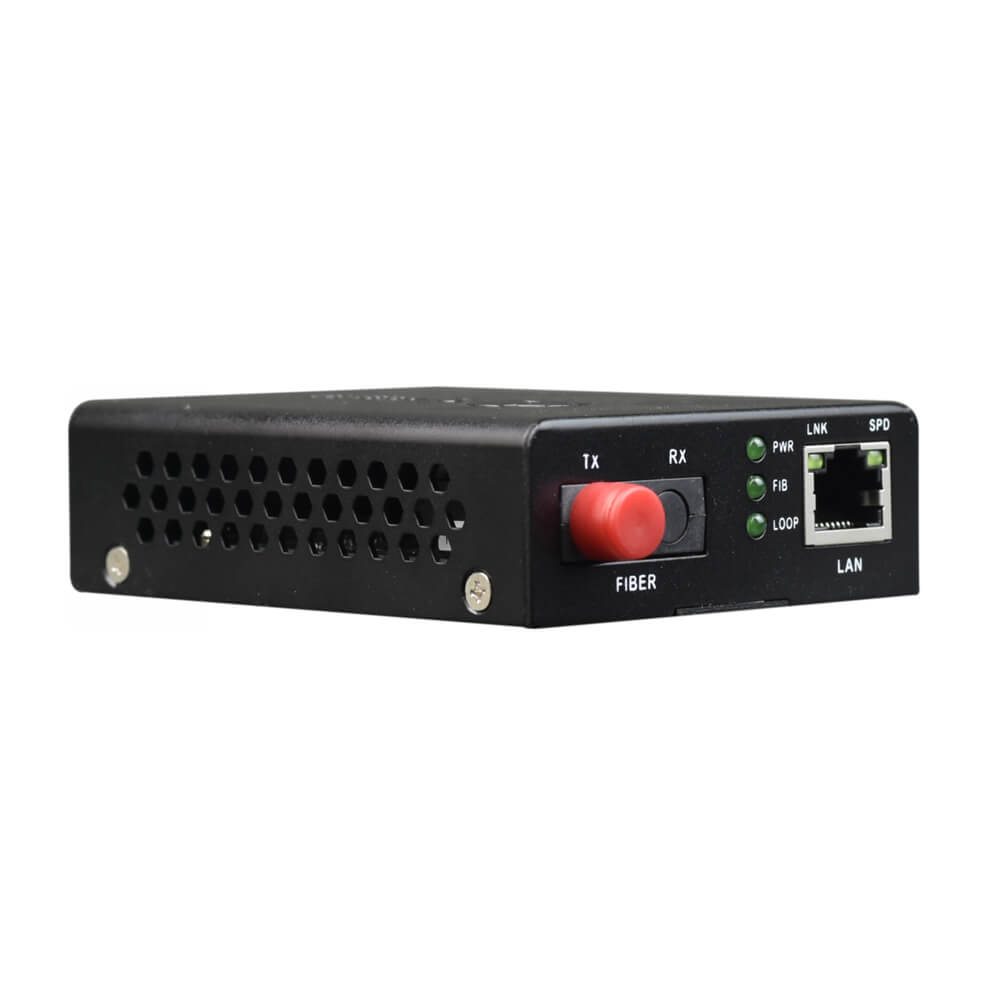

Photos

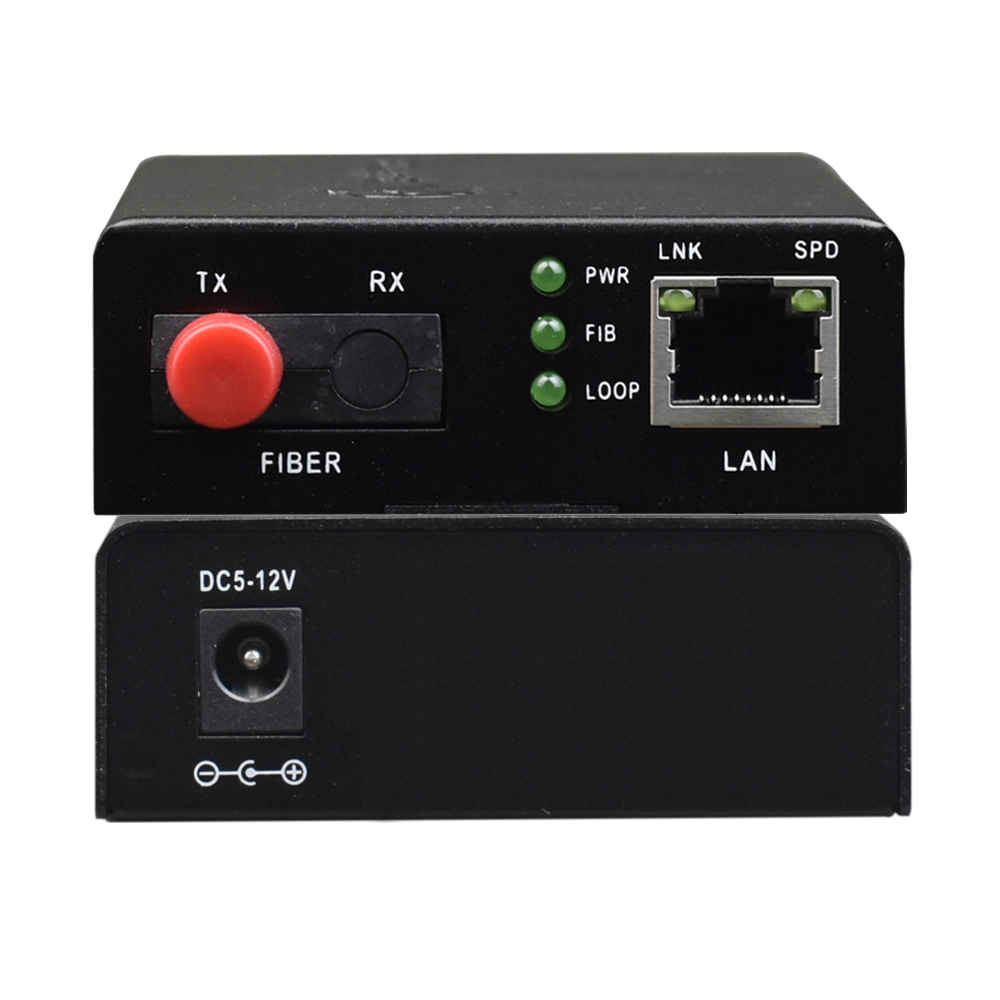

fiber media converter

Features

The device automatically adapts to 10/100Mbps environments, facilitating network upgrades.

The optical interface supports three modes of optical fiber transmission: multi-mode dual-fiber, single-mode dual-fiber, and single-mode single-fiber. The interface options include SC/ST/FC/LC.

It has the function to detect errors and automatically reset in case of failure, making it suitable for large data applications such as video transmission.

It has automatic loop detection for all ethernet and optical ports and can isolate the corresponding loopback port. It also has a loop indicator light.

It provides one 100 Mbps optical port and one 100 Mbps Ethernet port.

It supports full-duplex and half-duplex network communication with automatic negotiation capabilities.

It supports the transmission of oversized jumbo frames and can be used with the switch that supports IEEE802.1Q protocol, supporting Ethernet packets up to 4097 bytes.

It supports the automatic selection of cross or straight connections for twisted pair ports, making system debugging and installation convenient.

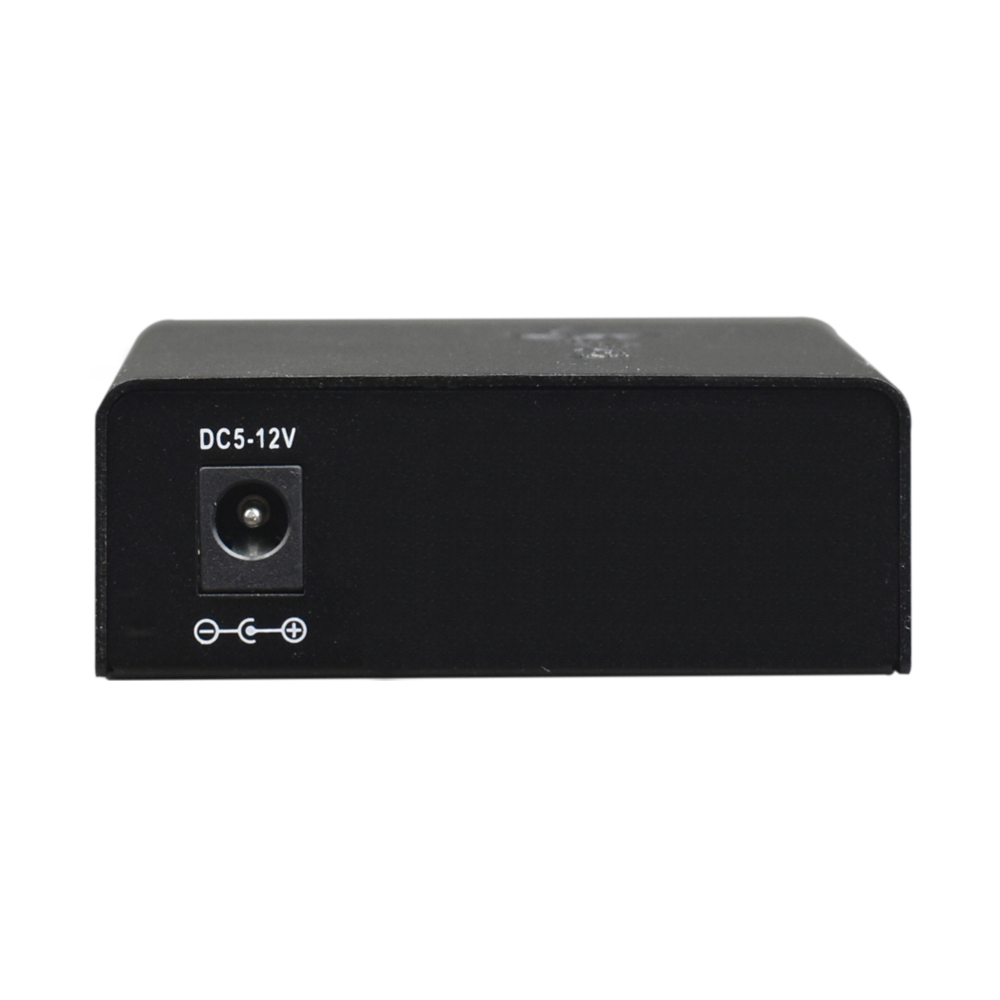

The device supports a wide DC voltage range of 5-12V and can be powered externally by an AC220/5V or 12V power adapter.

Parameters

● Fiber

Optical port: 1

Optical Fiber: Single/Dual fiber

Fiber interface: LC (SFP)

Wavelength: 850nm/1310nm Multi-mode; 1310nm/1550nm Single-mode

Relay-free transmission distance: 0~80Km

Typical transmission power: single-mode 100uw — 0.93mw



● Ethernet Interface

Protocol: Compliant with IEEE 802.3ab, IEEE 802.3z

Rate: 10/100/1000M adaptive, full/half duplex adaptive

MAC Address Table Capacity: 4096 MAC addresses can be learned

Physical Interface: RJ45, supports Auto-MDIX



● Environmental Index

Working temperature: -15℃—+60℃

Storage temperature: -40℃—+85℃

Working humidity: 0%—95% (non-condensing)

MTBF: >100,000 hours

Specifications

Product Model

FCM-F1-G

Function Description

1 * 100M optical port to 1 * 10/100M Ethernet port, and share 100M bandwidth, external power supply

Port Description

1 100M optical port and 1 10/100M Ethernet port

Power Supply

5-12V DC power supply

Product Size

(L×W×H) 95*70*25mm desktop type

Weight

0.45KG/PCS

Application

application of media converter
