This series of products are IEEE802.3 Ethernet media converter, can realize 2*10/100Base-T twisted pair and 10/100/1000Base-FX two medium conversion or extend the network transmission distance, is mainly used for optical fiber network transmission distance (20/40/60/80/120 km), fully support the 10/100/1000M transmission rate.
- Product Search Guide: space = AND, | = OR, ! = NOT

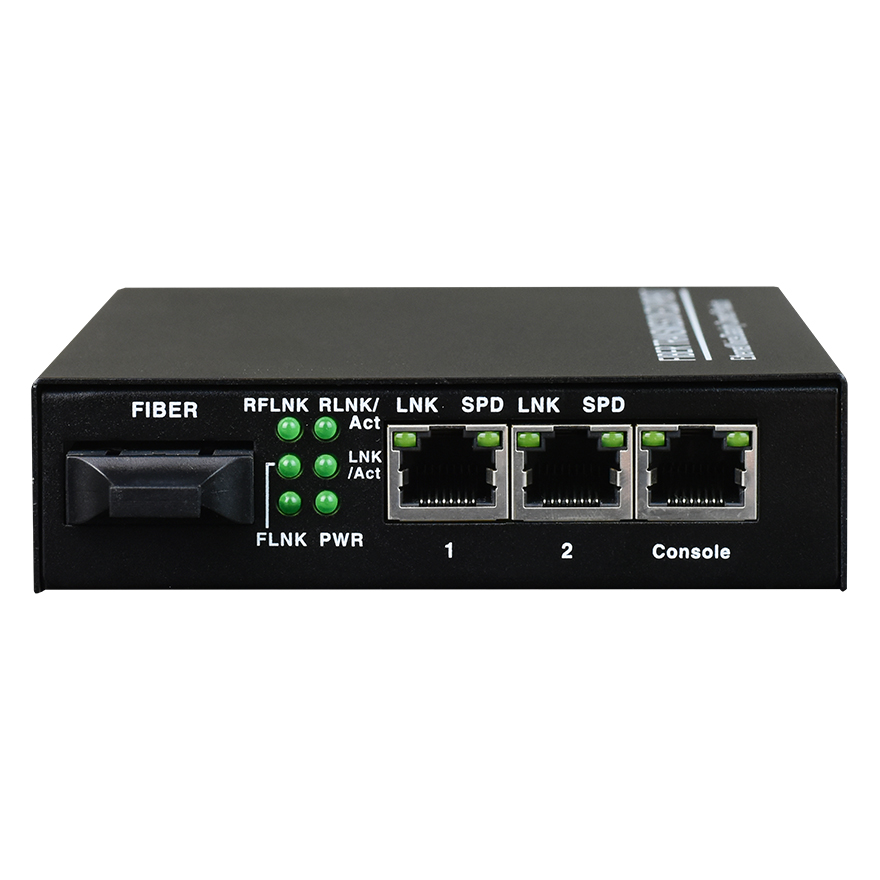

2*GE Fiber Media Converter
Model
FCM-G2
Description :
This series of products are IEEE802.3 Ethernet media converter, can realize 2*10/100Base-T twisted pair and 10/100/1000Base-FX two medium conversion or extend the network transmission distance.
Overview
Features
● Automatically adapt to 100Mbps and 1000Mbps environment, easy to upgrade the network;
● Monitor with anti-crash auto-reset function for high-definition network cameras and other heavy-duty applications;
● Support full and half duplex network communication, with auto-negotiation capability;
● VLAN support the transmission of long packets and can support IEEE802.1Q protocol;
● Support FX half / full duplex and link failure alarm switch selection;
● Support UTP crossover Direct Connect adaptive, easy system commissioning and installation;
● Low power consumption. Low heat, stable operation for a long time;
● Multiple power mode options: AC220V, DC-48V/DC+24V, etc;
Parameters
● Ethernet UTP Interface
Interface rate: 10/100/1000M, half/full duplex auto-negotiation Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN) MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
● Optical Interface
Wave Length: 1310nm, 1550nm
Interface rate: 1000 M, half/full duplex
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN) MAC Address Capability: 4096
Connector: FC/SC
Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel. Transmission distance may also be limited by fiber optic bandwidth.
● Working Environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation) Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)
Specification
| Model |
FCM-G2 |
| Functional Description | 2 * GE+1 * 1000Base-FX Ethernet Switch |
| Port Description |
One optical ports, 2* Gig Ethernet ports |
|
Power |
Power supply: AC180V ~ 260V；DC –48V；DC +24V |
|
Dimension |
216X140X31mm( WX DXH ) |
|
Weight |
1.8kg/set |
Application
Related Products
Documentation and project verification — FCM-G2
Before ordering or wiring, confirm the exact model and configuration, interface pinout, optical or network compatibility, power input and installation conditions. Optional configurations are not interchangeable.
Browse FCTEL technical documents · Request the current model-specific datasheet and wiring diagram
