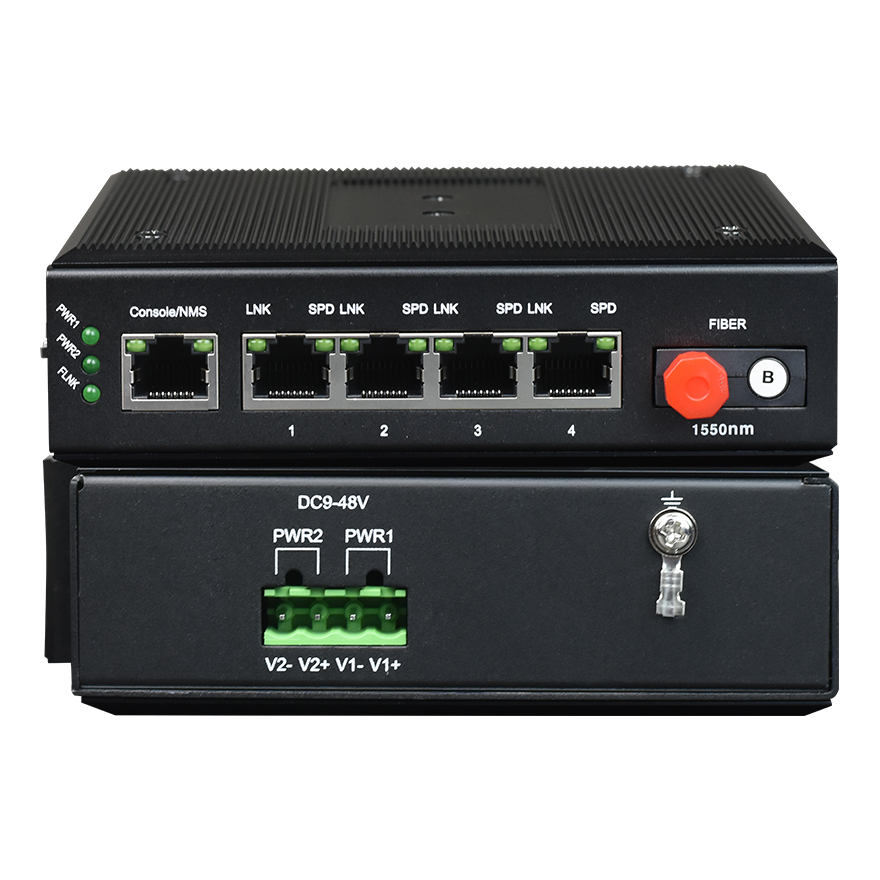

4FE+4*100base-FX to 1000base-X Media Converter

4FE+4*100base-FX to 1000base-X Media Converter

2,352 +1

Inquire Now

Model Contact us

Description :

This series of products using industrial rail design equipment for point-to-point structure design to achieve in harsh environments data transmission stability reliability and real-time. Work network signal into a chain structure but also simplifies the installation of the project reducing the cost of the project.

Overview

This product provides: 1 Gigabit SFP Ethernet port; 4 100 megahertz Ethernet interface 4 SFP Fast Ethernet interface.

Features

● Industrial Ethernet series designed for harsh and harsh industrial environments;

● The device provides 4-way 100M Ethernet ports 4 SFP Fast Ethernet ports 1 Gigabit optical interface and shared Gigabit bandwidth a Console port;

● Electrical interface (RJ45 interface) support 10 / 100M adaptive full / half duplex mode MDI/MDI-X automatic detection;

● SFP optical interface supports multi-mode dual-fiber single-mode dual-fiber single-mode single fiber three fiber transmission mode;

● With broadcast storm protection balance flow isolation conflict detection error and crash from the reset function suitable for video transmission and other large flow data applications;

● Transceiver built-in 1MBits high-speed cache to avoid the IP camera in the monitoring of the screen rapidly changing the environment caused by the transmission screen stuck phenomenon;

● Support VLAN long packet transmission can support IEEE802.1Q protocol with the switch to use the product to support up to 10K bytes of Ethernet packets;

● With the Console management function (optional) you can set the bandwidth and priority of each Ethernet channel which can be based on PORT and 8 Ethernet port isolation based on 802.1Q.

● Support a wide range of 9-55V AC and DC power input;

● Support internal isolation redundant dual power input;

● Power supply support overload protection anti-reverse protection;

● Meet the requirements of industrial four electromagnetic compatibility;

● Super lightning protection: anti-lightning anti-sensor high pressure anti-surge etc .;

● No fan efficient cooling reduce the repair time;

● Anodized aluminum alloy shell IP40 protection class able to withstand the harsh environment of the test;

● Rail or wall mounted;

● Wide temperature type: Operating temperature -40 ℃ ~ +85 ℃;

● All models are tested by 100% roasting machine the warranty period: 5 years.

Parameters

● E1 Interface

Interface Standard: comply with protocol G.703;

Interface Rate: n*64Kbps±50ppm;

Interface Code: HDB3;

E1 Impedance: 75Ω (unbalance) 120Ω (balance);

Jitter tolerance: In accord with protocol G.742 and G.823

Allowed Attenuation: 0~6dBm

● Ethernet interface (10/100M)

Interface rate: 10/100 Mbps half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector: RJ45 support Auto-MDIX

● Power

Power supply: AC180V ~ 260V；DC –48V；DC +24V

Power consumption: ≤10W

● Dimension

Product Size: Mini Type 216X140X31mm(WXDXH)

Simple packaging: 274X193X84mm(WXDXH)

Piece Weight : 1.25KG

● Working environment

Working temperature: -10°C ~ 50°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C

Storage Humidity: 5%~95 % (no condensation)

Application

Documentation and project verification

Before ordering or wiring, confirm the exact model and configuration, interface pinout, optical or network compatibility, power input and installation conditions. Optional configurations are not interchangeable.
