The device is Ethernet IEEE802.3 media transceiver to achieve media conversion or extending network transmission distance between two kinds of media, which are 10/100/1000Base-T UTP and 10/100Base-FX or 10/100/1000Base-T UTP and 10/100/1000Base-FX. It mainly used for fiber network far distance (20/40/60/80/120km) transmission, supports 10/100/1000M or 10M, 100M,1000M transmission rate. Fiber port and UTP can work through 10M or 100M/1000M rate.
- Product Search Guide: space = AND, | = OR, ! = NOT

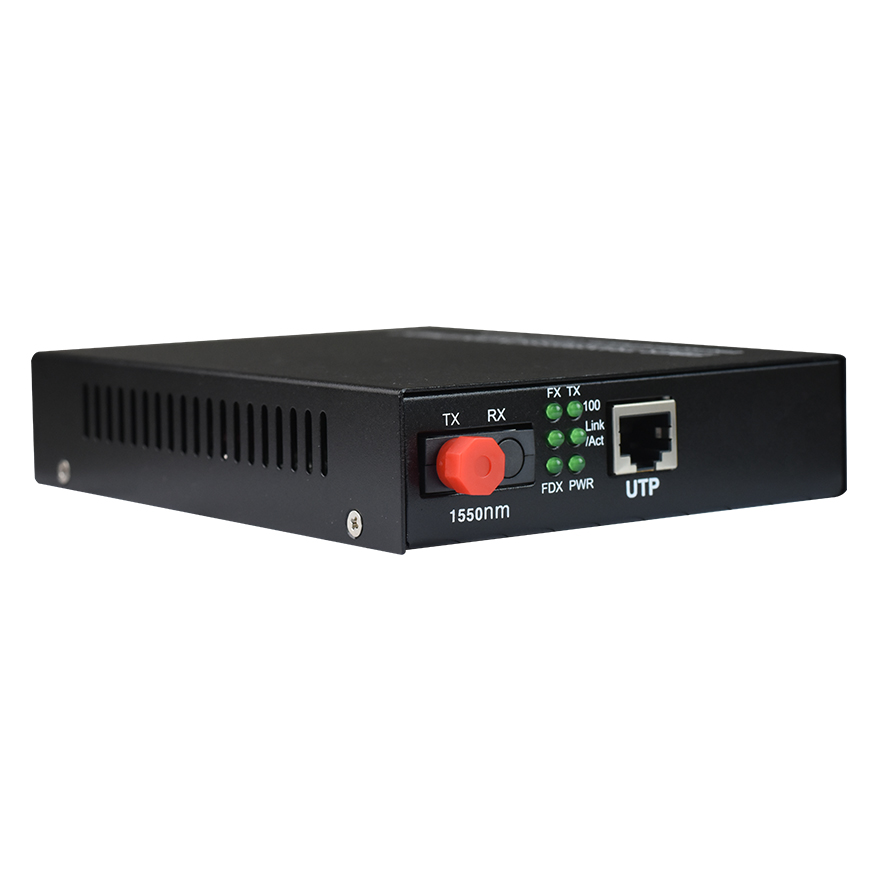

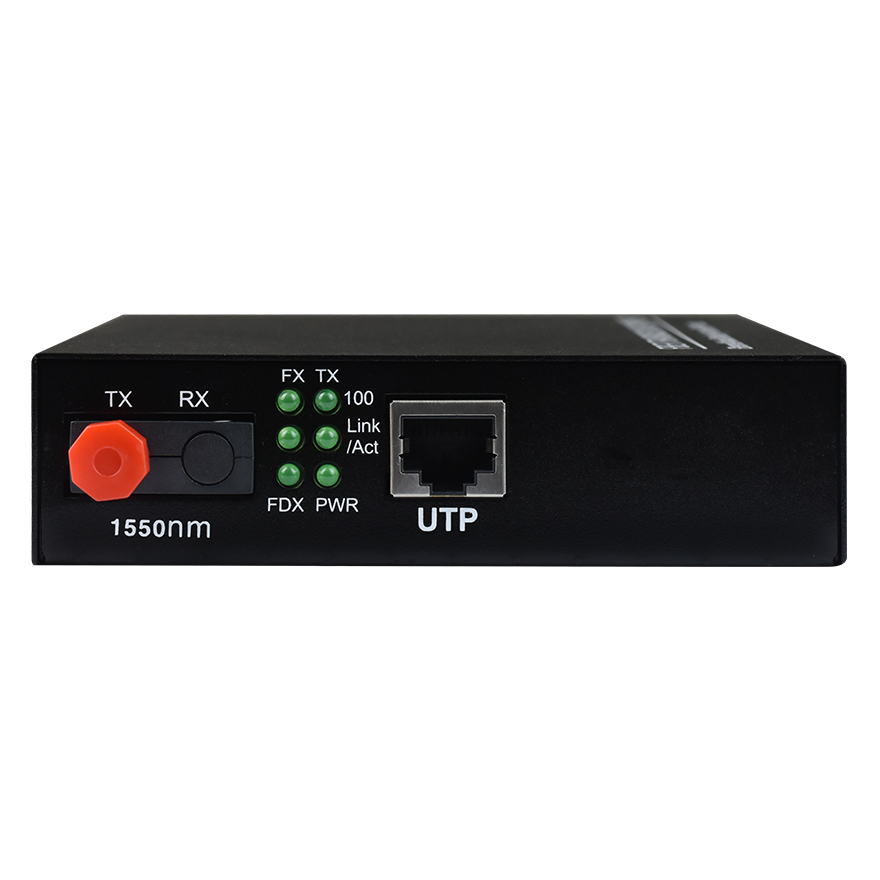

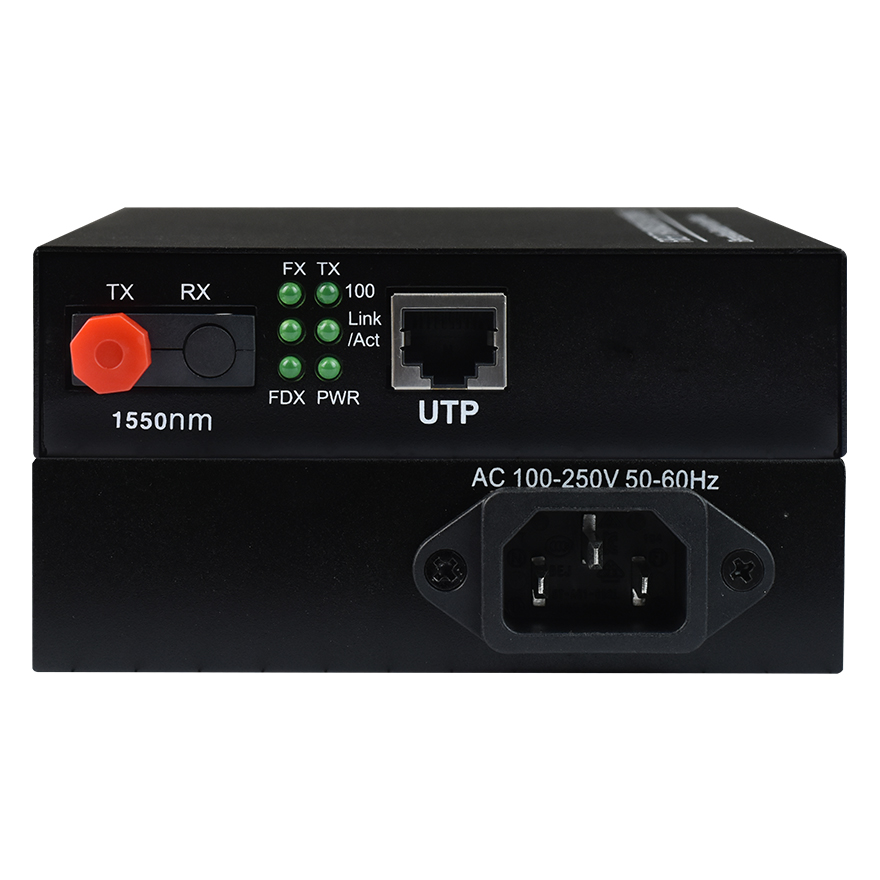

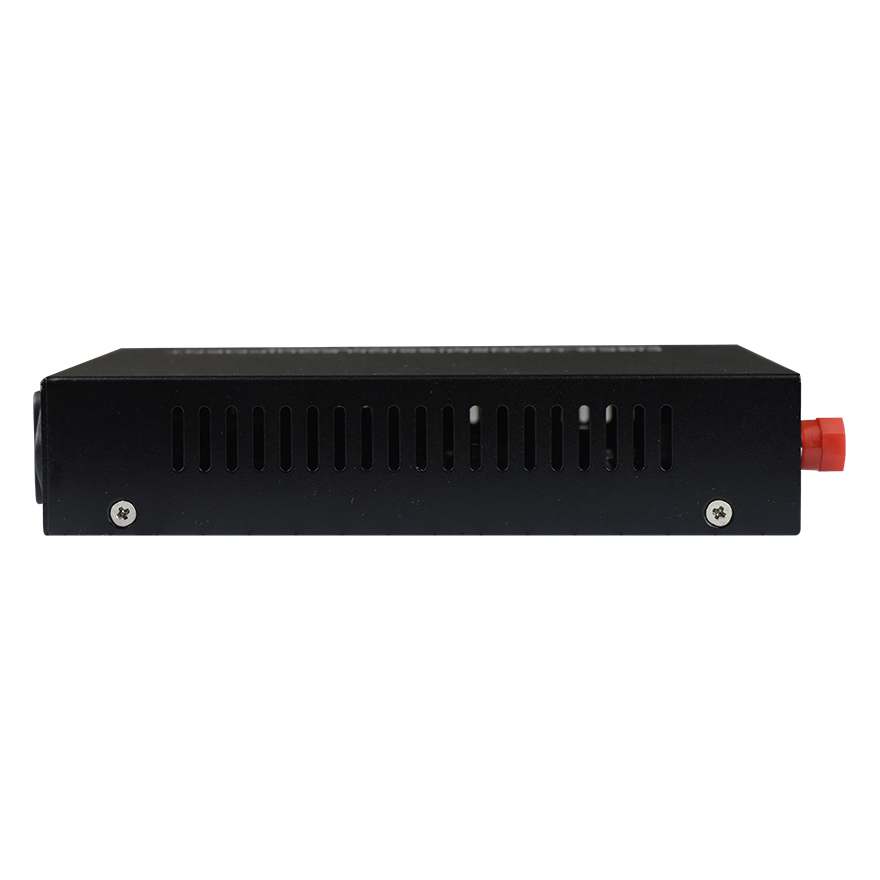

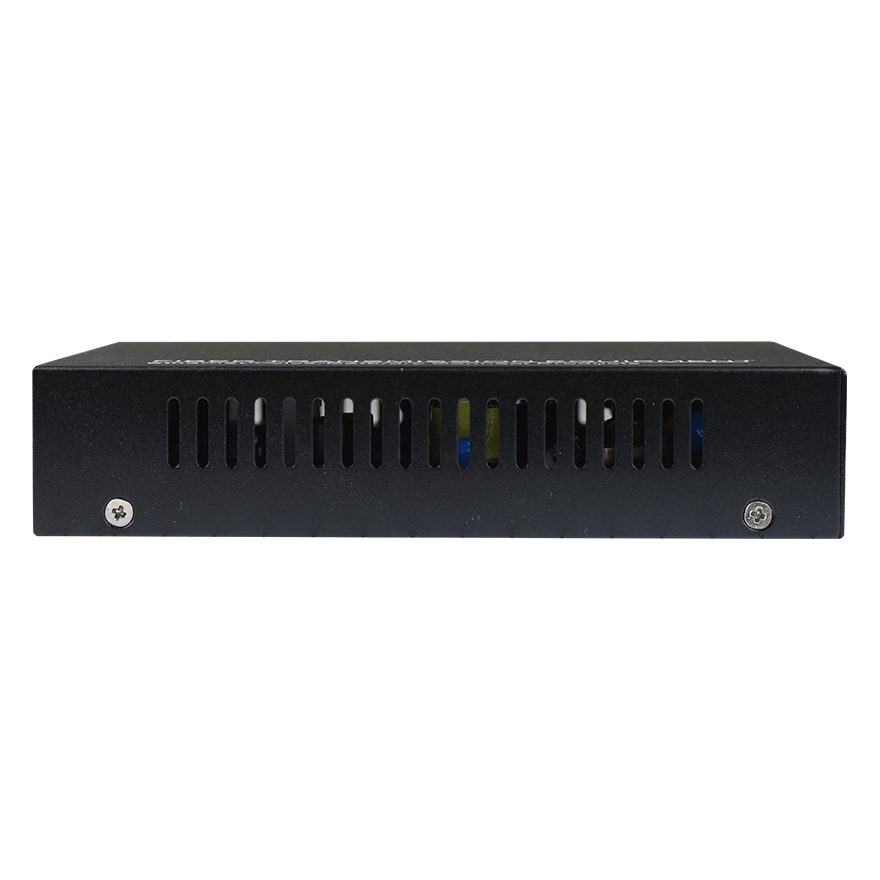

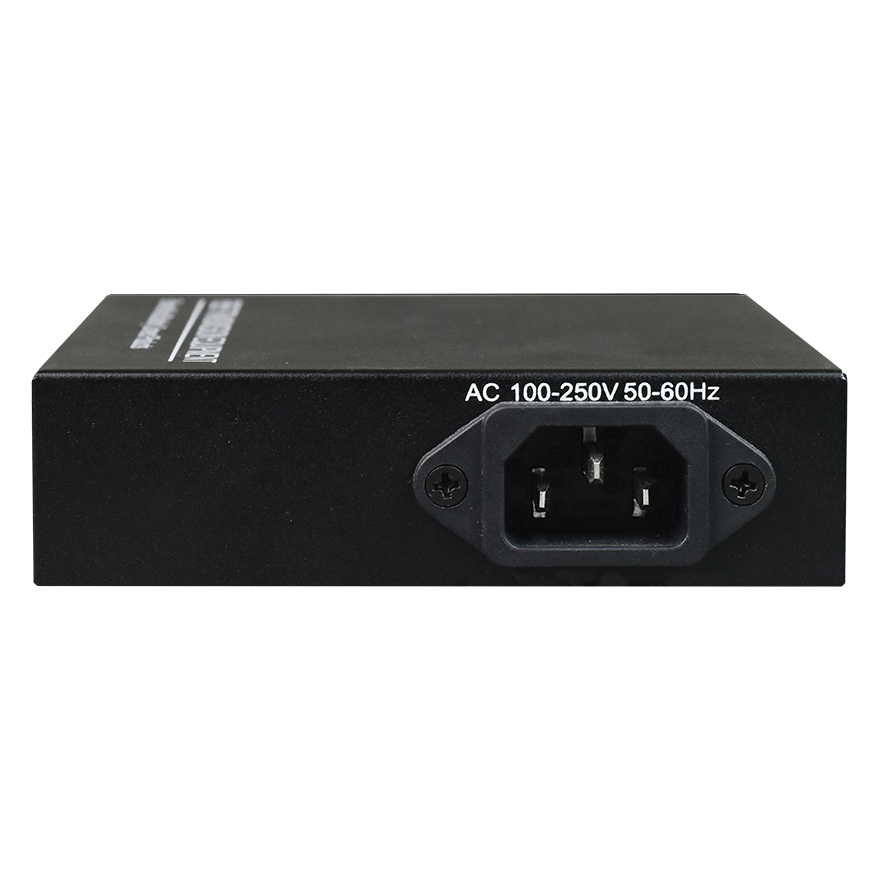

GE Fiber Media Converter power internal
Model
FCM-G1
Description :
The device is Ethernet IEEE802.3 media transceiver to achieve media conversion or extending network transmission distance between two kinds of media
Overview
Features
◆Automatically adapt to 100Mbps and 1000Mbps environment, upgrade network easily;
◆Support full-duplex and half duplex network communication, with auto-negotiation capability;
◆The Ethernet interface supports jumbo frames (1600bit), which can match with the switch product complied with IEEE802.10 protocol
◆Support the LFP (Link Fault Pass Through) function ,when the fiber used connecting transceiver and UTP has fault, transceivers will notify the other end indicating fault information
◆With Fiber Alter function, that is, after not receiving optical signal automatically cut off optical circuit (opened on network management);
◆Support FX half/full duplex and link fault alarm function switch optional
◆Support UTP cross connection switch optional, convenient for system debugging and setup
◆Low power consumption, Low heating, can be stable work for a long time;
◆Single-core optical fiber and internal and external power optional, expands user’s needs
Parameters
Ethernet UTP Interface
Interface rate: 10/100/1000M, half/full duplex auto-negotiation Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN) MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
Optical interface
Wave Length: 1310nm, 1550nm
Interface rate: 1000 M, half/full duplex
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN) MAC Address Capability: 4096
Connector: FC/SC
Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.Transmission distance may also be limited by fiber optic bandwidth.
Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation) Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)
Specification
| Model |
FCM- FCM-G1 |
| Functional Description | 1*GE+1*100Base-S/LX Ethernet Switch（Mini Tpye），Built AC220 or DC48V power supply |
| Port Description |
One optical port, one GE port |
|
Power |

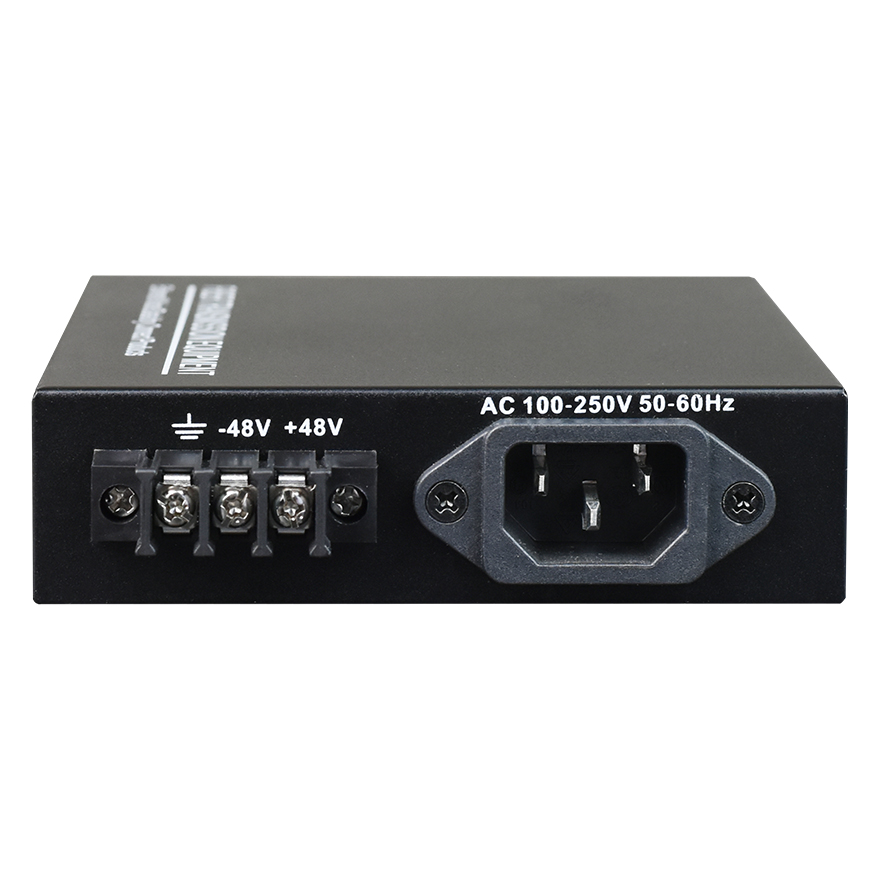

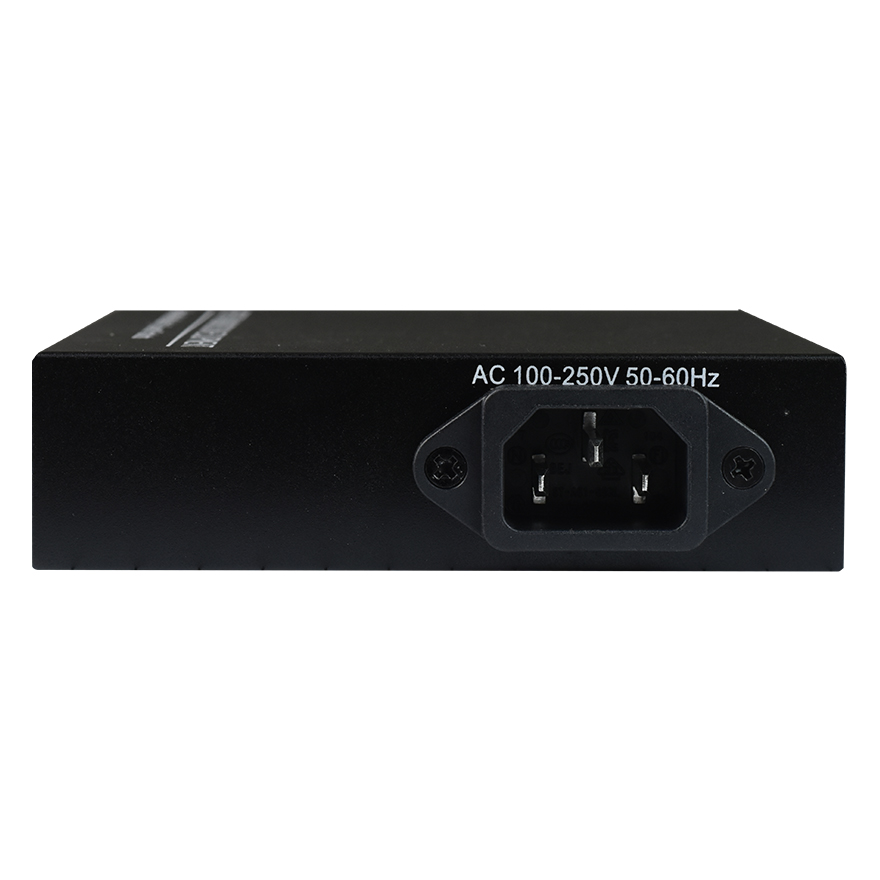

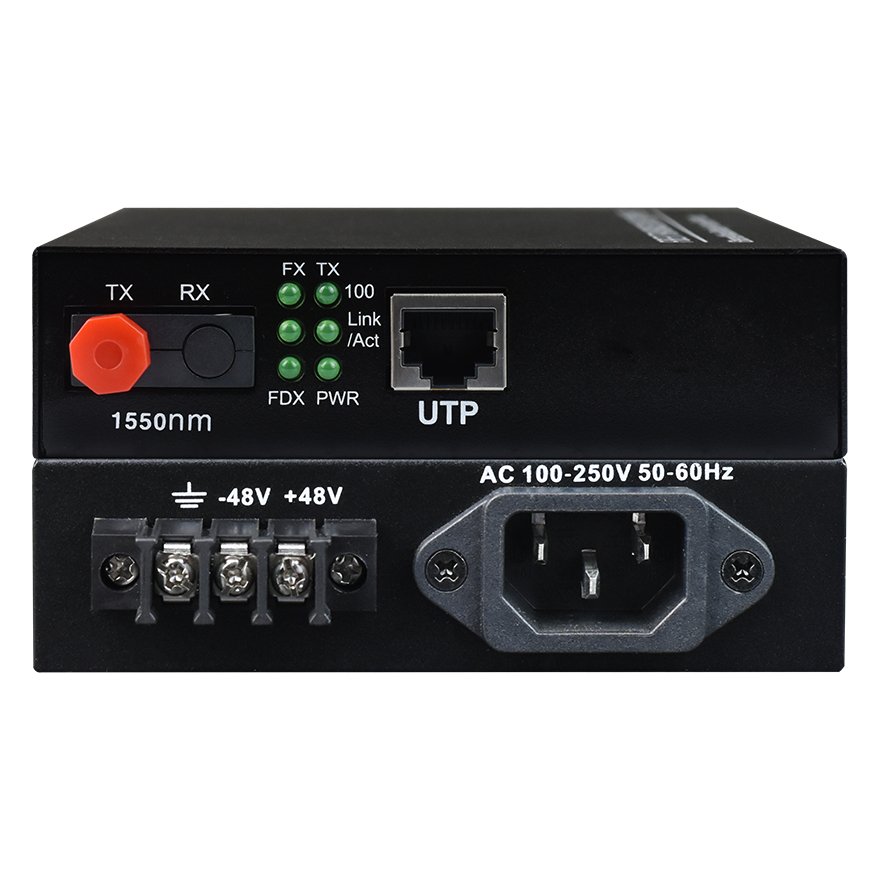

Power supply: AC180V ~ 260V；DC –48V；DC +24V |
|
Dimension |
140 X110 X30mm |
|
Weight |
0.5kg/set |
Application
Related Products
Documentation and project verification — FCM-G1
Before ordering or wiring, confirm the exact model and configuration, interface pinout, optical or network compatibility, power input and installation conditions. Optional configurations are not interchangeable.
Browse FCTEL technical documents · Request the current model-specific datasheet and wiring diagram
