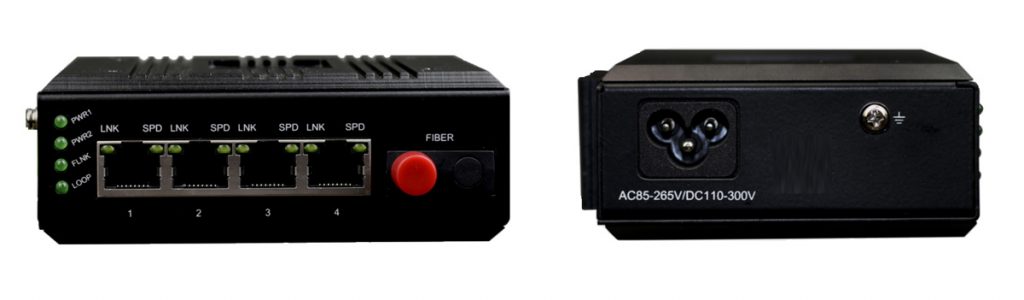

Industrial 4-Port 100M Ethernet to Optical Converter (AC220V Power Internal)

View : 623
Type : Unmanaged Industrial Media Converter
Description :

This industrial media converter is used for 4-port 100 Base-T to 100 Base-FX conversion, and it supports long-distance (20/40/60/80/100/120 km) optical fiber network transmission.

Overview

This industrial media converter is used for 4-port 100 Base-T to 100 Base-FX conversion, and it supports long-distance (20/40/60/80/100/120 km) optical fiber network transmission. It provides a 100M optical port and 4 100M Ethernet ports, with automatic loop detection of all ethernet ports and optical ports, and isolation of the loopback port function and LFP function.

Features

The media converter provides a 100Mbps fiber port and 4 100Mbps Ethernet electrical ports, with automatic adaptation to 10/100Mbps environments and automatic negotiation for full-duplex and half-duplex modes. It supports the automatic selection of crossover or straight-through connection for twisted pair ports, facilitating system debugging and installation.

The optical interface supports 3 transmission modes: multi-mode dual fiber, single-mode dual fiber, and single-mode single fiber. Optional SC/ST/FC/LC interfaces are available.

It has the function of detecting errors and restarting the power of the whole machine when it crashes, which is suitable for large-data flow applications such as video transmission.

The device has automatic loop detection for all ethernet ports and optical ports, can isolate the corresponding loopback ports, and has a loop indicator display.

It supports the LFP function, allowing alarms from the fiber port to be transmitted to the ethernet port. It can be enabled or disabled using the DIP switch.

It supports the transmission of extra-long jumbo frames, compatible with switches that support the IEEE 802.1Q protocol. It supports Ethernet frames with a maximum size of 4097 bytes.

It has functions such as broadcast storm protection, flow balance, conflict isolation, and error detection.

It support AC85-265V or DC110-300V wide range input.

It complies with industrial electromagnetic compatibility requirements and has strong lightning protection, resistance against high voltage induction, and surge protection.

It has an IP40-rated casing, capable of withstanding harsh environmental conditions.

It can be installed on a DIN rail or wall-mounted.

Wide temperature type: working temperature -40℃~ +85℃.

Specifications

Product Model

FCM-F4-MAC

Function Description

1*100M optical port to 4*10/100M Ethernet port, sharing 100M bandwidth, and has the function of automatic power off and restart of the whole machine when the transceiver crashes; loop automatic detection and isolation function, LFP function, industrial rail type, AC power supply built-in.

Port Description

1*100M optical port, 4*100M Ethernet ports, AC power port

Power Supply

AC~85-265V AC, or DC110-300V DC wide range input, power consumption <5W

Overload protection: support

Access to AC seat: AC Socket Cross style

Product Size

Shell: IP40 protection grade, aluminum alloy material

Dimensions: 110mm(L) x 86mm(W) x 40.5mm(H)

Installation method: din rail mounting, wall-mounted

Weight

0.495 kg/set

Application

application of Ethernet to Fiber Media Converter
