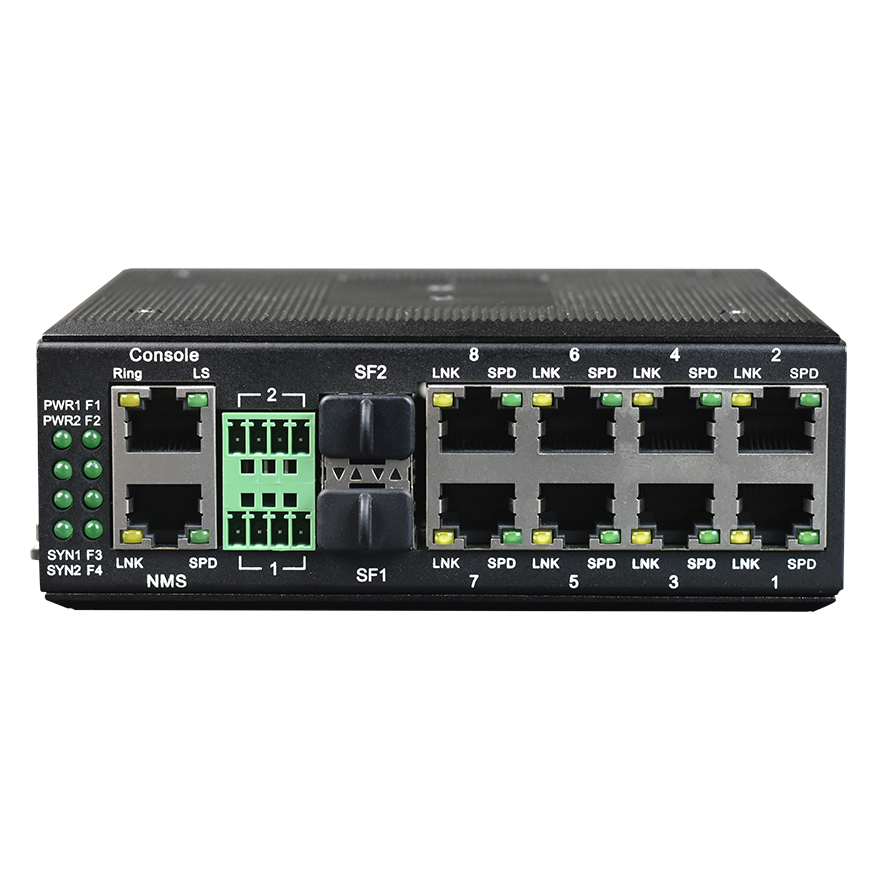

Industrial Grade 8FE to 1000Base-X Media Converter

View : 735
Type : unmanaged ethernet switch
Description :

This series of products is industrial grade 8*100base-T to 1000base-X fiber conversion mainly for long-distance fiber optic network (20/40/60/80/100 km) transmission.

Overview

This series of products is industrial grade 8*100base-T to 1000base-X fiber conversion mainly for long-distance fiber optic network (20/40/60/80/100 km) transmission. This channel provides 1 channel Gigabit optical port; 8*FE electrical port and share 1000M bandwidth each channel bandwidth can be set through the Console port (Ethernet interface for the exchange port can support VLAN division) that logic Isolation; 1 console port. With perfect alarm function the machine is stable and reliable low power consumption high integration small size.


Features

Industrial Ethernet series designed for harsh and harsh industrial environments;

Equipment provides 8-way FE Ethernet electrical port 1 Gigabit optical port and share Gigabit bandwidth a Console port;

Electrical interface (RJ45 interface) support 10/100M adaptive full / half duplex mode MDI / MDI-X automatic detection;

SFP optical interface supports multi-mode dual-fiber single-mode dual-fiber single-mode single fiber three fiber transmission mode;

With broadcast storm protection balance flow isolation conflict detection error and crash from the reset function suitable for video transmission and other large flow data applications;

Transceiver built-in 1MBits high-speed cache to avoid the IP camera in the monitoring of the screen rapidly changing the environment caused by the transmission screen stuck phenomenon;

Support VLAN long packet transmission can support IEEE802.1Q protocol with the switch to use the product to support up to 10K bytes of Ethernet packets;

With Console management function (optional) you can set the bandwidth and priority of each Ethernet you can set based on PORT and 802.1Q-based 8 Ethernet port isolation;

Support a wide range of 9-55V AC and DC power input;

Support internal isolation redundant dual power input;

Power supply support overload protection anti-reverse protection;

Meet the requirements of industrial four electromagnetic compatibility;

Super lightning protection: anti-lightning anti-sensor high pressure anti-surge etc .;

No fan efficient cooling reduce the repair time;

Anodized aluminum alloy shell IP40 protection class able to withstand the harsh environment of the test;

Rail or wall mounted;

Wide temperature type: Operating temperature -40 ℃ ~ +85 ℃;

All models are tested by 100% roasting machine the warranty period: 5 years.

Parameters

● E1 Interface

Interface Standard:      comply with protocol G.703;

Interface Rate:             n*64Kbps±50ppm;

Interface Code:            HDB3;

E1 Impedance:             75Ω (unbalance) 120Ω (balance);

Jitter tolerance:            In accord with protocol G.742 and G.823

Allowed Attenuation:   0~6dBm

● Ethernet interface (10/100M)

Interface rate:              10/100 Mbps half/full duplex auto-negotiation

Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector:                  RJ45 support Auto-MDIX

● Power

Power supply: AC180V ~ 260V;DC –48V;DC +24V

Power consumption: ≤10W

●  Dimension

Product Size: Mini Type    216X140X31mm(WXDXH)

Simple packaging:   274X193X84mm(WXDXH)

Piece Weight :    1.25KG

● Working environment

Working temperature: -10°C ~ 50°C

Working Humidity:        5%~95 % (no condensation)

Storage temperature:   -40°C ~ 80°C

Storage Humidity:         5%~95 % (no condensation)

Application
