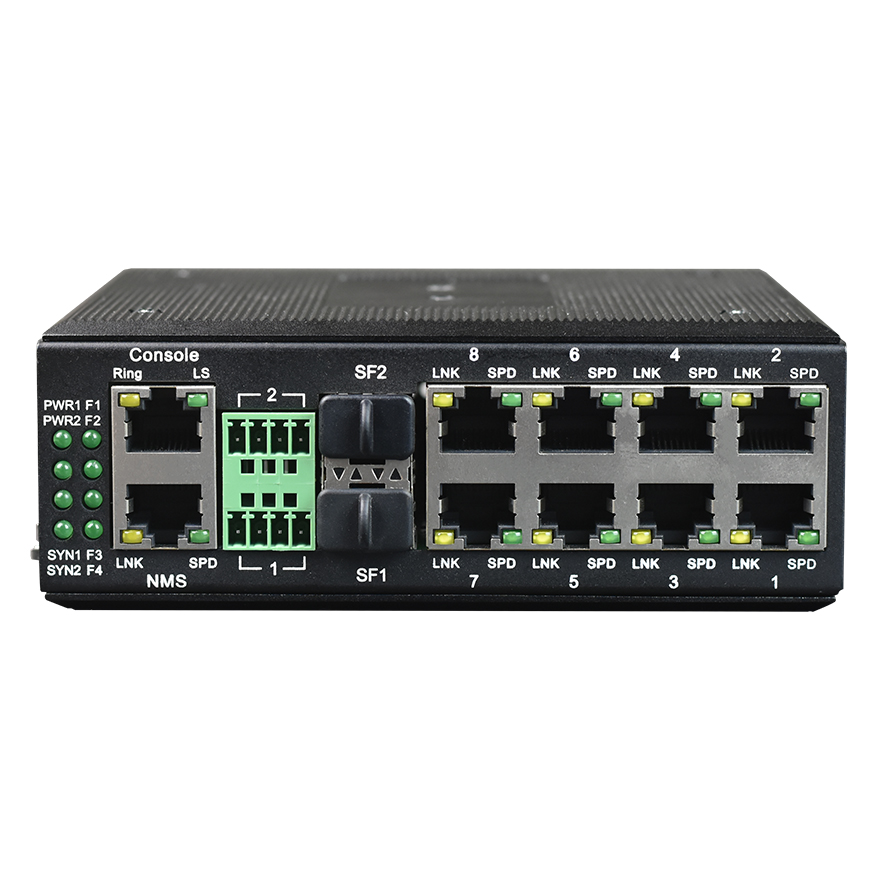

Industrial Grade 8FE to 100base-FX Media Converter

View : 595
Type : unmanaged ethernet switch
Description :

This series of products is industrial grade 8*100base-T to 100base-FX fiber conversion mainly for long-distance fiber optic network (20/40/60/80/120 km) transmission.


This series of products is industrial grade 8*100base-T to 100base-FX fiber conversion mainly for long-distance fiber optic network (20/40/60/80/120 km) transmission. This channel provides a 100-way optical port; 8*FE and share 100M bandwidth each bandwidth can be set through the Console port (Ethernet interface for the exchange port can support VLAN division) that logic Isolation; 1 console port. With perfect alarm function the machine is stable and reliable low power consumption high integration small size.



Industrial Ethernet series designed for harsh and harsh industrial environments;

Equipment to provide 8-way 100 Gigabit Ethernet electrical port and share 100 megahertz bandwidth a Console port;
Electrical interface (RJ45 interface) support 10/100M adaptive full / half duplex mode MDI / MDI-X automatic detection;
SFP optical interface supports multi-mode dual-fiber single-mode dual-fiber single-mode single fiber three fiber transmission mode;
With broadcast storm protection balance flow isolation conflict detection error and crash from the reset function suitable for video transmission and other large flow data applications;
Transceiver built-in 1.25MBits high-speed cache to avoid the IP camera in the monitoring of the screen rapidly changing the environment caused by the transmission screen stuck phenomenon;
Support VLAN long packet transmission can support IEEE802.1Q protocol with the use of the switch products to support up to 1600 bytes of Ethernet packets;
With Console management function (optional) you can set the bandwidth and priority of each Ethernet you can set based on PORT and 802.1Q-based 8 Ethernet port isolation;
Support a wide range of 9-55V AC and DC power input;
Support internal isolation redundant dual power input;
Power supply support overload protection anti-reverse protection;
Meet the requirements of industrial four electromagnetic compatibility;
Super lightning protection: anti-lightning anti-sensor high pressure anti-surge etc .;
No fan efficient cooling reduce the repair time;
Anodized aluminum alloy shell IP40 protection class able to withstand the harsh
environment of the test;
Rail or wall mounted;
Wide temperature type: Operating temperature -40 ℃ ~ +85 ℃;
All models are tested by 100% roasting machine the warranty period: 5 years.


● E1 Interface
Interface Standard:      comply with protocol G.703;
Interface Rate:             n*64Kbps±50ppm;
Interface Code:            HDB3;
E1 Impedance:             75Ω (unbalance) 120Ω (balance);
Jitter tolerance:            In accord with protocol G.742 and G.823
Allowed Attenuation:   0~6dBm
● Ethernet interface (10/100M)
Interface rate:              10/100 Mbps half/full duplex auto-negotiation
Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
● Power
Power supply: AC180V ~ 260V;DC –48V;DC +24V
Power consumption: ≤10W
● Dimension
Product Size: Mini Type    216X140X31mm(WXDXH)
Simple packaging:   274X193X84mm(WXDXH)
Piece Weight :    1.25KG
● Working environment
Working temperature: -10°C ~ 50°C
Working Humidity:        5%~95 % (no condensation)
Storage temperature:   -40°C ~ 80°C
Storage Humidity:         5%~95 % (no condensation)
