Industrial Rail 4 Ports Gigabit Copper Ethernet to Fiber Media Converter

View : 328
Type : Industrial Fiber Media Converter
Description :

This fiber media converter is an industrial-grade 4 ports 10/100/1000Base-T to 1000Base-FX optical fiber conversion, which is mainly used for optical fiber network long-distance (20/40/60/80/100 km) transmission.

Overview

This series of products is an industrial-grade 4-port 10/100/1000Base-T to 1000Base-FX optical fiber conversion, which is mainly used for optical fiber network long-distance (20/40/60/80/100 km) transmission. This product provides 1 Gigabit optical port; 4 Gigabit Ethernet ports, and share Gigabit bandwidth. With a complete alarm function, the whole machine works stably and reliably, with low power consumption, high integration, and small size.

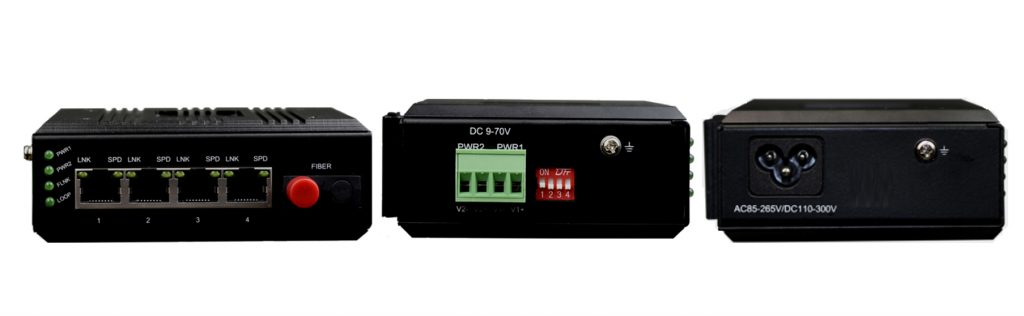

Industrial Rail 4 Ports Gigabit Copper Ethernet to Fiber Media Converter

Features

IP40 enclosure protection grade, able to withstand the test of harsh environments;

The device provides 4 Gigabit Ethernet ports and 1 Gigabit optical port, sharing Gigabit bandwidth, the transmission bandwidth is 1000M line speed, and the Gigabit optical port supports 2km, 40km, 60km, 80KM and 120KM distance transmission;

It supports the transmission of VLAN super-long data packets, which can be matched with network switch products supporting the IEEE802.1Q protocol, and supports Ethernet packets with a maximum size of 9K bytes;

The electrical interface (RJ45 interface) supports 10/100/1000M self-adaptation, full/half duplex mode, MDI/MDI-X automatic detection;

It has functions such as broadcast storm protection, balancing traffic, isolating conflicts, detecting errors, and self-resetting of crashes, and is suitable for high-traffic data applications such as video transmission;

Power supply supports super lightning protection function: lightning protection, anti-induction high voltage, anti-surge, etc.; no fan for efficient heat dissipation, reducing repair time;

When dual DC power supply (5.08 terminal block):

It can be powered by DC9-55V or AC7-50V wide-range power supply, the power supply has the function of automatic polarity detection, and there is no need to distinguish between positive and negative poles during installation;

Support internal isolation, redundant dual power input; anti-reverse protection

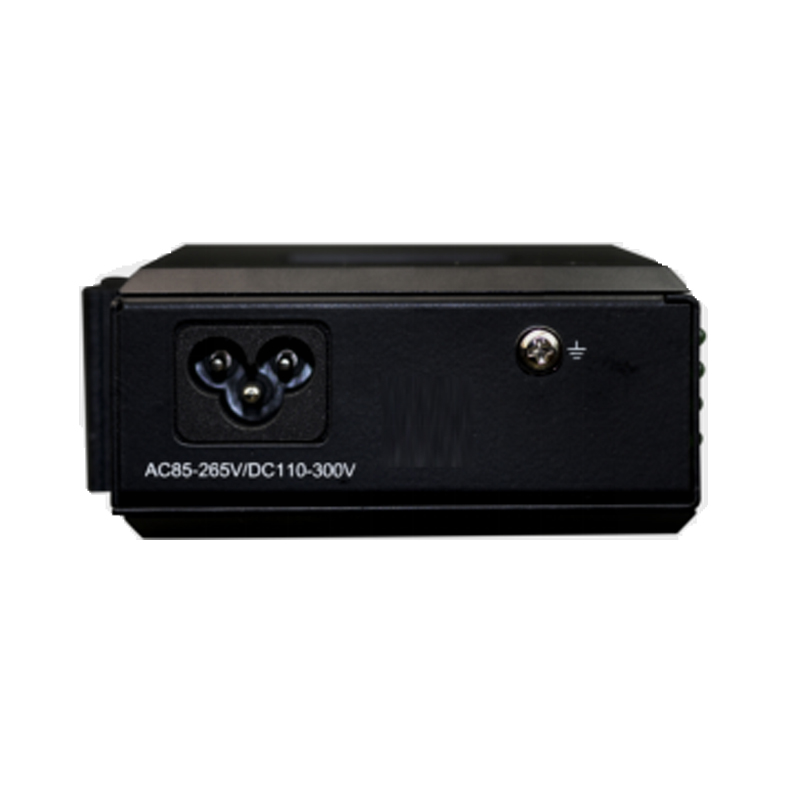

When AC power supply (Cross style AC sockets):

Support AC~85-265V AC, or DC110-300V DC wide-range output, which meets the requirements of industrial level 4 electromagnetic compatibility;

Super lightning protection function: lightning protection, anti-induced high voltage, anti-surge, etc.;

No fan for efficient heat dissipation, reducing repair time;

Provide DIN 35mm rail installation or wall-mounted installation;

Wide temperature type: working temperature -40℃~ +85℃;

All models have passed the 100% oven test, warranty period: 5 years;

Parameters

● Fiber

Optical port:1

Optical Fiber: Single/Dual fiber

Fiber interface: SC/FC/ST/LC (SFP) optional

Wavelength:850nm/1310nm Multimode;1310nm/1550nm Single mode

Relay-free transmission distance: 0~80Km

Typical transmit power: single mode 100uw — 0.93mw



● 10/100/1000M Ethernet Interface

Protocol: Compliant with IEEE 802.3ab, IEEE 802.3z

Rate: 10/100/1000M adaptive, full/half duplex adaptive

MAC address table: 4096 MAC addresses can be learned

Physical interface: RJ45 supports Auto-MDIX



● Environmental index

Working temperature: -40℃—+850℃

Storage temperature: -40℃—+85℃

Working humidity: 0%—95% (non-condensing)

MTBF: >100,000 hours

Specifications

Product Number

FCM-G4

Product Function Description

1*Gigabit optical port to 4*10/100/1000M Ethernet copper port, industrial rail type

Service Port Description

1*Gigabit SFP optical port, 4*Gigabit Ethernet ports

Power Supply

DC power supply:

Redundant dual power input DC9-70V or AC7-50V, power consumption <5W

Overload protection: support; reverse polarity protection: support; redundancy protection: support

Access terminal: 4-core 5.08mm pitch plug-in terminal

AC built-in power supply:

AC~85-265V AC, or DC110-300V DC wide range input, power consumption <5W

Overload protection: support;

Access interface: cross-style AC sockets

Product Size

Shell: IP40 protection grade, aluminum alloy material

Dimensions: 110mm(L) x 86mm(W) x 40.5mm(H)

Installation method: rail installation, wall-mounted installation

Weight

0.75KG/PCS

Application

application of Industrial 4 Ports Gigabit Copper Ethernet to Fiber Media Converter
