Managed 2-Port GE Industrial Fiber Media Converter

View : 644
Type : Managed Industrial Media Converter
Description :

The device is an industrial-grade fiber media converter designed for converting or extending network transmissions between 2 ports of 10/100/1000base-T twisted-pair cables and 1000base-X fiber optic media.

Overview

The device is an industrial-grade fiber media converter designed for converting or extending network transmissions between 2 ports of 10/100/1000base-T twisted-pair cables and 1000base-X fiber optic media. It is primarily used for long-distance (20/40/60/80/100 kilometers) transmission in fiber optic networks. It features a gigabit optical port and 2 gigabit Ethernet ports.



It possesses comprehensive alarm functions, ensuring stable and reliable operation, low power consumption, high integration, and compact size. The device is based on an Ethernet switching chip and FPGA solution, with remote OAM frame management capability supporting Console network management, WEB management, and independent SNMP management.

Features

The device is specifically designed for harsh industrial environments.

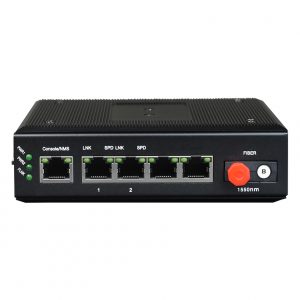

It provides 2 gigabit Ethernet ports, a gigabit optical port, and an optional Console/SNMP management port.

The ethernet interface (RJ45) supports 10/100/1000M auto-negotiation, full/half duplex mode, and MDI/MDI-X auto-detection.

The optical interface supports multimode dual fiber, single-mode dual fiber, and single-mode single fiber transmission modes, with optional SC/ST/FC/LC interfaces.

It has functions such as broadcast storm protection, flow balance, conflict isolation, error detection, and automatic reset in case of system failure, making it suitable for high-bandwidth data applications such as video transmission.

It has a built-in 1MBit high-speed buffer, which avoids video stuttering during rapid changes in the monitored scene of IP cameras.

It supports the transmission of VLAN jumbo frames and can be used in conjunction with switch products that support the IEEE802.1Q protocol, supporting Ethernet packets of up to 10K bytes.

The device is based on an Ethernet switching chip and FPGA solution, with remote OAM management frame functionality. It can be interconnected with a 2U plug-in card with SNMP management and can be managed by SNMP software. It also supports Console (CLI) management, WEB management, and independent SNMP management.

The network management allows real-time monitoring and management of the interface status and settings of both the local and remote Ethernet connections.

The device features a power failure detection function for detecting power loss or fiber disconnection at the remote end when the optical signal is lost.

It supports a wide range of 9-55V AC/DC power inputs.

It supports internal isolation and redundant dual power inputs.

The power supply has overload protection and reverse connection protection.

It complies with industrial-grade electromagnetic compatibility requirements.

It has excellent lightning protection capabilities, with protection against lightning strikes, high-voltage induction, and surge.

Fanless design for efficient heat dissipation, reducing downtime for repairs.

The device features an anodized aluminum alloy enclosure with an IP40 protection rating, capable of withstanding harsh environmental conditions.

DIN-rail mounting or wall-mounted.

Operating temperature from -40°C to +85°C.

It has passed 100% burn-in testing and comes with a 5-year warranty.

Parameters

● Fiber

Fiber Type: Single/Dual fiber

Fiber Interfaces: FC/SC/ST/LC (SFP)

Wavelength: 850nm/1310nm (multi-mode); 1310nm/1550nm (single-mode)

Non-relay Transmission Distance: 20-120Km

Typical Transmit Power:

Single-mode 1310/1550nm: ≥-9dBm

Multi-mode 850nm: -18dBm

Multi-mode 1310nm: -25dBm

Receive Sensitivity Range: -28dBm to -40dBm



● 10/100/1000M Ethernet Interface

Protocol: IEEE 802.3z, IEEE 802.3ab compliant

Rate: 10/100/1000M auto-negotiation, full/half duplex auto-adaptation

MAC Address Table: Supports up to 4096 MAC addresses

Physical Interface: RJ45 connector with Auto-MDIX (auto-crossover/direct connection)



● Power Supply

Redundant Dual Power Inputs: DC9-48V, power consumption <5W

Overload Protection: Supported

Reverse Connection Protection: Supported

Redundancy Protection: Supported

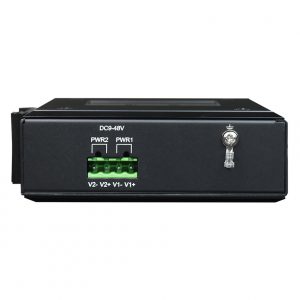

Terminal Block: 4-pin 5.08mm pitch plug-in terminal



● Product Specifications

Enclosure: IP40 protection rating, aluminum alloy material

Dimensions: 133mm (length) x 120mm (width) x 31.0mm (height)

Mounting Options: DIN rail or wall-mounted

Weight: 0.685kg per unit



● Environmental Indicators

Operating Temperature: -40°C to +85°C (industrial-grade)

Storage Temperature: -40°C to +85°C

Operating Humidity: 0% to 95% (non-condensing)

MTBF: >100,000 hours

Application

application of menaged fiber media converter
