Industrial Managed 4-Port Gigabit Ethernet to Fiber Converter

View : 577
Type : Managed Industrial Media Converter
Description :

This device is a fiber media converter designed for converting or extending network transmission between a 4-port 10/100/1000base-T twisted-pair interface and a 1000base-X fiber optic interface.

Overview

This device is a fiber media converter designed for industrial use, specifically for converting or extending network transmission between a 4-port 10/100/1000base-T twisted-pair interface and a 1000base-X fiber optic interface. It is primarily used for long-distance (20/40/60/80/100 kilometers) transmission in fiber optic networks. It features a gigabit fiber port and 4 gigabit Ethernet ports. It incorporates advanced alarm functions, ensuring stable and reliable operation, low power consumption, high integration, and a compact form factor.



The device is based on an Ethernet switching chip and the FPGA solution, is equipped with remote OAM frame management functionality. It supports Console management, WEB management, and independent SNMP management. Additionally, it can be interconnected with a 2U plug-in card with SNMP management capabilities, enabling centralized management of this device through SNMP software.

Features

The industrial media converter is designed for harsh industrial environments.

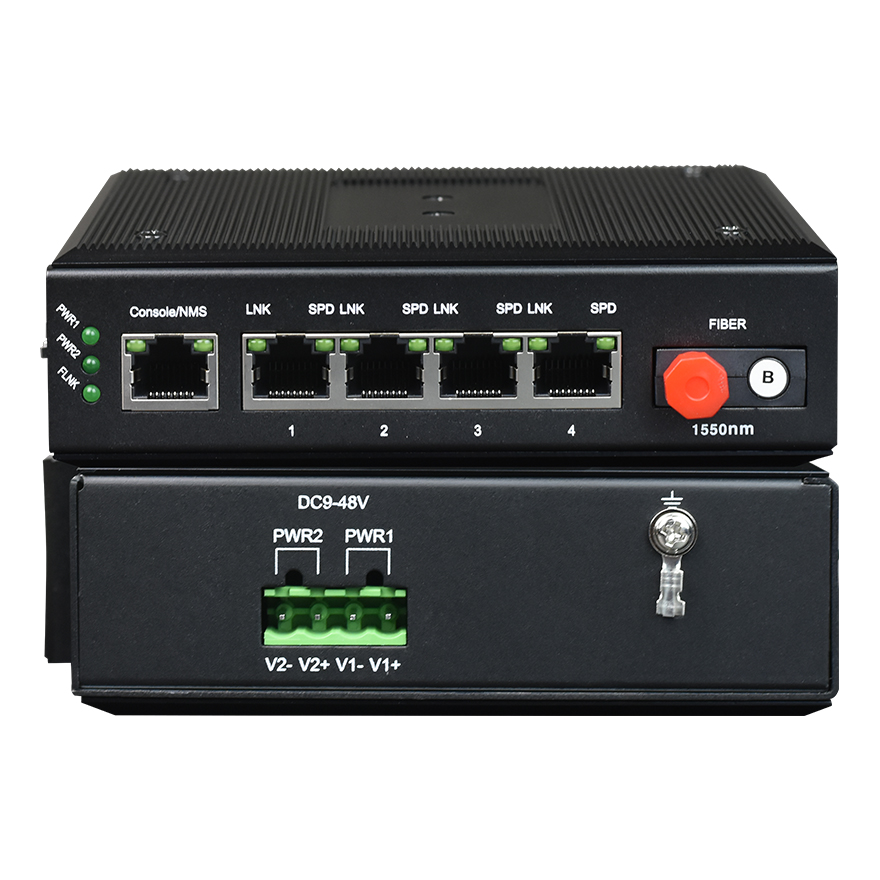

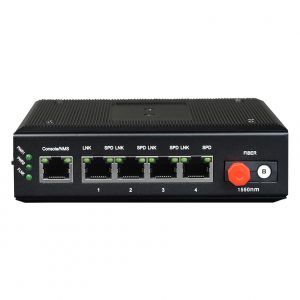

The device provides 4 Gigabit Ethernet ports, 1 Gigabit fiber optic port, and an optional Console/SNMP management port.

The ethernet interface (RJ45) supports 10/100/1000Mbps auto-negotiation, full/half duplex, and MDI/MDI-X auto-detection.

It incorporates an automatic power-off and system restart function in case of optical module failure.

The fiber interface supports multi-mode dual-fiber, single-mode dual-fiber, and single-mode single-fiber transmission modes, with optional SC/ST/FC/LC interfaces.

It features functions such as broadcast storm protection, flow balancing, conflict isolation, error detection, and automatic recovery from system freeze, making it suitable for high-bandwidth data applications such as video transmission.

It has a built-in 1MBits high-speed cache to avoid video delay in fast-changing monitoring environments.

It supports the transmission of VLAN jumbo frames and can be used in conjunction with switch products that support the IEEE802.1Q protocol, supporting Ethernet packets of up to 10K bytes.

The device is based on an Ethernet switching chip and FPGA solution, equipped with remote OAM management frame functionality. It can be interconnected with a 2U plug-in card with SNMP management capabilities, allowing management of this device through SNMP software. It also supports Console (CLI) management, web-based management, and independent SNMP management.

The network management allows real-time monitoring and management of the interface status and settings of the local and remote Ethernet connections. The device has a power failure detection function that can detect power loss on the remote device or fiber interruption when the optical signal is lost.

It supports a wide range of 9-55V AC and DC power inputs.

It supports internal isolation and redundant dual power inputs.

The power supply has overload protection and reverse connection protection.

It complies with industrial-grade electromagnetic compatibility requirements.

It has strong lightning protection capabilities, resistant to lightning strikes, high voltage induction, and surge protection.

Fanless design for efficient heat dissipation, reducing repair time.

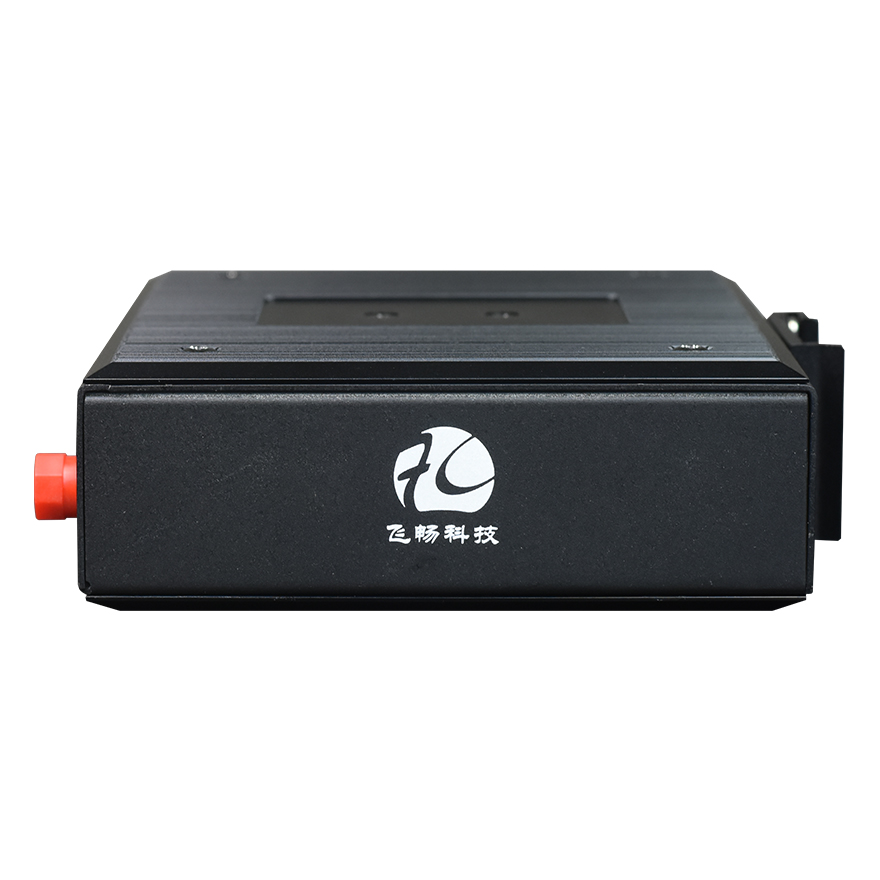

The device has an anodized aluminum alloy enclosure with an IP40 protection rating, capable of withstanding harsh environmental conditions.

It can be mounted on a DIN rail or wall.

Wide temperature type: Operating temperature -40 ℃ ~ +85 ℃.

It has undergone 100% burn-in testing and comes with a 5-year warranty.

Parameters

● Fiber

Fiber Types: Single/Dual fiber

Fiber Interfaces: FC/SC/ST/LC (SFP)

Wavelengths: 850nm/1310nm (multi-mode); 1310nm/1550nm (single-mode)

Non-Relay Transmission Distance: 20~120km

Typical Transmit Power:

Single-mode 1310/1550nm: ≥-9dBm

Multi-mode 850nm: -18dBm

Multi-mode 1310nm: -25dBm

Receiver Sensitivity Range: -28dBm to -40dBm



● 10/100/1000M Ethernet Interface

Protocol: Compliant with IEEE 802.3z, IEEE 802.3ab

Rate: 10/100/1000Mbps auto-negotiation, full/half duplex, fully adaptive

MAC Address Table: Supports learning of 4096 MAC addresses

Physical Interface: RJ45 connector, supports Auto-MDIX (auto-adaptation for crossover/straight-through cables)



● Power Supply

Redundant Dual Power Inputs: DC9-48V, power consumption <5W

Overload Protection: Supported

Reverse Connection Protection: Supported

Redundancy Protection: Supported

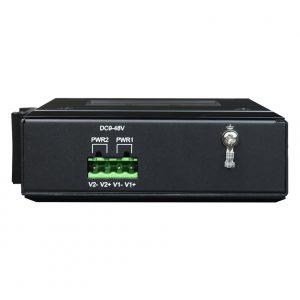

Terminal Connections: 4-core 5.08mm pitch plug-in terminal



● Product Specifications

Enclosure: IP40 protection rating, aluminum alloy material

Dimensions: 133mm (length) x 120mm (width) x 31.0mm (height)

Installation: DIN rail mounting, wall mounting

Weight: 0.685kg per unit



● Environmental Index

Operating Temperature: -40°C to +85°C (industrial-grade)

Storage Temperature: -40°C to +85°C

Operating Humidity: 0% to 95% (non-condensing)

MTBF: >100,000 hours

Application

application of industrial media converter
