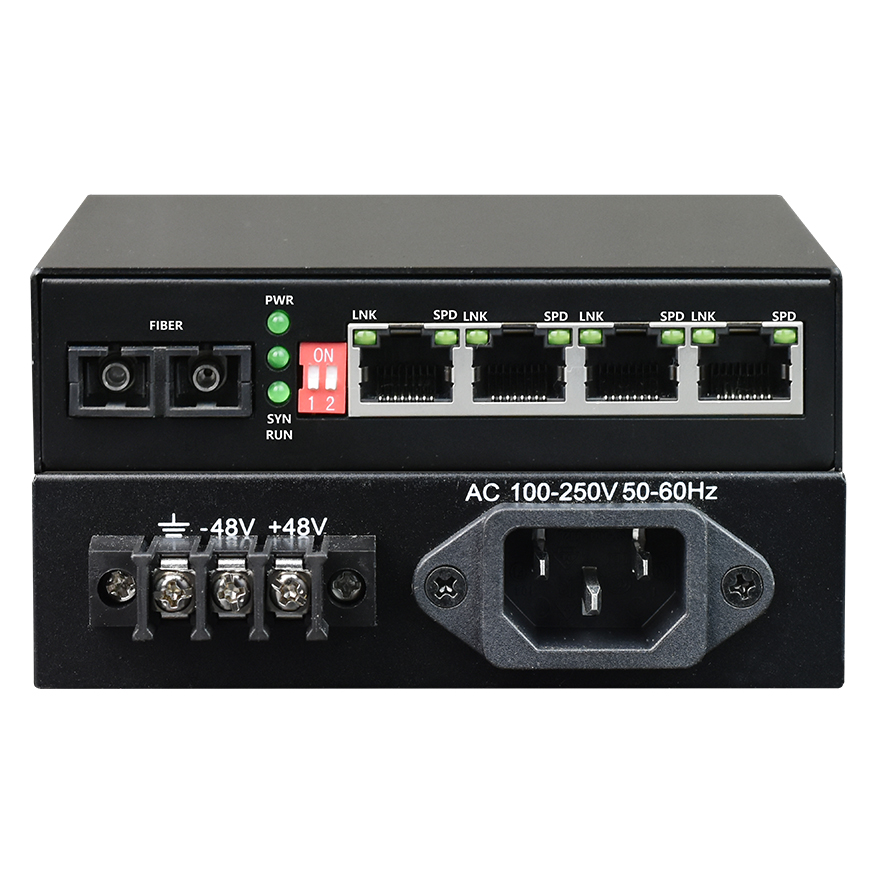

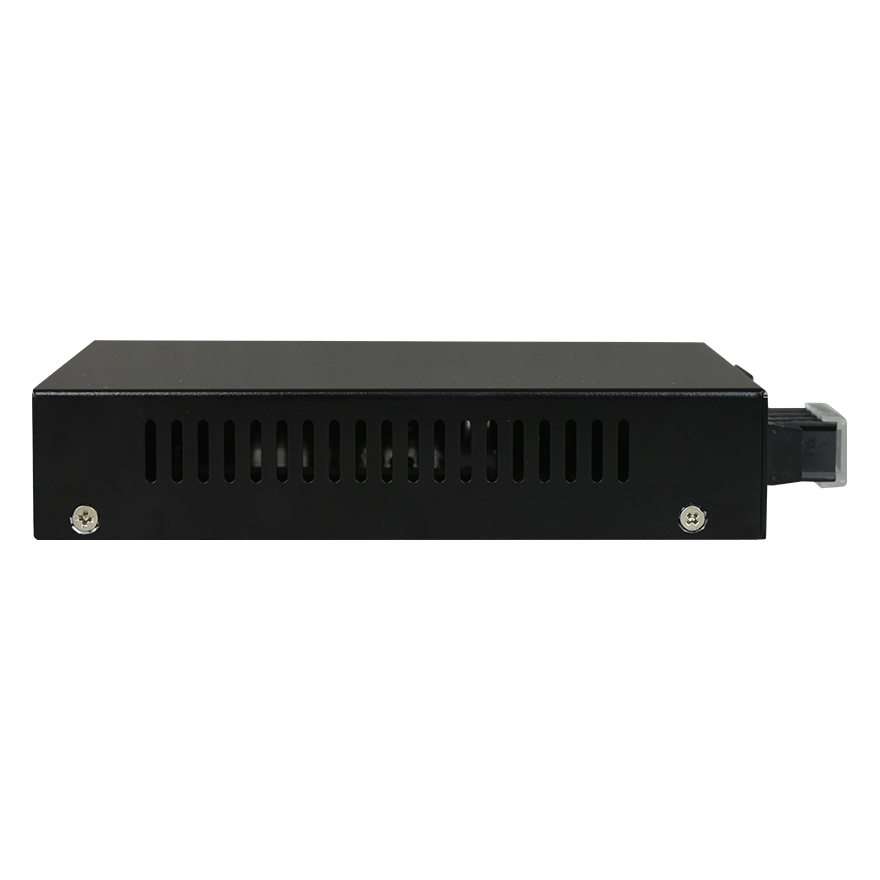

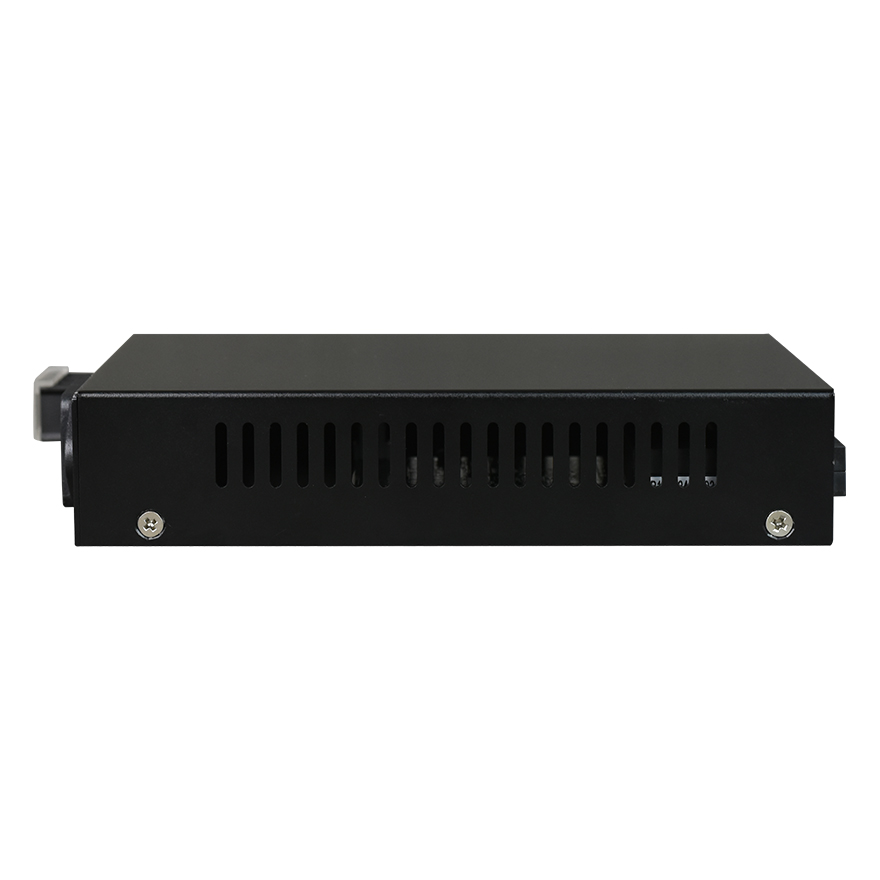

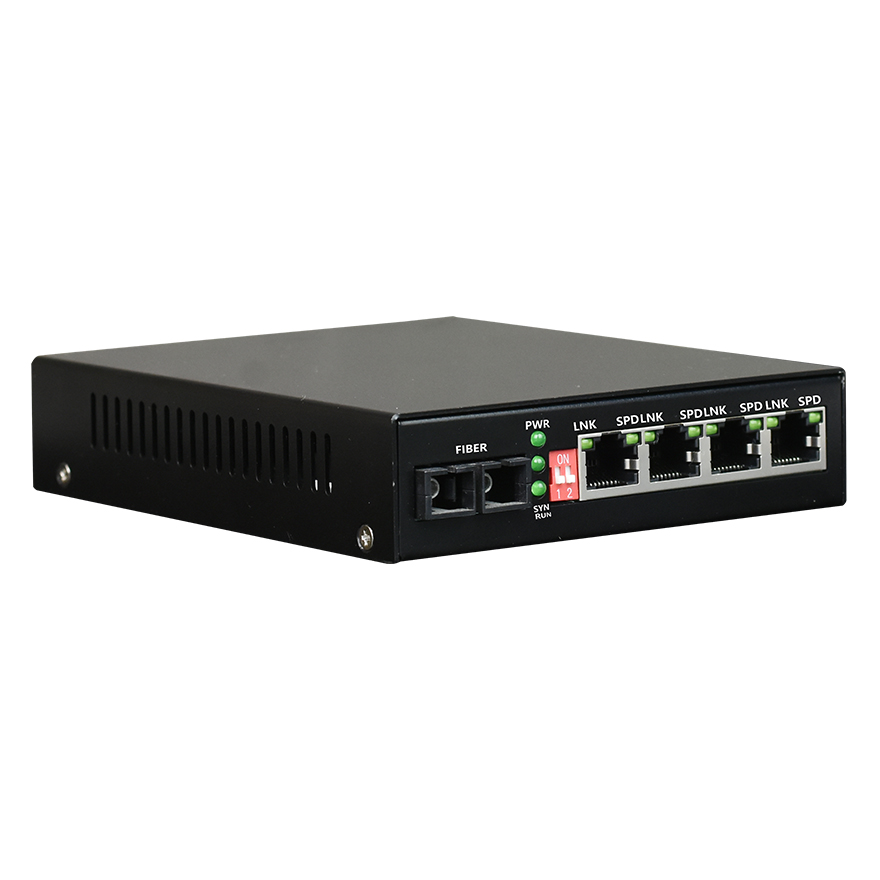

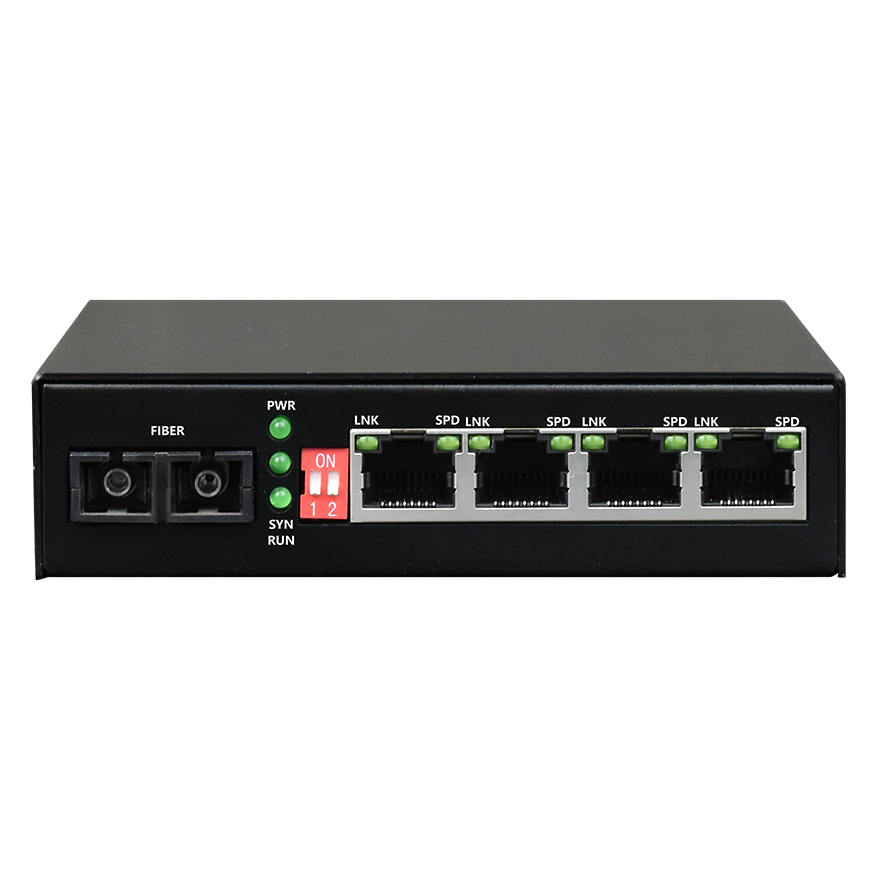

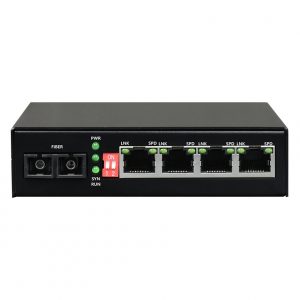

management type 1 fiber to 4 100M ethernet converter(power internal)

View : 295
Type : unmanaged fiber media converter
Description :

This series of products are Ethernet IEEE802.3 media converter, which can realize 4-port 10 / 100base-t The medium conversion or network transmission

Overview

    This series of products are Ethernet IEEE802.3 media converter, which can realize 4-port 10 / 100base-t The medium conversion or network transmission distance between twisted pair and 10 / 100base FX is mainly used for long-distance transmission of optical fiber network (20 / 40 / 60 / 80 / 120 km) and fully supports the transmission rate of 10m and 100m. Both optical port and electrical port can work at 10m or 100m transmission application. It has perfect alarm function, stable and reliable operation, low power consumption and high integration, Small size.
    The device is based on Gigabit Ethernet switching chip + FPGA solution, with strong local and remote management functions, can be connected with 2U plug-in card type network management transceiver, and can be configured with SNMP network management card management, with perfect local and remote alarm function.




Features

◆Automatically adapt to 10 / 100Mbps environment, easy to upgrade with different networks;
◆The equipment provides 4-channel 100M Ethernet electrical port and 1-way 100m optical port to share 100m bandwidth. The transmission bandwidth is 100m, and 100m optical port supports 20 / 40 / 60 / 80 / 100 / 120km distance transmission;
◆It has the functions of monitoring and self reset of the transceiver, which can work in the high flow video transmission environment for a long time without crash, and greatly reduce the workload of equipment maintenance;
◆Support full duplex and half duplex network communication, with automatic negotiation ability, interface MDI / mdi-x self-adaptive, without manual adjustment, convenient for on-site wiring;
◆It supports IEEE 802.3az energy-saving protocol, low power consumption, low heating, and can work stably for a long time;
◆It supports the transmission of VLAN ultra long data packets, and can be matched with switch products supporting IEEE802.1Q protocol, and supports Ethernet packets with a maximum of 1552 bytes;
◆It supports the connection with centralized 2U SNMP network management transceiver card, which can judge whether the optical Ethernet is fiber broken or remote shutdown when there is no link, supports the configuration of local equipment to remote equipment, and supports LFP transfer function;

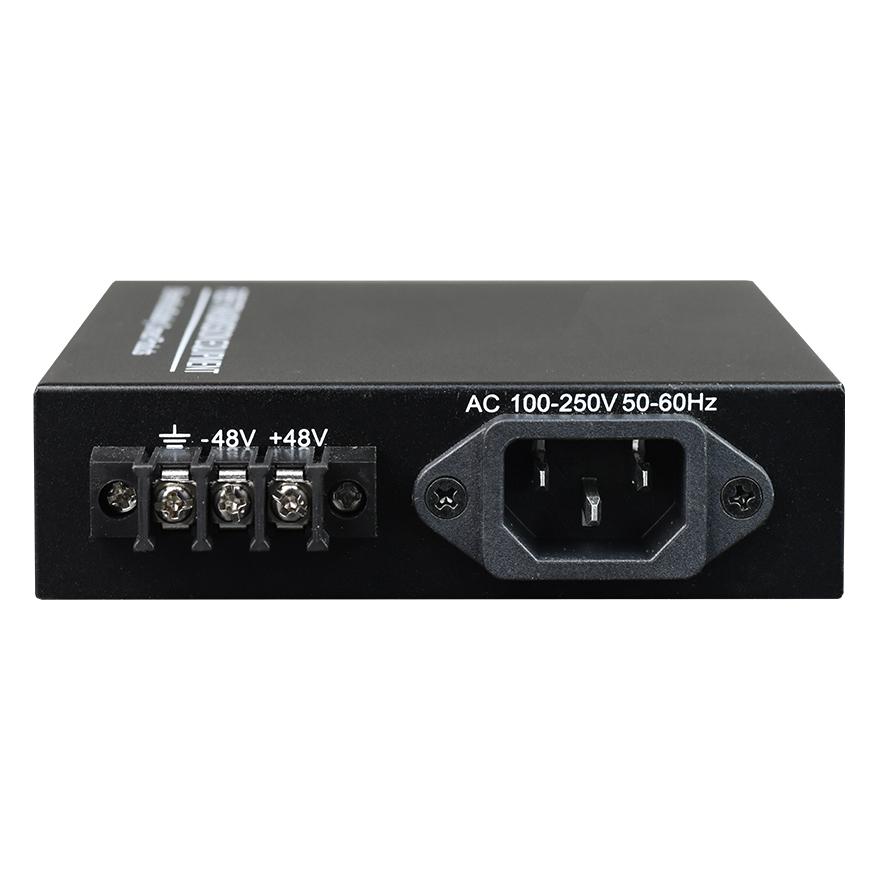

◆A variety of power supply modes are available: AC220V, dc-48v / DC24 V, etc.; support AC + DC dual power mode;

Parameters

Ethernet UTP Interface
Interface rate: 10/100M, half/full duplex auto-negotiation Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN) MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX

Optical Ethernet interface
Wave Length: 1310nm, 1550nm
Interface rate: 1000 M, half/full duplex
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN) MAC Address Capability: 4096
Connector: FC/SC
Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.Transmission distance may also be limited by fiber optic bandwidth.

Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation) Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

Specification

Model

FCM-F4N

Functional Description

management type 1 fiber to 4 100M ethernet converter(power internal) can be dual power

Port Description

1 optical ports , 4FE port

Power

AC220V / DC-48V / DC+24V

Dimension

(length × width × height) 140*110*30mm

Weight

0.5KG/piece

Application
