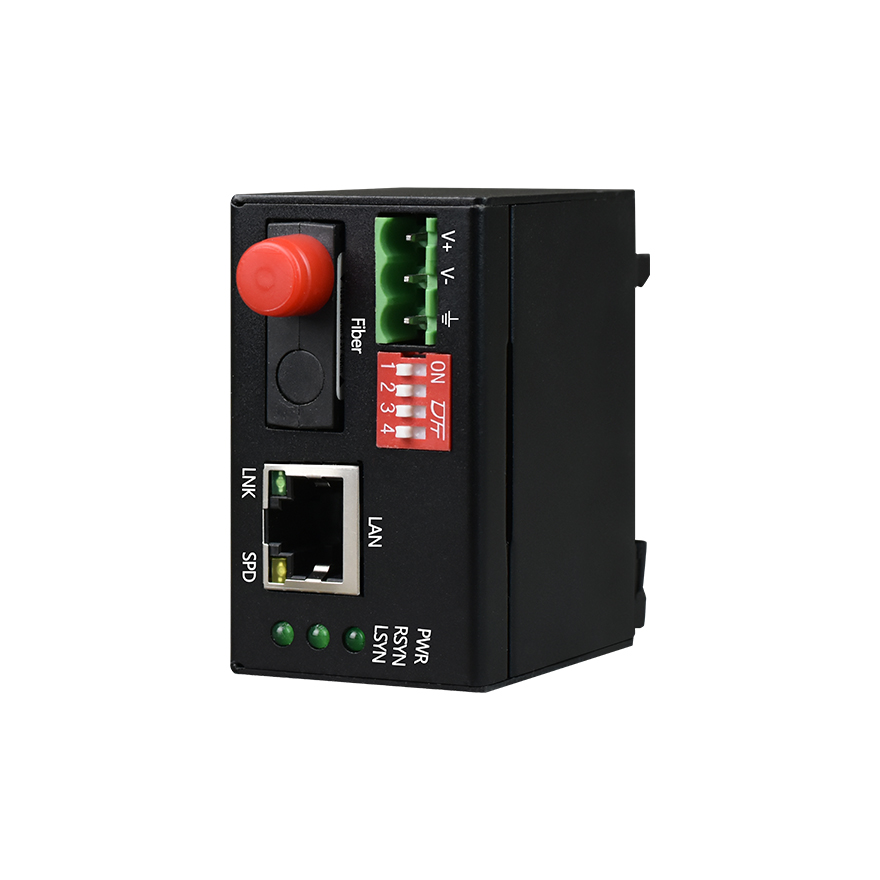

Mini Industrial Grade 10/100/1000M Fiber Media Converter (Remote Status can be Displayed)

    This series of products is an industrial-grade 10/100 / 1000M Ethernet to 1000Base-X optical fiber conversion, which is mainly used for long-distance (20/40/60/80/120 km) transmission of optical fiber networks. This product provides 1 Gigabit optical port; 1 Gigabit Ethernet electrical port. With complete alarm function, the whole machine works stably and reliably, low power consumption, high integration and small size.

● Industrial Ethernet series, specially designed for harsh and harsh industrial environments;
● The device provides 1 Gigabit Ethernet electrical port and 1 Gigabit optical port, sharing the Gigabit bandwidth, the transmission bandwidth is 1000M line speed, and the Gigabit optical port supports distance transmission of 20/40/60 / 80KM and 120KM;
● Electrical interface (RJ45 interface) supports 10/100 / 1000M adaptive, full / half duplex mode, MDI / MDI-X automatic detection;
● Support LFP function, can send the alarm of the optical port to the electrical port, and can be set to open with the DIP switch;
● Support the configuration of 1000BASE-X and 100BASE-FX optical ports, which can be set with DIP switches;
● Support displaying the LINK status of the optical port at the local end and displaying it with LED lights;
● With broadcast storm protection, traffic balance, isolation conflict, error detection and self-reset, it is suitable for high traffic data applications such as video transmission;
● Support the transmission of VLAN extra-long data packets, which can be matched with switch products supporting IEEE802.1Q protocol, MTU≥10240;
● Support wide range AC and DC input; support internal isolation;
● The power supply supports overload protection and anti-reverse connection protection;
● Comply with industrial level 4 electromagnetic compatibility requirements;
● Super lightning protection function: anti-lightning, anti-induction high voltage, anti-surge, etc .;
● Fanless efficient heat dissipation, reducing repair time;
● IP40 enclosure protection level, can withstand the test of harsh environment;

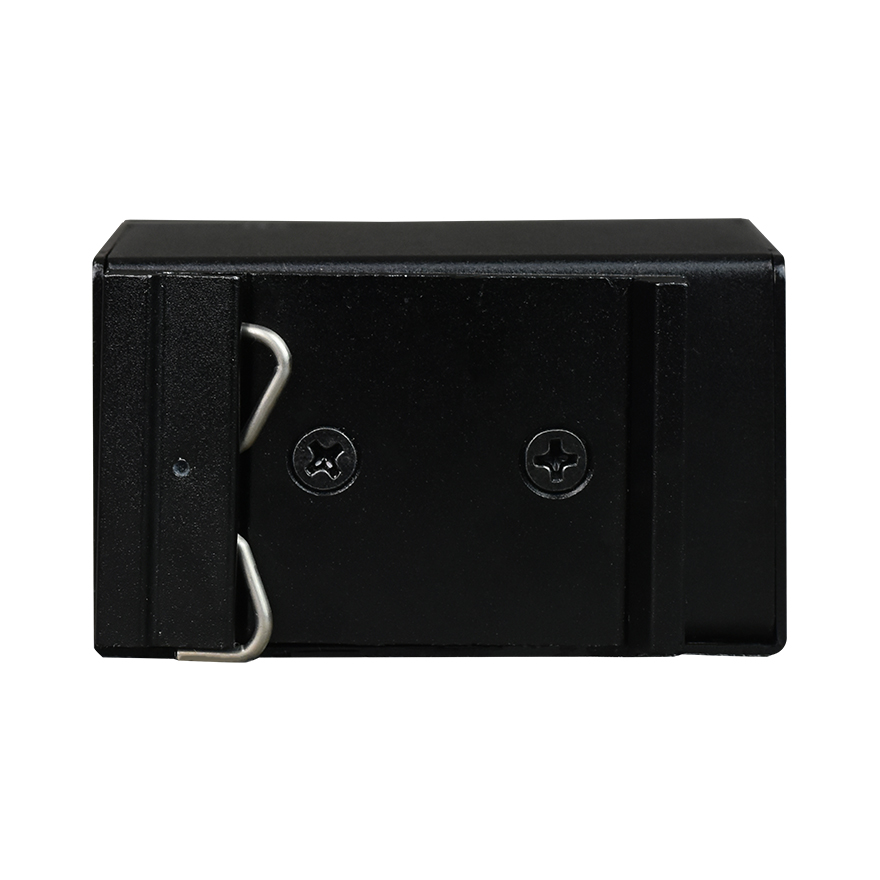

● Rail or wall mounting;
● Wide temperature type: working temperature -40 ℃ ~ + 85 ℃;
● All models have passed 100% baking machine test, warranty period: 5 years;

● Fiber
Optical port：1
Optical port rate: 1.25G
Optical fiber: single fiber double fiber
Optical fiber interface: FC / SC / ST / LC (SFP)
Wavelength: 850nm / 1310nm multimode; 1310nm / 1550nm single mode
Transmission distance without relay: 20 ~ 120Km
Typical transmit power:
    1310 / 1550nm single mode: ≥-9dBm
    Multimode 850nm: -18dBm
    Multimode 1310nm: -25dBm
Acceptance sensitivity range: -28dBm ~-40dBm

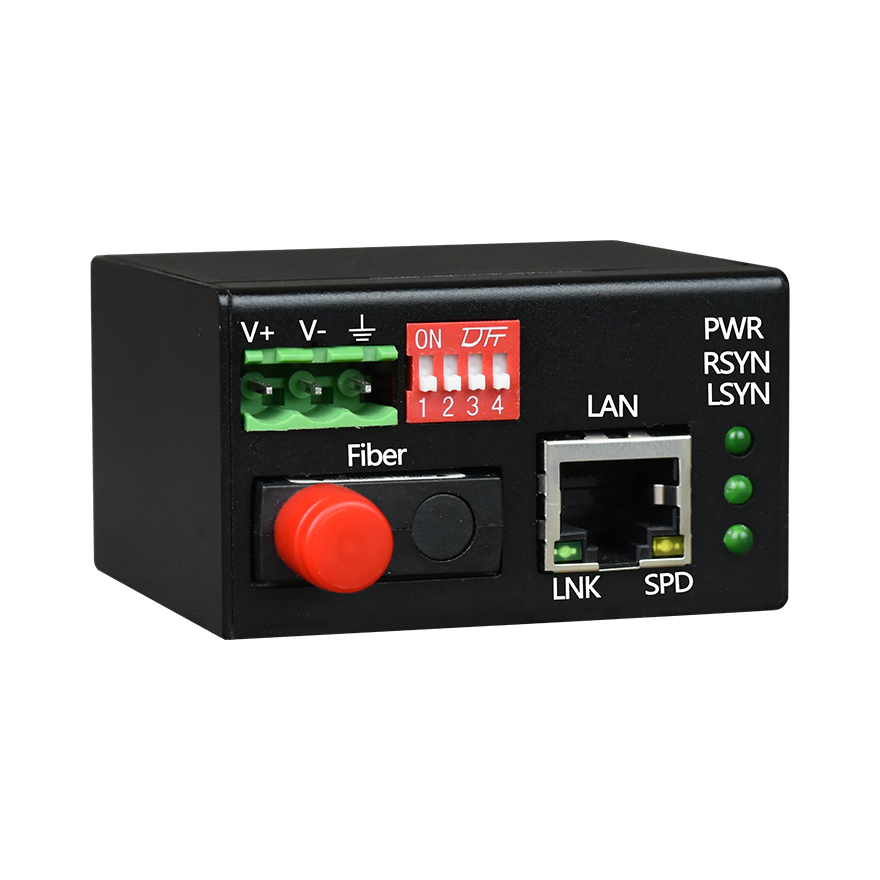

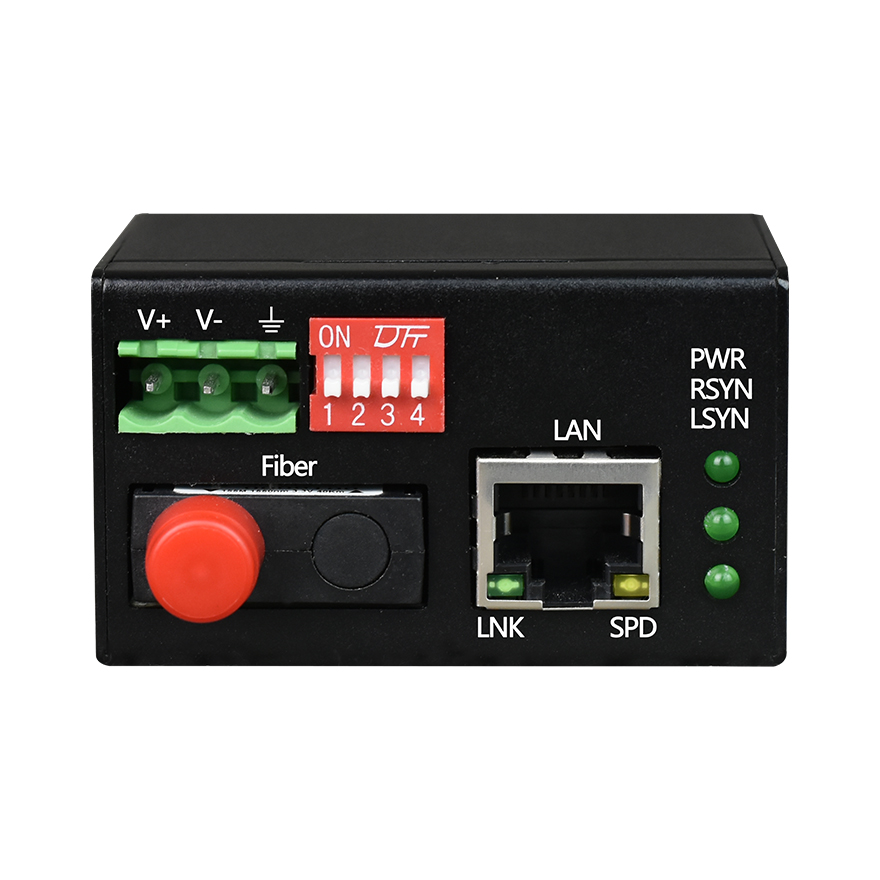

 DIP switch function
DIP-1： ON:Enable/OFF:disable LFP function
DIP-2： ON:fiber port 100BASE-FX/OFF: 1000BASE-X
DIP-3： ON:Fiber Port 1000Base-X auto-nego enable /OFF:disable
DIP-4： Reserved

● 10/100 / 1000M Ethernet Interface
Protocol: IEEE 802.3az, IEEE 802.1Q (VLAN)
Speed: 10/100M adaptive, full/half duplex fully adaptive
MAC address table: can learn 4096 MAC addresses
Physical interface: RJ45 support Auto-MDIX

● Electrical and Mechanical Characteristics
System power: AC180V ～ 260V; DC–48V; DC + 24V
(Supports dual power supply redundant backup)
Power consumption: ≤3W

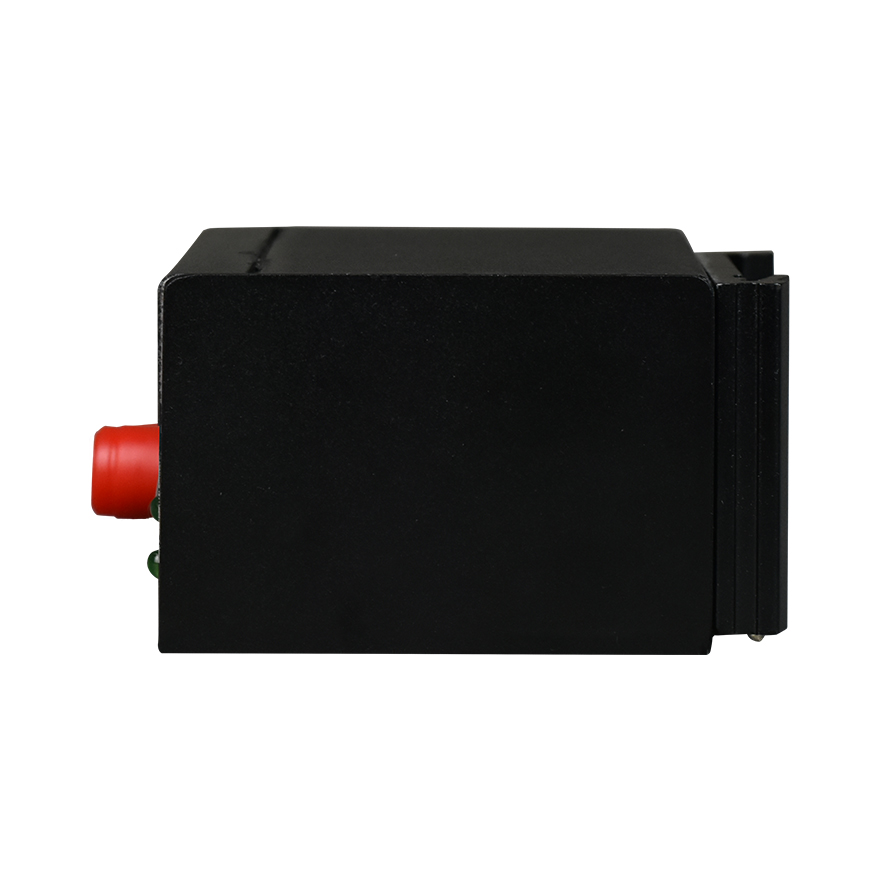

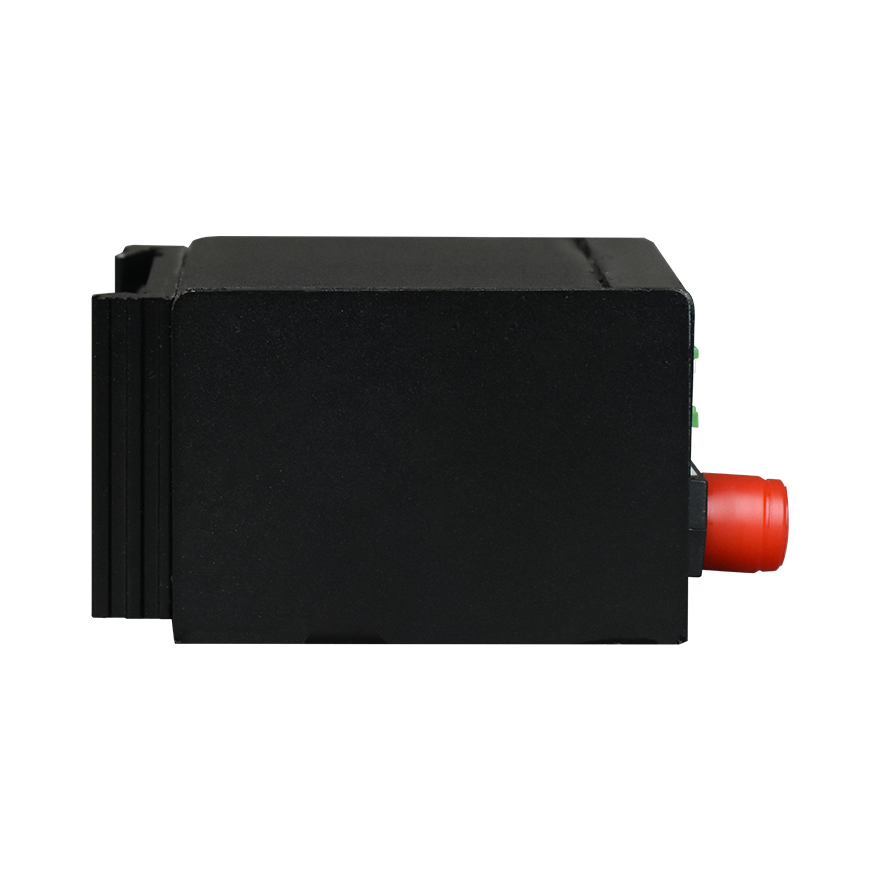

Appearance structure: 60mm (length) X50 (width) X35 (height) mm mini
Weight: 0.25Kg/set

● Working Environment
Operating temperature：-40℃—+85℃
Storage temperature： -40℃—+85℃
Working humidity： 0%—95% (No condensation）
MTBF： ＞100,000 hour
