Unframed E1 Fiber Modem

View : 213
Type : E1 fiber modem
Description :

This device provides one E1 interface and one optical interface to achieve interface conversion, rate conversion and timeslot extraction from E1 to Optical. When unframed mode, the data channel rate is 2.048Mbps.

Overview

This device provides one E1 interface and one optical interface to achieve interface conversion, rate conversion, and timeslot extraction from E1 to Optical. When unframed mode, the data channel rate is 2.048Mbps. The device has an inter-set loop test function to facilitate the project launching and daily maintenance.

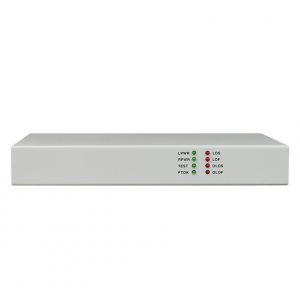

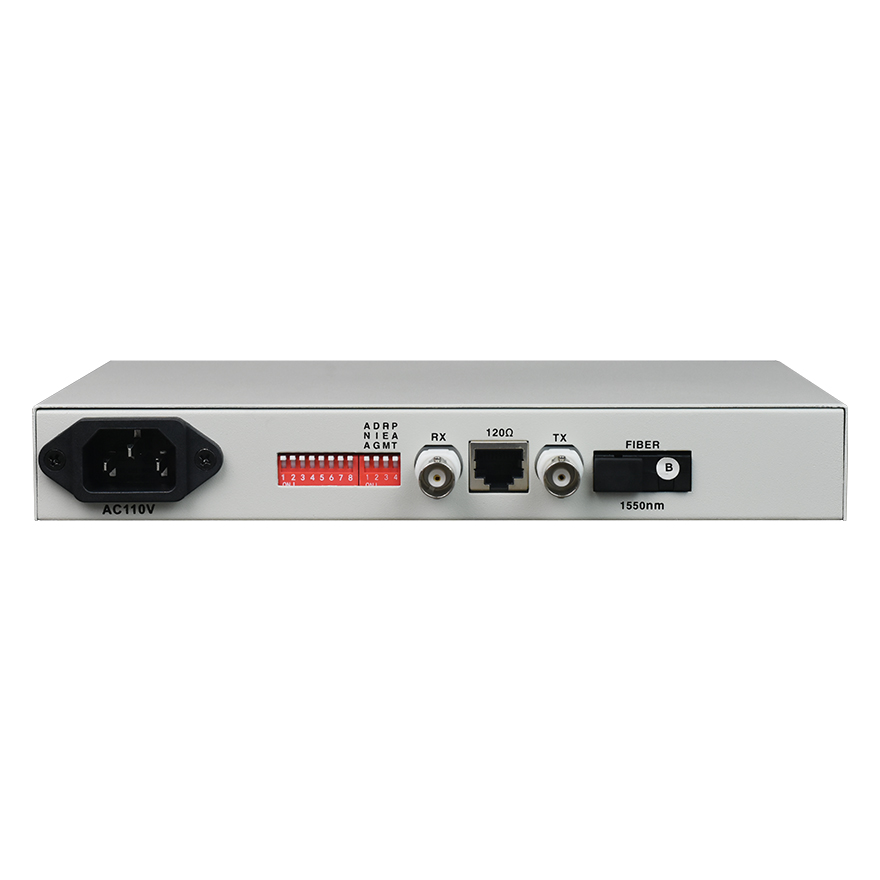

Unframed E1 Fiber Optic ModemUnframed E1 Fiber Optic Modem

Features

Based on self-copyright IC

Can detect the reason for optical signal loss is that the device power-off or transmission fiber is broken, and indicated on LED

Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;

After strict testing and a practical verification system, completely comply with protocol ITU-T V.35, G.703, G.704

Have three Loop Back Mode: E1 interface Loop Back (ANA)、35 interface Loop Back(DIG)、Command the remote V.35 interface Loop Back(REM)

Have pseudo-random code test function, easily line opened, can be used as a 2M BER Tester
AC 220V, DC-48V, DC+24V, DC Power and Polarity-Free

Parameters

●  Fiber

 Multi-mode Fiber

50/125um, 62.5/125um,

Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)

Wave Length: 820nm

Transmitting power: -12dBm (Min) ~-9dBm (Max)

Receiver sensitivity: -28dBm (Min)

Link budget: 16dBm

Single-mode Fiber

8/125um, 9/125um

Maximum transmission distance: 40Km

Transmission distance: 40Km @ 9 / 125um single mode fiber,attenuation (0.35dbm/km)

Wave Length: 1310nm

Transmitting power: -9dBm (Min) ~-8dBm (Max)

Receiver sensitivity: -27dBm (Min)

Link budget: 18dBm

●  E1 Interface

Interface Standard: comply with protocol G.703;

Interface Rate: 2048Kbps;

Interface Code: HDB3;

E1 Impedance: 75Ω (unbalance), 120Ω (balance);

Jitter tolerance: In accord with protocol G.742 and G.823

Allowed Attenuation: 0~6dBm

●  Working environment

Working temperature: -10°C ~ 50°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C

Storage Humidity: 5%~95 % (no condensation)

Specifications

Functional Description

Unframed E1 Fiber Modem ,Provide 1* 2048K E1 transmission in optical fibers

Port Description

One Fiber interface;1* E1 Interface

Power

Power supply: AC180V ~ 260V;DC –48V;DC +24V

Power consumption: ≤5W

Dimension

Product Size: 216X140X31mm (WXDXH)

Weight

1.2KG

Application

application of Unframed E1 Fiber Optic Modem
