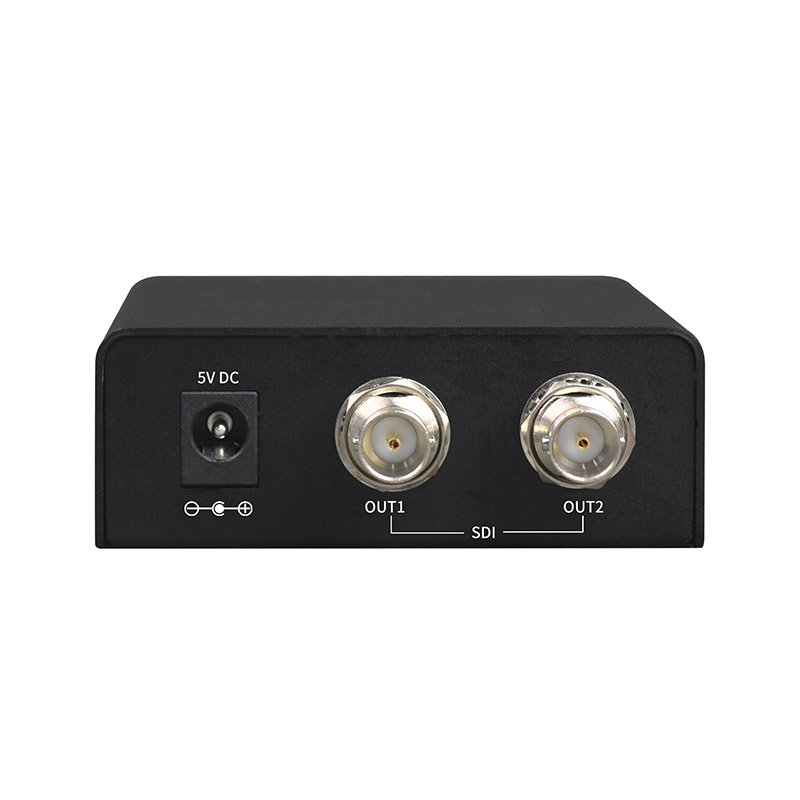

HD 12G SDI Fiber Converter FCVH-V1b

View : 1,142
Type : HD-SDI to Fiber Converter
Description :

This 12G SDI Fiber Converter automatically recognizes 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SDI, and ASI inputs without the need for manual selection.

Overview

This 12g sdi fiber converter complies with SMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 297M, SMPTE 305M, and SMPTE 310M standards.

It automatically recognizes 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SDI, and ASI inputs without the need for manual selection. It features a compact and portable design, making it convenient to use. The device is suitable for long-distance transmission of 4K signals.




12G HD-SDI to Optical Fiber Converter

Features

The 12g sdi fiber converters are paired for use, with video signal input on one end and video signal output on the other end.

It supports 12G-SDI/6G-SDI/3G-SDI/HD-SDI/SDI/ASI.

The signal input has an automatic cable equalization function, and the output has driving capability.

Both the transmitter and receiver have an additional 12G-SDI video output, and there are LED indicators to show the status of the SDI signal input.

The video interface provides three-level lightning protection, and it can pass the ITU-T K.21 (10/700 μS) test for common mode: 6KV, impedance (40 Ω).

This 12G SDI fiber converter can be powered by an external AC220/5V power adapter or an external DC-48V/5V power adapter.

Parameters

● Fiber

Fiber Port: 1

Fiber Type: Single fiber

Fiber Interface: LC (SFP)

Wavelength: 850nm/1310nm (multi-mode); 1310nm/1550nm (single-mode)

Non-relay Transmission Distance: 0-80km

Typical Transmit Power: Single-mode 100μW – 0.93mW



● 12Gbps HD-SDI Video

Reflection Loss: >10dB (11.88Gbps)

Automatic Cable Equalization:

30m (11.88Gbps) (Belden 1694A cable)

50m (5940Mbps) (Belden 1694A cable)

100m (2970Mbps) (Belden 1694A cable)

200m (1485Mbps) (Belden 1694A cable)

350m (270Mbps) (Belden 1694A cable)

Video Characteristics:

12G-SDI Rise/Fall Time: <40ps (11.88Gbps)

6G-SDI Rise/Fall Time: <66ps (5940Mbps)

3G-SDI Rise/Fall Time: <135ps (2970Mbps)

HD-SDI Rise/Fall Time: <270ps (1485Mbps)

SDI Rise/Fall Time: <0.6ns (270Mbps)

Interface: 75-ohm BNC



● Environmental Index

Operating Temperature: -40°C to +85°C

Storage Temperature: -40°C to +85°C

Operating Humidity: 0% to 95% (non-condensing)

MTBF: >100,000 hours

Specifications

Product Model FCVH-V1b
Function Description Simultaneous transmission of 1 channel 12Gbps HD-SDI signal over fiber
Port Description 1 * fiber port; 1 * 12Gbps HD-SDI port
Power Supply AC220V / DC-48V / DC+24V (power supply options available)
Dimension (Length x Width x Height) 93 x 70 x 25mm (desktop)
Weight 0.25kg/pcs

Application of 12G SDI Fiber Converter

application of 12G HD-SDI to fiber converter
