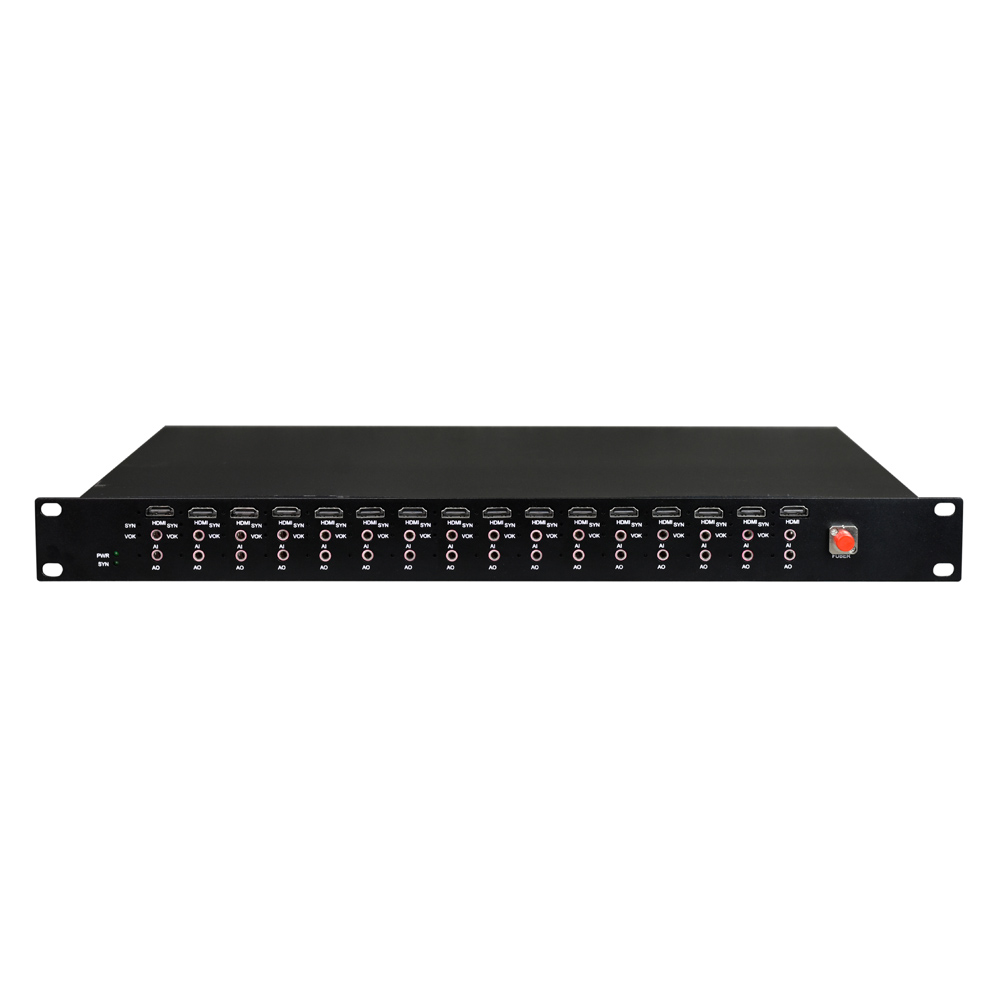

16-Port 2K HDMI to Fiber Converter

View : 448
Type : HDMI to Fiber Converter
Description :

The 16-channel 2K HDMI optical converter supports 16-channel 2K resolution HDMI signal high-speed video bandwidth.

Overview

The 2K HDMI fiber converter supports 16-channel 2K resolution HDMI signal high-speed video bandwidth. It uses a single optical fiber to extend 16-channel HDMI signals, speakers, and microphones. It is used for communication with LCD screen and camera pan/tilt, and can also be used for the long-distance transmission of touch screen. It has features of low energy consumption, long-distance transmission, plug-and-play, and strong compatibility, and it can achieve a more accurate display.


hdmi to fiber converter

Features

All-aluminum and all-gold anodized 19-inch 1U rack mount;

The device is used in pairs, the video signal input of the local end and the video signal output of the opposite end can be configured as bidirectional HDMI transmission;

The interior of the device is a modular design, and the input and output can be configured arbitrarily within a range of up to 16 channels, such as 8 channels of bidirectional HDMI;

Comply with HDMI1.3a standard, HDCP1.1 agreement;

An external analog audio can be connected, and the HDMI in-band audio is invalid at this time (optional);

Automatically identify and configure various display modes, the highest resolution is 1080P60, backward compatible;

Single and multi-mode optical fiber transmission, up to 80KM;

Built-in ESD protection circuit can effectively prevent electrostatic damage;

On-site installation: simple and convenient, plug-and-play, no need to set up;

Video vision ultra-low latency;

Optical fiber transmission, no driver, compatible with any system, plug-and-play;

AC220 power supply, DC-48V/+24V power supply, dual power supply AC+AC, AC+DC, DC+DC backup power supply.

Parameters

● Fiber

Optical port: 1

Optical Fiber: Single fiber

Fiber interface: FC

Wavelength: 1310nm – 1610nm Single mode

Relay-free transmission distance: 0~80Km

Typical transmit power: single mode 100uw — 0.93mw



● Audio Interface

Signal level: 0.5~4Vp-p

Input/Output Impedance: 600Ω (unbalanced or balanced)

AD/DA bit width: 24Bit

Sampling frequency: 128K

Bandwidth: 20Hz~20KHz

Total Harmonic Distortion: <1%

Signal-to-noise ratio (SNR): >85dB

Physical interface: 3.5mm



● HDMI Interface

Interface

HDMI female

Standard



HDMI 1.2

HDCP1.1

Color Space

RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0

Resolution

1920*1080P60

1920*1080P50

1920*1080P30

1920*1080P25

1920*1080P24

1920*1080I60

1920*1080I50

1280*720P60

1280*720P50



Environmental Index

Working temperature: -10℃—+60℃

Storage temperature: -40℃—+85℃

Working humidity: 0%—95% (non-condensing)

MTBF: >100,000 hours

Specifications

Product Number

FCVH-H16b

Function Description

Simultaneously transmit 16 channels of 2K HDMI signals on optical fiber

Port Description

1 optical fiber interface; 16 channel HDMI signals

Power Supply

AC220V/DC-48V/DC+24V (multiple power supply and dual power supply optional)

Product Size

(L×W×H) 485*300*45mm 1U rack mount

Weight

1.25KG/PCS

Application

application of hdmi to fiber
