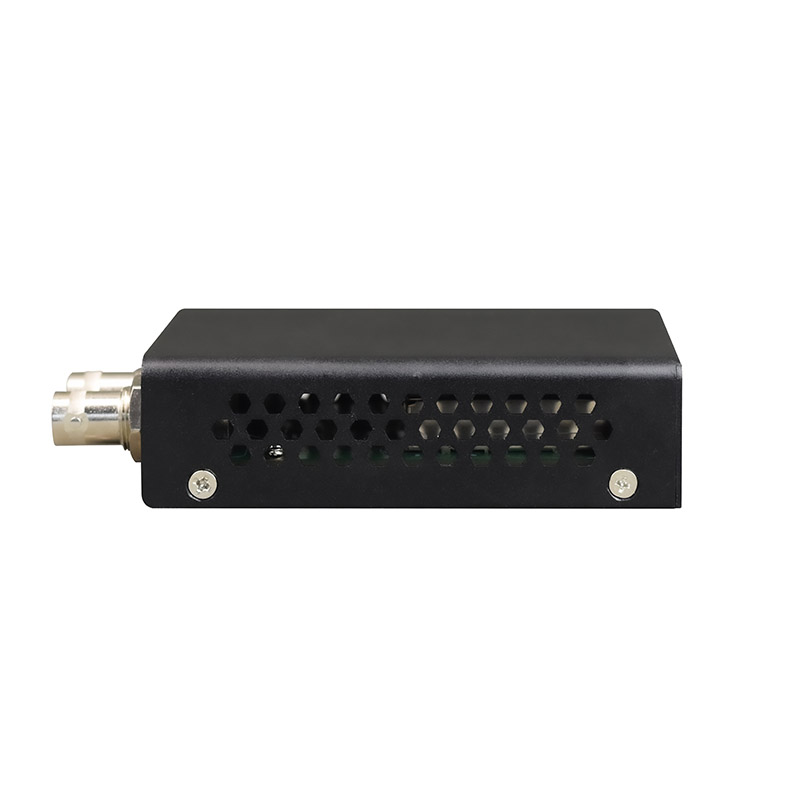

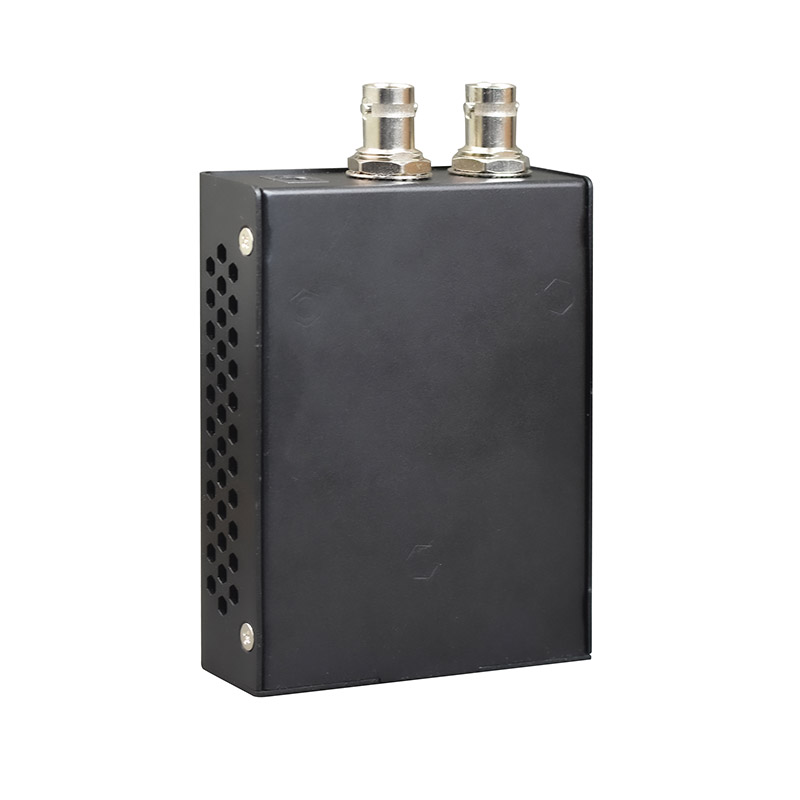

This Mini Converter Optical Fiber 12G SDI automatically recognizes 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SDI, and ASI inputs without the need for manual selection.
| Product Model | FCVH-V1b |
| Function Description | Simultaneous transmission of 1 channel 12Gbps HD-SDI signal over fiber |

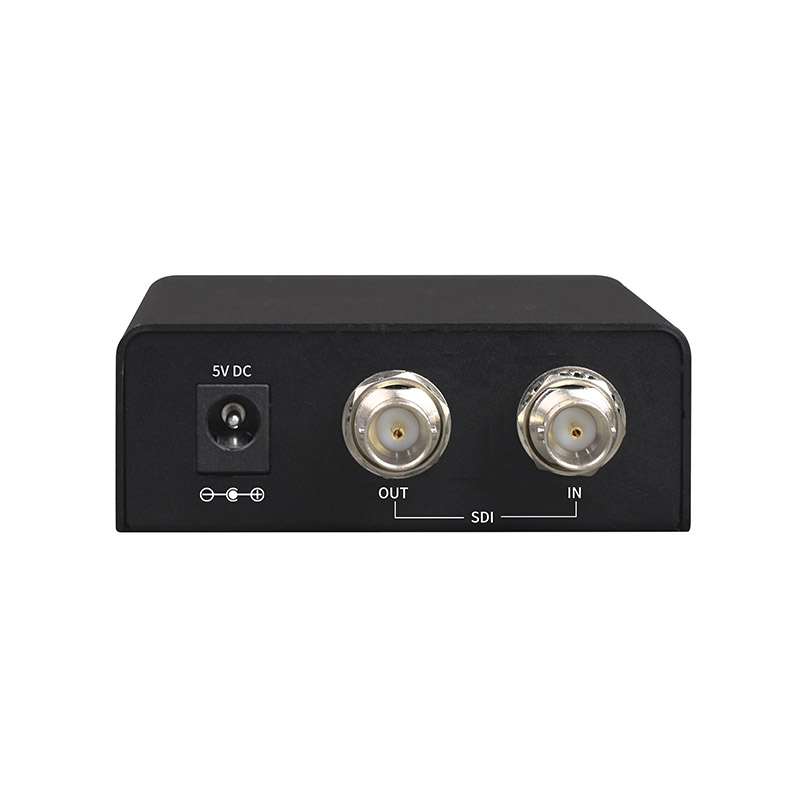

| Port Description | 1 * fiber port; 1 * 12Gbps HD-SDI port |
| Power Supply | AC220V / DC-48V / DC+24V (power supply options available) |
| Dimension | (Length x Width x Height) 93 x 70 x 25mm (desktop) |
| Weight | 0.25kg/pcs |
Fiber Port: 1
Fiber Type: Single fiber
Fiber Interface: LC (SFP)
Wavelength: 850nm/1310nm (multi-mode); 1310nm/1550nm (single-mode)
Non-relay Transmission Distance: 0-80km
Typical Transmit Power: Single-mode 100μW – 0.93mW
Reflection Loss: >10dB (11.88Gbps)
Automatic Cable Equalization:
30m (11.88Gbps) (Belden 1694A cable)
50m (5940Mbps) (Belden 1694A cable)
100m (2970Mbps) (Belden 1694A cable)
200m (1485Mbps) (Belden 1694A cable)
350m (270Mbps) (Belden 1694A cable)
Video Characteristics:
12G-SDI Rise/Fall Time: <40ps (11.88Gbps)
6G-SDI Rise/Fall Time: <66ps (5940Mbps)
3G-SDI Rise/Fall Time: <135ps (2970Mbps)
HD-SDI Rise/Fall Time: <270ps (1485Mbps)
SDI Rise/Fall Time: <0.6ns (270Mbps)
Interface: 75-ohm BNC
Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +85°C
Operating Humidity: 0% to 95% (non-condensing)
MTBF: >100,000 hours
Trusted by engineers worldwide across multiple industries:
● High Compatibility
Supports 12G/6G/3G/HD/SD-SDI and ASI formats, ensuring seamless integration with various video systems.
● Reliable Transmission

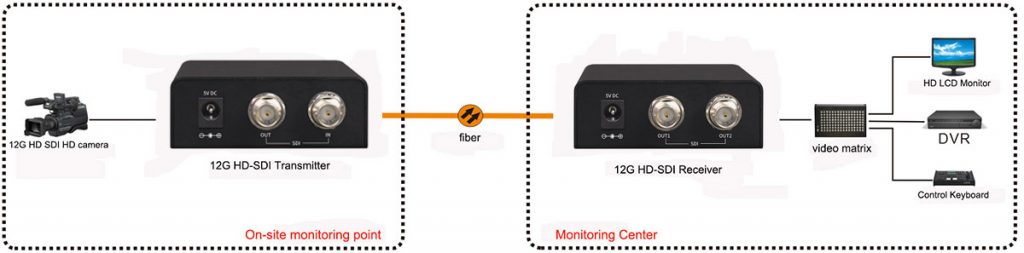

Paired optical fiber design enables stable long-distance SDI signal transmission with minimal loss.
● Signal Optimization
Automatic cable equalization on input and strong output drive enhance signal quality and reduce interference.
● Extra Output for Monitoring
Both transmitter and receiver include additional 12G-SDI loop-out ports for convenient signal monitoring or distribution.
● Real-time Status Monitoring

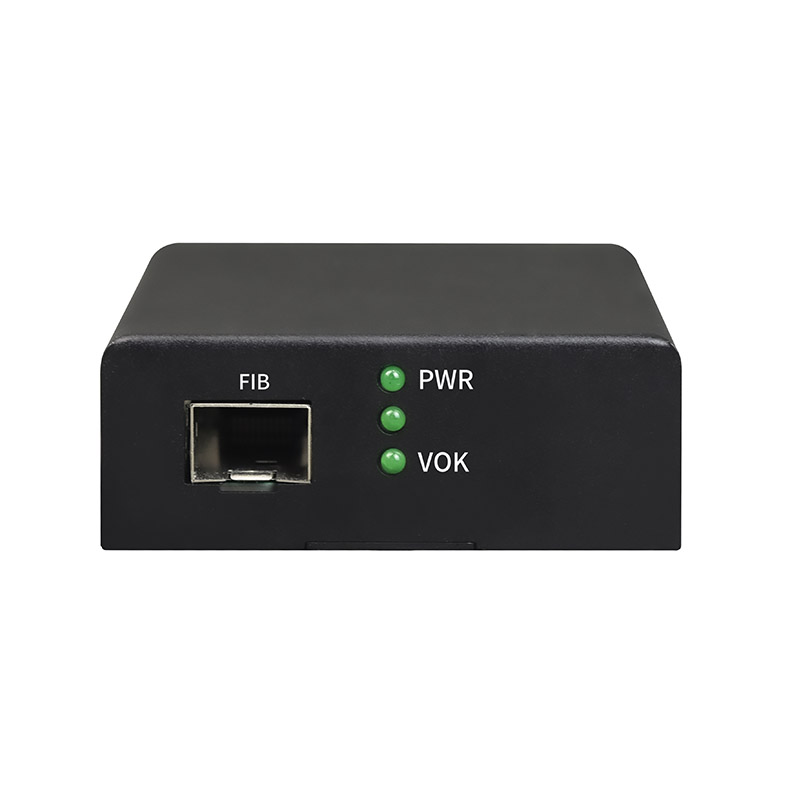

LED indicators provide instant visual feedback on SDI input signal status, improving troubleshooting efficiency.
● Industrial-grade Protection
Built-in 3-level lightning protection (ITU-T K.21 compliant, 6KV) ensures durability in harsh environments.
● Flexible Power Supply Options
Supports both AC220V and DC48V external power adapters to suit various installation scenarios.
Customer Review
Process of Manufacturing
Q1: Do you support OEM orders?
Yes, we offer private labeling, custom housing, and protocol customization.
Q2: What’s the lead time?
Sample: 3-5 days. Bulk orders: 7-15 days depending on quantity.
Q3: Can I get a sample?
Yes, we accept sample order
Q4: What’s the warranty policy?
3 years standard warranty. Lifetime technical support.
