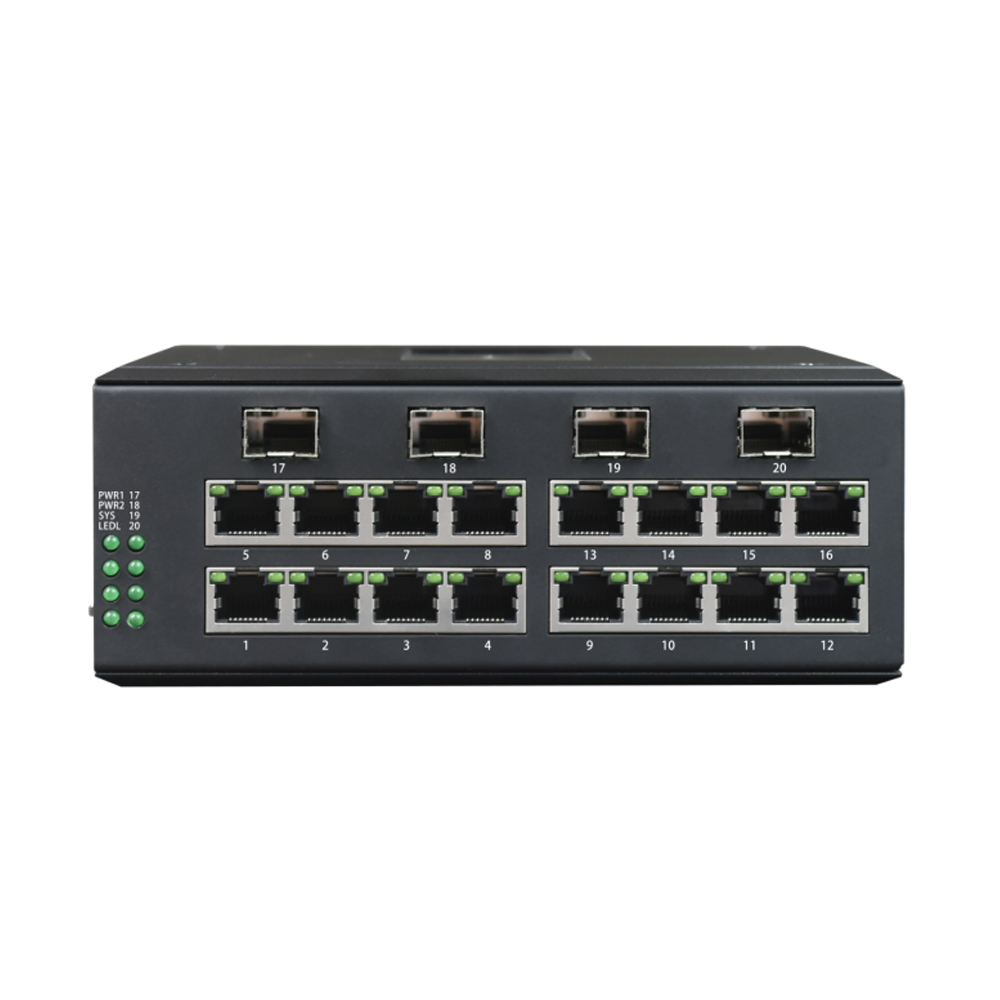

Managed Din-Rail 16-Port Gigabit Ethernet + 4-Port Gigabit SFP Industrial Switch

View : 218
Type : Managed Din Rail Industrial Switch
Description :

This product adopts industrial rail design, it is a new generation of multi-service access network management Gigabit redundant Ethernet switch.

Overview

This product adopts industrial rail design, the network switch is a new generation of multi-service access network management Gigabit redundant Ethernet switch, with high integration, rich functions, simplicity and convenience, etc., representing the industry’s highest level. It contains 16 Gigabit electrical ports and 4 Gigabit optical ports, which is especially suitable for occasions with large data streams such as video transmission.



It supports the two-layer management protocol required by the rich industrial switch applications, supports the ITU G.8032 redundant ring network protocol, forms a cascaded network, a single ring, a tangent ring network, and other topological structures, and the self-healing time is less than 20ms, which guarantees the real-time and stability of the network. The switch adopts mature technology and open network standards, adapts to low temperature and high temperature, has strong anti-electromagnetic interference, anti-salt spray, anti-vibration and anti-shake, meets the harsh working environment requirements of industrial sites, and provides efficient, reliable and fast solutions for the industrial Internet of things.


16 PORT SWITCH

Features

All aluminum alloy shell, good heat dissipation characteristics, metal oxide oxidation process, IP40 protection level;

Aluminum alloy industrial rail design, specially designed for the harsh industrial environment;

Support 16 Gigabit electrical ports and 4 Gigabit fixed or SFP optical ports;

Each electrical port or optical port supports the standard ERPS ring network protocol, and the self-healing time is less than 20ms;

Support port bandwidth limitation, port flow control, and broadcast storm suppression;

Support Web, CLI, and Telnet management functions;

Power failure alarm, loop alarm;

Provide Console debugging;

Can support POE (POE+) Optional;

Management functions:

1. Support CLI, WEB, and SNMP management methods

2. Support port speed limit based on ingress/egress, support half-duplex back pressure flow control and 802.3X full-duplex flow control

3. Support storm suppression function based on broadcast, multicast and unknown unicast

4. Support IEEE 802.1Q 4K VLAN, support QINQ

5. Support port mirroring, Syslog, Ping command, etc.

6. Support COS, DSCP, 8 queues, support WRR, SP, WFQ scheduling mode, strategy QOS

7. Support port traffic statistics and online upgrade

8. Support STP/RSTP, MSTP, support EAPS, ERPS

9. Support IGMP Snooping V1/V2/V3, support GMRP

10. Support manual aggregation, support static/dynamic LACP protocol

11. Support one relay alarm, support RMON management, TRAP alarm

12. Support DHCP Snooping, Option 82, support 802.1X

13. Support user hierarchical management, support ACL access control list

Support DDOS, support port-based MAC filtering/bindingØ

Ethernet interface with lightning protection, anti-radar to GB/T17626.5 (IEC61000-4-5) short-circuit current wave 10/700μs, open-circuit peak output voltage 6KV standard

Support wide range AC and DC input (9V-48V), support internal isolation, redundant dual power input, power supply support overload protection, anti-reverse protection;

Meet the requirements of industrial level 4 electromagnetic compatibility;

Super lightning protection function: lightning protection, anti-inductive high voltage, anti-surge, etc., no fan and efficient heat dissipation, reducing repair time;

IP40 enclosure protection level, able to withstand the test of harsh environments, rail or wall-mounted installation;

Wide temperature type: working temperature -40℃~ +85℃;

Specification

Module

FCM-G16Q4

Supported Protocols

IEEE802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE802.1q、IEEE802.1p、IEEE802.1z、IEEE802.1d、IEEE802.1s、IEEE802.1w、IEEE802.1ax、IEEE802.1ak

Max Frame Length

10K

Ports

16*10/100/1000M RJ45 port、4*100M/1000M optic port,1 Console port

Network Media









1000base LX: a long wavelength laser (1310nm) is used to cross multimode and single-mode fiber. The maximum distance of multimode fiber is 550m and that of single-mode fiber is 20-120km.

1000base SX: the maximum transmission distance of 62.5 μ m multimode fiber is 275m, and the maximum transmission distance of using 50 μ m multimode fiber is 550m.

10Base-T: UTP of Category 3 or above; (support the maximum transmission distance of 200m)

100base TX: type 5 UTP; (supporting maximum transmission distance of 100m)

1000BASE-T: Cat-5e UTP or category 6 UTP (supporting maximum transmission distance of 100m)

VLAN Address

4K

Mac Address

8K

Cache

4Mbits

Backplane Bandwidth

56Gbit

Filtering and Forwarding Rate





10Mbps:14880pps

100Mbps:148800pps

1000Mbps:1488000pps

Usage Environment



Storage temperature: – 40 ℃ – 85 ℃; storage humidity 0% ~ 90%, no condensation

Working temperature: – 40 ℃~ 85 ℃; working humidity 0% ~ 90%

MTBF

>100,000 hours

Power

Redundant dual power input dc9-48v / ac9-48v

Overload protection: support; reverse protection: support; redundancy protection: support

Access terminal: 4-core 5.08mm spacing plug-in terminal

Power Waste

Power consumption: maximum 17w

Dimension

Appearance structure: 133mm (L) x 120mm (W) x 50.0mm (H)

Weight

1.7Kg/piece

Application

application of 16 PORT SWITCH
