This product is an industrial grade 8*1000base-T switch. This product provides 8*GE; with perfect alarm function, the machine is stable and reliable, low power consumption, high integration, small size, providing 35mm industry Rail and wall mounted two kinds of installation.
- Product Search Guide: space = AND, | = OR, ! = NOT

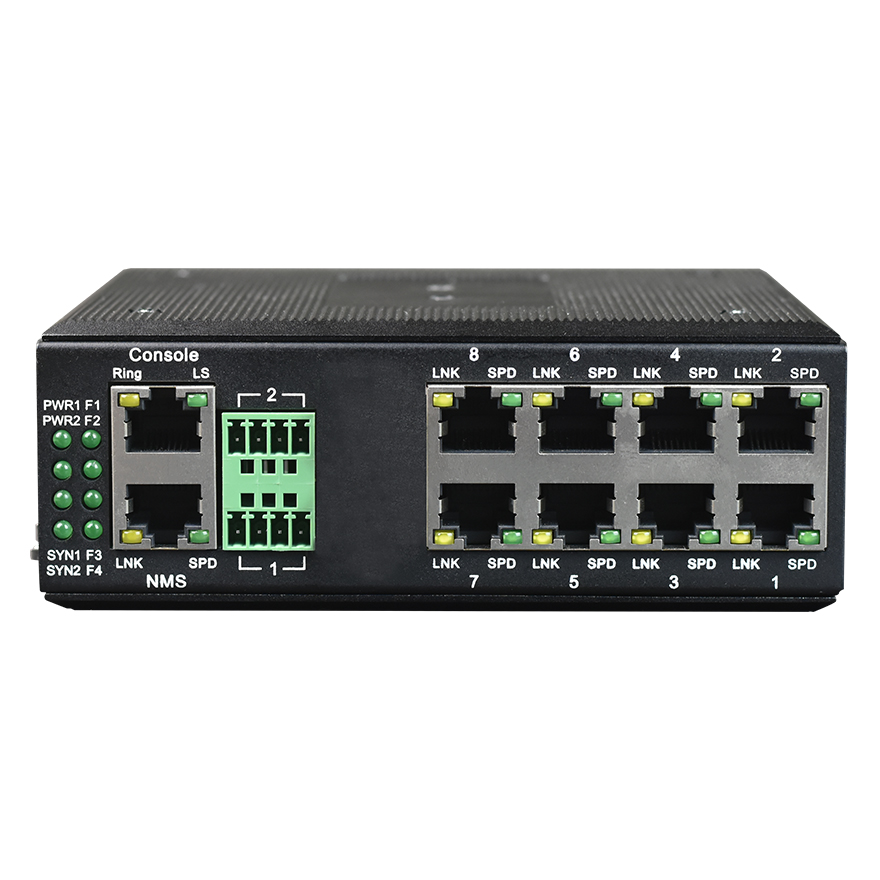

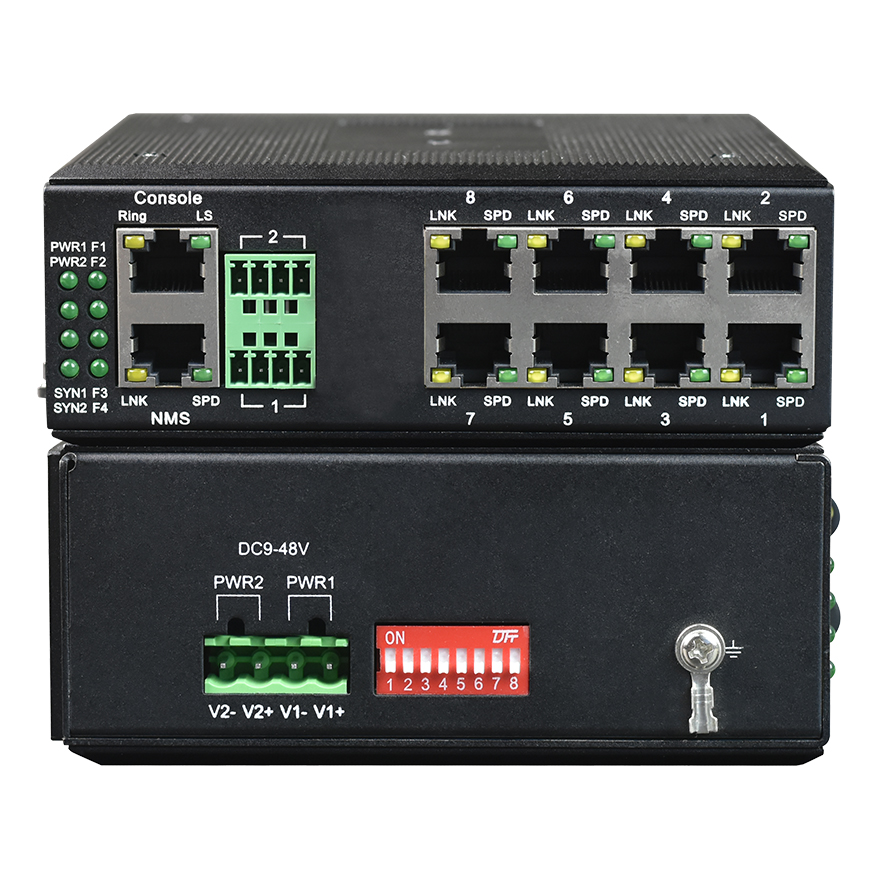

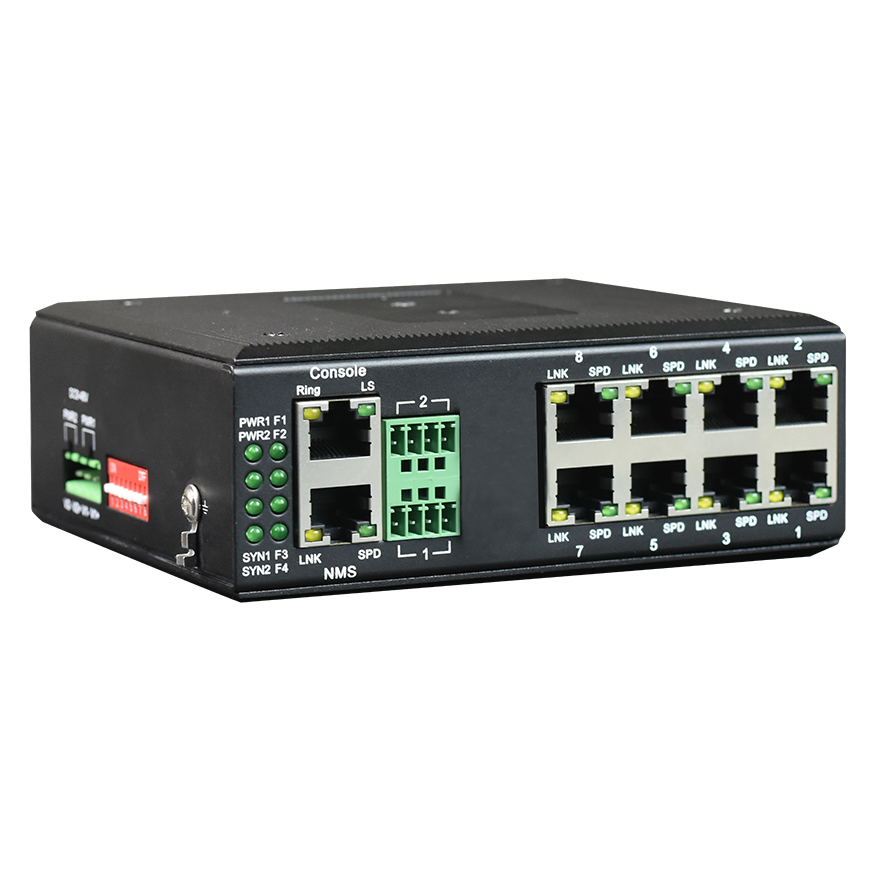

Unmanaged Din-Rail 8-Port GE Industrial Switch
Model
Contact us
Description :
This product is an industrial grade 8*1000base-T switch. It provides 8*GE with perfect alarm function.
Overview
Features
● Industrial Ethernet series, designed for harsh industrial environments
● The device provides 8*1000M Ethernet electrical interface that supports 10/100/1000M adaptive full/half duplex mode MDI / MDI-X automatic detection;
● The switch has a deadline to monitor and self-resetting and other functions long-term work in the large flow of video transmission environment does not crash greatly reducing the workload of equipment maintenance;
● Transceiver built-in 512KBits high-speed cache IP cameras can avoid the rapid changes in the monitoring screen environment caused by the transmission screen stuck phenomenon;
● Support VLAN long packet transmission can support IEEE802.1Q protocol with the switch products to use support up to 1916 bytes of Ethernet packets;

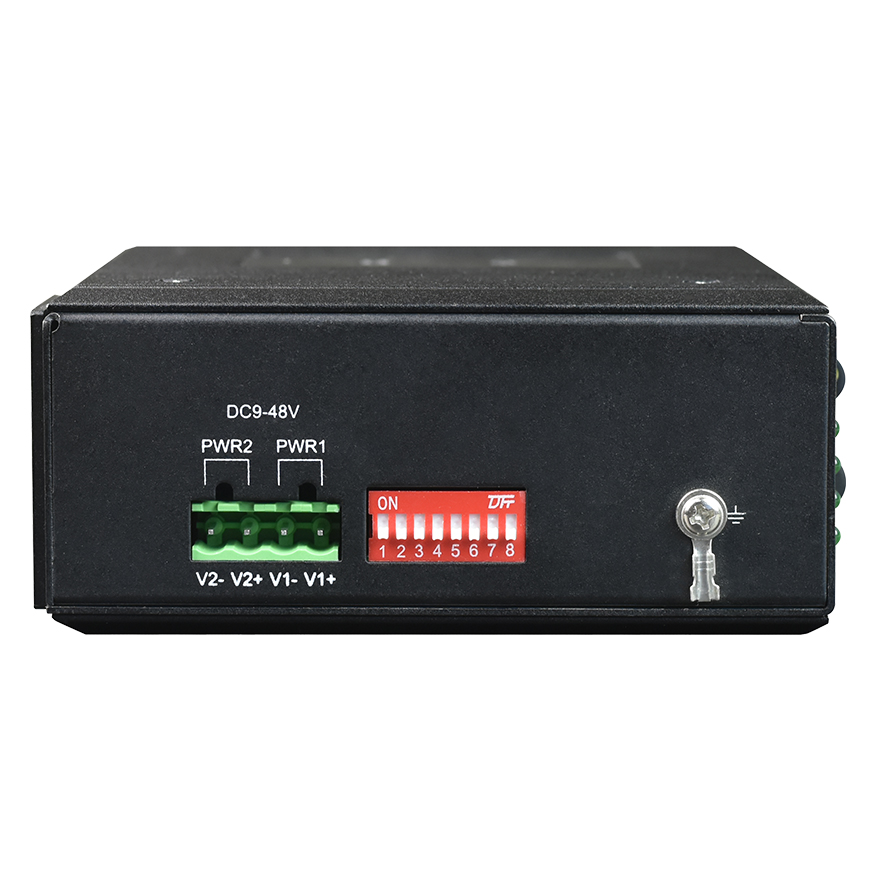

● Support a wide range of AC and DC input
● Support internal isolation, redundant dual power inputs
● Power Support overload protection, anti-reverse protection
● Meet the industry’s four electromagnetic compatibility requirements
● Super Lightning features: lightning, high-pressure resistant sensors, anti-surge, etc.
● Fanless cooling efficiency, reduce repair time
● IP40 enclosure protection rating, can withstand the test of harsh environments
● Rail or wall mounting
● Wide temperature range: Operating temperature -40 ℃ ~ + 85 ℃
● All models are tested by 100% roast machine, Warranty: 5 years
Parameters
● Ethernet interface(10/100/1000M)
Interface rate: 10/100/1000Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
● Working Environment
Working temperature: -40°C ~ 85°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 100°C
Storage Humidity: 5%~95 % (no condensation)
Application
Related Products
Documentation and project verification
Before ordering or wiring, confirm the exact model and configuration, interface pinout, optical or network compatibility, power input and installation conditions. Optional configurations are not interchangeable.
