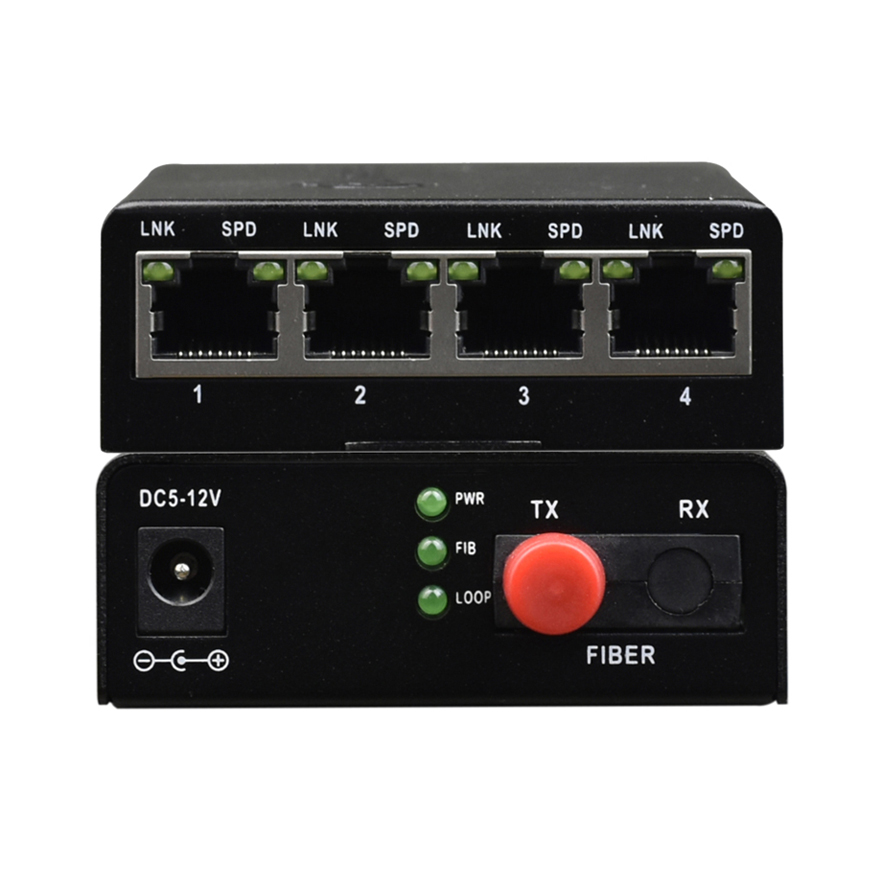

Industrial 4-Port Gigabit Ethernet to Fiber Media Converter

This industrial media converter is designed for 4-port 10/100/1000Base-T to 1000Base-FX fiber conversion, primarily used for long-distance (20/40/60/80/100 kilometers) transmission in fiber networks. It provides 1 Gigabit fiber port and 4 Gigabit Ethernet ports, sharing a Gigabit bandwidth. It features comprehensive alarm functions, ensuring stable and reliable operation, low power consumption, high integration, and a compact size.

● It has an IP40 protection rating, providing resistance against harsh environmental conditions.

● The device offers 4 Gigabit Ethernet ports and 1 Gigabit fiber port, sharing a Gigabit bandwidth. The transmission bandwidth is line-speed 1000 Mbps. The Gigabit fiber port supports transmission distances of 2, 40, 60, 80, and 120 kilometers.

● It supports the transmission of VLAN jumbo frames and can be used in conjunction with switch products that support the IEEE 802.1Q protocol. It supports Ethernet frames with a maximum size of 9K bytes.

● The ethernet interface (RJ45) supports 10/100/1000 Mbps auto-negotiation, full/half duplex mode, and MDI/MDI-X auto-detection.

● It features functions such as broadcast storm protection, flow balancing, collision isolation, error detection, and auto-reset in case of system hang-ups. It is suitable for applications involving high-volume data transmission, such as video transmission.

● The power supply features strong lightning protection, resistance against high voltage induction, and surge protection. The fanless design ensures efficient heat dissipation and reduces repair time.

● When powered by dual DC input (5.08mm terminal):

  ● It can be powered by a wide range of DC voltage from 9V to 55V or AC voltage from 7V to 50V. The power supply has automatic polarity detection, eliminating the need to distinguish positive and negative terminals during installation.

  ● It supports internal isolation, redundant dual power inputs, and reverse connection protection.

● When powered by AC input (3-prong AC socket):

  ● It supports AC voltage from 85V to 265V or DC voltage from 110V to 300V.

● It provides DIN 35mm rail mounting or wall-mounted.

● Wide temperature type: working temperature -40℃~ +85℃.

● The device has passed the 100% burn-in test.

● Warranty period: 5 years.

● Fiber

Optical port: 1

Optical Fiber: Single/Dual fiber

Fiber interface: SC/FC/ST/LC (SFP) optional

Wavelength: 850nm/1310nm Multi-mode; 1310nm/1550nm Single-mode

Relay-free transmission distance: 0~80Km

Typical transmit power: single mode 100uw — 0.93mw

● 10/100/1000M Ethernet Interface

Protocol: Compliant with IEEE 802.3ab, IEEE 802.3z

Rate: 10/100/1000M adaptive, full/half duplex adaptive

MAC address table: 4096 MAC addresses can be learned

Physical interface: RJ45 supports Auto-MDIX

● Environmental Index

Working temperature: -40℃—+850℃

Storage temperature: -40℃—+85℃

Working humidity: 0%—95% (non-condensing)

MTBF: >100,000 hours
