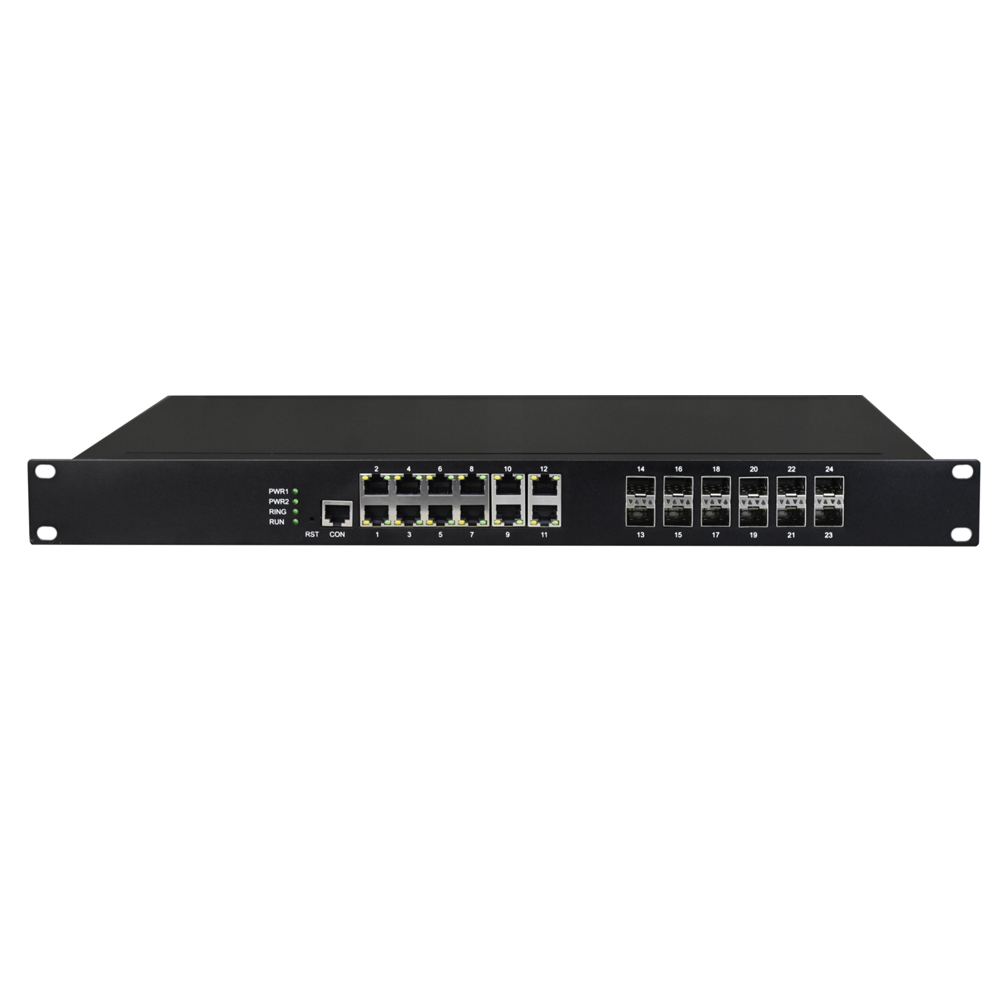

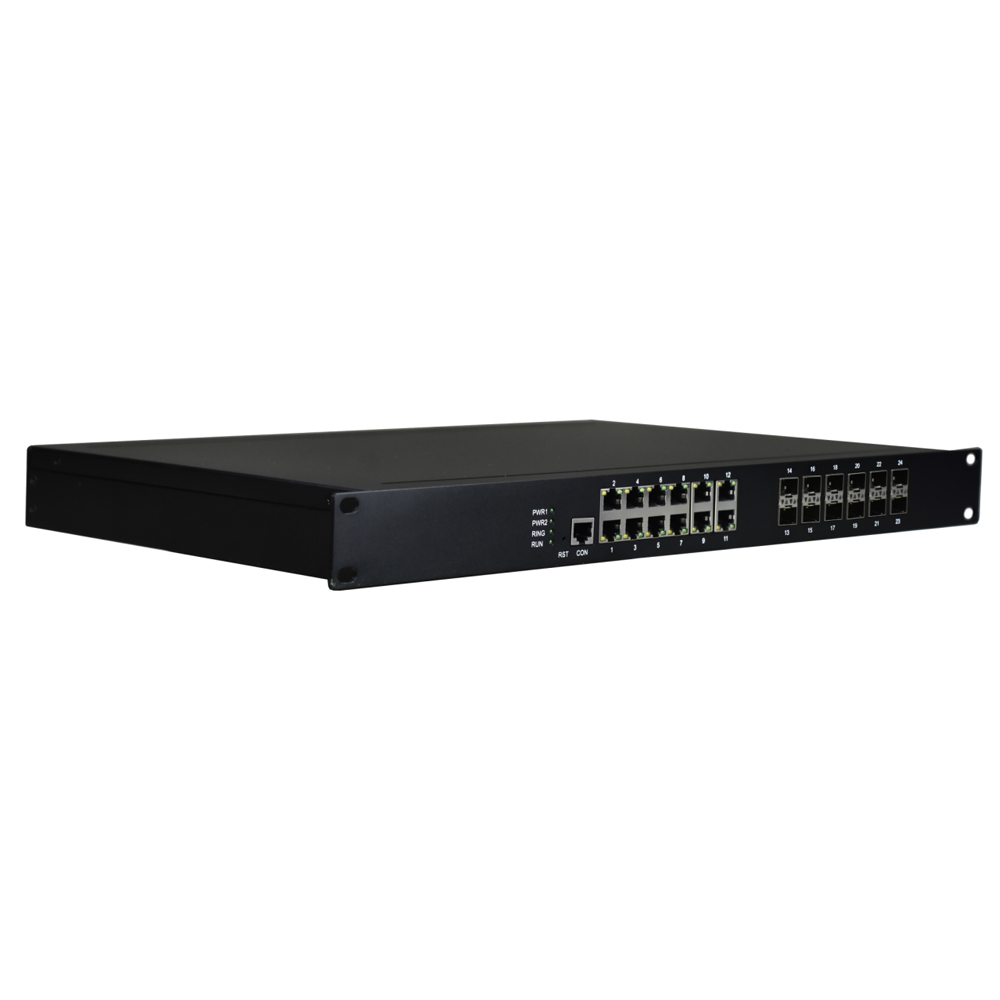

Managed Rackmount 12-Port Gigabit Ethernet + 12-Port Gigabit SFP Industrial Switch

View : 233
Type : Managed Rackmount Industrial Switch
Description :

This industrial network switch adopts industrial rail design, 12K RJ45 ports + 12K optical ports switch is a new generation of multi-service access network management Gigabit redundant Ethernet switches.

Overview

This product adopts an industrial rail design, it is a new generation of multi-service access network management Gigabit redundant Ethernet switches, with high integration, rich functions, simple and convenient features, representing the industry’s highest level. It contains 12 Gigabit electrical ports and 12 Gigabit optical ports, which are especially suitable for occasions with large data streams such as video transmission.



It supports a variety of Layer 2 management protocols required for industrial switch applications, supports ITU G.8032 redundant ring network protocol, and forms cascaded, single ring, tangent ring network and other topology structures, and the self-healing time is less than 20ms, ensuring that Real-time performance and stability of the network. The switch adopts mature technology and open network standards, adapts to low temperature and high temperature, strong anti-electromagnetic interference, anti-salt spray, anti-vibration and anti-shake, meets the harsh working environment requirements of industrial sites, and provides efficient, reliable and fast for the industrial Internet of things solution.

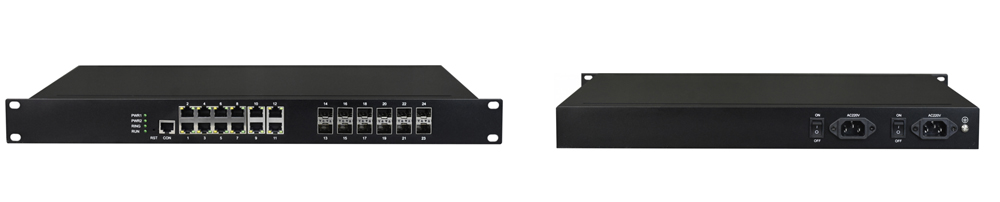

Managed 12 Ports Gigabit RJ45 + SFP Industrial Network Switch

Features

● 19-inch all-aluminum alloy shell, good heat dissipation characteristics, metal-oxygen oxidation process, IP40 protection level;

● Can support 12 gigabit RJ45ports and 12 gigabit SFP optical interfaces;

● Each RJ45port or optical port supports the standard ERPS ring network protocol, and the self-healing time is less than 20ms;

● Support port bandwidth limit, port flow control, broadcast storm suppression;

● Support Web, CLI (Console), Telnet management functions;

● Power failure alarm, loop alarm;

● Can support POE (POE+) equipment;

● Management functions:

   1. Support ingress/egress-based port rate limiting, half-duplex backpressure flow control and 802.3X full-duplex flow control

   2. Support storm suppression function based on broadcast, multicast and unknown unicast

   3. Support IEEE 802.1Q 4K VLAN, support QINQ

   4. Support port mirroring, Syslog, Ping command, etc.

   5. Support COS, DSCP, 8 queues, support WRR, SP, WFQ scheduling mode, policy QOS

   6. Support port traffic statistics, online upgrade

   7. Support STP/RSTP, MSTP, support EAPS, ERPS

   8. Support IGMP Snooping V1/V2/V3, support GMRP

   9. Support manual aggregation, support static/dynamic LACP protocol

   10. Support one relay alarm, support RMON management, TRAP alarm

   11. Support DHCP Snooping, Option 82, support 802.1X

   12. Support hierarchical user management, support ACL access control list

   13. Supports DDOS, supports port-based MAC filtering/binding

   14. Support AAA capability to realize functions such as authentication, user authorization and operation record auditing

   15. Support cable detection, easy to check the network cable length in engineering

   16. Support NTP, easy to synchronize network time in real-time

   17. Support IPV4/IPV6 static routing Layer 3 switching technology

● Ethernet interface with lightning protection, anti-radar to GB/T17626.5 (IEC61000-4-5) short-circuit current wave 10/700μs, open-circuit peak output voltage 6KV standard;

● Support a wide range of AC and DC input (9V-48V), support internal isolation, redundant dual power input, power supply supports overload protection, and anti-reverse connection protection;

● Meet the requirements of industrial level 4 electromagnetic compatibility;

● Super lightning protection function: lightning protection, anti-induction high voltage, anti-surge, etc., no fan for efficient heat dissipation, reducing repair time;

● IP40 enclosure protection grade, able to withstand the test of harsh environments, rail or wall-mounted installation;

● Wide temperature type: working temperature -40℃~ +85℃;

Specification

Model

FCM-G12Q12

Supported Protocols

IEEE802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE802.1q、IEEE802.1p、IEEE802.1z、IEEE802.1d、IEEE802.1s、IEEE802.1w、IEEE802.1ax、IEEE802.1ak

Maximum frame length

10K

Number of ports

12 10/100/1000M RJ45 ports, 12 100M/1000M SFP optical ports, 1 Console port

Network medium

1000Base-LX: Use long wavelength laser (1310nm) over multi-mode and single-mode fiber, the maximum distance of multi-mode fiber is 550m, single-mode is 20-120km.

1000Base-SX: The maximum transmission distance of 62.5μm multimode fiber is 275m, and the maximum transmission distance of 50μm multimode fiber is 550 meters.

10Base-T: Category 3 or above UTP; (supports a maximum transmission distance of 200m)

100Base-TX: Category 5 UTP; (supports a maximum transmission distance of 100m)

1000Base-T: CAT-5E UTP or Category 6 UTP (supports a maximum transmission distance of 100m)

VLAN address table

4K

MAC address table

8K

Cache

4Mbits

Backplane bandwidth

52Gbit

Filter and forward rate





10Mbps:14880pps

100Mbps:148800pps

1000Mbps:1488000pps

Environment

Storage temperature: -40℃~85℃; storage humidity 0%~90% non-condensing

Working temperature: -40℃~85℃; working humidity 0%~90% non-condensing

MTBF

>100,000 hours

Power Supply

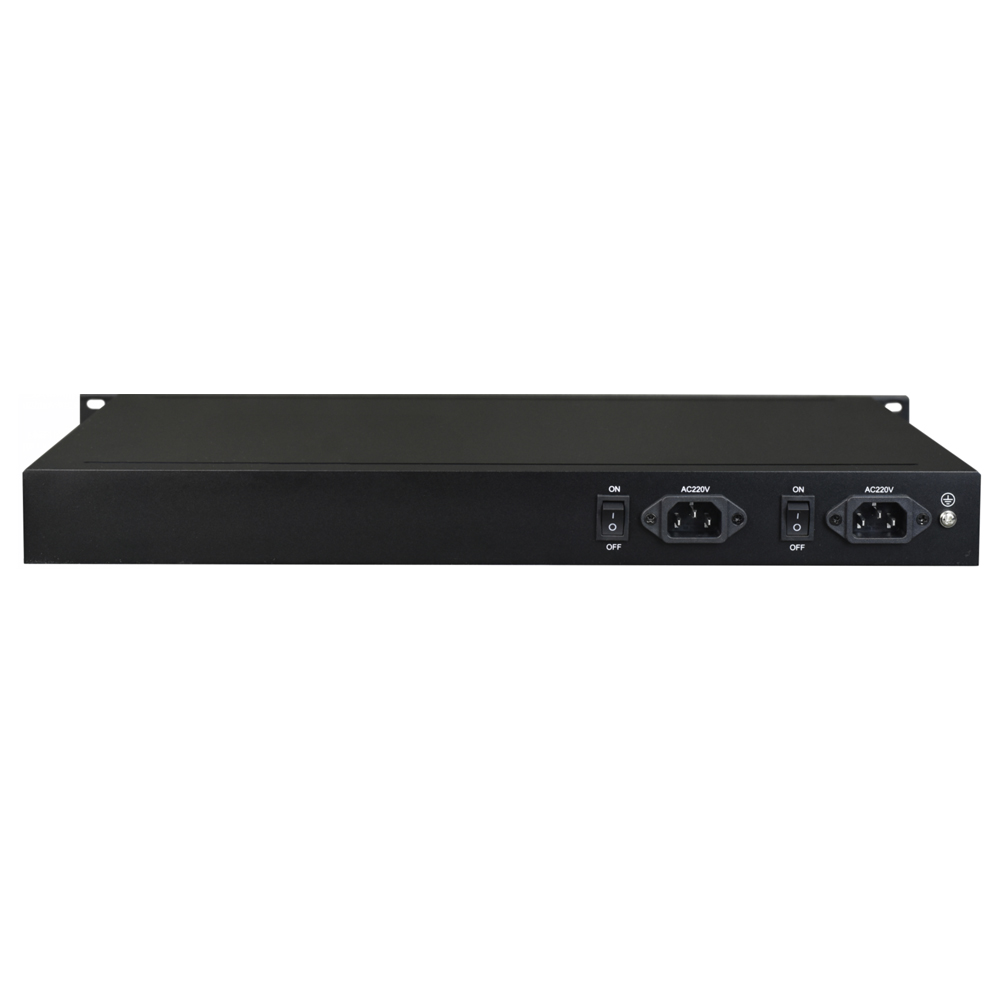

AC220V or DC-48V (power supply optional), support power redundancy backup

Power Consumption

Power consumption: max 25W

Dimension

Appearance structure: 485*200*45mm rack type

Weight

3.7Kg/pc
