The device provides an industrial-grade fiber optic conversion with 4 100Mbps ethernet ports and 4 100Mbps optical ports, which can be converted to 1 1000Mbps optical port for long-distance (20/40/60/80/100km) fiber optic network transmission. It provides 4 100Mbps optical ports and 4 100Mbps Ethernet electrical ports, and shares a 1000Mbps bandwidth. Each port’s bandwidth can be set through the Console port (Ethernet interface is a switching port and supports VLAN partitioning) for logical isolation. The device has a complete alarm function, stable and reliable operation, low power consumption, high integration, and small size.
- Product Search Guide: space = AND, | = OR, ! = NOT

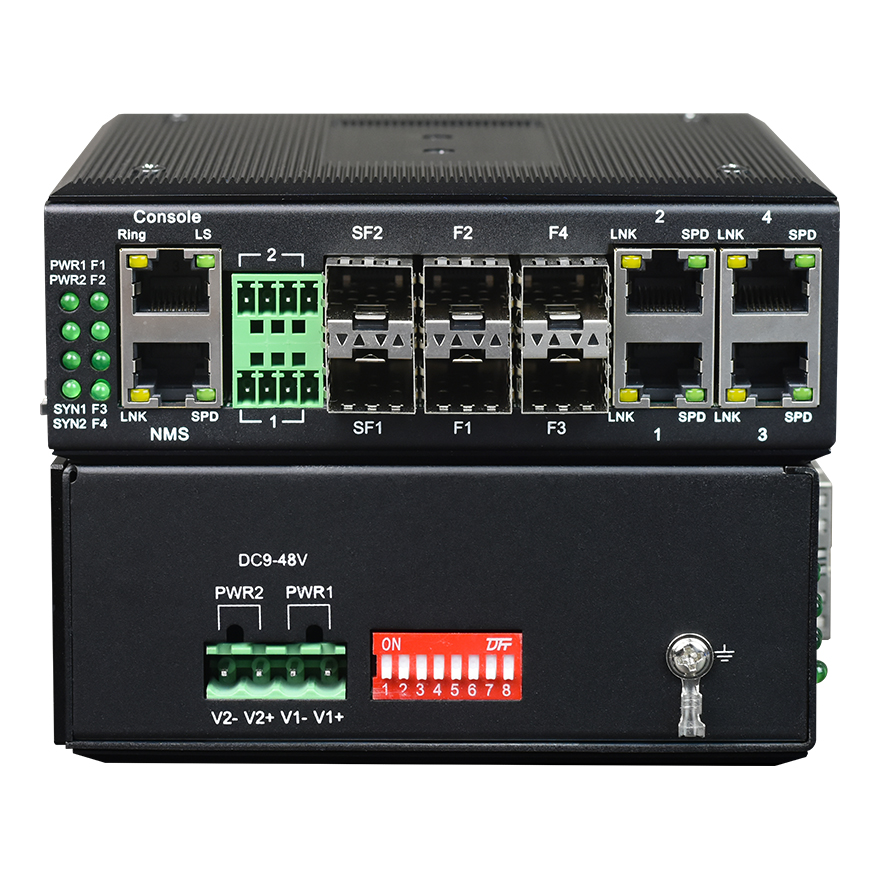

Managed DIN-Rail 4-Port 10/100M Ethernet + 4-Port 100Base-FX + 1000Base-X Industrial Switch
Model
Contact us
Description :
The device provides 4 100Mbps optical ports and 4 100Mbps Ethernet electrical ports, and shares a 1000Mbps bandwidth.
Overview
Features
● The device provides 4 100Mbps ethernet ports, 4 100Mbps optical ports, 1 1000Mbps optical port, and an optional Console/SNMP network management port.
● The ethernet interface (RJ45) supports 10/100Mbps auto-negotiation, full/half duplex mode, and MDI/MDI-X auto-detection.
● It has an automatic power-off and restart function when the device fails.
● The optical interface supports three fiber optic transmission modes: multi-mode dual fiber, single-mode dual fiber, and single-mode single fiber, with SC/ST/FC/LC interfaces.
● It has functions such as broadcast storm protection, flow balance, conflict isolation, error detection, and automatic reset after failure, suitable for large traffic data applications such as video transmission.
● The device has a built-in 1MB high-speed cache to avoid transmission image lag caused by IP cameras in rapidly changing monitoring scenes.
● It supports the transmission of VLAN oversized packets, and can be used in conjunction with switches that support the IEEE802.1Q protocol, supporting Ethernet packets up to 10K bytes.
● The device is based on an Ethernet switching chip+FPGA solution, with a remote OAM management frame function. It can be interconnected with the 1 optical and 1 electrical transceiver card with SNMP network management in a 2U plug-in style, and can be managed by SNMP software. It also supports Console (CLI)/WEB/SNMP network management.
● The network management can view and manage the interface status and settings of the local and remote Ethernet in real-time. The device has a power-off detection function, which can detect whether the remote device is powered off or the fiber is not connected when the optical signal is lost.
● It supports a wide range of 9-55V AC and DC power inputs.
● It supports internal isolation and redundant dual power inputs.
● The power supply supports overload protection and reverse connection protection.
● It has strong lightning protection functions: lightning protection, high voltage induction resistance, surge protection, etc.
● The anodized aluminum alloy shell has an IP40 protection level and can withstand harsh environments.
● It can be mounted on a DIN rail or wall.
● Working temperature -40°C to +85°C.
Parameters
● Fiber
Multi-mode Fiber:
50/125um or 62.5/125um
Maximum transmission distance: 5km @ 62.5/125um single-mode fiber, attenuation (3dbm/km)
Wavelength: 820nm
Transmit power: -12dBm (Min) ~ -9dBm (Max)
Receiver sensitivity: -28dBm (Min)
Link budget: 16dBm
Single-mode Fiber:
8/125um or 9/125um
Maximum transmission distance: 40km
Transmission distance: 40km @ 9/125um single-mode fiber, attenuation (0.35dbm/km)
Wavelength: 1310nm
Transmit power: -9dBm (Min) ~ -8dBm (Max)
Receiver sensitivity: -27dBm (Min)
Link budget: 18dBm
● 10/100M Ethernet Interface:
Protocol: Compliant with IEEE 802.3, IEEE 802.1Q (VLAN)
Rate 10/100Mbps auto-negotiation, full/half duplex fully adaptive
MAC Address Table: Can learn 4096 MAC addresses
Physical Interface: RJ45 socket supports Auto-MDIX (cross/straight-through line adaptive)
● Environmental Indicators:
Operating temperature: -40°C—+85°C (industrial grade)
Storage temperature: -40°C—+85°C
Operating humidity: 0%—95% (non-condensing)
MTBF: >100,000 hours
