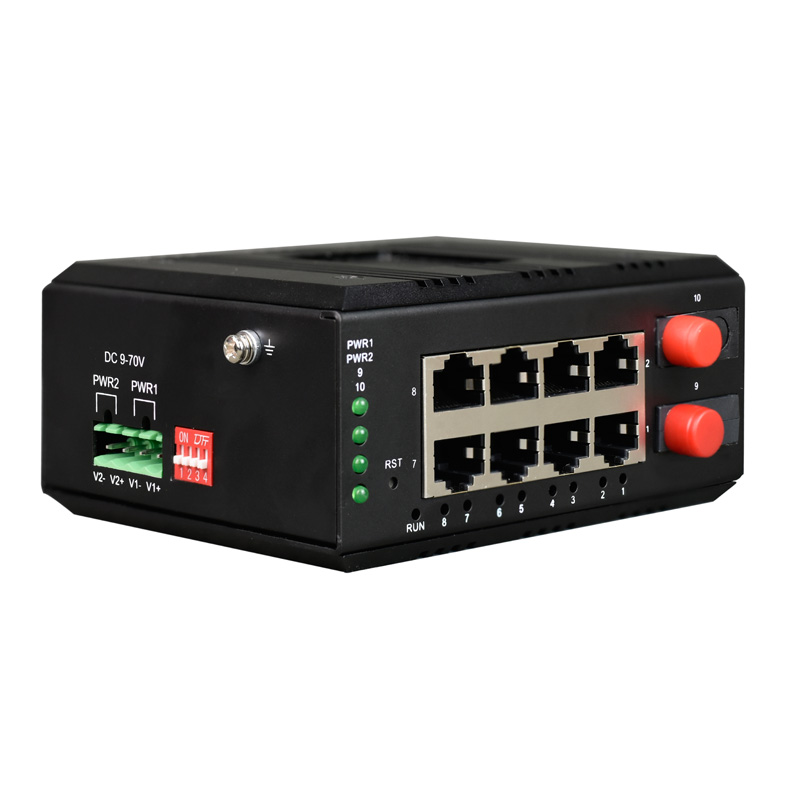

Managed Din-Rail 8-Port 10/100/1000Base-T + 2-Port 1000Base-FX(SFP) Industrial Switch with RSTP Ring Network

View : 69
Type : Managed Din Rail Industrial Switch
Description :

Industrial 8*10/100/1000Base-T+2*1000Base-FX network management Ethernet switch is a special security monitoring field of intelligent industrial network switch products.

Overview

The 8*10/100/1000Base-T+2*1000Base-FX network management industrial Ethernet switch is a special intelligent industrial network switch of security monitoring field, and it supports the international standard IEEE 802.3D/W/S standard STP/RSTP protocol. As well as rich network management functions, it can provide stable and reliable Ethernet transmission, with high-quality design and reliability.



It provides and implements Ethernet data exchange, convergence and remote optical transmission with efficient bandwidth and reliable optical fiber network solutions. Suitable for low temperature and high temperature, strong anti-electromagnetic interference, anti-salt spray, anti-seismic and anti-shaking, equipped with redundant dual DC power supply (9-70V), it can provide a redundant mechanism for critical equipment that needs to be always connected. It supports DIN rail or wall mount with IP40 protection rating, perfect for harsh environments.

Features

IP40 protection grade, aluminum alloy shell anodic oxidation process, able to withstand the test of bad environment

Devices provide 8-way gigabit Ethernet port, 2 road gigabit light mouth, transmission bandwidth for line speed of 1000 m, gigabit light mouth support for 20/40/60/80/120 km distance transmission;

Support ieee802.1q protocol VLAN long packet transmission, support up to 16 k bytes of Ethernet packets, supports large backplane bandwidth, large exchange cache, make sure that all the port line speed forward;

Electric interface (RJ45 interface) support 10/100/1000 m adaptive, full/half duplex mode, MDI/MDI – X automatic detection;

Supports the IEEE 802.3 D/W/S standard STP/RSTP ring network protocol, a key can set of RSTP ring;

Support IEEE802.3/802.3 u/ab/z / 802.3 x 802.3 802.3 store-and-forward mode;

IGMP Snooping V1/V2/V3, GMRP, IEEE 802.1Q 4K VLAN, and DSCP 8 queues are supported.

Power to support strong lightning protection function: lightning protection, induction of high pressure resistant, anti surge, etc.;High efficiency heat dissipation without fan reduces repair time;

Double DC power supply terminals (5.08mm) :

  • DC9-70 – v or AC7-50 v wide range of power supply, power supply have polarity automatic detection function, you do not need to distinguish between when installation is negative;
  • Support internal isolation, redundant dual power input; Anti-reverse connection protection

When the AC power supply (three clubs AC) :

  • support AC 85-265V, or DC110-300V wide range lose conform to the requirements of the industrial level 4 electromagnetic compatibility;

DIN 35mm rail mounting, or wall-mounted mounting;

Wide temperature type: working temperature -40 ℃ ~ + 85 ℃;

All models by 100% baking machine test, warranty period: 5 years;

Parameters

Fiber Port

Port: 2

Fiber: Single-mode dual-core fiber

Fiber connector: SC/FC/ST/LC(SFP) optional

Wavelength: 850nm/1310nm multi-mode; 1310nm/1550nm single mode

Transmission distance without trunk: 0 to 80Km

Typical transmission power: single mode 100uw — 0.93mw



10/100/1000M Ethernet Interface

Agreement: Compliant with IEEE 802.3ab, IEEE 802.3z

Speed rate: 10/100/1000M adaptive m full/half duplex adaptive

MAC address table: A maximum of 4096 MAC addresses can be learned

Physical port: The RJ45 socket supports Auto-MDIX



● Environmental Indicators

Operating temperature: -40 ℃ – +85 ℃

Storage temperature: -40 ℃ – +85 ℃

Humidity: 0% -95% (non-condensing)

MTBF:> 100,000 hours

Specifications

Product Model

FCT-G8Q2

Product Function Description

2 gigabit optical ports to 8 10/100/1000M Ethernet electrical ports, industrial rail type

Port description

2 gigabit SFP or 1*9 optical ports, 8 gigabit electrical Ethernet ports

Power Supply

DC power supply:

Redundant dual power input DC9-70V or AC7-50V, power consumption <10W

Overload protection: supported; Backconnect protection: support; Redundancy protection: Supported

Access terminal: 4-core 5.08mm pitch insert terminal

AC built-in power supply:

AC85-265V, or DC110-300V DC wide input, power consumption <5W

Overload protection: supported;

Access interface: three plum AC seats

Product Size

Shell: IP40 protection grade, aluminum alloy material

Size: 110mm(length) x 86mm(width)x 50.5mm(height)

Installing method: railed installation, wall-mounted installation

Weight

0.55Kg / PCS

Application

application of 8 port switch
