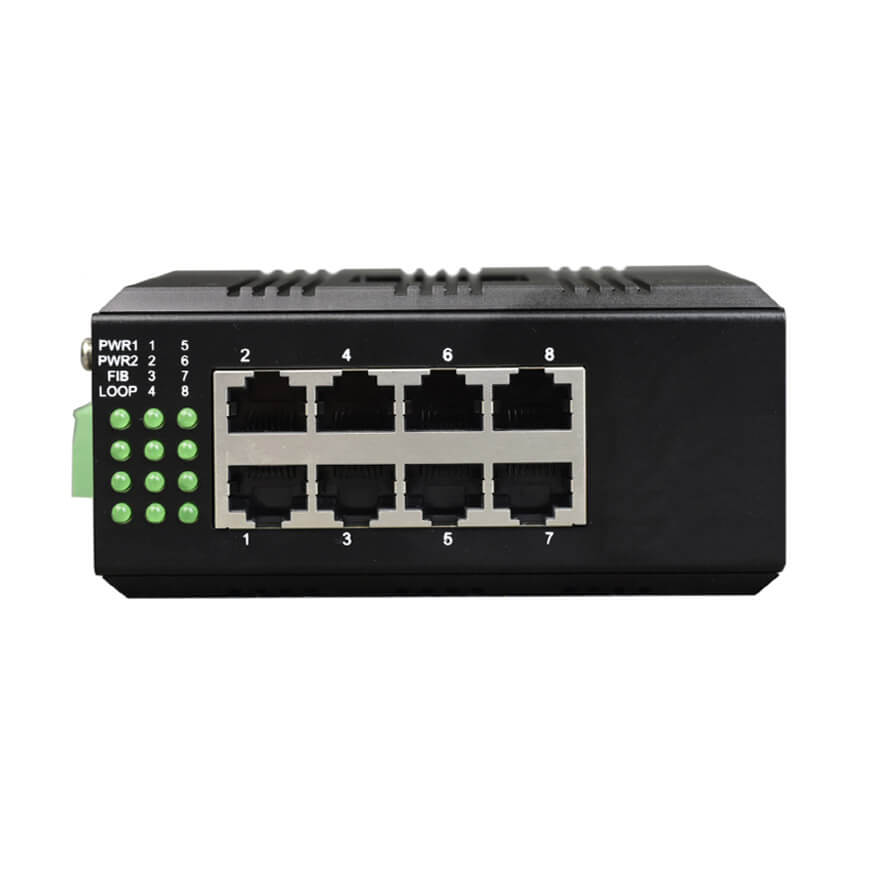

Managed Din-Rail 8-Port 10/100/1000Base-T + 1000Base-FX(SFP) Industrial Switch

View : 55
Type : Managed Din Rail Industrial Switch
Description :

Industrial grade 8*10/100/1000Base-T+1*1000Base-FX Ethernet switch is an intelligent industrial ring network switch especially aimed at the field of security monitoring.

Overview

Industrial grade 8*10/100/1000Base-T+1*1000Base-FX Ethernet switch is an intelligent industrial ring network switch product especially aimed at the field of security monitoring, which can provide users with high-efficiency bandwidth and reliable Ethernet network solutions for Network data exchange and aggregation. Adapt to low temperature and high temperature, strong anti-electromagnetic interference, anti-salt spray, anti-vibration and anti-shake, equipped with redundant dual DC power supply (9-70V), can provide redundancy mechanism for key equipment that needs to be kept connected all the time. It supports DIN rail or wall mounting, and has IP40 protection level, which is the perfect choice for harsh environments.

Features

IP40 protection level, aluminum alloy anodized process shell, can withstand the test of harsh environment;

The equipment provides 8 Gigabit Ethernet ports, and 1 Gigabit optical port, the transmission bandwidth is 1000M at the wire speed, and the Gigabit optical port supports 20/40/60/80/120KM distance transmission;

Support the transmission of IEEE802.1Q protocol VLAN ultra-long data packets, support Ethernet packets up to 16K bytes, support large backplane bandwidth, large switching cache, and ensure line-speed forwarding of all ports;

Ethernet interface (RJ45 interface) supports 10/100/1000M adaptive, full/half duplex mode, MDI/MDI-X automatic detection;

The device comes with WEB network management, and the Ethernet interface supports IEEE 802.3D/W/S standard STP/RSTP ring network protocol;

Support IEEE802.3/802.3u/802.3ab/802.3z/802.3x store and forward mode;

Support IGMP Snooping V1/V2/V3, support GMRP, support IEEE 802.1Q 4K VLAN, support DSCP 8 queues;

The power supply supports super lightning protection functions: lightning protection, anti-inductive high voltage, anti-surge, etc.; no fan for efficient heat dissipation, reducing repair time;

When dual DC power supply (5.08mm terminal):

  • It can be powered by DC9-70V or AC7-50V wide-range power supply. The power supply has the function of polarity automatic detection, and there is no need to distinguish positive and negative poles during installation;
  • Support internal isolation, redundant dual power input; anti-reverse protection

When AC power supply (three-position cross-style AC seat):

  • Support AC~85-265V AC, or DC110-300V DC wide-range input, which meets the requirements of industrial electromagnetic compatibility level 4;

Super lightning protection function: lightning protection, anti-inductive high voltage, anti-surge, etc.;

No fan for efficient heat dissipation, reducing repair time;

Provide DIN 35mm rail installation, or wall-mounted installation;

Wide temperature type: working temperature -40℃~ +85℃;

All models have passed 100% oven test, warranty period: 5 years;

Parameters

● Optical Fiber

Optical port: 1

Optical fiber: single fiber dual fiber

Optical fiber interface: SC/FC/ST/LC(SFP) optional

Wavelength: 850nm/1310nm multimode; 1310nm/1550nm single mode

Transmission distance without relay: 0~80Km

Typical transmit power: single-mode 100uw — 0.93mw



● 10/100/1000M Ethernet Interface

Protocol: Compliant with IEEE 802.3ab, IEEE 802.3z

Rate: 10/100M/1000M adaptive, full/half duplex adaptive

MAC address table: 4096 MAC addresses can be learned

Physical interface: RJ45 support Auto-MDI



● Environmental Index

Working temperature: -40℃—+85℃

Storage temperature: -40℃—+85℃

Working humidity: 0%—95% (non-condensing)

MTBF: >100,000 hours

Specifications

Product Number

FCM-G8Q1m

Function Description

Managed 1 Gigabit optical port to 8 10/100/1000M Ethernet ports, industrial rail type

Port Description

1 Gigabit SFP or 1*9 optical port, 8 Gigabit Ethernet ports

Power Supply

DC power supply:

Redundant dual power input DC9-70V or AC7-50V, power consumption <10W

Overload protection: support; reverse polarity protection: support; redundant protection: support

Access terminal: 4-core 5.08mm pitch plug-in terminal

AC built-in power supply:

AC~85-265V AC, or DC110-300V wide range input, power consumption <5W

Overload protection: support;

Access interface: Three-position cross-style AC seat

Product Size

Shell: IP40 protection grade, aluminum alloy material

Dimensions: 110mm(L) x 86mm(W) x 50.5mm(H)

Installation method: guide rail installation, wall-mounted installation

Weight

0.55KG/PCS
