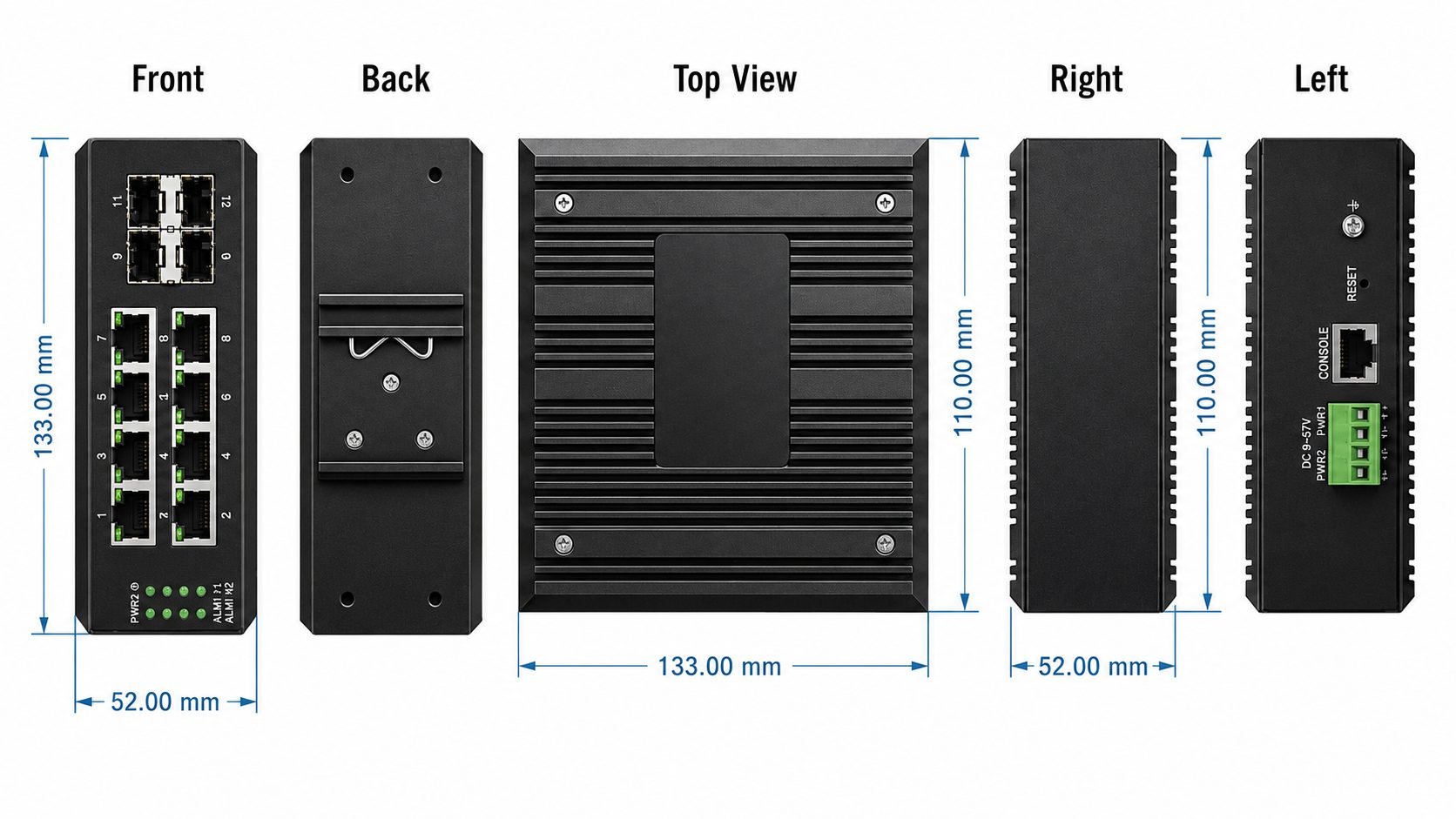

Managed Industrial DIN-Rail 8-Port Gigabit Ethernet + 4-Port Gigabit SFP Network Switch

This product series features an industrial DIN-rail design. The 8-Port Electrical + 4-Port Optical Managed Gigabit Redundant Ethernet Switch represents a new generation of multi-service access switches, characterized by high integration, rich functionality, and ease of use—setting the highest standard within the industry.

Equipped with 8 Gigabit electrical ports and 4 Gigabit optical ports, it is particularly well-suited for scenarios involving high data throughput, such as video transmission. The switch supports a comprehensive suite of Layer 2 management protocols essential for diverse industrial networking applications. Furthermore, it supports the ITU G.8032 redundant ring protocol, enabling the configuration of various network topologies—including cascaded, single-ring, and tangent-ring structures—with a self-healing time of less than 20ms, thereby ensuring the real-time performance and stability of the network. Built upon mature technologies and open networking standards, this switch is designed to withstand extreme temperatures, resist strong electromagnetic interference, and offer protection against salt mist, vibration, and shock. It meets the rigorous operational demands of harsh industrial environments, providing an efficient, reliable, and rapid networking solution for the Industrial Internet of Things (IIoT).

● Aluminum alloy housing with an industrial DIN-rail mount design; features excellent heat dissipation characteristics and an anodic oxidation finish; IP40 protection rating; specifically engineered for harsh and demanding industrial environments.

● Supports 8 Gigabit Ethernet ports and 4 Gigabit optical interfaces (4 Gigabit SFP ports).

● Each electrical or optical port supports the standard ERPS ring network protocol, with a self-healing time of less than 20ms.

● Supports port bandwidth limiting, port flow control, and broadcast storm suppression.

● Supports Web, CLI, and Telnet management functions.

● Features power-loss alarms and loop detection alarms.

● Supports Power over Ethernet (PoE/PoE+) functionality.

● Management Features:

• Supports CLI, Web, and SNMP management methods.
• Supports ingress/egress-based port rate limiting; supports half-duplex back-pressure flow control and 802.3X full-duplex flow control.
• Supports storm suppression for broadcast, multicast, and unknown unicast traffic.
• Supports IEEE 802.1Q 4K VLANs and QinQ.
• Supports port mirroring, Syslog, Ping commands, and other utilities.
• Supports CoS and DSCP; features 8 priority queues with support for WRR, SP, and WFQ scheduling modes, as well as policy-based QoS.
• Supports port traffic statistics and online firmware upgrades.
• Supports STP/RSTP and MSTP; supports EAPS and ERPS.
• Supports IGMP Snooping V1/V2/V3 and GMRP.
• Supports manual link aggregation as well as static/dynamic LACP protocols.
• Supports one-channel relay alarms, RMON management, and TRAP alarms.
• Supports DHCP Snooping and Option 82; supports 802.1X authentication.
• Supports hierarchical user management and Access Control Lists (ACLs).
• Supports DDoS protection and port-based MAC address binding. Filtering / Binding
• Supports cable detection, facilitating on-site verification of Ethernet cable lengths.
• Supports NTP for real-time network time synchronization.
• Supports IPv4/IPv6 static routing and Layer 3 switching technologies.

● Ethernet ports feature lightning protection compliant with the GB/T17626.5 (IEC61000-4-5) standard, meeting requirements for a 10/700μs short-circuit current waveform and a 6kV open-circuit peak output voltage.

● Supports a wide-range AC/DC input (9V–48V), featuring internal isolation and redundant dual power inputs; the power supply includes overload protection and reverse polarity protection.

● Complies with Level 4 industrial electromagnetic compatibility (EMC) requirements.

● Robust lightning protection capabilities: safeguards against direct lightning strikes, induced high voltages, power surges, and more; features fanless, high-efficiency heat dissipation to minimize Mean Time to Repair (MTTR).

● IP40-rated enclosure protection, designed to withstand harsh environmental conditions; supports both DIN rail and wall mounting.

● Wide-temperature operation: Operating temperature range of -40°C to +85°C.

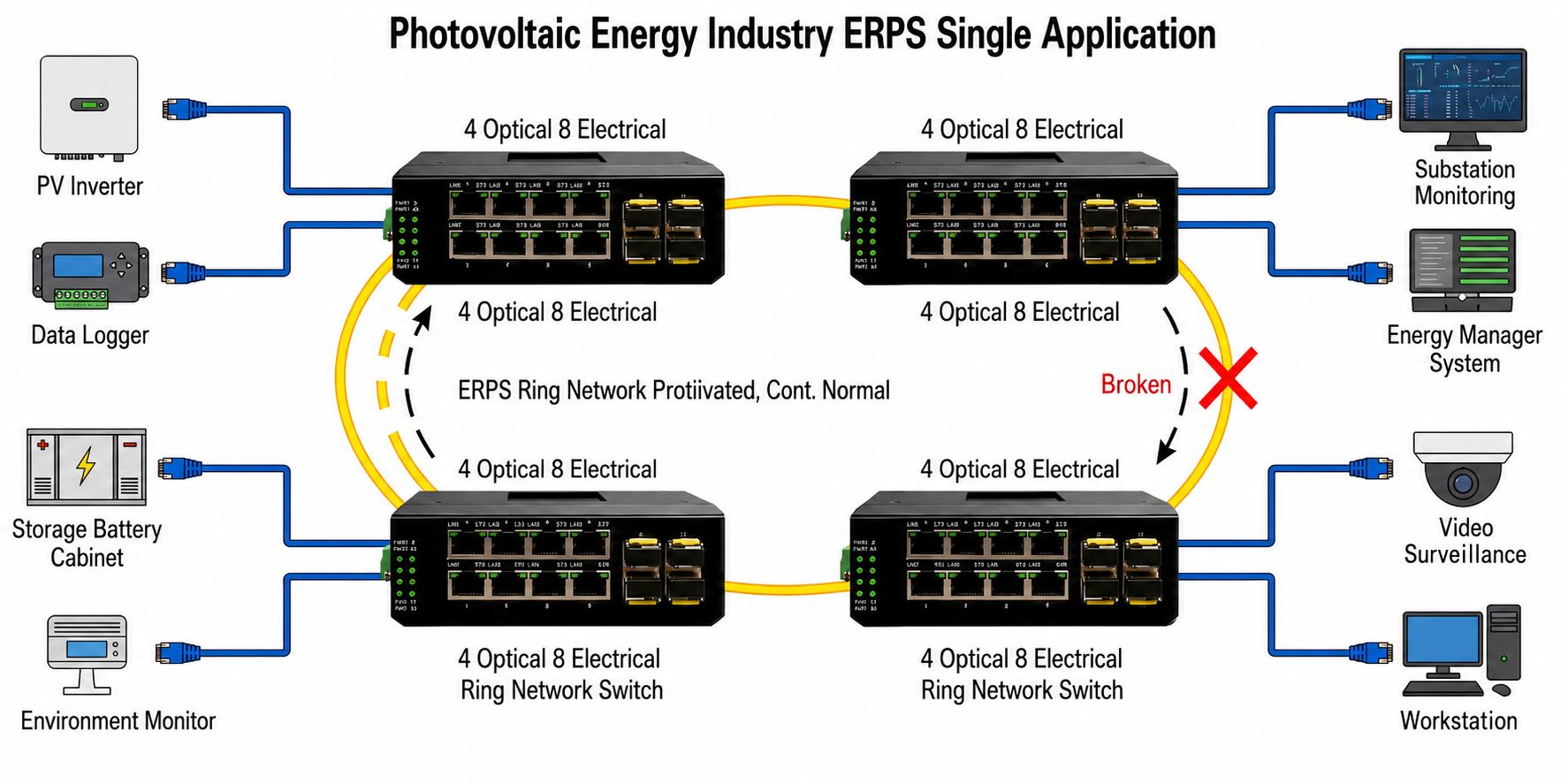

Case Study 1: Photovoltaic and Energy Storage ERPS Fiber Ring Application

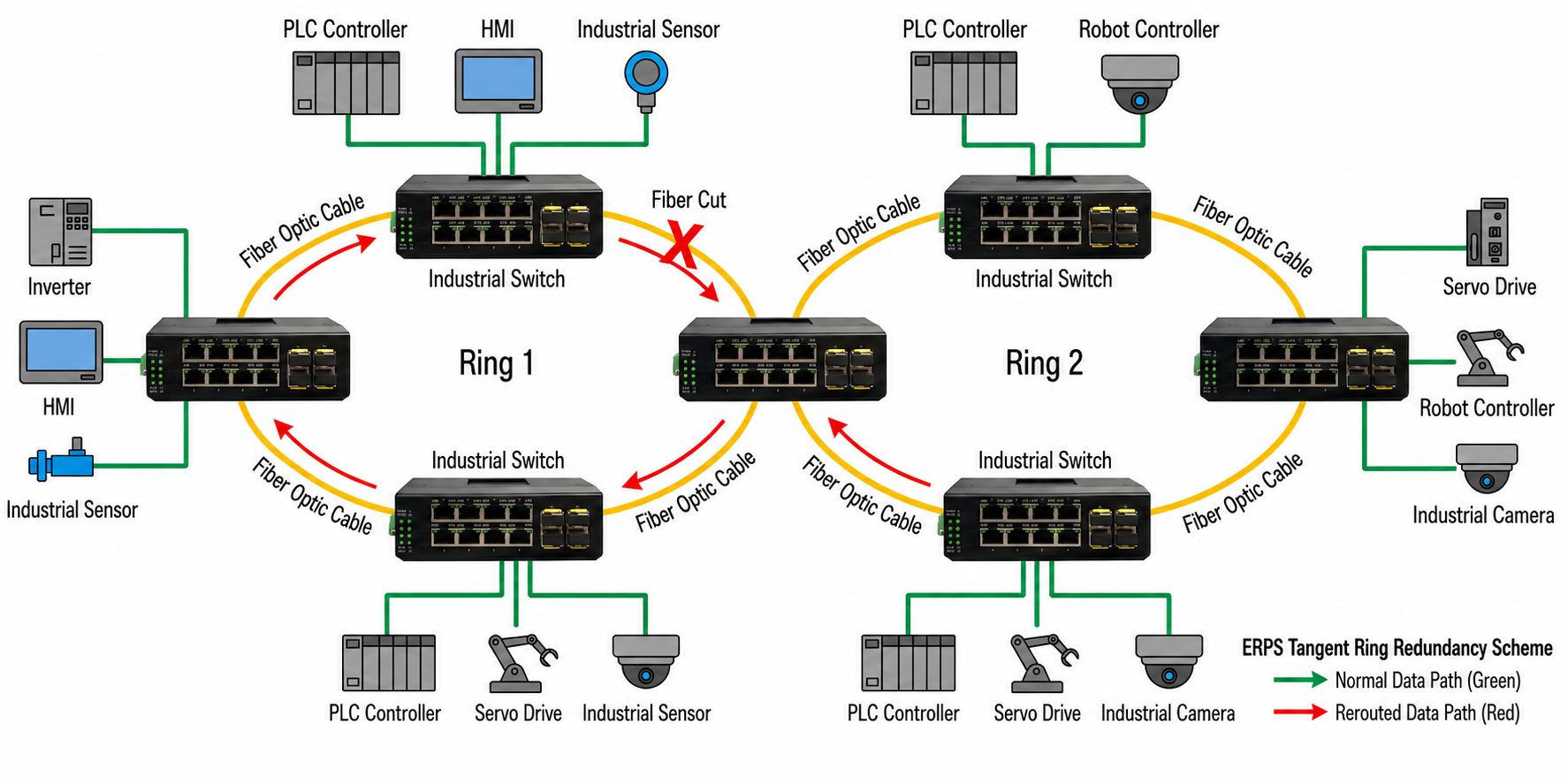

Case Study 2: Industrial Control — ERPS Tangential Fiber Ring Application
