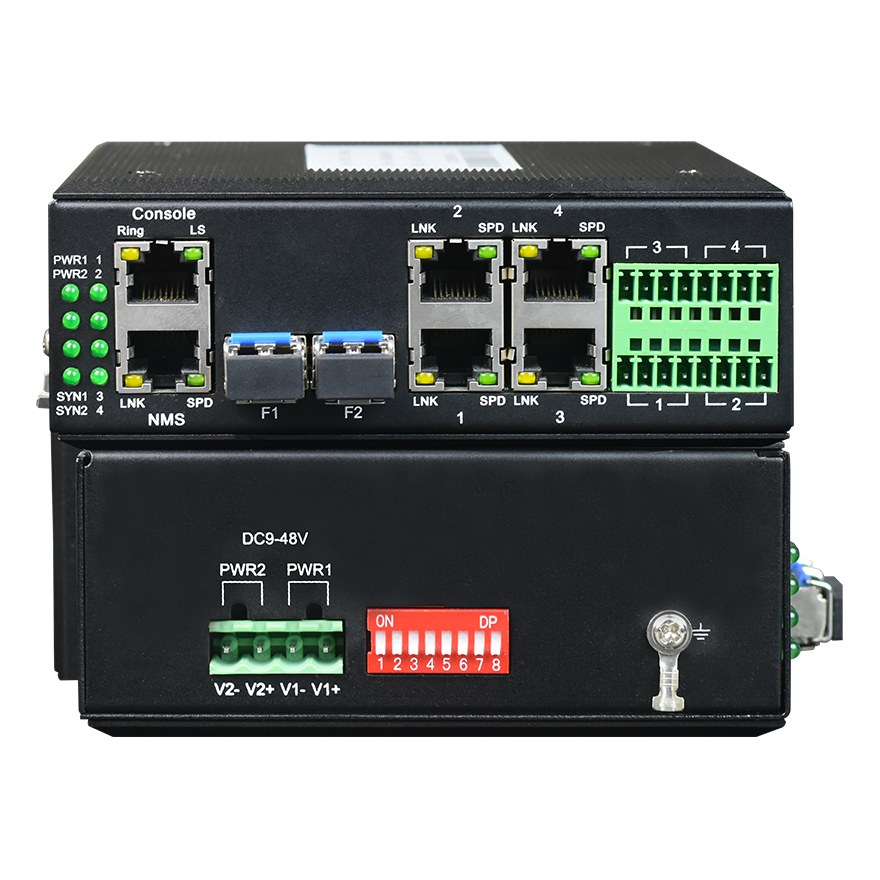

Managed Din-Rail 4-Port 10/100M Ethernet + 2-Port Gigabit SFP + 4-Port Serial Data Industrial Switch

View : 615
Type : Industrial Switch With Serial Port
Description :

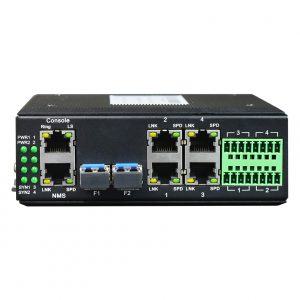

The switch provides 2 Gigabit SFP optic ports, 4 Fast Ethernet ports, and 4 RS232/422/485 serial ports.

Overview

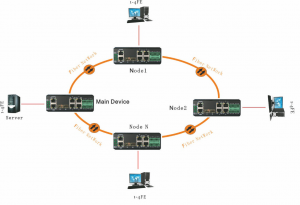

This switch adopts an industrial redundant ring network design, where each device has two fiber optic ports to form a ring network. The network topology is established through a cascading method called “hand in hand,” creating a circular structure. The industrial redundant ring network (FC-Ring) design aims to achieve stability, reliability, and real-time data transmission in harsh environments.



Its working principle involves forming a physical loop connection, where the network signal forms a chain-like structure during operation. In the event of a cable break at any point in the transmission, the equipment automatically switches to the backup line for transmission within an extremely short time. The redundant ring network structure reduces data signal transmission risks, simplifies engineering installation, and lowers project costs.



It provides 2 Gigabit SFP optic ports, 4 Fast Ethernet ports, and 4 RS232/422/485 serial ports. The 4 serial ports are designed independently, with each port having a master-slave configuration. One port serves as the master control node, while the others act as slave nodes.

Features

The device features a built-in lithium battery with battery protection and charging functions. When the device experiences a power outage, the lithium battery can provide over 5 hours of power supply, ensuring the regular operation of the fiber optic line (optional).

It is designed with an industrial rail-mountable design specifically tailored for harsh industrial environments.

It provides two fiber optic paths and automatically switches in case of a line failure, ensuring uninterrupted communication.

It incorporates a power-off restart function for the device in the event of a system crash.

It supports various fiber optic network structures, including point-to-point, star, chain, and redundant ring networks. It can also be combined to form more complex network topologies.

The device offers 4 Fast Ethernet ports and 2 Gigabit SFP optic ports, providing a total transmission bandwidth of 1000 Mbps at line speed.

The switch is equipped with 1Mbit MP-SSRAM high-speed memory, designed to be non-blocking, with a maximum backplane bandwidth of 32 Gbps.

It is based on FPGA+ARM design, enabling fast self-healing ring establishment time and supporting “FC-Ring” redundant ring network (self-healing time <20 ms).

It supports the transmission of VLAN jumbo frames and can be used in conjunction with switch products that support the IEEE 802.1Q protocol. It supports Ethernet frames with a maximum of 10K bytes.

It includes features such as broadcast storm protection, traffic balancing, conflict isolation, and error detection.

The 10/100 Mbps ethernet interface is adaptive, and the ethernet port supports MDI/MDI-X auto-adaptation without manual adjustment.

Both the Ethernet interface and serial data interface are equipped with lightning protection, meeting GB/T17626.5 (IEC61000-4-5) standards for short-circuit current wave of 8/20 μs and peak open-circuit voltage output of 6KV.

It provides 4 RS232/485/422 interfaces, with three options for data interfaces. RS232 supports 3-wire RS232 (TXD, RXD, GND).

The RS232/485/422 channels can transmit asynchronous serial data at baud rates ranging from 0 to 115200.

The device is equipped with a Console (CLI) network management and web management platform, enabling online software upgrades. The host can manage the operational status of each slave device.

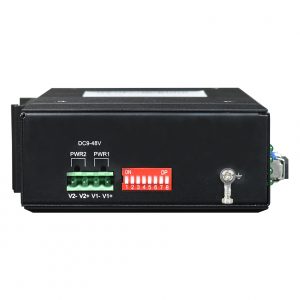

It supports a wide range of AC/DC inputs (9V-48V) with internal isolation. Redundant dual power input supports overload protection and reverse connection protection.

It complies with industrial-grade electromagnetic compatibility requirements.

It features excellent lightning protection, capable of withstanding lightning strikes, high voltage induction, surge protection, and fanless efficient heat dissipation, reducing repair time.

It has an anodized aluminum alloy housing, IP40 protection rating, is capable of withstanding harsh environmental conditions, and offers rail-mountable or wall-mountable installation options.

Working from -40°C to +85°C.

Parameters

● Fiber

Fiber: single/dual fiber

Fiber Interfaces: FC/SC/ST/LC (SFP)

Wavelength: Multimode – 850nm/1310nm, Single-mode – 1310nm/1550nm

No-Relay Transmission Distance: 20~120km

Typical Transmit Power:

 Single-mode 1310/1550nm: ≥-9dBm

 Multimode 850nm: -18dBm

 Multimode 1310nm: -25dBm

Receive Sensitivity Range: -28dBm to -40dBm





● 10/100M Ethernet Interface

Protocol: Compliant with IEEE 802.3, IEEE 802.1Q(VLAN)

Rate: 10/100Mbps adaptive, full/half duplex auto-negotiation

MAC Address Table: Supports learning of 4096 MAC addresses

Physical Interface: RJ45 connector, supports Auto-MDIX



● Serial Interface

Baud Rate: 0-115.2K

Interface Characteristics: EIA-RS232/EIA-RS422/EIA-RS485

Physical Interface: Terminal block



● Working Environment

Working temperature: -10°C ~ 50°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C

Storage Humidity: 5%~95 % (no condensation)

Specifications

Model

ERing-F4R4

Function Description

4*10/100M electrical port Gigabit optical ring network with switches, SFP Fiber moudle, Industrial Rail

Port Description

2 Gigabit SFP optical ports, 4 FE ports, 1 Console port, WEB management interface

Power Supply

Dual redundant power inputs DC9-48V/AC9-48V, power consumption <10W

Support Overload Protection; Support reverse polarity protection; Support redundancy protection

Access Terminal: 4-pin plug-in terminal pitch of 5.08mm

Dimension

Product Size: 133X120X40mm (WXDXH)

Weight

1.1KG/Pcs

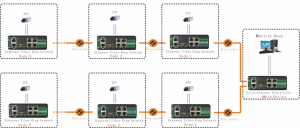

Application

application of switch

application of switch

application of switch

application of switch
