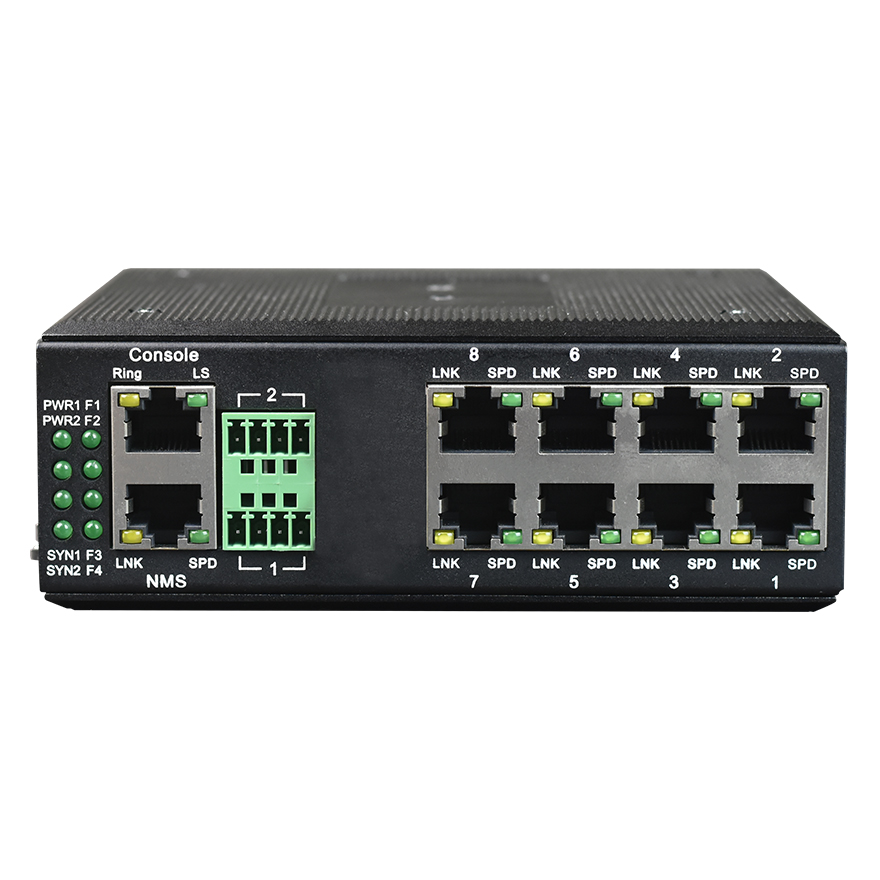

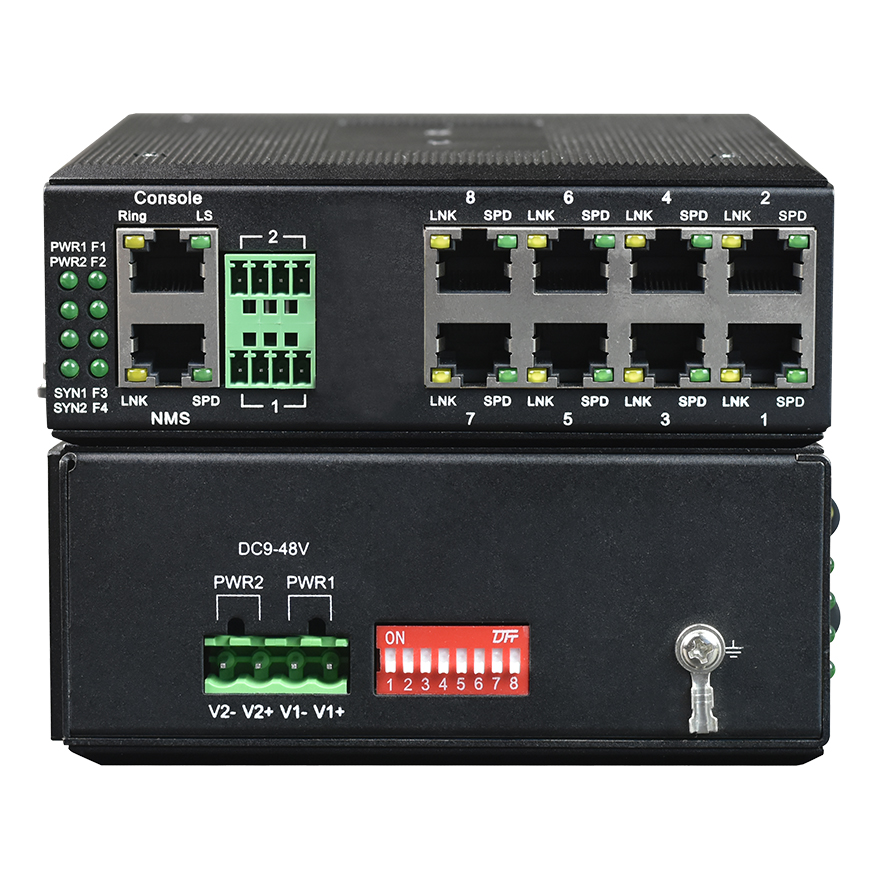

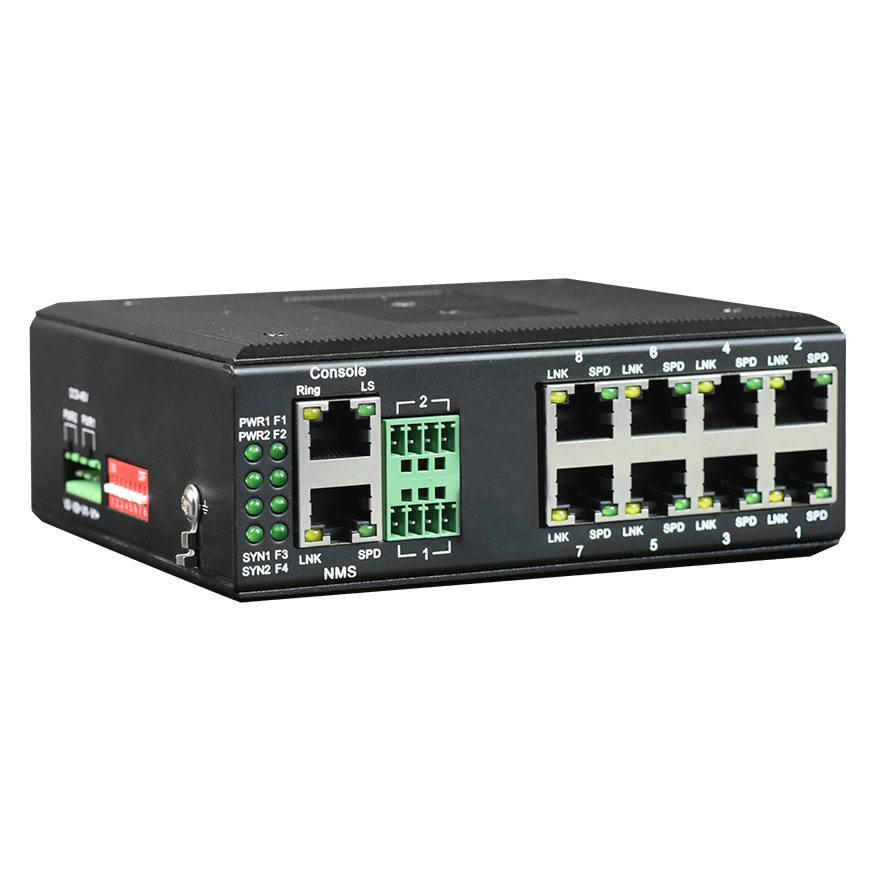

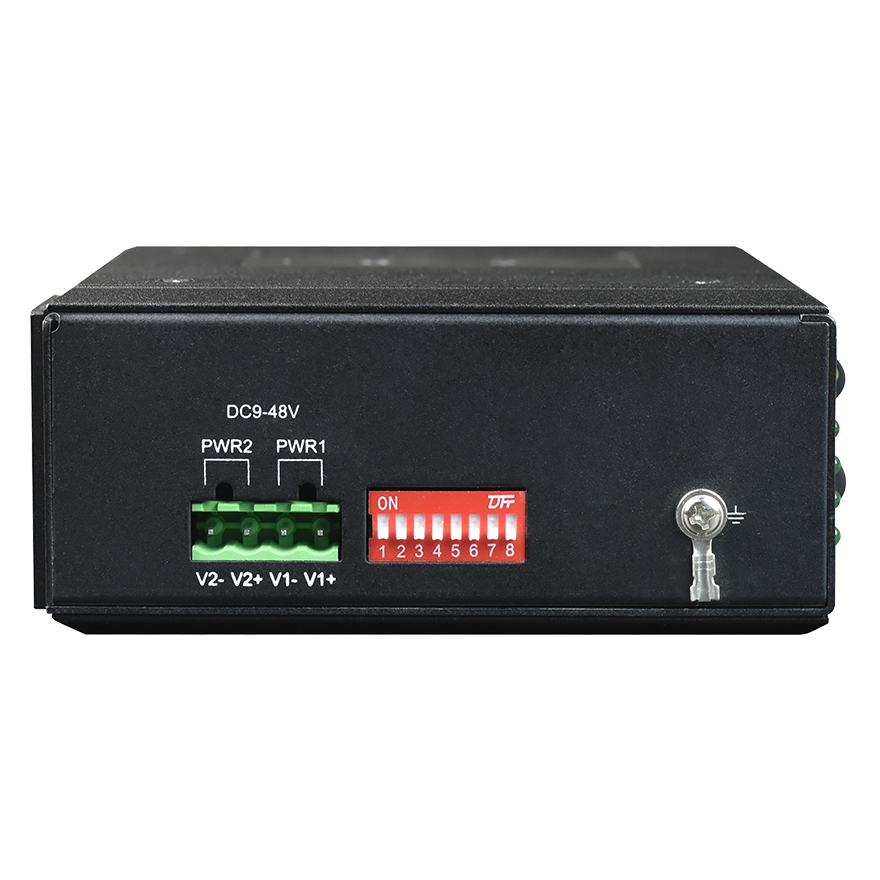

Unmanaged Din-Rail 8-Port FE Industrial Switch

View : 605
Type : Unmanaged Din Rail Industrial Switch
Description :

This product is an industrial grade 8*100base-T switch. It provides 8*FE.

Overview

This product is an industrial grade 8*100base-T switch. It provides 8*FE with perfect alarm function, the machine is stable and reliable, low power consumption, high integration, small size, and provides 35mm industry Rail and wall mounted two kinds of installation.


8 port switch 8 port switch

Features

Industrial Ethernet series, designed for harsh industrial environments

The device provides 8*100M Ethernet electrical interface supports 10/100M adaptive full/half duplex mode MDI / MDI-X automatic detection;

The switch has a deadline to monitor and self-resetting and other functions long-term work in the large flow of video transmission environment does not crash greatly reducing the workload of equipment maintenance;

Transceiver built-in 512KBits high-speed cache IP cameras can avoid the rapid changes in the monitoring screen environment caused by the transmission screen stuck phenomenon;

Support VLAN long packet transmission can support IEEE802.1Q protocol with the switch products to use support up to 1916 bytes of Ethernet packets;

Support a wide range of AC and DC input

Support internal isolation, redundant dual power inputs

Power Support overload protection, anti-reverse protection

Meet industry four electromagnetic compatibility requirements

Super Lightning features: lightning, high pressure resistant sensors, anti-surge, etc.

Fanless cooling efficiency, reduce repair time

IP40 enclosure protection rating, can withstand the test of harsh environments

Rail or wall mounting

Wide temperature range: Operating temperature -40 ℃ ~ + 85 ℃

All models are tested by 100% roast machine, Warranty: 5 years

Parameters

● Ethernet Interface(10/100M)

Interface rate: 10/100Mbps, half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector: RJ45, support Auto-MDIX



● Working Environment

Working temperature:  -40°C ~ 85°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 100°C

Storage Humidity: 5%~95 % (no condensation)

Application

application of 8 port switch
