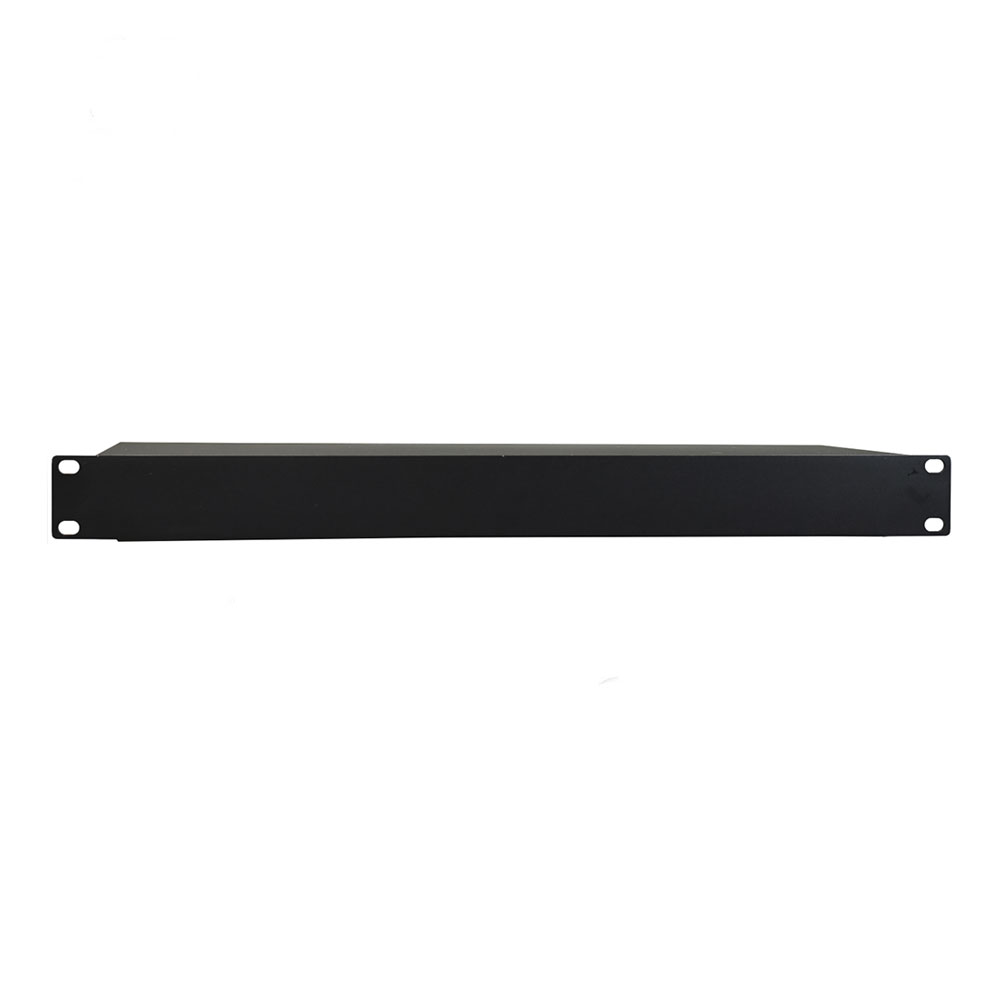

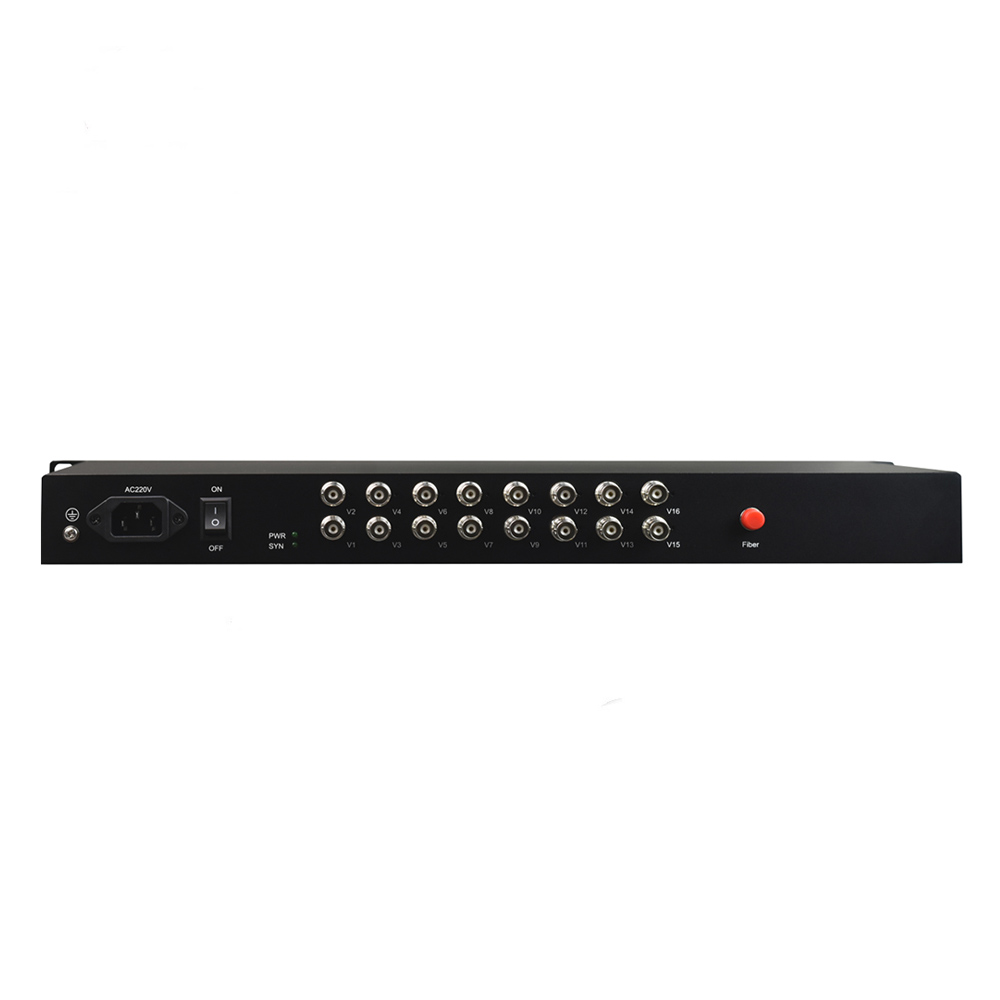

● The device is designed with a fully aluminum and anodized 19-inch 1U rack-mountable design.
● It is intended for paired usage, where the video signal input is located on one end and the video signal output is located on the other end.
● It supports automatic detection for SD, HD, and 3G inputs, with a support range of 270Mbit/s to 3Gbit/s and a maximum transmission distance of 80KM for the new FULL HD 1080P/60HZ 3Gbps HD-SDI format signal.
● It is compatible with SMPTE 424M (2.97Gbps/s), SMPTE 292M (1.485Gbps/s), SMPTE 344M (540Mb/s), SMPTE 259M (360Mb/s), and DVB-ASI (270Mb/s).
● The transmitter is equipped with automatic cable equalization and can support transmissions of 80M:2.97Gb/s, 140M:1.485Gb/s, and 250M:270Mb/s.
● Both the transmitter and the receiver are equipped with LED indicators to show the status of the SDI signal input.
● The video interface provides three-level lightning protection and can pass the test of ITU-T K.21 (10/700 μS) common mode: 6KV impedance (40 Ω).
● It can be powered by AC220V or DC-48V/+24V.
