Din Rail AC220V to DC12V15A/24V8A/48V5A Power Supply FCP-1215G

1,162 +3

Inquire Now

Model FCP-1215G

Description :

Features

● IP40 protection level, thick heat dissipation aluminum alloy anodized process shell, can withstand the test of harsh environment;

● With digital tube display voltage, convenient on-site voltage adjustment and service activation.

● 3 power supply specification: 12V15A/24V8A/48V5A full power output, small temperature rise.

● With power factor adjustment (PF), PF>0.9.

● Designed according to safety regulations, isolation withstand voltage greater than 1500Vac.

● Designed with reference to EMC requirements, strong anti-interference ability.

● Complete protection functions: output overcurrent, overload, short circuit protection.

● Lightning protection function, 6KV lightning protection, can resist inductive high voltage, surge protection, etc.;

● Fanless and efficient thick heat dissipation aluminum alloy heat dissipation, reducing repair time;

● IP40 shell protection level, can withstand the test of harsh environment;

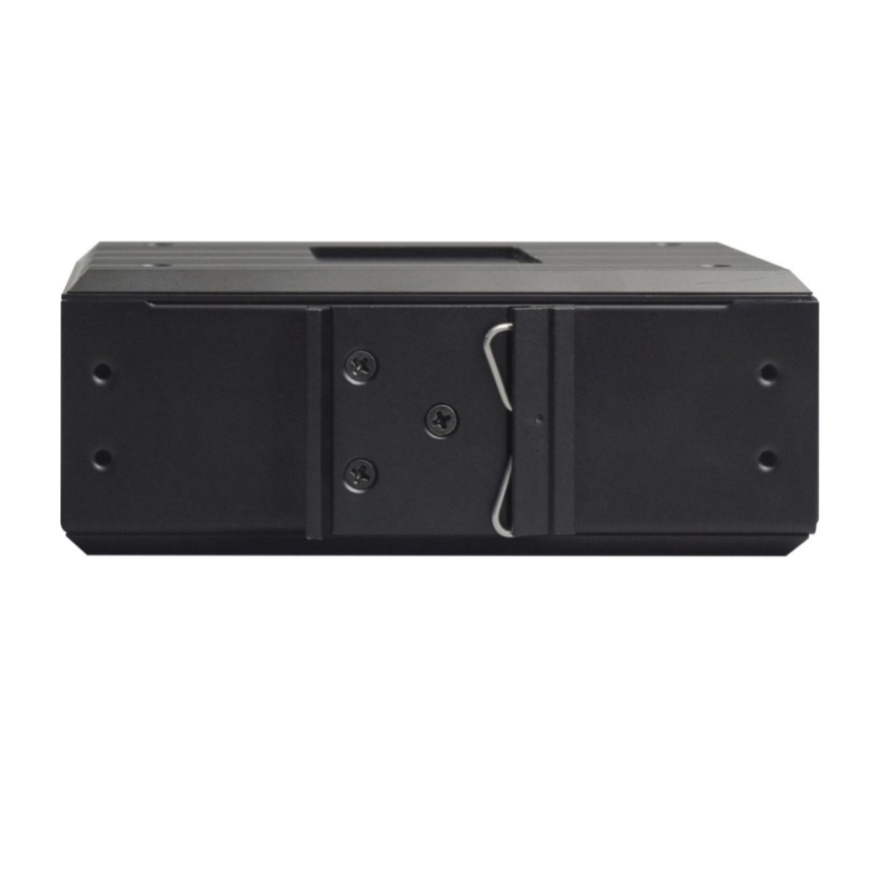

● DIN 35mm rail or wall-mounted installation;

● Wide temperature type: working temperature -40℃~ +85℃;

● Full load high temperature burn-in, 100% aging test;

Parameters

Electrical Parameters & Specifications
Parameter	Model	FCP-1215G	FCP-2408G	FCP-4805G
Output	Voltage	12V	24V	48V
	Current	0-15A	0-8A	0-5A
	Rated Power	180W	192W	240W
	Voltage Ripple (noise)	＜85mVp-p	＜70mVp-p	＜75mVp-p
	Power Factor(PF)	≥0.9	≥0.9	≥0.9
	Line Regulation	±0.1%	±0.1%	±0.1%
	Load Regulation	±0.3%	±0.3%	±0.3%
	Work Efficiency	>=91.%	>=93%	>=91%
	Start-up & Rise Time	800ms,52ms/220Vac;1000ms，54mS/110Vac(At full load)
Input	Voltage Range	100vc–240Vac;
	Alternating Current	0.96A/220 volt，1.9A/110 volt
	Frequency Range	47-63Hz
	Lightning Strikes & Surge	6KV lightning protection, surge current: cold start <40A/230VAC
Protect	Output Short Circuit	Hiccup mode, output can be automatically restored after fault is cleared
	Output Over Current	Rated output current 130%-200%
	Output Overload	Rated output power 130%-200%
Environment	Operating Temperature	-40℃—+85℃
	Working Humidity	20-90% RH (No condensation)
	Storage Temperature	-40℃—+85℃
	Storage Humidity	10-95% Relative humidity
	Vibration	10-500Hz, 2G 10min/cycle, 60min each for X, Y and Z axis
	MTBF	＞100,000 hours
Specification	Dimensions (L x W x H)	110mm81.1mm45mm
Specification	Weight	0.8kg

Remark

1.Unless otherwise specified, all specifications and parameters are measured at 220Vac input, rated load, and 25℃ ambient temperature.

2.Voltage noise measurement method: Use 30cm double-stripe wire to connect 1 0.1uF and 1 10uF capacitor in parallel, and measure with a bandwidth of 20MHz.

3.Accuracy: includes setting error, linear adjustment rate and load regulation

4.Linear regulation rate measurement method: Under the condition of rated output power, adjust the input voltage within the full range and measure the output voltage change rate.

5.Load regulation rate measurement method: Measure the output voltage change rate when the output current is adjusted within the full range.

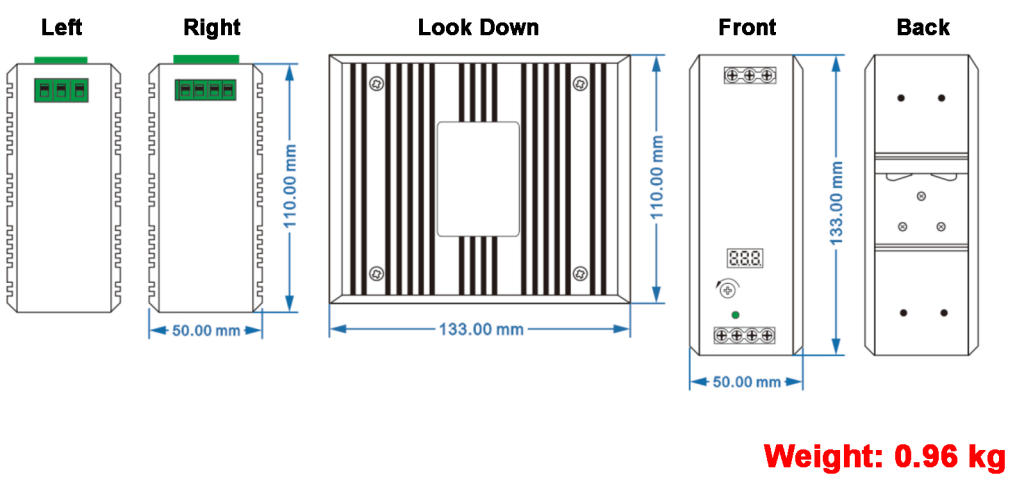

Product Size

Documentation and project verification — FCP-1215G

Before ordering or wiring, confirm the exact model and configuration, interface pinout, optical or network compatibility, power input and installation conditions. Optional configurations are not interchangeable.

Browse FCTEL technical documents · Request the current model-specific datasheet and wiring diagram
