Modular Multi-service Fiber Mux | 16E1 PDH Multiplexer

View : 1,075
Type : 1-16E1 Fiber Multiplexer
Description :

The device provides 4 ethernet port and 2 AUX port which is for transmitting other data such as RS232/RS485/RS422,dry contact closure, two optical interface for optional 1+1 auto protection switch (APS).


This device is modular structure point-to-point optical transmission equipment with LCD display, uses FPGA chips, and is easy to upgrade. The Mainboard provides 4 ethernet ports and 2 AUX ports which are for transmitting other data such as RS232/RS485/RS422, dry contact closure, and 2 optical interfaces for optional 1+1 auto protection switch (APS).


4 slots of tributary with variant plug-in modules which included 4xE1 channels module, 4/8/16 x FXO/FXS module and 2x Nx64K V.35 module.The maximum capacity will be up 4 plug-in modules which could be combinations with the above modules. The high flexibility, and performance, is the best solution for voice/data/video services in the existing market.


Modular Multi-service PDH Optical Multiplexer Modular Multi-service PDH Optical Multiplexer


Provides total 16 E1 transparent transmission capacity ;

With char 16*2 LCD display and SNMP agent inside.

Provide Console manage interface(RS232)

Provide one hotline channel for option;

Provide two SFP fiber interfaces, one as master, the other as slave, insuring uninterrupted service transmission.

Provide two fiber interface 1+1 protect (APS) function, and ALS (Automatic Laser Shutdown/Reduction) function

Provide 4 slots plug-in modules:

4×unFramed E1 module (75Ω)/(120Ω)

4×Framed E1 module (75Ω)/(120Ω), any timeslots can be set

4×FXO/FXS/EM2-4/Magnet telephone module

8×FXO/FXS/2 line audio/Magnet telephone module

16×FXO/FXS/2 line audio/Magnet telephone module

2×V.35 (2.048M Fixed speed) module

2×V.35 (N*64K N=1-32) module

4×RS232/422/485 or 8x dry contact closure module

4*FE to E1 bridge(wire speed 2.048M) module

Provide 4FE(wire speed 100M)Ethernet channel, support mutual negotiate, Ethernet bandwidth is set on base on multiple of 32K.;

Ethernet port supports full/half duplex, 10M/100M auto-adaptable;

Ethernet port supports VLAN function and has 4 division modes for user selection;

Ethernet package size support 1916 byte and 4 Ethernet port could be set separately;

Has complete alarm function and can monitor remote device status;

Supports E1 loop from remote so as to detect and manage device conveniently;

The combination AC220V and DC-48V for redundant


● Fiber

Multi-mode Fiber

50/125um, 62.5/125um,

Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber,attenuation (3dbm/km)

Wave Length: 820nm

Transmitting power: -12dBm (Min) ~-9dBm (Max)

Receiver sensitivity: -28dBm (Min)

Link budget: 16dBm

Single-mode Fiber

8/125um, 9/125um

Maximum transmission distance: 40Km

Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

Wave Length: 1310nm

Transmitting power: -9dBm (Min) ~-8dBm (Max)

Receiver sensitivity: -27dBm (Min)

Link budget: 18dBm


● E1 Interface

Interface Standard: comply with protocol G.703;

Interface Rate: n*64Kbps±50ppm;

Interface Code: HDB3;

E1 Impedance: 75Ω (unbalance), 120Ω (balance);

Jitter tolerance: In accord with protocol G.742 and G.823

Allowed Attenuation: 0~6dBm


● Ethernet interface(10/100M)

Interface rate: 10/100 Mbps, half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector: RJ45, support Auto-MDIX


● FXS Phone Interface

Ring voltage: 75V

Ring frequency: 25HZ

Two-line Impedance: 600 Ohm (pick up)

Return loss: 40 dB


● FXO Switch Interface

Ring detect voltage: 35V

Ring detection frequency: 17HZ-60HZ

Two-line Impedance: 600 Ohm (pick up)

Return loss: 40 dB


● EM 2/4 Line

AD: 0dB

DA: -3.5dB

Two/Four-line Impedance: 600 Ohm

Return loss: 20 dB


● Working Environment

Working temperature: -10°C ~ 50°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C

Storage Humidity: 5%~95 % (no condensation)



Model Number: FC2PM-E16

Functional Description

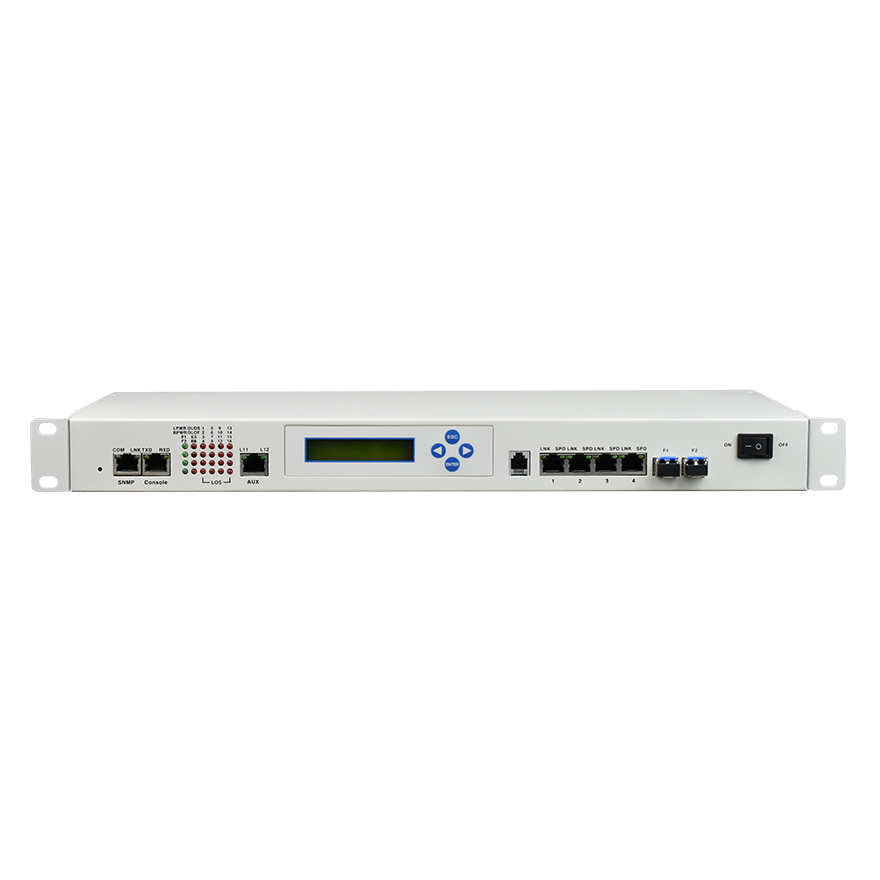

LCD PDH, 4port ethernet, With 4  slots, with ALS function, Console and SNMP,1+1 Back up Optic fiber

Port Description

1+1 optical port, 4 multi-function slots, 4 ethernet interfaces,1*RS232 Console interface,1*SNMP Ethernet interface, one engineering order-wire telephone interface


Power supply: AC180V ~ 260V;DC –48V;DC +24V

Power consumption: ≤10W


Product Size: 216X140X31mm(WXDXH)
