Profibus-DP to Fiber Optic Converter

View : 928
Type : Profibus to Fiber Converter
Description :

The device supports transmission of 1 channel Profibus-DP to fiber optic, with a communication speed ranging from 0 to 12 Mbps.

Overview

The device utilizes a large-scale FPGA design and incorporates proprietary technology. It supports transmission of 1 channel Profibus-DP to fiber optic, with a communication speed ranging from 0 to 12 Mbps. The device is rated IP40 for protection and features a reinforced casing made of corrugated aluminum, suitable for 35mm DIN rail installation. It accepts wide power supply inputs of both AC and DC (9~55V), offering advantages such as power redundancy and isolation protection. With a working temperature range of -40 to 75°C, it can meet the requirements of various industrial environments, providing a convenient fiber optic communication solution. Additionally, it can be optionally equipped with 1+1 fiber optic backup protection.

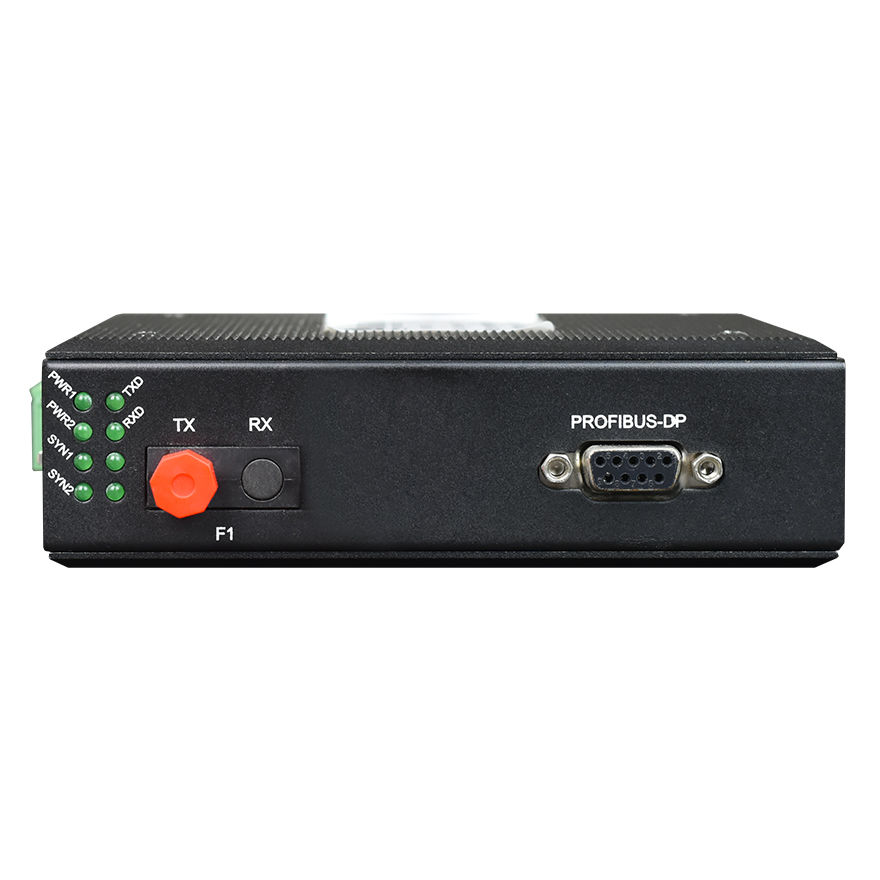

1 Port Profibus DP to Fiber Optic Converter | Din-rail Type 1 Port Profibus DP to Fiber Optic Converter | Din-rail Type

Features

The device is designed for paired use, with signal input on the local end and signal output on the remote end.

It provides 1 channel of Profibus DP fieldbus with adaptive communication baud rates ranging from 9600 to 12 Mbps.

It supports both multi-mode and single-mode fiber options. The multi-mode fiber can transmit up to 2 km, while the single-mode fiber can transmit between 20 and 120 km. ST/SC/FC interfaces are available for selection.

● Two optical interfaces are provided, with optional dual-port 1+1 protection (APS) functionality.

It features signal fault protection and a comprehensive display of electrical and fiber optic operation status.

The Profibus DP interface has lightning protection in accordance with IEC61000-4-5 (8/20μS) standards, with a differential mode of 6 kV and impedance of 2Ω, and a common mode of 6 kV and impedance of 2Ω.

It supports a wide range of power inputs from 9 to 48V AC/DC with internal isolation support. It has redundant dual power inputs with overload protection and reverse connection protection.

It complies with industrial electromagnetic compatibility requirements.

It possesses excellent lightning protection capabilities, including resistance to lightning strikes, high voltage induction, and surge protection.

It has a fanless design for efficient heat dissipation, reducing repair time.

The device has an IP40 enclosure protection rating, capable of withstanding harsh environments.

DIN 35mm rail or wall-mounted.

Working temperature: -40 ° C ~ +85 ° C.

The device has passed the 100% burn-in test.

Warranty period: 5 years.

Parameters

● Fiber

Fiber Port: 1 (Optional 1+1 fiber backup)

Fiber Type: Single/Dual fiber

Fiber Interface: FC/SC/ST/LC (SFP)

Wavelength: 850nm/1310nm (multi-mode), 1310nm/1550nm (single-mode)

Transmission Distance without Relay: 20-120 km

Typical Transmit Power:

Single-mode 1310/1550nm: ≥-9dBm

Multi-mode 850nm: -18dBm

Multi-mode 1310nm: -25dBm

Receiver Sensitivity Range: -28dBm to -40dBm



● Profibus DP Interface

Standard: Support Profibus DP standard

Communication Speed: 9.6kBit/s, 19.2 kBit/s, 45.45kBit/s, 93.75k kBit/s, 187.5kBit/s, 500kBit/s, 1.5MBit/s, 6MBit/s, and 12MBit/s

Physical Interface: 9-pin D-Sub connector, pin definition complies with Profibus DP protocol

Rate setting: automatically detects rates from 9600 to 12 Mbps

Signal delay (electrical port): ≤11Bit

Terminal resistance: External termination resistance is required as per requirement, the device itself does not have built-in termination resistance.



● Working Environment

Working temperature: -40℃—+85℃

Storage temperature:  -40℃—+85℃

Working humidity: 0%—95% (no condensation)

MTBF: >100,000 hours

Specifications

Product Model

FCP-P1G

Function Description

Transmit 1 port Profibus DP interface over fiber optic

Port Description

1 fiber optic port; 1 Profibus DP port

Power Supply

Redundant dual power input: AC & DC9-48V power consumption <5W overload protection: support; reverse connection protection: support; redundancy protection: support

Access terminal: 4-core 5.08mm pitch plug-in terminal

Housing: IP40 protection grade, aluminum alloy

Installation method: rail mounting, wall mounting

Product Size

(Length × width × height)  133*120*40mm

Weight

0.45Kg/pc

Application

application of 1 Port Profibus DP to Fiber Optic Converter
