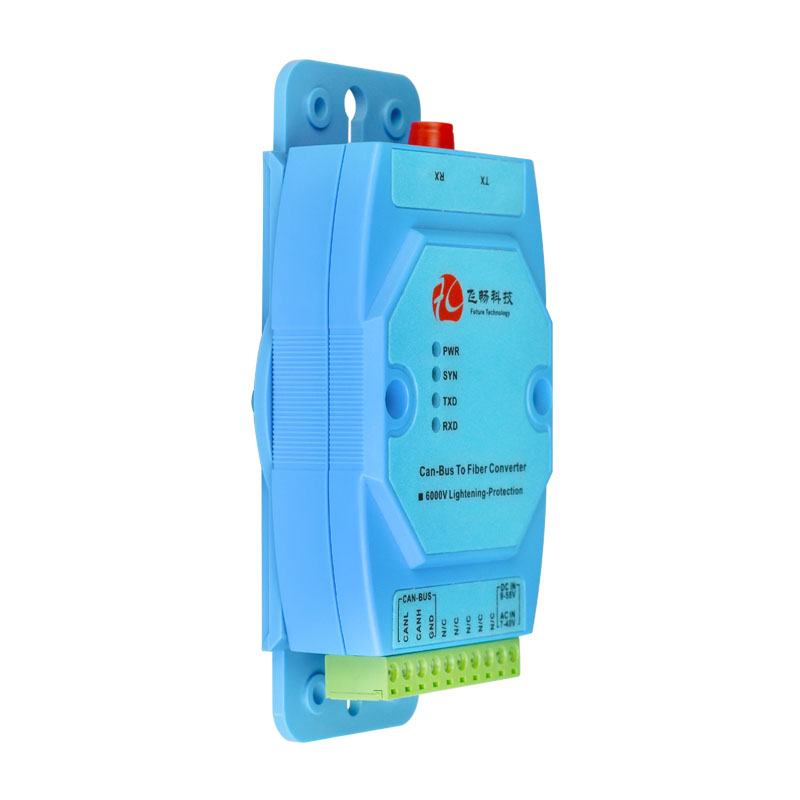

2 Port CAN Bus to Fiber Optic Converter
2 Port CAN Bus to Fiber Optic Converter
2 Port CAN Bus to Fiber Optic Converter
2 Port CAN Bus to Fiber Optic Converter
2 Port CAN Bus to Fiber Optic Converter

2 Port CAN Bus to Fiber Optic Converter

View : 4,727
Inquire Now
Model FCP-C1/2
Description :

The CAN Bus to fiber optic converter could convert the CAN bus electronic signal into an optical signal, effectively extending the communication distance of the CAN bus.

2 Port CAN Bus to Fiber Optic Converter
2 Port CAN Bus to Fiber Optic Converter
2 Port CAN Bus to Fiber Optic Converter
2 Port CAN Bus to Fiber Optic Converter
2 Port CAN Bus to Fiber Optic Converter

Overview

This CAN Bus to fiber optic converter could convert the CAN bus electronic signal into an optical signal, effectively extending the communication distance of the CAN bus.

By utilizing optical communication, it solves the problems of electromagnetic interference, ground loop interference, and lightning damage, significantly improving the reliability, security, and confidentiality of data communication.

It can be widely used in various industrial, process, and traffic control applications, especially suitable for banks, power companies, and departments/systems with special requirements for electromagnetic interference environments.

Specifications

Model

FCP-C1/2

Function

Simultaneous transmission of 1-2 CAN bus data over fiber

Port

1 fiber interface; 1~2 CAN bus interfaces

Power Supply

AC 7~50V  DC9~55V

Dimension

(L × W × H) 72 * 125 * 26 mm DIN Rail Type

Weight

0.25Kg / PCS

Solution

Features

● 2 CAN bus interfaces and 1 optical port.

● The CAN data communication is fully transparent, and the baud rate is self-adaptive without any configuration required.

● The CAN interface can support up to 128 nodes, and the maximum speed is 0-1Mbps, complying with international CAN 1.0 and CAN 2.0 standards.

● Wide range of DC 9-55V or AC 7-50V power supplies, with an automatic polarity detection function that eliminates the need to distinguish between positive and negative poles during installation.

● DIN 35mm rail mounting or wall mounting.

● The CAN interface is equipped with lightning protection, which meets the GB/T17626.5 (IEC61000-4-5) standard, with a short-circuit current wave of 8/20μs and an open-circuit peak output voltage of 6KV.

Parameters

● Fiber

Optical port: 1

Optical Fiber: Single/Dual fiber

Fiber interface: FC/SC/ST/LC(SFP)

Wavelength: 850nm/1310nm Multi-mode; 1310nm/1550nm Single-mode

Transmission Distance without relay: 20~120Km

Typical Transmission Power:

Single-mode 1310/1550nm: ≥-9dBm

Multi-mode 850nm: -18dBm

Multi-mode 1310nm: -25dBm

Receiving Sensitivity Range: -28dBm ~ -40dBm



● CAN Bus Interface

Speed: 0-500Kbps

Interface Protocol: Compliant with international CAN 1.0 and CAN 2.0 standards

Connector: Phoenix terminal



● Power

Power supply: AC 7~50V  DC9~55V

Power consumption: ≤2W



● Working Environment

Operating temperature: -40℃—+85℃

Storage temperature: -40℃—+85℃

Working humidity: 0%—95% (No condensation）

MTBF: ＞100,000 hour
