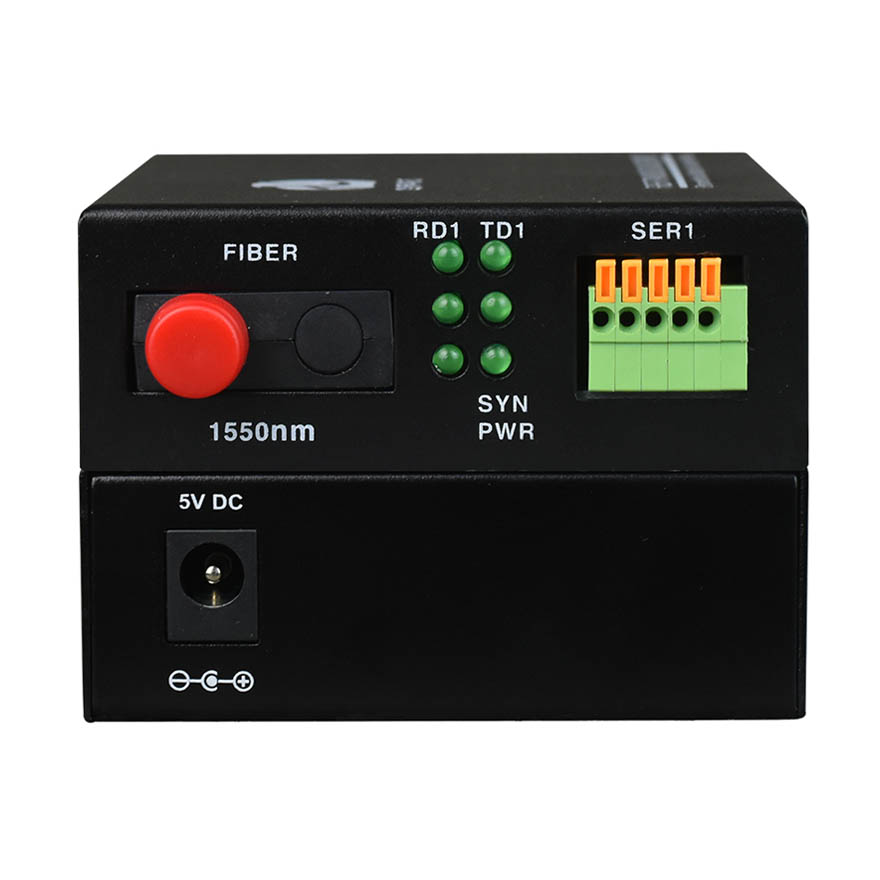

RS485+RS232 to Fiber Converter (Mini Desktop Type)

View : 808
Type : Serial to Fiber Converter
Description :

This device provides 2 channels of serial fiber transmission, the first is the RS485, and the second is the RSS32.

Overview

This device provides 2 channels of serial fiber transmission, the first is the RS485, and the second is the RSS32. It overcomes the contradiction between the distance and communication rate of traditional serial interfaces and also solves problems such as electromagnetic interference, ground loop interference, and lightning damage, greatly improving the reliability, security, and confidentiality of data communication. It can be widely used in various industrial control, process control, and traffic control applications, especially suitable for banks, power systems, and departments and systems with special requirements for electromagnetic interference environments.


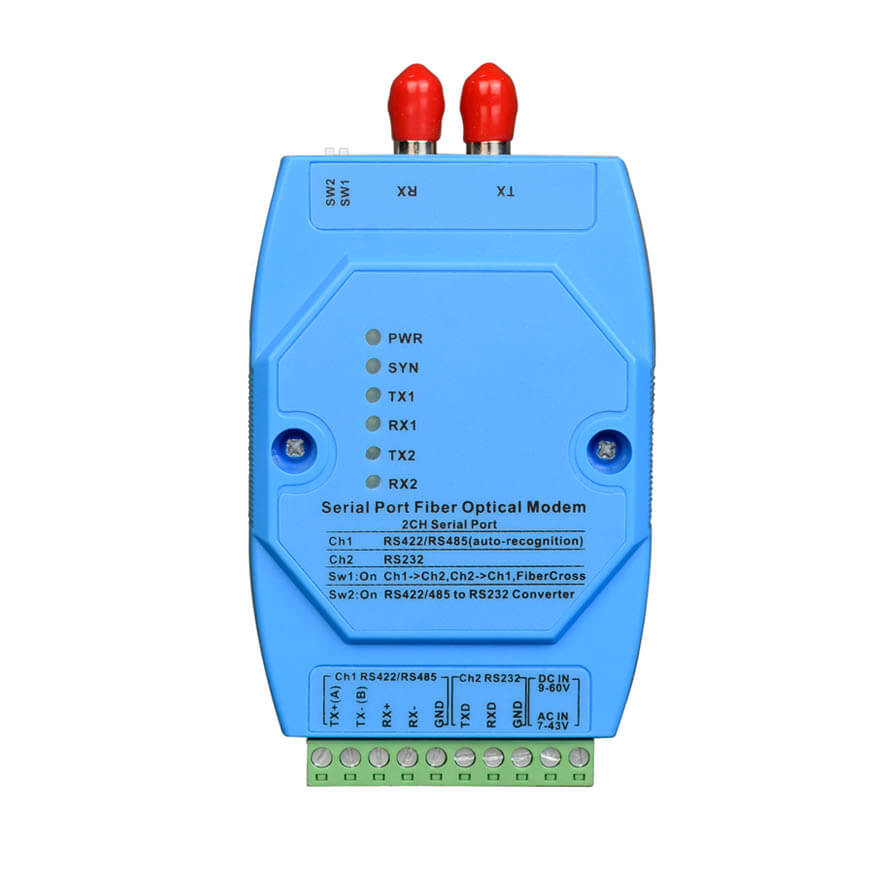

2 ports serial to fiber optic converter

Features

It provides up to 2 serial ports; serial port 1 supports RS485, and serial port 2 supports RS232 (3-wire TXD, RXD, GND).

The RS485 channel can transmit asynchronous serial data at a self-adaptive baud rate from 0-256kbps, while the RS232 channel can transmit asynchronous serial data at a self-adaptive baud rate from 0-115.2kbps.

The serial ports are protected against lightning strikes, meeting the IEC61000-4-5 (10/700μS) standard: differential mode of 6KV with an impedance of 40Ω, and common mode of 6KV with an impedance of 40Ω.

The power supply supports super-strong lightning protection functions, such as lightning strike protection, high-voltage induction resistance, and surge protection. It has a fanless and efficient heat dissipation design, which reduces repair time.

When using a Dual DC power supply:

  ♦ It can be powered by DC9-55V or AC7-50V wide-range power supply, the power supply has the function of automatic polarity detection, and there is no need to distinguish between positive and negative poles during installation;

  ♦ It supports internal isolation, redundant dual power input, and reverse connection protection.

When using AC power supply:

  ♦ It supports AC~85-265V or DC110-300V wide-range input.

Parameters

● Fiber

Optical port: 1

Optical fiber: single/dual fiber

Connector: FC/SC/ST (optional)

Wavelength: 850nm/1310nm multi-mode; 1310nm/1550nm single-mode

Transmission distance without relay: 20~120Km

Typical transmit power:

    Single-mode 1310/1550nm: ≥-9dBm

    Multi-mode 850nm: -18dBm

    Multi-mode 1310nm: -25dBm

Receiving sensitivity range: -28dBm~- 40dBm



● Serial Port

Standard

    EIA/TIA-232 RS-232 (ITU-T V.28)

    EIA/TIA-485 RS-485 (ISO/IEC8284)

Serial interface:

    RS-485 2 wires: A (corresponding to TX+) B (corresponding to TX-) GND

    RS-232: RXD TXD GND



● Working Environment

Working temperature: -40℃—+85℃

Storage temperature: -40℃—+85℃

Working humidity: 0%—95% (non-condensing)

MTBF: >100,000 hours

Specifications

Product Model

FCP-D2

Function Description

Simultaneously transmit 1*RS485 serial port and 1*RS232 serial port on the optical fiber

Port Description

1*optical fiber interface; 1*RS485 serial port, 1*RS232 serial port

Power Supply

DC power supply:

Redundant dual power input DC9-70V or AC7-50V, power consumption <5W

Overload protection: support; reverse polarity protection: support; redundancy protection: support

Access terminal: 4-core 5.08mm pitch plug-in terminal

AC built-in power supply:

AC~85-265V AC, or DC110-300V DC wide range input, power consumption <5W

Overload protection: support;

Access interface: Cross Style AC sockets

Product Size

(110mm(L) x 86mm(W) x 36.5mm(H)

Installation method: rail mount, wall-mounted

Weight

0.35kg/pc

Application

Case: conventional application, as a 2-way serial fiber modem, the first channel is RS485, the second channel is RS232

application of serial data (1 port rs485 and 1 port rs232) to optical fiber converter
