2 Port RS232/422/485 Serial to Ethernet Converter

View : 1,200
Type : Serial To Ethernet Converter
Description :

The RS232/422/485 Serial to Ethernet Converter supports 1-2 channels of RS-232/RS-422/RS-485 to 1 channel of 100M Ethernet comb port (providing 1 channel of 100m electric port or 1 channel of 100m optical port).

Overview

This serial to ethernet converter is an industrial din rail type serial port server with IP40 protection grade.

It is a serial port networking server that enables the serial port devices to immediately have networking capability.

It can centrally manage scattered serial devices and hosts through the network. The product supports 2 channels of RS-232/RS-422/RS-485 to 1 channel of 100M Ethernet comb port (providing 1 channel of 100M electric port or 1 channel of 100M optical port). It can be installed in 35mm rail and wall-mounted modes, which can meet the needs of different application sites.



The serial port server supports a variety of network protocols, such as TCP, UDP, ARP, ICMP, HTTP, DNS, DHCP, and SNMP protocols. It has perfect management functions and supports access control, rapid configuration, online upgrade, etc. Each serial port supports 4 TCP or UDP session connections, and supports multiple working modes such as TCP server, TCP client, UDP server, UDP client, etc. It supports web access mode. In addition, the management configuration tool based on the Windows platform can guide users to manage and configure devices, and realize the immediate networking of serial port devices by simple settings. The network management system has a friendly interface design, simple and convenient operation, and can bring you a good user experience.



The hardware is designed with no fan, low power consumption, wide temperature, and wide voltage. It has passed strict testing in line with industry standards and can adapt to the industrial field environment with severe requirements for EMC. It can be widely used in PLC control and management, building automation, medical care automation system, measuring instruments, and environmental power monitoring system.



This RS232/422/485 serial to ethernet converter can be used in many embedded network control application products:

-Industrial automation production

-Security access control: network access control, alarm equipment, infrared detection alarm, remote card reader

-Smart home equipment: smart home gateway, smart socket, smart switch

-Network IO controller: industrial remote IO input, remote relay control

-Building intelligence and energy monitoring

-Medical monitoring equipment


SERIAL SERVER 4 PORT

Features

Arm cortex – M4 processor with main frequency of 192mhz is adopted;

Support 1*100M Ethernet comb port (provide a 100M electric port or a 100M SFP optical port), and support SFP optical module DDM management;

Ethernet supports 10/100Base-T (x) adaptive Ethernet interface; Support auto nego full&half duplex and MDI/mdix;

The serial port supports 300bps-921600bps line speed non-blocking communication, supports baud rate automatic scanning and matching, and supports customer-defined baud rate;

The serial data interface complies with the relevant standards of RS-232 / RS-485 / RS-485. There are 3 interfaces, and different bus modes can be set by dialing the code;

Support TCP server, TCP client, UDP server, UDP client, and other working modes;

Support serial port status and serial port parameter monitoring, and the communication status is clear at a glance;

Support gateway and cross-route communication; Support virtual serial port drive access mode and automatic connection recovery function after network interruption;

Flexible serial port data framing setting to meet various subcontracting needs of users;

Support standard TCP/IP socket application access, and TCP supports multiple connections to meet the requirements that less than 4 users can monitor or manage serial port devices at the same time;

Support single-machine or multi-machine communication under UDP mode to meet the requirements of multiple users monitoring or managing serial port equipment at the same time;

Support Windows configuration tool, serial port, Web and other configuration forms, and support SNMP network management;

Support local and remote system firmware upgrades;

Support a wide range of 9-55v AC and DC power input;

Support internal isolation and redundant dual power input;

The power supply supports overload protection and anti-reverse connection protection;

Meet the requirements of industrial level IV electromagnetic compatibility;

Super lightning protection function: lightning protection, anti-induced high voltage, anti-surge, etc;

Efficient heat dissipation without a fan to reduce repair time;

Anodized aluminum alloy shell, IP40 protection grade, can withstand the test of harsh environments;

Din rail or wall-mounted installation;

Wide temperature type: working temperature – 40 ℃ ~ + 85 ℃;

All models have passed the 100% burn-in test.

Parameters

● 10/100M Ethernet Interface

Protocol: IEEE 802.3ab, IEEE 802.3z compliant

Rate: 10/100M adaptive, full/half duplex adaptive

MAC Address Table Capacity: 4096 MAC addresses can be learned

Physical interface: RJ45 seat supports auto mdix



● Serial Port

 standard

EIA/TIA-232 RS-232 (ITU-T V.28)

EIA/TIA-422 RS-422 (ITU-T V.11)

EIA/TIA-485 RS-485 (ISO/IEC8284)

Serial interface:

RS-422: TxD+ TxD- RxD+ RxD-

RS-485 4 wires: TxD+ TxD- RxD+ RxD-

RS-485 2 wires: A (corresponding to TX +) B (corresponding to TX -) ground

RS-232: RXD TXD Signal Ground



● Environmental Indicators

Operating temperature: – 40 ℃ – + 85 ℃

Storage temperature: – 40 ℃ – + 85 ℃

Working humidity: 0% – 95% (no condensation)

MTBF: > 100000 hours

Specifications

Product Number

FCT-201

Function Description

2 * RS232/422/485 serial ports are transmitted on Ethernet, industrial rail type

Port Description

2 * RS232/422/485 serial interfaces; 1*100M Ethernet port, 1*100M Ethernet optical port

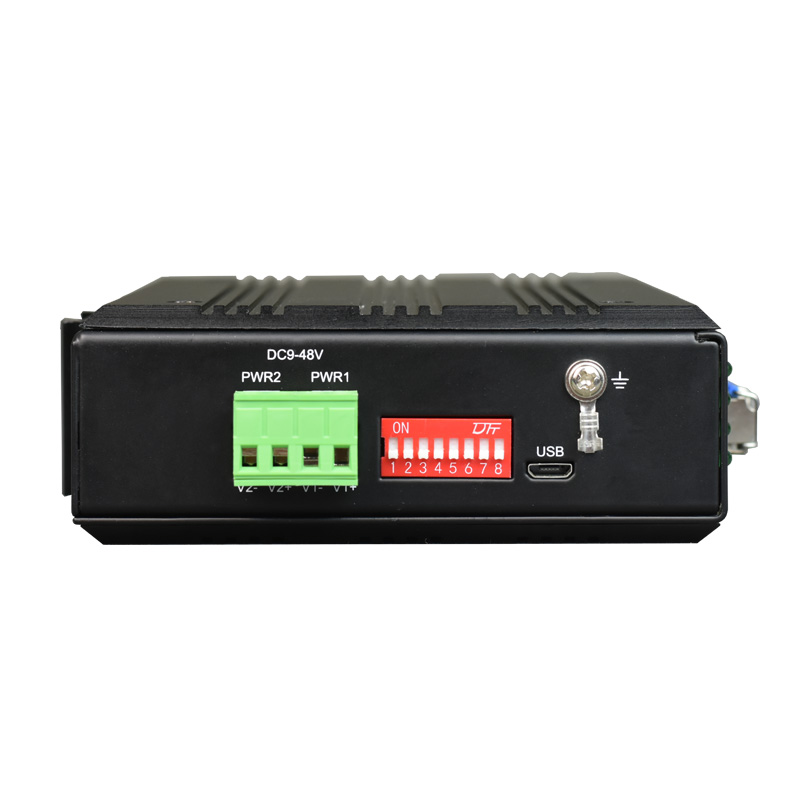

Power Supply

Redundant dual power input dc9-48v, power consumption < 5W

Overload protection: support; Reverse connection protection: support; Redundant protection: support

Access terminal: 4-core 5.08mm spacing plug-in terminal

Product Size

Shell: IP40 protection grade, aluminum alloy material

Dimensions: 133mm (L) x 120mm (W) x 40.0mm (H)

Installation mode: rail installation, wall-mounted installation

Weight

0.65kg/piece



Application of serial to ethernet converter



application of industrial serial to ethernet converter

application of industrial serial to ethernet converter
