USB 3.0/2.0/1.1 over Fiber Extender & Hub

View : 19
Share :

Type : usb over fiber extender

Description :

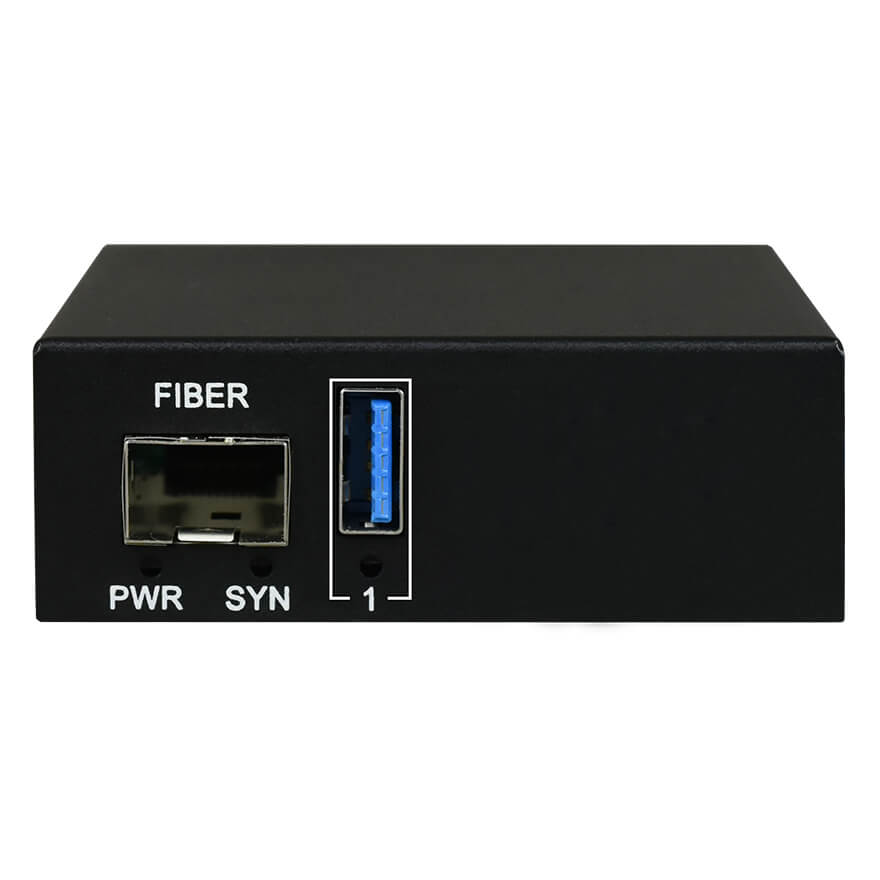

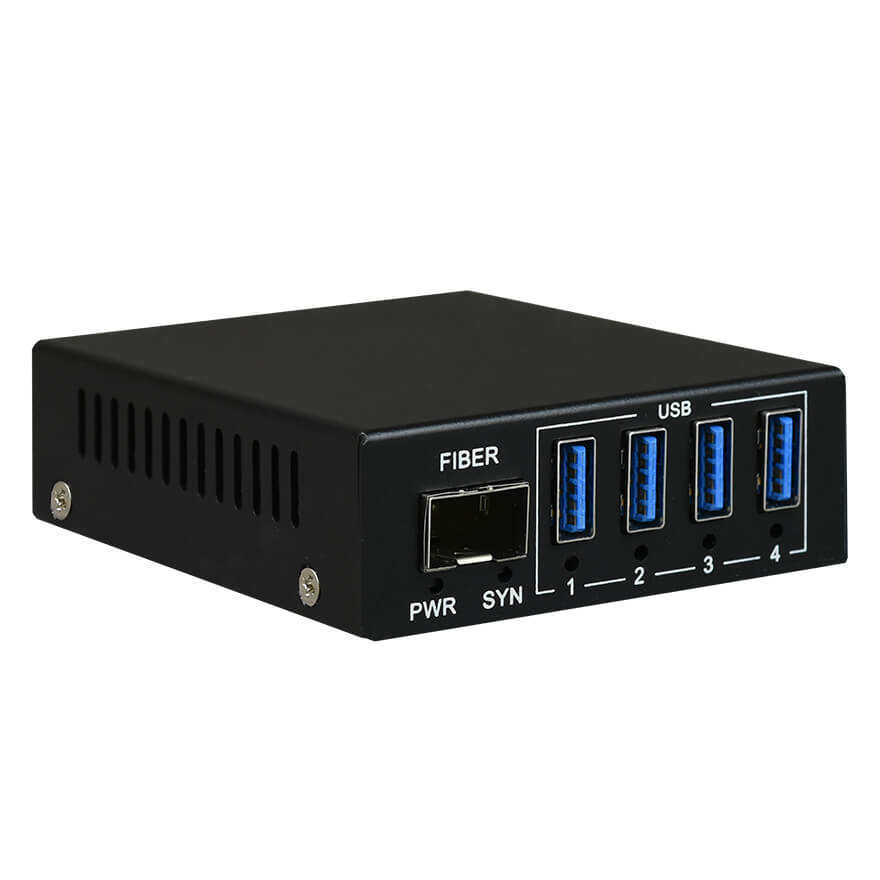

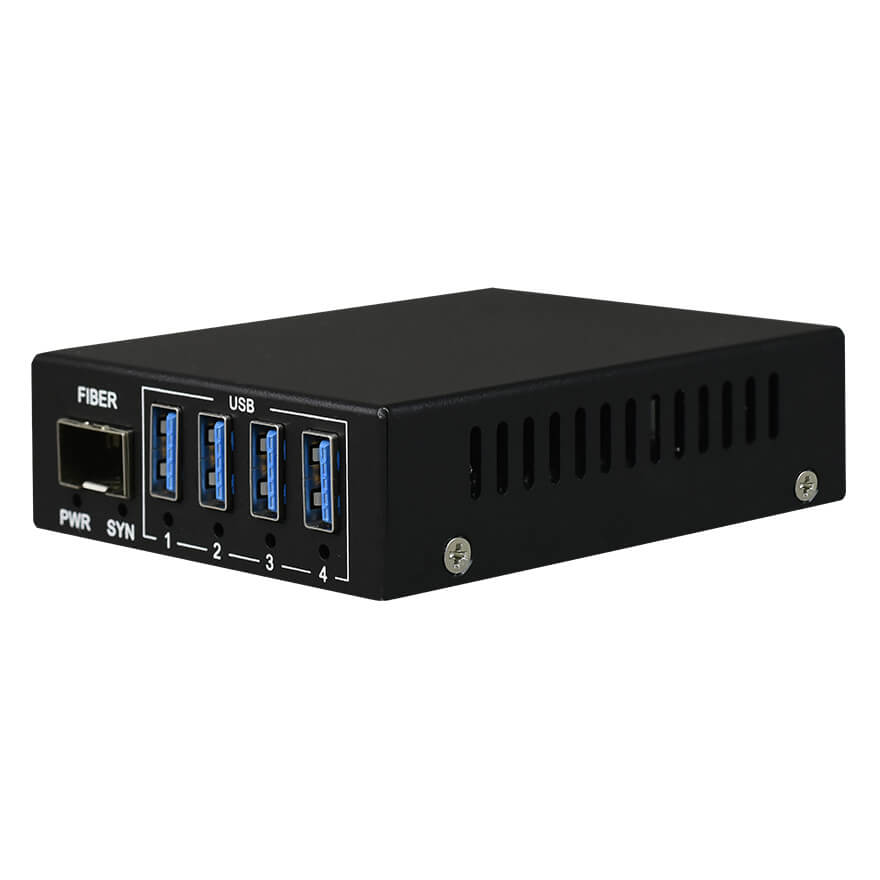

The usb 3.0/2.0/1.1 over fiber optic extender consists of a transmitter and a receiver, which extend the USB 3.0 interface of the host computer to a remote location and expand it to 4 USB ports.

Specifications

Model	FCP-U3U2T/FCP-U3U2R
Function	Transmit 1 * USB 3.0/2.0/1.1 over fiber, and expand it to 4 USB ports at the remote end
Port	1LC/SFP; 1/4USB3.0/USB2.0

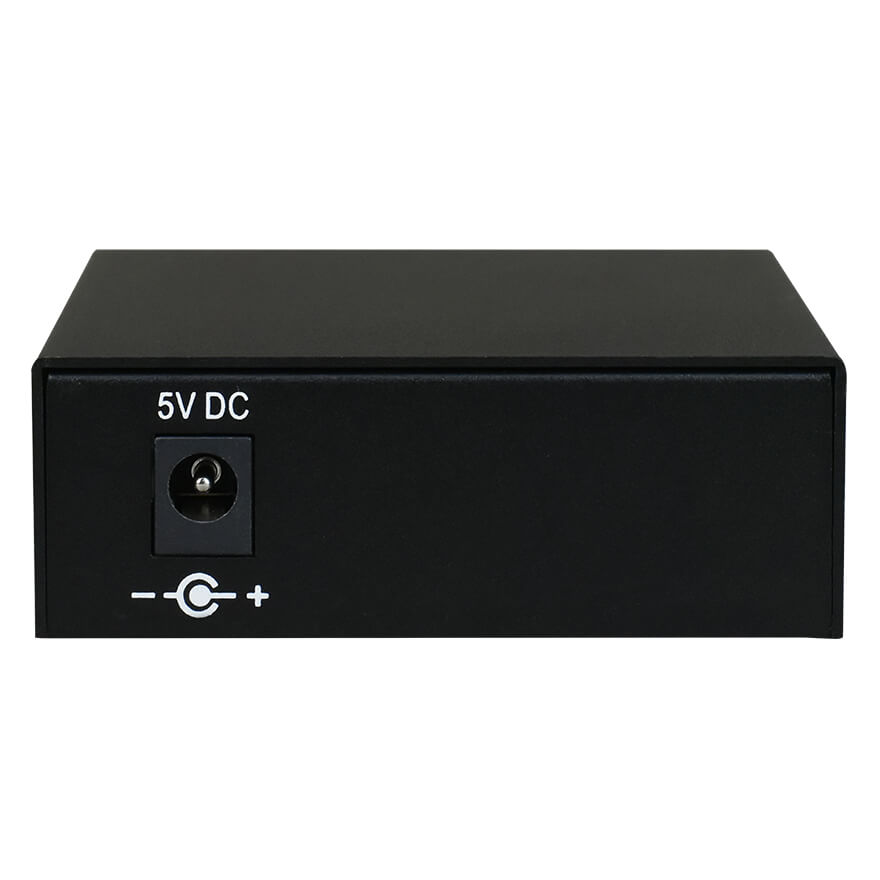

Power	AC220V / DC-48V / DC+24V (optional power)
Size	(L×W×H) 937026mm desktop type
Weight	0.75Kg/piece

● Fiber

Fiber port: 1

Optic Fiber: Single/Dual fiber

Connector: LC (SFP)

Wavelength: 850nm/1310 for multi-mode; 1310nm/1550nm for single-mode

Transmission distance: 0~200m

Typical transmission power:

Single-mode 1310/1550nm: ≥-9dBm

Multi-mode 850nm: -18dBm

Multi-mode 1310nm: -25dBm

Receive Sensitivity Range: -28dBm~- 40dBm

● USB Port

Standard: USB3.0/USB2.0/USB1.1

Rate: 5Gbps/s

USB3.0 input: 1*USB3.0 A-type receptacle

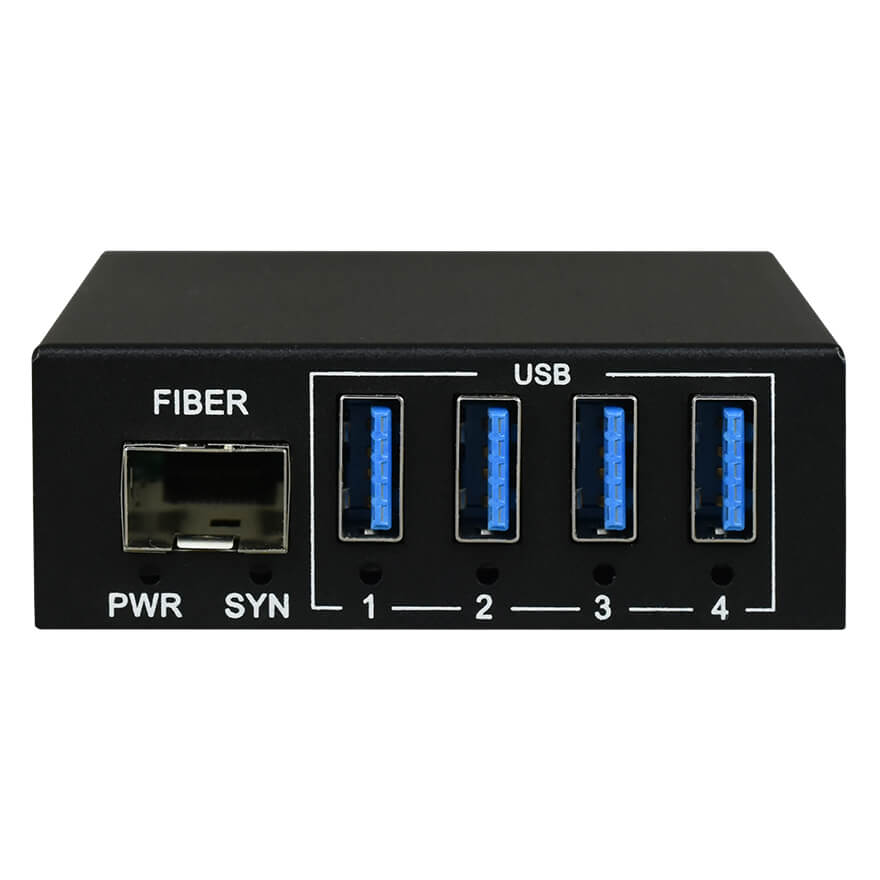

USB3.0 output: 4*USB3.0 A-type receptacle

Total Current: Max 2000mA

● Working Environment

Operating temperature: -10℃—+60℃

Storage temperature: -40℃—+85℃

Storage humidity: 0%—95%（non-condensing）

MTBF: ＞100,000 hours

Application

Features and Benefits

●USB 3.0 & 2.0 Compatible

Works with USB devices like cameras, printers, flash drives, scanners, and touch screens.

●Stable Connection

Automatically recovers after power or fiber reconnection — no manual reset needed.

●High-Speed Data Transfer

Up to 5Gbps with zero delay. Also supports USB 2.0 and USB 1.1 speeds.

●Long-Distance Transmission

Reliable data transmission up to 200 meters over fiber optic cable.

●4 USB Ports on Remote End

Supports up to 2000mA total current and can connect to a USB HUB for expansion.

●Real-Time USB Communication

Supports real-time USB 3.0/2.0 data transfer with stable performance.

●Low Interference Design

Minimizes radio and electromagnetic interference — ideal for sensitive environments.

●Plug and Play

No drivers required. Compatible with all operating systems.

●Flexible Power Options

Supports AC 220V, DC 48V, or DC 24V power input.

Choosing Guide

Parameter	FCP-U3U2WT/FCP-U3U2WR	FCP-U3U2T/FCP-U3U2R	FCP-U3T/FCP-U3R	FCP-UT/FCP-UR	FCVH-U8b
USB Protocol Support	USB3.0/USB2.0/USB1.1	USB3.0/USB2.0/USB1.1	USB3.0	USB2.0	USB3.0
Max Transmission Speed	200m	200m	200m	10Km	300m
Remote USB Ports	4*USB3.0/USB2.0 compatible interface	1/4*USB3.0/USB2.0	1/4*USB3.0	4 USB2.0 port	8 USB3.0 port
Power Supply	C220V / DC-48V / DC+24V (optional power)	AC220V / DC-48V / DC+24V	AC220V / DC-48V / DC+24V	AC220V or DC-48V	AC220V/DC-48V/DC+24V
Working Temperature	-10℃—+60℃	-10℃—+60℃	-10℃—+60℃	-10 ℃ – +60 ℃	-40℃—+85℃
