Modular Multi-service TDM over Ethernet (IP) Converter

View : 1,211
Type : E1/v.35/v.24 over IP
Description :

The TDM over IP (Ethernet) converter is mainly used to provide 4 service card slots on the IP network. It can be inserted into the E1 module (4 E1 interfaces).

Overview

The TDM over IP device is mainly used for transmitting E1 signals over IP network. It allows operators and enterprises to seamlessly and reliably connect TDM equipment and user Ethernet over a standardized, low-cost wireless or wired Ethernet/IP infrastructure, without any impact on the quality of service.



TDM over IP is transparent to TDM signals, ensuring that any device with a physical E1 interface is seamlessly connected, such as PBX, mobile base stations, SS7 signaling devices, and voice mail systems. It can be used in IP-based communication systems such as LAN, WAN, MAN, and wireless networks.



This device has 2 10/100/1000M Ethernet ports, 1 100/1000M Ethernet optical port, and a console management interface. It can also accommodate E1 modules, voice modules, V.35 modules, and serial interface modules, with a maximum capacity of four fully-installed slots.

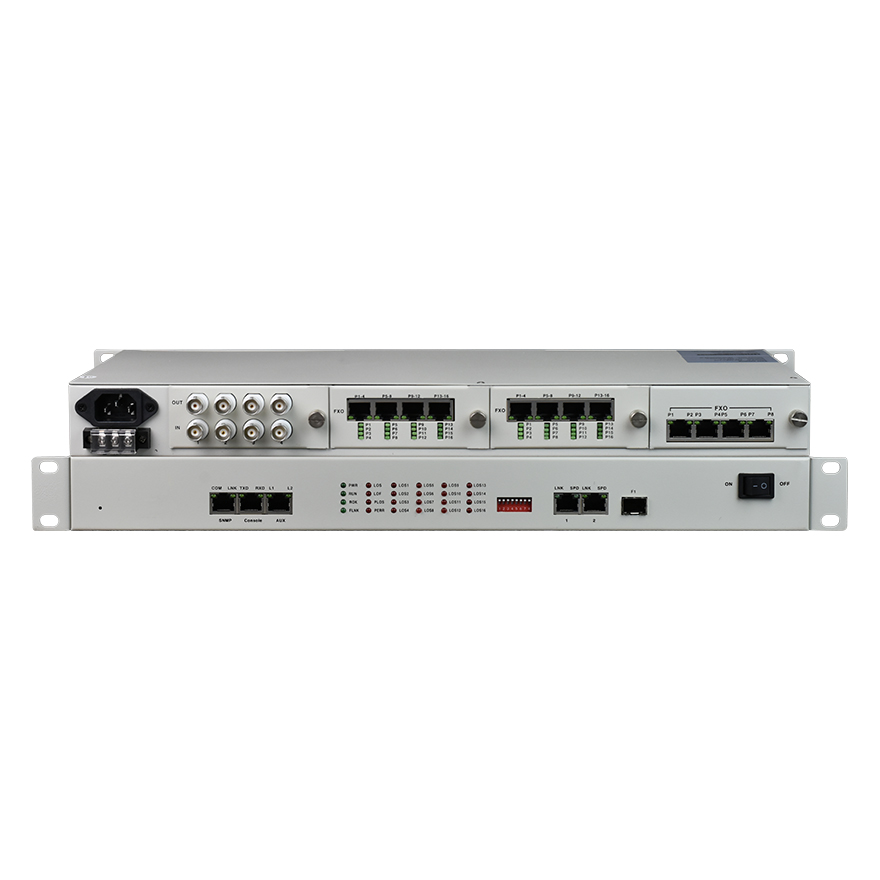

Modular Type TDM over IP Converter Modular Type TDM over IP Converter

Features

It provides 4 slot service card, 2*100/1000M Ethernet ports, and 1*100/1000M Ethernet SFP port;

E1 port supports 75Ω or 120Ω;

It is capable of transparently transmitting both framed and unframed E1 (N*64K) signals over IP network, which is in compliance with the relevant G.703 standards;

The E1 clock recovery uses a unique clock algorithm technology, which ensures stable frequency restoration and low jitter and drift. Furthermore, the recovered clock’s jitter and drift conform to the G.823/G.824 and G.8261 recommendations;

It offers high transmission efficiency and low transmission latency. Ethernet packet length can be configured, and jumbo frames are supported. Additionally, the device supports VLAN settings;

It supports E1 link loss indication function;

It supports local and remote E1 loopback functions, as well as local E1 enablement settings;

It offers high transmission efficiency, with up to 90% bandwidth utilization efficiency;

Support WEB network management for online upgrade of local and remote device software and hardware;

Provide 4 slots plug-in modules:
 4×unframed E1 module (75Ω) / (120Ω)
 4×Framed E1 module (75Ω) / (120Ω), any timeslots can be set
 4×FXO/FXS/EM2-4/Magnet telephone module
 8×FXO/FXS/2 line audio/Magnet telephone module
 16×FXO/FXS/2 line audio/Magnet telephone module
 2×V.35/V.24 (2.048M Fixed speed) module
 2×V.35 (N*64K N=1-32) module
 4×RS232/422/485 module

Parameters

● 10/100/1000M Ethernet Interface

Protocol: IEEE 802.3az, IEEE 802.1Q (VLAN)

Rate: 10/100/1000M adaptive, full/half duplex fully adaptive

MAC Address Table Capacity: 4096 MAC addresses can be learned

Physical interface: RJ45 seat supports auto mdix



● E1 Interface

Device Interface: Compliant with G.703 recommendations

Speed: 2048kb/s ± 50ppm

Line Code: HDB3

Impedance: unbalanced 75 Ω / balanced 120 Ω

(unbalanced coaxial interface adapter can be adapted to 75-2 / 3 coaxial cable)

Jitter Performance: Compliant with G.742 and G.823 recommendations

Input Port Attenuation Allowed: 0~6dbm



V.35 Interface

Interface rate: 2048Kbps

Interface Standard: Compatible with V.35 Standard

Connector: DB25

Connect Mode: DCE

Clock Type: G.703 restored clock, Internal clock



FXS Phone Port

Ring voltage: 75V

Ring frequency: 25HZ

2-wire Impedance: 600 Ohm (off-hook)

Return loss: 40 dB



FXO Trunk Port

Ring detection voltage: 35V

Ring detection frequency: 17HZ-60HZ

2-wire Impedance: 600 Ohm (off-hook)

Return loss: 40 dB



Environmental Indicators

Operating temperature: – 10 ℃ – + 60 ℃

Storage temperature: – 40 ℃ – + 85 ℃

Working humidity: 0% – 95% (no condensation)

MTBF: > 100000 hours

Specifications

Model

FCT-M

Function Description

Multi-service TDM over IP

Port Description

1 SFP optic port, 2 Ethernet ports, 4 slots

Power Supply

AC220V or DC-48V (Power optional), Support power backup

Product Size

485X138X44.5mm(WXDXH)

Weight

2.6Kg / pc

Application

application of Modular Type TDM over IP Converter
