How to Choose an Industrial Switch: Define the Business First, Then Verify Reliability

Views: 139 +1Original by FCTELEAuthor: FCTELE Technical Team
AT A GLANCE

What should a practical industrial switch requirement begin with?

Begin with who communicates with whom, through which interfaces and shared outputs, under what installation and service conditions. Count optical slots, populated ports and future needs separately. Assign each management or redundancy feature a purpose and an acceptance check. Then compare the complete ordered configuration and maintenance plan; broad industrial or high-performance claims cannot fill missing requirements or establish supported protocol behavior.

Three mechanisms and their verification boundariesFollow the signal, then verify the actual service

01Map the actual connections

Map the actual connectionsPort demand follows the terminal and uplink topology rather than a category label.TerminalTerminalTerminalSwitchUplinkCount access, uplink and protection ports

Port demand follows the terminal and uplink topology rather than a category label.

02Calculate the shared output

Calculate the shared outputSeveral access links can converge on a smaller permitted departure rate.123SwitchServerShared egressSum the flows directed to the same output

Several access links can converge on a smaller permitted departure rate.

03Assign a maintenance purpose

Assign a maintenance purposeConfiguration recovery and supported spares need a usable delivery record.RunningSaveStartConfiguration persistence is a separate stepVerify an approved restart and serviceAn open session only shows present state

Configuration recovery and supported spares need a usable delivery record.

Swipe to compare the three diagrams →

Conceptual teaching illustrations—not measured waveforms, installation wiring or the internal architecture of a specific product.
  • Map the actual connections

    Count active access, protection and planned expansion separately.

  • Calculate the shared output

    List simultaneous peak directions and relevant service tolerance.

  • Assign a maintenance purpose

    Link each selected function to an operator and acceptance item.

Selection and verification checklistExpand the checks and related guides
Checks for this service and its actual operating conditions
CheckWhat to confirmHow to verify
Map the actual connectionsPort demand follows the terminal and uplink topology rather than a category label.Count active access, protection and planned expansion separately.
Calculate the shared outputSeveral access links can converge on a smaller permitted departure rate.List simultaneous peak directions and relevant service tolerance.
Assign a maintenance purposeConfiguration recovery and supported spares need a usable delivery record.Link each selected function to an operator and acceptance item.

Industrial switches should be selected according to business connections, network management, site environment and maintenance needs. First define the devices and traffic, then check ports and uplinks, and afterward confirm temperature, power, interference and recovery evidence. More ports, a higher price or a thicker enclosure cannot by themselves prove suitability for a project.

Start with a business checklist

List PLCs, HMIs, cameras, computers and other terminals, and record interface rates, communication peers and concurrent quantities. The continuous traffic of video, the response requirements of control messages and the burst traffic generated by backups are different, so you cannot just count how many network cables there are.

You also need to draw which uplinks the business passes through. When multiple high-speed access ports are concentrated onto a slower uplink, capacity and queues may become a bottleneck. A gigabit electrical port does not mean every service can obtain gigabit throughput under all concurrent conditions; you should verify with the target traffic.

Production line terminals connect to an industrial switch through electrical ports and optical ports; interfaces must correspond to the business

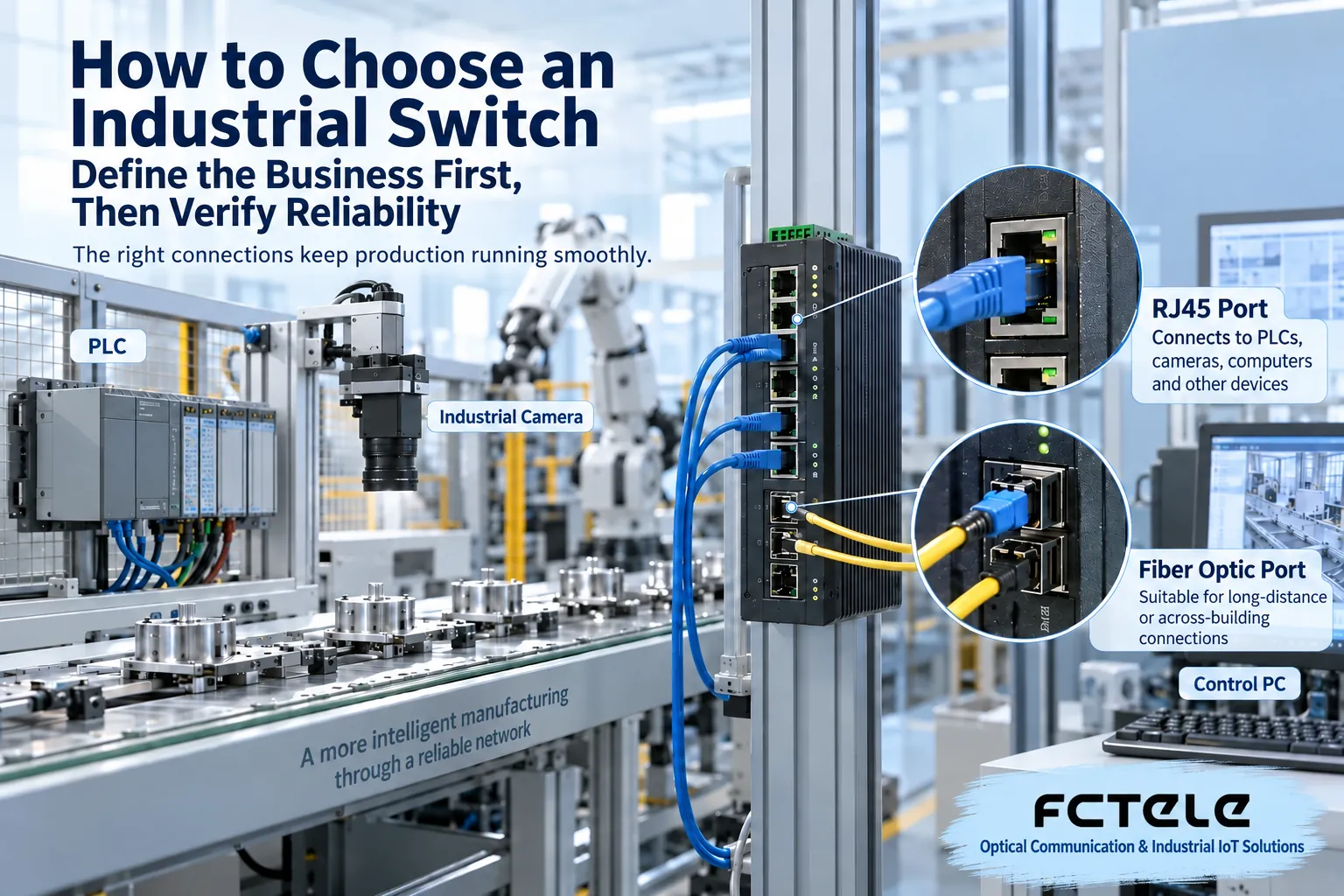

Figure 1: Production line terminals connect to an industrial switch through electrical ports and optical ports; interfaces must correspond to the business. General illustration, not a product photo, measured test or construction wiring diagram.

Leave port count for real expansion

Copper ports, optical ports and pluggable slots should be counted separately. Shared combo ports may not be usable at the same time, and whether modules are included also affects material completeness. Expansion reservation should be based on a known plan, not simply doubling the number of ports.

List optical links and power supply as separate materials

For optical links, check rate, fiber type, wavelength, transmit/receive direction and power budget; for PoE projects, also check powered device requirements, per-port capability and total device budget. The power consumption, temperature or power supply conditions when a camera starts may limit simultaneous power supply, so total power cannot be inferred from the number of ports.

Management functions should each correspond to a purpose

VLAN is used for network segmentation, multicast management is used to constrain unnecessary multicast forwarding, port statistics are used for diagnosis, and redundancy protocols are used to manage backup paths. Only by clarifying why a function is needed can you evaluate its configuration complexity and actual benefit.

Layer 3 forwarding, time synchronization or specific industrial protocol capabilities should all be checked in the specific documentation; do not infer full support from the term “industrial managed switch.” For private ring networks, especially, confirm firmware, roles and mixing boundaries; do not directly interconnect just because both are called ring networks.

Environment, power supply and actual business are verified separately; the people and test screens in the figure are only illustrative

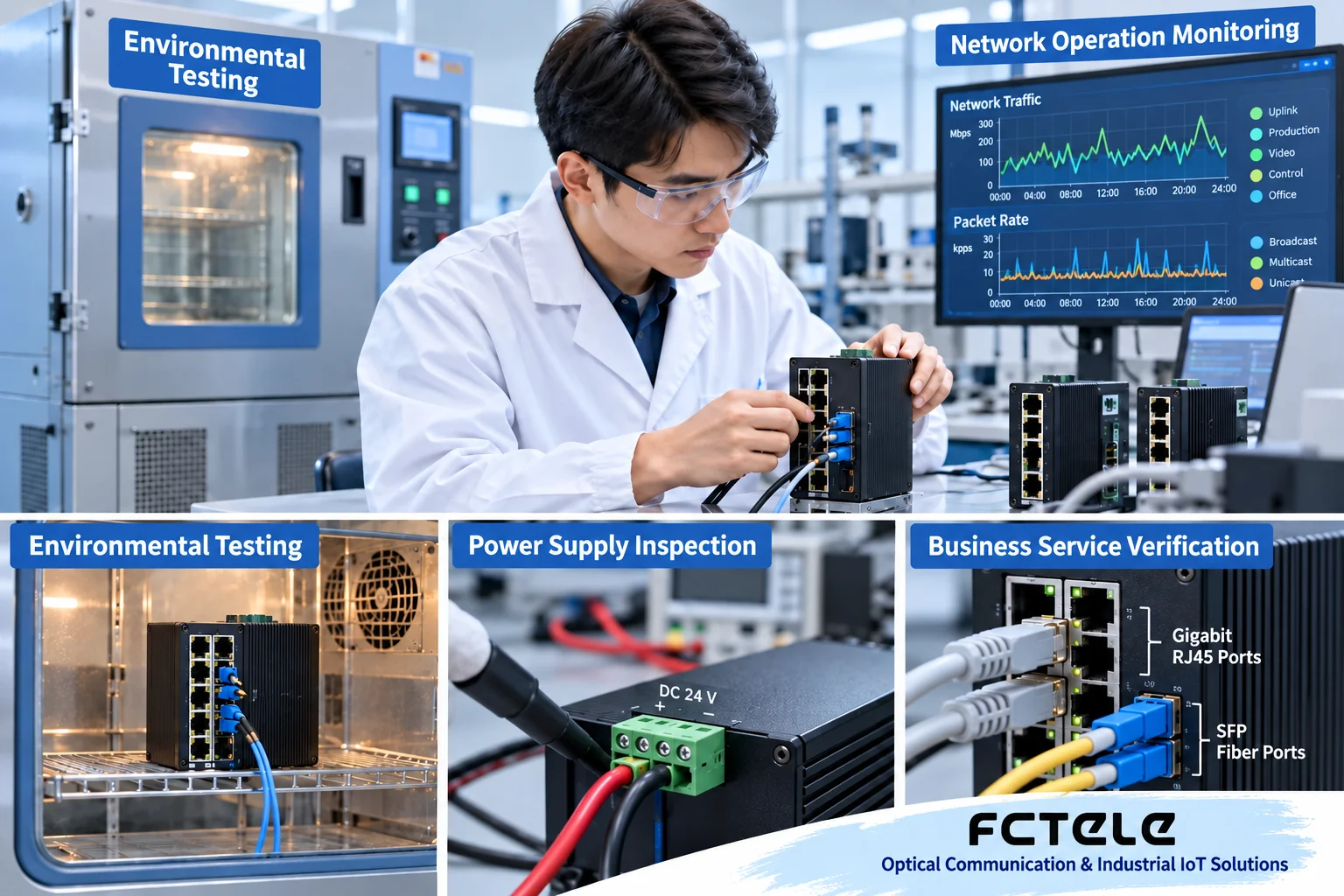

Figure 2: Environment, power supply and actual business are verified separately; the people and test screens in the figure are only illustrative. General illustration, not a product photo, measured test or construction wiring diagram.

Describe environmental requirements with measurements, not feelings

The operating temperature should correspond to the actual environment near the device, not the outdoor weather forecast or the temperature outside the cabinet. Record heat sources inside the cabinet, installation spacing, sunlight and ventilation, then check the allowed range. Fanless devices also rely on heat conduction and air flow, and should not be tightly blocked by other devices.

For power supply, check voltage range, capacity, polarity, isolation and protection. If redundant inputs share one upstream power source, there is still a common point of failure. Vibration, surge and electromagnetic compatibility materials should correspond to the specific model and test conditions; results from another device of the same brand cannot be applied.

Include long-term maintenance in the cost

Check configuration backup, logs, account permissions, firmware maintenance and spare parts supply. Complex functions need someone to maintain them; unmanaged devices may lack the information needed to locate faults. Choose according to team capability and the scope of fault impact, rather than treating the two as fixed high and low grades.

Quotation comparisons need to specify modules, power supplies, accessories, licenses and services; otherwise prices for the same port count are not comparable. It should also be clear whether the configuration can be restored when replacing a device, whether other nodes will be affected, and the on-site operation window.

Acceptance is the final selection condition

Use real concurrent services to test throughput, latency distribution, packet loss and port errors, and record load and environment. Link disconnection and power recovery should be carried out in an authorized environment, observing whether applications reconnect, rather than only seeing whether ports light up again.

Provide the above checklist before procurement, then go to Product Center to check specific models. The article does not provide evidence-free brand rankings; equipment that meets business, environmental and maintenance conditions is the suitable choice for that project.
