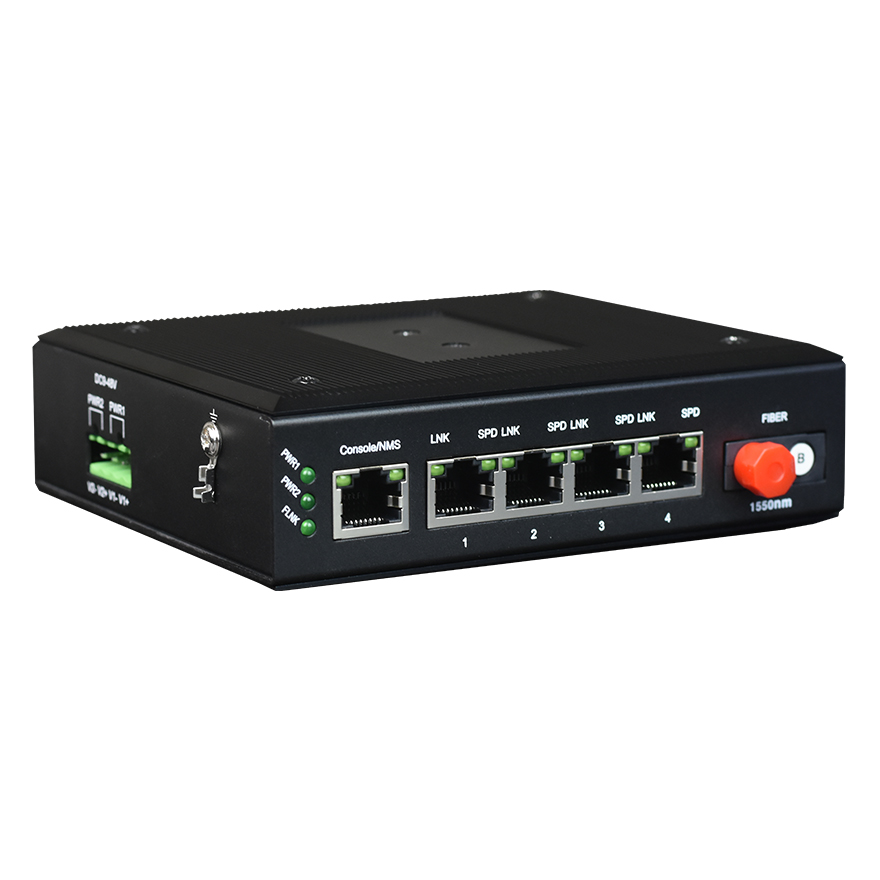

Industrial Rail 4GE Fiber Media Converter

View : 417
Type : unmanaged ethernet switch
Description :

This series of products are industrial grade 4 port 1000Base-T to 1000Base-FX conversion is mainly used for the optical fiber, optical fiber network distance (20/40/60/80/100 km) transmission

Overview

This series of products are industrial grade 4 port 1000Base-T to 1000Base-FX conversion is mainly used for the optical fiber, optical fiber network distance (20/40/60/80/100 km) transmission. This product offers 1* 1000Base-X, 4 Gigabit Ethernet port, and share the 1000M bandwidth, the bandwidth of each channel can be set by Console (Ethernet interface support VLAN,), namely Logic Isolation; 1 Console port. With the alarm function, the operation is stable and reliable, low power consumption, high integration, small size. Console function is optional, please state the requirements when in order.


Features

Industrial Ethernet series, designed for harsh industrial environments

device provides four Gigabit Ethernet ports, and share 1000Mof bandwidth, the bandwidth of each channel can be set through the Console port ;

electrical connector (RJ45 connector) to support 10/100/1000M adaptive, full / half duplex mode, MDI / MDI-X auto-detect

optical interface supports dual-fiber multi-mode, dual-fiber single-mode, single-mode single fiber three kinds of optical fiber transmission modes, SC / ST / FC interface, optional

VLAN support the transmission of long packets can support IEEE802.1Q protocol products matching switches used to support up to 10240 byte Ethernet packets;

support a wide range of AC and DC input

support internal isolation, redundant dual power inputs

Power Support overload protection, anti-reverse protection

Meet industry four electromagnetic compatibility requirements

Super Lightning features: lightning, high pressure resistant sensors, anti-surge, etc.

Fanless cooling efficiency, reduce repair time

IP40 enclosure protection rating, can withstand the test of harsh environments

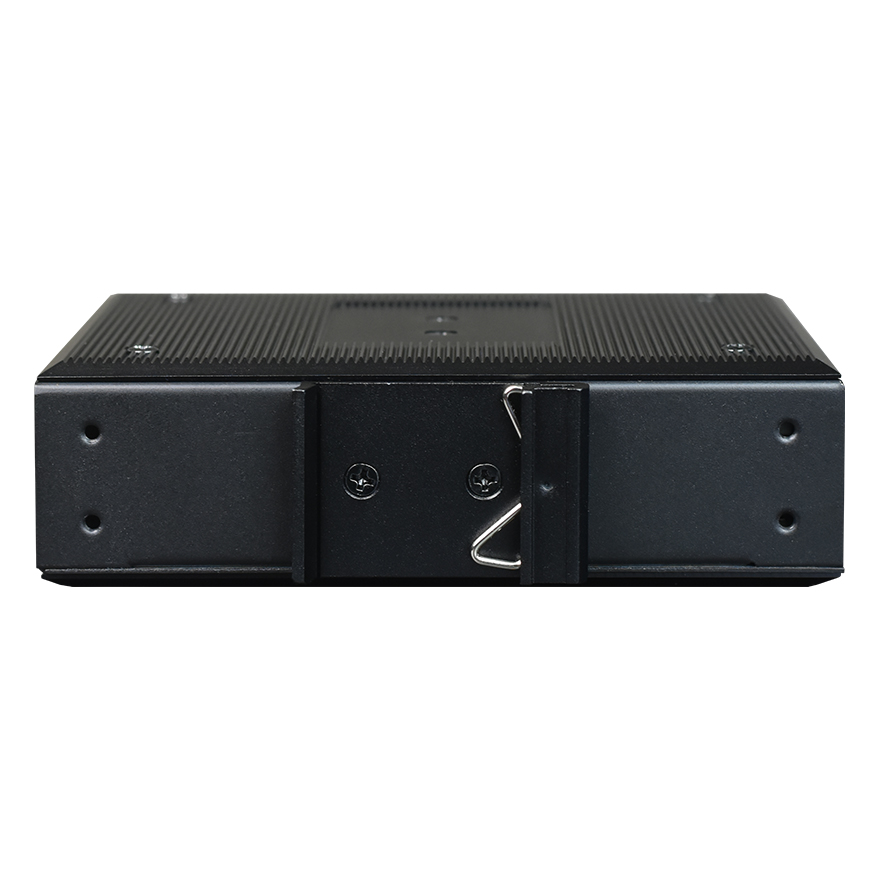

rail or wall mounting

wide temperature range: Operating temperature -40 ℃ ~ + 85 ℃

All models are tested by 100% roast machine, Warranty: 5 years

Parameters

● Fiber

Multi-mode Fiber

50/125um, 62.5/125um,

Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber,attenuation (3dbm/km)

Wave Length: 820nm

Transmitting power: -12dBm (Min) ~-9dBm (Max)

Receiver sensitivity: -28dBm (Min)

Link budget: 16dBm

Single-mode Fiber

8/125um, 9/125um

Maximum transmission distance: 40Km

Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

Wave Length: 1310nm

Transmitting power: -9dBm (Min) ~-8dBm (Max)

Receiver sensitivity: -27dBm (Min)

Link budget: 18dBm

● Ethernet interface(10/100/1000M)

Interface rate: 10/100/1000 Mbps, half/full duplex auto-negotiation

Interface Standard:     Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector:     RJ45, support Auto-MDIX

● Working environment

Working temperature: -40°C ~ 85°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 100°C

Storage Humidity: 5%~95 % (no condensation)

Specifications

Model

Model Number: FCMG-G4

Functional Description

4*GE over  Fiber,Desktop Type

Port Description

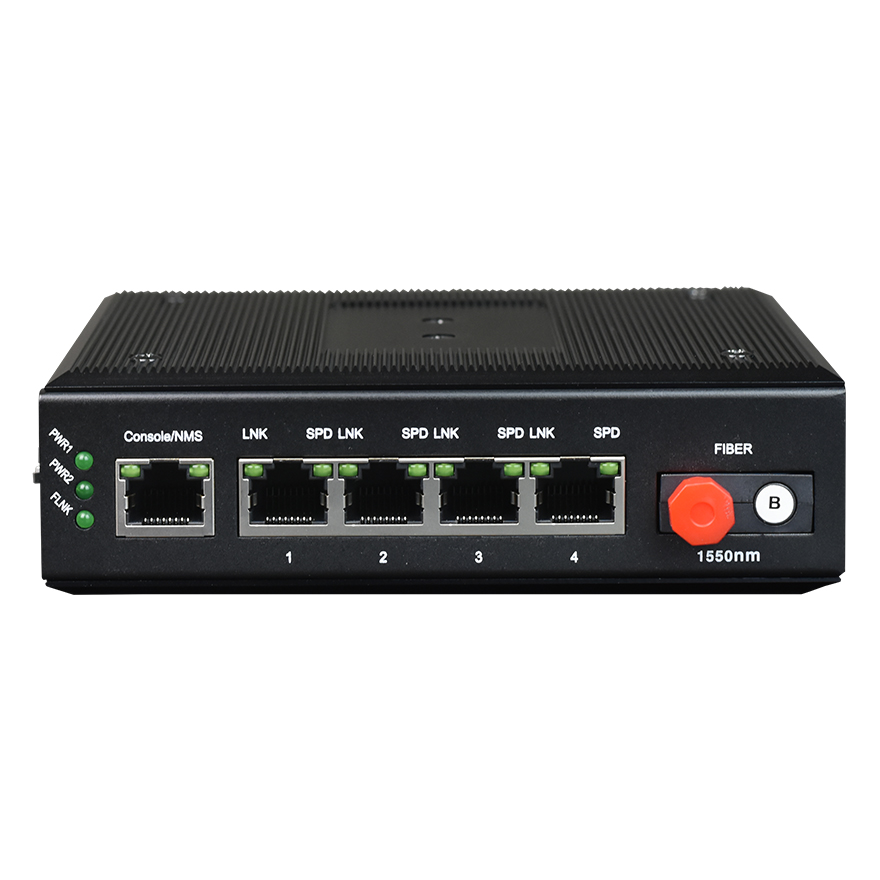

One Fiber 1000M Ethernet interface;4*GE interface, one Console interface(optional)

Power

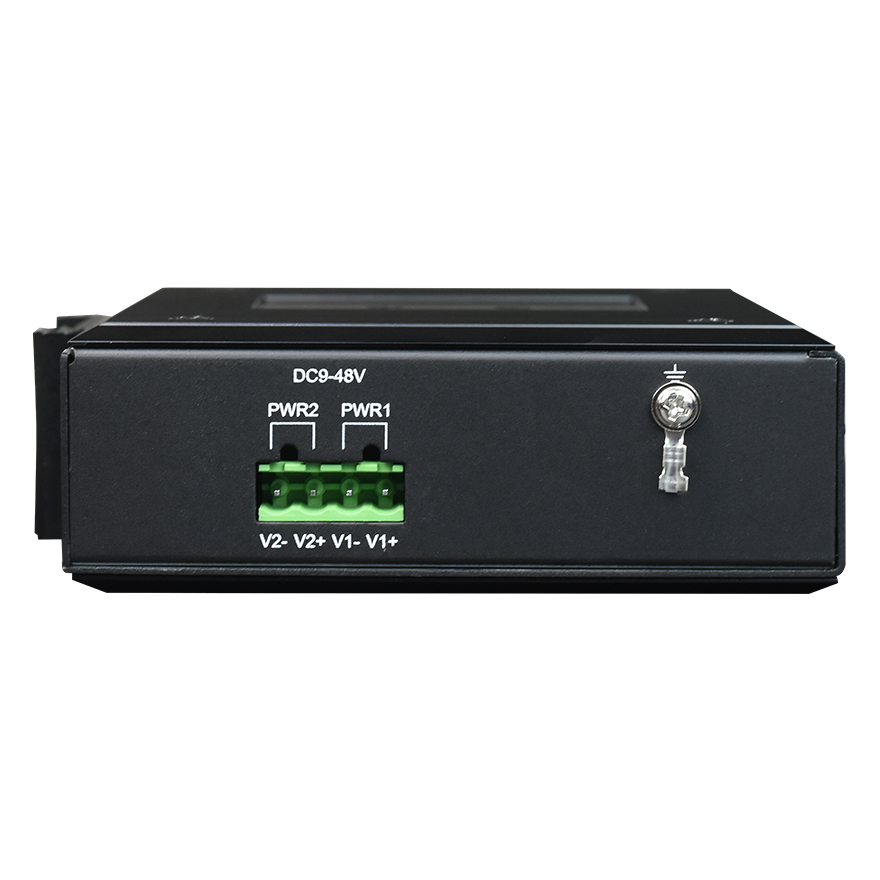

Dual redundant power inputs DC9-48V/AC9-48V, power consumption <10W

Overload Protection, Support reverse polarity protection, Support redundancy protection, Support Access Terminal 4-pin plug-in terminal pitch of 5.08mm

Dimension

Product Size: 133 X120 X40mm (WXDXH)

Weight

0.685KG

Application
